Alinx FL1010 Manuale utente

FMC to 2*40-Pin

Expansion Module FL1010

User Manual

FMC to 2*40-Pin Expansion Ports FL1010 User Manual

2/ 8

www.alinx.com

Table of Contents

Part1: FL1010 Module General Description.............................................3

Part 1.1: FL1010 Module Detail Parameter.................................. 4

Part 1.2: FL1010 Module Form Factor.......................................... 4

Part 2: FL1010 Module Function Description..........................................5

Part 2.1: FL1010 Module Block Diagram......................................5

Part 2.2: FMC LPC Module Pin Assignment............................... 5

Part 2.3: 40-Pin Expansion Ports................................................... 7

FMC to 2*40-Pin Expansion Ports FL1010 User Manual

3/ 8

www.alinx.com

Part1: FL1010 Module General Description

ALINX FMC to 2*40-Pin Expansion ports module FL1010 is to solve the

problem of users expanding the pin-type IO port on the FMC connector, which

is convenient for users to use DuPont cable or flat cable to connect to external

devices. The FL1010 board expands with 2 40-pin standard interfaces, a total

of 68 user IOs; and 6 SMA interfaces for connecting FMC transceivers.

The FMC interface of FL1010 is a standard LPC interface, used to connect

to the FPGA development board, and meets the VITA57.1 standard. The

connector model of FMC is: ASP_134604_01.

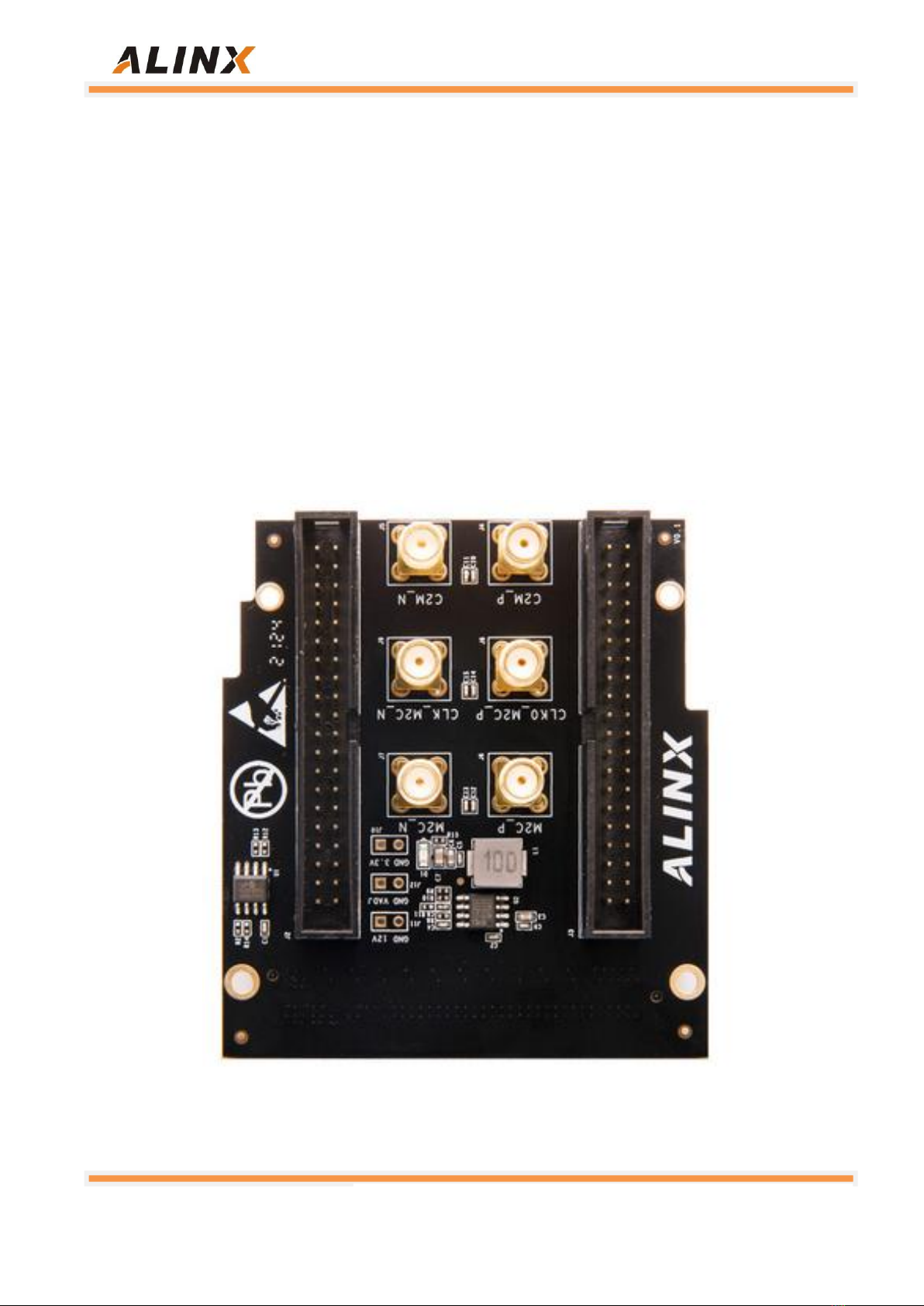

The FL1010 module is as follows:

Figure 1-1: FL1010 module

FMC to 2*40-Pin Expansion Ports FL1010 User Manual

4/ 8

www.alinx.com

Part 1.1: FL1010 Module Detail Parameter

FL1010 module detail parameter listed as below:

LPC Connectors

2*40-Pin Expansion Ports

6 SMAs, 1 DP transmission, 1 DP receiving

Part 1.2: FL1010 Module Form Factor

Figure 1-2: FL1010 Module Form Factor

FMC to 2*40-Pin Expansion Ports FL1010 User Manual

5/ 8

www.alinx.com

Part 2: FL1010 Module Function Description

Part 2.1: FL1010 Module Block Diagram

Figure 2-1: FL1010 Module Block Diagram as below:

Figure 2-1: FL1010 Module Block Diagram

Part 2.2: FMC LPC Module Pin Assignment

Only the power and interface signals are listed below, and the GND signal

is not listed. Users can refer to the schematic diagram.

FMC Pin Number

Network Name

Description

CLK1_M2C_P

Not Used

CLK1_M2C_N

Not Used

LA00_P

PIN10 of J3

LA00_N

PIN 9 of J3

LA03_P

PIN 14 of J3

G10

LA03_N

PIN 13 of J3

G12

LA08_P

PIN 20 of J3

G13

LA08_N

PIN 19 of J3

FMC to 2*40-Pin Expansion Ports FL1010 User Manual

6/ 8

www.alinx.com

G15

LA12_P

PIN 16 of J3

G16

LA12_N

PIN 15 of J3

G18

LA16_P

PIN 6 of J3

G19

LA16_N

PIN 5 of J3

G21

LA20_P

PIN 36 of J2

G22

LA20_N

PIN 35 of J2

G24

LA22_P

PIN 24 of J2

G25

LA22_N

PIN 23 of J2

G27

LA25_P

PIN 20 of J2

G28

LA25_N

PIN 19 of J2

G30

LA29_P

PIN 16 of J2

G31

LA29_N

PIN 15 of J2

G33

LA31_P

PIN 26 of J2

G34

LA31_N

PIN 25 of J2

G36

LA33_P

PIN 30 of J2

G37

LA33_N

PIN 29 of J2

G39

VADJ

VADJ Power Supply

CLK0_M2C_P

CLK0_M2C_N

LA02_P

PIN 12 of J3

LA02_N

PIN 11 of J3

H10

LA04_P

PIN 22 of J3

H11

LA04_N

PIN 21 of J3

H13

LA07_P

PIN 18 of J3

H14

LA07_N

PIN 17 of J3

H16

LA11_P

PIN 8 of J3

H17

LA11_N

PIN 7 of J3

H19

LA15_P

PIN 4 of J3

H20

LA15_N

PIN 3 of J3

H22

LA19_P

PIN 34 of J2

H23

LA19_N

PIN 33 of J2

H25

LA21_P

PIN 22 of J2

H26

LA21_N

PIN 21 of J2

H28

LA24_P

PIN 18 of J2

H29

LA24_N

PIN 17 of J2

H31

LA28_P

PIN 14 of J2

H32

LA28_N

PIN 13 of J2

H34

LA30_P

PIN 28 of J2

H35

LA30_N

PIN 27 of J2

H37

LA32_P

PIN 32 of J2

H38

LA32_N

PIN 31 of J2

H40

VADJ

VADJ Power Supply

DP0_C2M_P

SMA Connector J4

DP0_C2M_N

SMA Connector J5

DP0_M2C_P

SMA Connector J6

DP0_M2C_N

SMA Connector J7

C10

LA06_P

PIN 34 of J3

C11

LA06_N

PIN 33 of J3

C14

LA10_P

PIN 30 of J3

FMC to 2*40-Pin Expansion Ports FL1010 User Manual

7/ 8

www.alinx.com

C15

LA10_N

PIN 29 of J3

C18

LA14_P

PIN 24 of J3

C19

LA14_N

PIN 23 of J3

C22

LA18_P

PIN 6 of J2

C23

LA18_N

PIN 5 of J2

C26

LA27_P

PIN 12 of J2

C27

LA27_N

PIN 11 of J2

C30

SCL

EEPROM Clock

C31

SDA

EEPROM Data

C34

GA0

Low Bit of EEPROM Address

C35

+12V

+12V Power Supply

C37

+12V

+12V Power Supply

GBTCLK0_M2C_P

SMA Connector J8

GBTCLK0_M2C_N

SMA Connector J9

LA01_P

PIN 36 of J3

LA01_N

PIN 35 of J3

D11

LA05_P

PIN 32 of J3

D12

LA05_N

PIN 31 of J3

D14

LA09_P

PIN 28 of J3

D15

LA09_N

PIN 27 of J3

D17

LA13_P

PIN 26 of J3

D18

LA13_N

PIN 25 of J3

D20

LA17_P

PIN 4 of J2

D21

LA17_N

PIN 3 of J2

D23

LA23_P

PIN 8 of J2

D24

LA23_N

PIN 7 of J2

D26

LA26_P

PIN 10 of J2

D27

LA26_N

PIN 9 of J2

D32

+3.3V

+3.3V Power Supply

D35

GA1

The Second Bit of EEPROM Address

Part 2.3: 40-Pin Expansion Ports

The pin definition of the 40-pin header is the same as that of the ALINX

FPGA development board. PIN1, PIN37, and PIN38 are GND, PIN2 is +5V, and

PIN39 and PIN40 are 3.3V; Others are IO ports, and the level standard of IO

ports is determined by the FPGA development board.
