Allegion Locknetics WRT-K Manuale utente

47267245 Rev 07/19-a

Customer Service

For details regarding the limited warranty:

1-877-671-7011 www.allegion.com/us

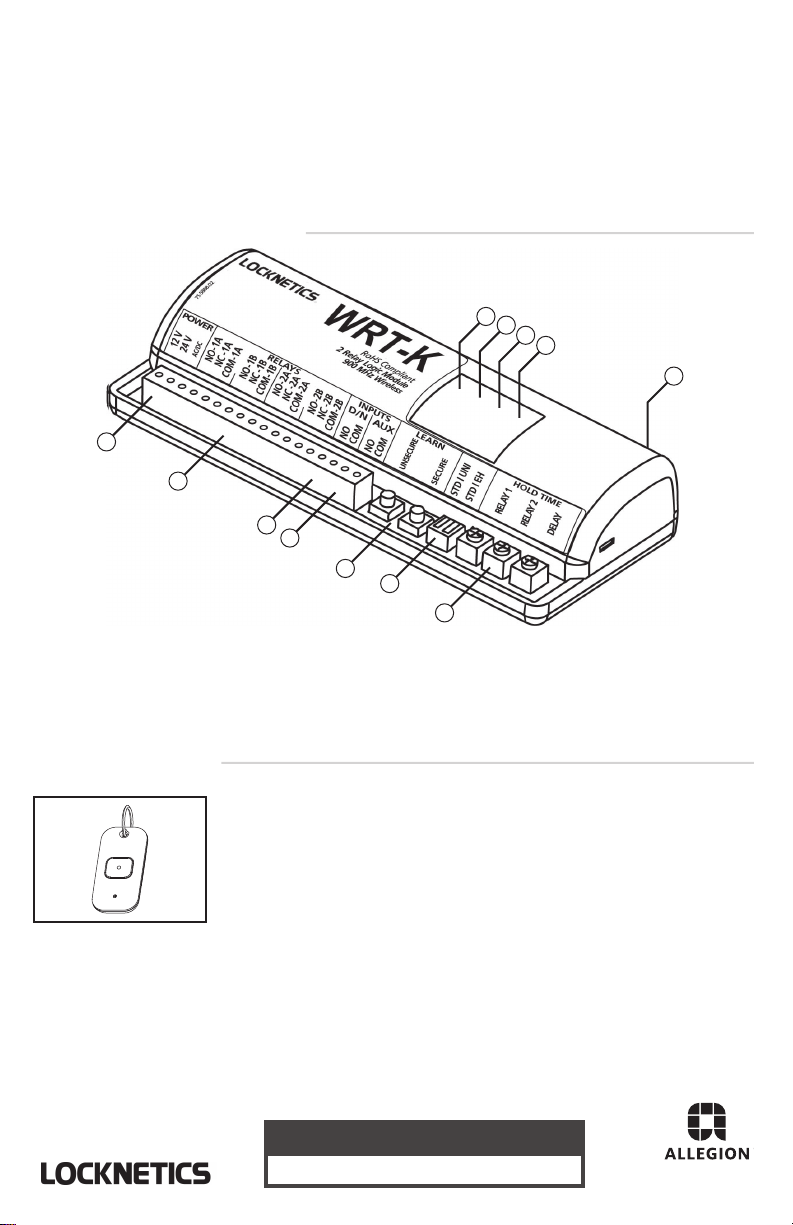

1. Power input

2. Relay outputs

3. Day/Night input

4. AUX input

5. Learn buttons

6. DIP-switches

7. Potentiometers

8. Radio frequency LED (red)

9. Relay 2 LED (white)

10. Relay 1 LED (blue)

11. Tri-color signal strength LED

12. Antenna

3 4

1-button transmitter

5 6

2 Relay Logic Module with Built-In

900 MHz Wireless Technology

(US version)

RECIEVER DESCRIPTION

STANDARD TRANSMITTER

WRT-K

Page 2 of 8

Shut off all power going to header before attempting any wiring procedures.

Maintain a clean and safe environment when working in public areas.

Constantly be aware of pedestrian trafﬁc around the door area.

Always stop pedestrian trafﬁc through the doorway when performing tests that may result in

unexpected reactions by the door.

ESD (electrostatic discharge): Circuit boards are vulnerable to damage by electrostatic discharge.

Before handling any board, ensure you dissipate your body’s ESD charge.

Always check placement of all wiring before powering up to ensure that moving door parts will

not catch any wires and cause damage to equipment.

Ensure compliance with all applicable safety standards (e.g. ANSI A156.10) upon completion of

installation.

DO NOT attempt any internal repair of the components.

Unauthorized disassembly or repair may:

1. Jeopardize personal safety and may expose one to the risk of electrical shock.

2. Adversely affect the safe and reliable performance of the product resulting in a voided

warranty.

PRECAUTIONS

INSTALLATION

1. Relay outputs 1 and 2 are DPDT: relays, 1A and 1B ﬁre simultaneously and relays 2A and 2B

ﬁre simultaneously.

2. Relays 1B and 2B are commonly used in applications with two (2) locking devices and/or with two (2)

independent door controls.

3. INPUT D/N (DAY/NIGHT mode)

when open, allows transmitters learned in both SECURE mode and UNSECURE mode to function.

when closed, only allows transmitters learned in SECURE mode to function.

4. INPUT AUX functions regardless of all other settings.

Notes:

CAUTION

Wiring

(Non-polarized)

Page 3 of 8

USER INTERFACE

DIP switches can be set to achieve desired functionality based upon speciﬁc application requirements.

Potentiometers control output relay functionality.

900 MHz wireless transmitters can be programmed (or "learned") as either UNSECURE or SECURE transmitters.

Any combination of up to 75 transmitters may be programmed.

Pressing and holding transmitter button for three (3) seconds activates signal strength LED on Br2-900.

DIP-Switches

DIP STATUS FUNCTION DESCRIPTION

STD standard

mode allows only learned/programmed transmitters in secured mode to function

UNI1universal

mode

allows learned/programmed transmitters in secured and unsecured mode

to function

STD standard

mode pressing/holding or pressing/releasing transmitter activates and holds

relay according to HOLD TIME potentiometers (single shot)

EH extended

hold

pressing/holding transmitter holds relay as long as transmitter is pressed/

held – once released, relay acts according to HOLD TIME potentiometers

NOTES:

1. Day/Night mode is overridden when DIP-switch 1 is set to UNI.

Potentiometers

Learn Buttons

BUTTON FUNCTION DESCRIPTION

UNSECURE unsecure transmitters learned transmitter functions when INPUT D/N is open or closed

SECURE secure transmitters learned transmitter only functions when INPUT D/N is open

POT FUNCTION DESCRIPTION

HOLD 1 relay 1 hold time 0.5 – 10 seconds

HOLD 2 relay 2 hold time 0.5 – 10 seconds

DELAY delay between relay 1 and relay 2 0 – 30 seconds

Signal Strength Indicator

LED COLOR DESCRIPTION

GREEN strong wireless signal

YELLOW moderate wireless signal

RED weak wireless signal

Set DIP-switches as desired.

For DIP-switch settings, please

refer to table on page 3.

Adjust potentiometers for desired delay.

Clockwise = Longer Delay.

Counter-clockwise = Shorter Delay

Default and full counter-clockwise settings = No Delay

See page 3 for descriptions.

Optional Setup

Transmitter Programming

R1 R2 DELAY

OFF

Press and release desired

Secure or Unsecure Learn

button (red LED on receiver will

illuminate).

Press transmitter twice (white TEST/CHECK

Press transmitter and verify

operation.

and blue LEDs on the receiver

will illuminate).

SET-UP

Page 4 of 8

Page 5 of 8

Vestibule applications may be installed and programmed so that either door 1 and door 2 open

simultaneously or door 1 opens ﬁrst and door 2 opens after a delay (set by HOLD TIME potentiometers).

For 2-way trafﬁc, two (2) modules are required.

Vestibule Conﬁguration

1-Way Trafﬁc (simultaneous)

Door 1 and Door 2 will open simultaneously.

1-Way Trafﬁc (sequence)

Door 1 will open and then Door 2 will open

after a delay set by DELAY potentiometer.

1-Way Trafﬁc (lock + simultaneous)

Lock(s) will unlock and then Door 1 and

Door 2 will open simultaneously.

SET-UP (CONT.)

(Non-polarized)

Page 6 of 8

3 V

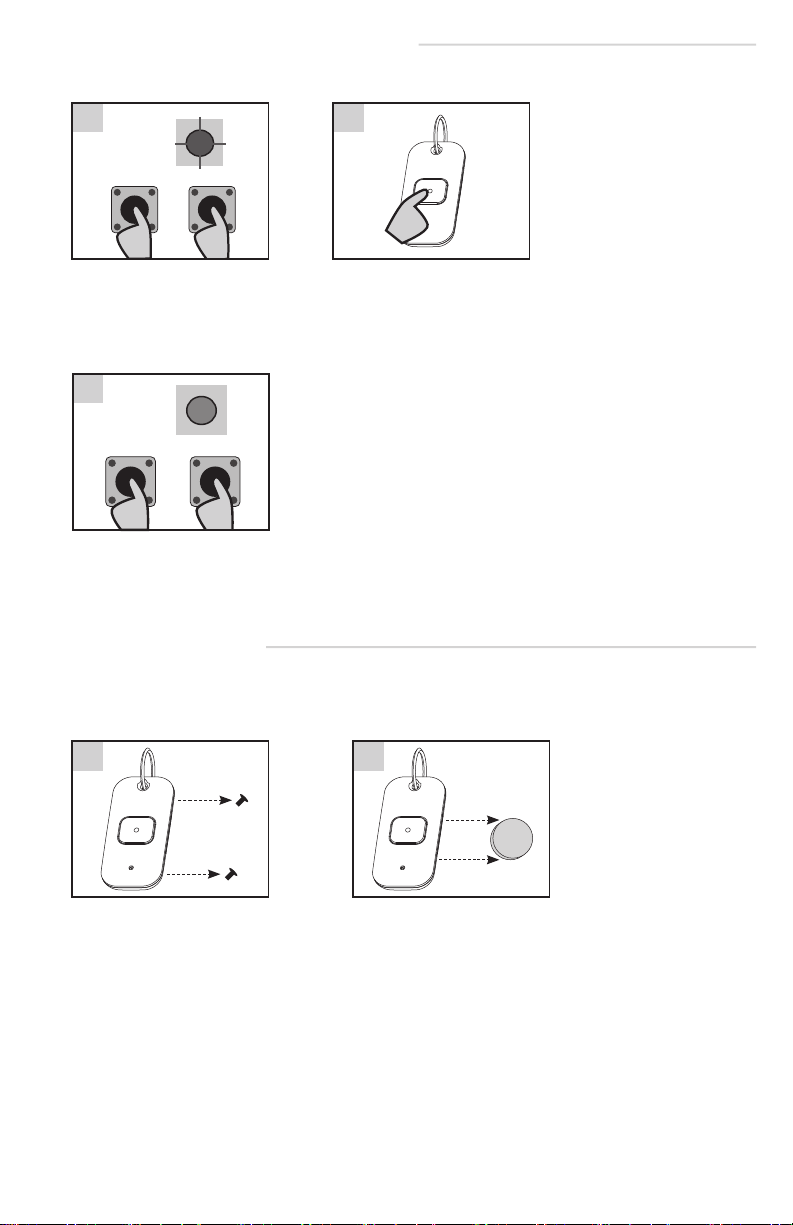

Press BOTH learn buttons on

the receiver until red LED ﬂashes

once (approximately 2 seconds).

Press BOTH learn buttons on

the receiver until blue LED illuminates

(approximately 2 seconds).

Press transmitter to be removed

TWICE within 10 seconds.

Remove back screws and

disassemble.

Replace 3 volt (CR2032) battery

observing polarity and reassemble.

A Low Battery Indicator is provided

After transmitter button is pressed, low battery is indicated by three (3) blinks of the transmitter red LED .

Removing a Single Transmitter

REMOVING TRANSMITTER PROGRAMMING

Removing All Transmitters

BATTERY REPLACEMENT

Standard Transmitter

Page 7 of 8

TROUBLESHOOTING

Receiver will not

react to any inputs

Incorrect power Verify power supply of 12 – 24 VAC/VDC

±10% is wired to correct terminals.

Not programmed Ensure a receiver is programmed with

wireless transmitter.

Incorrect wiring Verify wiring.

Defective receiver Replace receiver.

Receiver has no

output

Incorrect output devices Ensure proper devices are connected to

outputs.

Incorrect wiring Verify wiring.

Incorrect settings Verify programming and potentiometer

settings.

Defective receiver Replace receiver.

Red LED on receiver

ﬂickering; unable to

program

Faulty transmitter is

always transmitting

If LED does not go out, remove individual

transmitter batteries to determine which

transmitter is faulty, replace transmitter.

Weak signal Antenna positioned poorly Position antenna outside of door header

for better reception.

TECHNICAL SPECIFICATIONS

Supply voltage: 12 – 24 VAC / VDC ±10% (non-polarized)

Current consumption: 45 mA DC

75 mA AC

Frequency: 908 – 918 MHz (frequency hopping)

Emitted radio power: -25 dBm (TX)

Power consumption: 0.5 – 1.5 W

Transmitter capacity (per receiver):

Programmable (standard):

Universal:

unlimited

Temperature rating: -22 – 158 °F (-30– 70 °C)

Input Contacts

Day / Night

AUX

DRY contact

Output Contact rating:

Relay 1 DPDT / Relay 2 DPDT: 2 A @ 30 VDC or 2 A @ 24 VAC

LEDs: Receivers:

Blue (relay 1 activation)

White (relay 2 activation)

Red (radio frequency / learn)

Transmitters:

Receivers: Transmitters:

Tri-color (signal strength)

Red = transmitting

Red Blinking = Low Battery

Certiﬁcation: FCC, IC

Dimensions:

5.2" (W) x 1" (H) x 2.2" (D) 2.75" (W) x 0.65" (H) x 1.38" (D)

(133 mm x 25 mm x 55 mm)

Housing: ABS (white translucent)

Speciﬁcations are subject to change without prior notice. All values measured in speciﬁc conditions

Page 8 of 8

“This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful

interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.”

Changes or modiﬁcations not expressly approved by BEA Incorporated could void the user’s authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These

limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This

equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause

harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the

user will be required to correct the interference at his own expense.

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not

cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Le présent appareil est conforme aux CNR d’Industrie Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux

conditions suivantes : (1) l’appareil ne doit pas produire de brouillage, et (2) l’utilisateur de l’appareil doit accepter tout brouillage radioélectrique subi,

même si le brouillage est susceptible d’en compromettre le fonctionnement.

FCC ID: 2ABWS-10TD900HH4 IC: 4680A-10TD900HH4 MODEL: 10TD900HH1

FCC ID: 2ABWS-10TD900HH1U IC: 4680A-10TD900HH1U MODEL: 10TD900HH1U

FCC / IC

RELAIS 2

DÉLAI

TEMPS DE MAINTIEN

ALIMENTATION

75,5888.02

RELAIS

CA/CC

NF-1A

NF-1B

NF-2A

NF-2B

J/N

Module logique à 2 relais

Conforme à la directive RoHS

ᴹᴰ

ENTRÉES

NON SÉCURISÉ

PROGRAMMER

900 MHz sans fil

AUX.

SÉCURISÉ

STD

│

RELAIS 1

STD

│

UNI

Service à la clientèle

Pour plus de détails au sujet de la garantie limitée :

1-877-671-7011 www.allegion.com/us

1. Alimentation en entrée

2. Sorties des relais

3. Entrée jour/nuit

4. Entrée AUX.

5. Boutons de programmation

6. Interrupteurs à DRC

7. Potentiomètres

8. DEL de radiofréquence (rouge)

9. DEL du relais 2 (blanc)

10. DEL du relais 1 (bleu)

11. DEL tricolore d'intensité du signal

12. Antenne

3 4

Émetteur à 1 bouton

5 6

Module logique à 2 relais avec technologie

sans fil à 900 MHz intégrée

(version américaine)

DESCRIPTION DU RÉCEPTEUR

ÉMETTEUR DE BASE

WRT-K

Page 2 de 8

Coupez toute alimentation allant à la partie supérieure de la porte avant toute tentative

de branchement.

Maintenir un espace de travail propre et sûr lorsque vous travaillez dans des endroits publics.

Surveiller en permanence la circulation des piétons aux environs de la porte.

Arrêtez toujours la circulation piétonnière à travers la porte lorsque vous effectuez des

tests pouvant entraîner des réactions inattendues de la porte.

DES (décharge électrostatique) : Les cartes de circuits imprimés sont vulnérables aux

dommages causés par une décharge électrostatique. Avant de manipuler toute carte,

assurez-vous de dissiper la charge électrostatique de votre corps.

Toujours vérifier le positionnement de tous les fils avant la mise sous tension afin de s'assurer

que les pièces mobiles de la porte n'accrocheront aucun fil et n'endommageront pas le matériel.

Après l'installation, s'assurer que toutes les normes de sécurité applicables ont été respectées

(p. ex. : ANSI A156.10).

NE PAS tenter de réparation interne des composants.

Un démontage ou une réparation non autorisés peuvent :

2. nuire au rendement sûr et fiable du produit, entraînant l’annulation de la garantie.

MESURES DE PRÉCAUTION

INSTALLATION

1. Les sorties de relais 1 et 2 sont bipolaires bidirectionnelles : les relais 1A et 1B se déclenchent

simultanément et les relais 2A et 2B se déclenchent simultanément.

2. Les relais 1B et 2B sont couramment utilisés dans les applications avec deux (2) dispositifs

de verrouillage ou avec deux (2) commandes de porte indépendantes.

3. ENTRÉE J/N (mode JOUR/NUIT)

lorsqu'ouvert, permet aux émetteurs programmés en mode SÉCURISÉ et aussi en mode

NON SÉCURISÉ de fonctionner.

lorsque fermé, ne permet qu'aux émetteurs programmés en mode SÉCURISÉ de fonctionner.

4. L'ENTRÉE AUX. fonctionne indépendamment de tous les autres paramètres.

Remarques :

MISE EN GARDE

Câblage

Dispositif d'activation de contact sec

Interrupteur à clé ou autre dispositif

de contact sec

Circuit d'activation du

contrôle de porte

Dispositif de

verrouillage

12 à 24

VCA/VCC

+/- 10 %

(Non polarisé)

1. mettre en danger la sécurité personnelle et exposer à un risque de décharge électrique.

Indice

Lingue:

Altri manuali Allegion Unità di controllo

Allegion

Allegion WRT-K Manuale utente

Allegion

Allegion 8310-889 Manuale utente

Manuali Unità di controllo popolari di altre marche

Festo

Festo Compact Performance CP-FB6-E Manuale elenco delle parti

Elo TouchSystems

Elo TouchSystems DMS-SA19P-EXTME Manuale utente

JS Automation

JS Automation MPC3034A Manuale utente

JAUDT

JAUDT SW GII 6406 Series Guida rapida

Spektrum

Spektrum Air Module System Manuale utente

BOC Edwards

BOC Edwards Q Series Manuale utente

KHADAS

KHADAS BT Magic Manuale utente

Etherma

Etherma eNEXHO-IL Manuale utente

PMFoundations

PMFoundations Attenuverter Manuale utente

GEA

GEA VARIVENT Manuale utente

Walther Systemtechnik

Walther Systemtechnik VMS-05 Manuale utente

Altronix

Altronix LINQ8PD Istruzioni per il montaggio

Eaton

Eaton Powerware Series Manuale utente

WAGO

WAGO 750-407/040-000 Manuale utente

Sony

Sony CCU-590 Manuale utente

Graco

Graco 25D614 Manuale utente

Task Force Tips

Task Force Tips YE-RF-900 Manuale di programmazione

Shini

Shini SPV-U Series Manuale utente
