SPECIAL INSTRUCTIONS FOR

X571 LOCK

WITH INTERCHANGEABLE CORE

TO CORRECT OUT OF TIME CONDITION

BUTTON DOES NOT OPERATE...

OR KEY WILL NOT ROTATE CLOCKWISE...

THEN THE DOGGING BAR IS OUT OF "TIMING"

TO CORRECT—

1. TAKE OFF INNER KNOB AND ROSE,

AND REMOVE LOCK FROM DOOR.

2. ON OUTSIDE KNOB REMOVE CORE, BACK OFF

TAILPIECE ASS'Y UNTIL IT DISENGAGES FROM

KNOB CATCH.

3. PLACE DOGGING BAR IN POSITION AS

ILLUSTRATED BELOW. LOCK OUTER TRIM

BY PUSHING IN PUSH BUTTON.

4. ENGAGE TAILPIECE ASSEMBLY AND INSERT CORE.

5. RE-INSTALL LOCK ON DOOR.

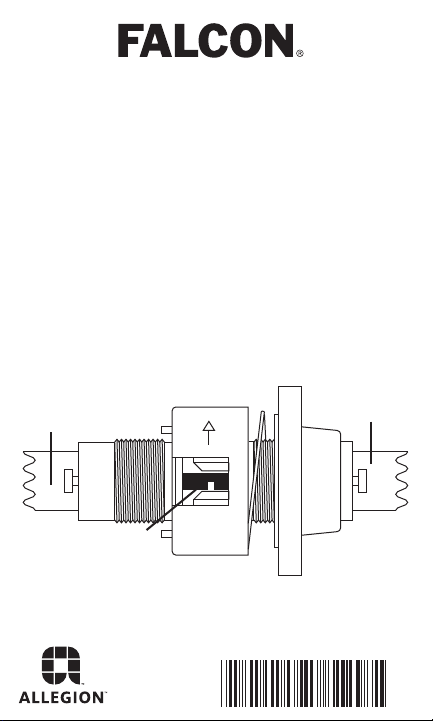

INNER SPINDLE

OUTER SPINDLE

CORRECT POSITION OF DOGGING BAR.

NOTCH IN DOGGING BAR MUST POINT DOWN INTO LOCK.

DOOR CENTER

SPECIAL INSTRUCTIONS FOR X571 LOCK

TO CORRECT OUT OF TIME CONDITION

BUTTON DOES NOT OPERATE...

OR KEY WILL NOT ROTATE CLOCKWISE...

THEN THE DOGGING BAR IS OUT OF "TIMING"

CARE MUST BE TAKEN NOT TO ROTATE EITHER

KNOB SPINDLE WHEN CYLINDER HAS BEEN REMOVED.

TO CORRECT—

1. TAKE OFF INNER KNOB AND ROSE,

AND REMOVE LOCK FROM DOOR.

2. REMOVE OUTSIDE KNOB AND CYLINDER

ASSEMBLY.

3. PLACE DOGGING BAR IN POSITION AS

ILLUSTRATED BELOW.

4. LOCK MUST BE IN THE UNLOCKED POSITION

BEFORE KNOB IS INSTALLED.

5. REPLACE OUTER KNOB AND CYLINDER ASSEMBLY

PER INSTRUCTIONS PACKAGED WITH LOCK.

6. INSTALL LOCK ON DOOR.

INNER SPINDLE OUTER SPINDLE

CORRECT POSITION OF

NOTCH IN DOGGING BAR

DOOR CENTER

©2015 Allegion

Printed in U.S.A

002376-000-70 Rev. 05/15-d
