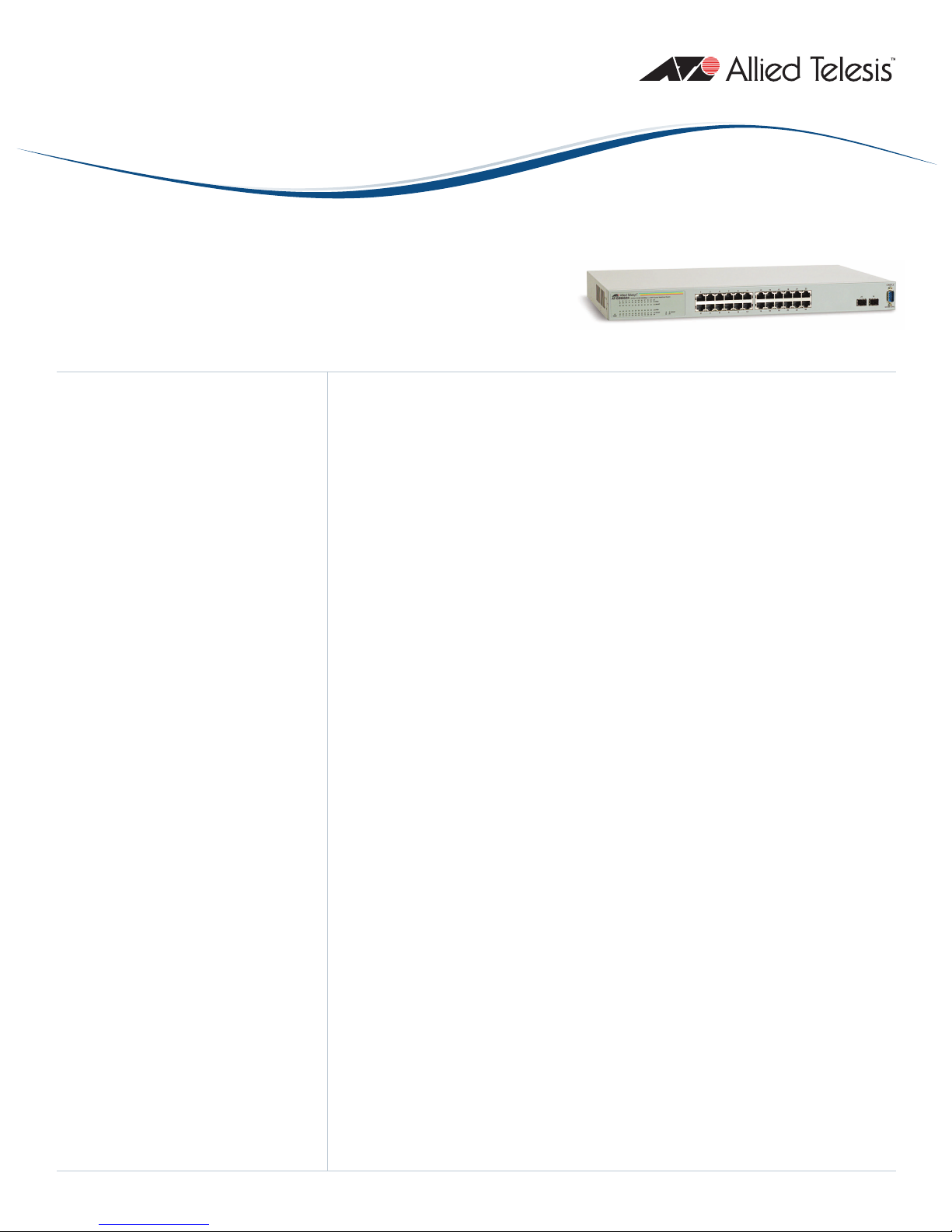

Datasheet | Switches

AT-GS950/24

24 port Gigabit WebSmart Switch

T-GS950/24-xx

24 port 10/100/1000T WebSmart switch

with 2 SFP combo ports

Performance

Allied Telesis’ WebSmartswitch integrates the

simplicity of unmanaged switches with the

performance and reliability of managed switches

to provide a cost-effectivesolution for users

to integrate management at the edge of their

network.This WebSmart switch provides a

network manager some key features using

the simple web-based management function

such as; port-based VLANs, IEEE 802.1p QoS,

porttrunking/link aggregation, port mirroring,

priority queues and IEEE 802.1x security

support. With support of up to 8K MAC

addresses and a 2MB packet buffer the

AT-GS950/24 WebSmart switch is an ideal

option for integrating management into your

network solution.

Value

Never thought you could afford managed

switches in your network? Always wanted to

provide management functionality at the edge?

Now’s your chance. Allied Telesis’ WebSmart

switch truely helps network managers get the

most value for their dollar. With industry

standard protocols, fiber media support via

the SFP's and simple Plug & Playusability

right out of the box how can you go wrong

implementing this cost-effective solution into

your network?

Quality and Reliability

Allied Telesis is a worldwide leader in

unmanaged Ethernet switches. Shipping more

than 250,000 unmanaged switches each year,

Allied Telesis offers proven reliability and

industry recognized quality.

Key Features

VLAN

•VLAN ID’s available: 4K

•Max VLANs: 200 tagged + 56 port-based

Quality of Service Classification

•IEEE 802.1p tagging

•Port-based priority

•Four priority queues per port

IP Multicast Support(IPv4)

•IGMP snooping (v1/v2)

•Static multicast group

•Spanning-Tree, IEEE 802.1d/w

IEEE 802.3ad Link Aggregation

•Manual

IEEE 802.1x Port-based and MAC-based

Network Access Control

•Local authentication server (MD5 only)

•Remote authentication through RADIUS

•Dynamic VLAN assignment

•RADIUS client for IEEE 802.1x

•DHCP client

•Statistics charts in Web

Others

•IEEE 802.3x flow control or *HOL blocking

Prevention (*when flow control is off)

•Port mirroring

•Destination MAC filtering

•Ingress/egress rate limiting

•Broadcast storming control

•100FX SFP support

•Switch fabric - non-blocking, full wirespeed

Management Features

•Firmware upgrade by FTP and Web

•Configuration back-up/restore by FTP

•Factoryreset

•Password access control and restricted IP

access list

•SNMPv1/v2c

MIBs

•RFC 1213 MIB-II

•RFC 1643 Ethernet MIB

•RFC 1493 Bridge MIB

•Private Enterprise MIB (Allied Telesis provides

the spec)

RMON Groups (1, 2, 3, 9)

•Stats

•History

•Alarms

•Events

USA Headquarters |19800 North Creek Parkway |Suite 100 |Bothell |WA 98011 |USA |T: +1 800 424 4284 |F: +1 425 481 3895

Asia-Pacific Headquarters |11 Tai Seng Link |Singapore |534182 |T: +65 6383 3832 |F: +65 6383 3830

www.alliedtelesis.com

©2009 AlliedTelesis Inc. All rights reserved. Information in this document is subject to change without notice. All company names, logos, and product designs that are trademarks or registered trademarks are the property of their respective owners. 617-000104 Rev. O

AT-GS950/24 |24 port Gigabit WebSmart Switch

Performance

14,880pps for 10Mbps Ethernet

148,800pps for 100Mbps Ethernet

1,488,000pps for 1000Mbps Ethernet

MAC addresses 8K

VLAN ID’s available 4K

Max VLANs 200 tagged + 56 port-based

Multicast Up to 32 static multicast

groups

Packet buffer 2MB

DRAM 16MB

Flash 4MB

Switch memory 2MB embedded

Switching capacity 48Gbps

Throughput 35.7Mpps

Power Characteristics

Voltage 100-240V AC

Frequency 50/60Hz

Interface Connections

10/100/1000T RJ-45

SFP 100TX, 100FX, 1000T,

1000SX or 1000LX

Environmental Specifications

Operating temp. 0°C to 45°C

(32°F to 113°F)

Non-operating temp. -20°C to 70°C

(-4°F to 158°F)

Operating humidity 5% to 90% non-condensing

Storage humidity 5% to 95% non-condensing

Vibration IEC 68-2-36

Shock IEC 68-2-29

Drop IEC 68-2-32

Technical Specifications

Physical Characteristics

Dimensions 44cm x 25.7cm x 4.32cm

(17.3 x 10.1 x 1.7 in)

Weight 3.24kg (7.15 lbs)

Wall-mount or Desktop

All units come with wall / 19” rack-mount brackets

Standards and Compliance

IEEE 802.3 CSMA/CD

IEEE 802.3i 10T

IEEE 802.3u 100TX

IEEE 802.3z 1000SX/LX

IEEE 802.3z/ab 1000T

IEEE 802.3x Flow control

IEEE 802.1p Prioritization (four queues)

IEEE 802.1x Authentication

IEEE 802.1d Bridging

IEEE 802.3ad Link aggregation

IEEE 802.1Q Tagged VLAN

IEEE 802.1d/w Spanning-Tree

Rapid Spanning-Tree

Electrical/Mechanical Approvals

UL 1950

FCC/EN55022 Class A

VCCI Class A

C-Tick

EN60950 (TUV)

EN55024

CSA / CUL

MTBF

187,805 hours

Bellcore TR332

Ordering Information

AT-GS950/24-xx

24 port 10/100/1000T WebSmart switch

with 2 SFP combo ports

Where xx = 10 for US power cord

20 for no power cord

30 for UK power cord

40 for Australian power cord

50 for European power cord

Product Contents

Switch unit

Rack-mount brackets and screws

Power cord

User manual/install guide on CD

Rubber feet
