Allied Telesis AT-8116 Manuale utente

AT-8116

Fast Ethernet Intelligent Switch

Installation Guide

PN 613-10691-00 Rev A



1998 Allied Telesyn International Corp.

permission from Allied Telesyn International Corp.

Ethernet is a registered trademark of Xerox Corporation. UNIX is a registered

trademark in the United States and other countries licensed exclusively through X/

Open Company Limited. Novell and NetWare are registered trademarks of Novell, Inc.

Microsoft and MS-DOS are registered trademarks and LAN Manager and Windows for

Workgroups are trademarks of Microsoft Corporation. 3Com is a registered trademark

of 3Com. PC-NFS is a trademark of Sun Microsystems, Inc. PC/TCP is a registered

trademark of FTP Software, Inc. DECnet is a registered trademark of Digital

Equipment Corporation.All other product names, company names, logos or other

designations mentioned herein are trademarks or registered trademarks of their

respectives owners.

Allied Telesyn International Corp. reserves the right to make changes in speciﬁcations

and other information contained in this document without prior written notice.The

information provided herein is subject to change without notice. In no event shall Allied

Telesyn International Corp. be liable for any incidental, special, indirect, or

consequential damages whatsoever, including but not limited to lost proﬁts, arising out

of or related to this manual or the information contained herein, even if Allied Telesyn

International Corp. has been advised of, known,or should have known, the possibility of

such damages.

iii

Electrical Safety and Installation

Requirements

STANDARDS

: This product meets the following standards.

RFI Emission EN55022 Class A

WARNING

: In a domestic environment this product may cause radio interference in which

case the user may be required to take adequate measures.

Immunity EN50082-1

Electrical Safety EN60950, UL1950

SAFETY

ELECTRICAL NOTICES

WARNING

: ELECTRIC SHOCK HAZARD

To prevent ELECTRIC shock, do not remove cover. No user-serviceable parts inside. This

unit contains HAZARDOUS VOLTAGES and should only be opened by a trained and qualiﬁed

technician. To avoid the possibility of ELECTRIC SHOCK disconnect electric power to the

product before connecting or disconnecting the LAN cables.

U.S. Federal Communications Commission

RADIATED ENERGY

Note: This equipment has been tested and found to comply with the limits for a Class A

digital device pursuant to Part 15 of FCC Rules. These limits are designed to provide

reasonable protection against harmful interference when the equipment is operated in a

commercial environment. This equipment generates, uses, and can radiate radio

frequency energy and, if not installed and used in accordance with this instruction

manual, may cause harmful interference to radio communications. Operation of this

equipment in a residential area is likely to cause harmful interference in which case the

user will be required to correct the interference at his own expense.

Note: Modiﬁcations or changes not expressly approved of by the manufacturer or the

FCC, can void your right to operate this equipment.

Canadian Department of Communications

This Class A digital apparatus meets all requirements of the Canadian Interference-

Causing Equipment Regulations.

Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le

matériel brouilleur du Canada.

Electrical Safety and Installation Requirements

LIGHTNING DANGER

DANGER

: DO NOT WORK on equipment or CABLES during periods of LIGHTNING

ACTIVITY.

INSTALLATION

ELECTRICAL—TYPE CLASS 1 EQUIPMENT

THIS EQUIPMENT MUST BE EARTHED. Power plug must be connected to a properly wired

earth ground socket outlet. An improperly wired socket outlet could place hazardous

voltages on accessible metal parts.

ELECTRICAL—CORD NOTICE

Use power cord, maximum 4.5 meters long, rated 6 amp minimum, 250V, made of HAR

cordage molded IEC 320 connector on one end and on the other end a plug approved by the

country of end use.

CAUTION

: Air vents must not be blocked and must have free access to the room ambient air

for cooling.

FUSE RATING

For continued protection against risk of ﬁre replace only with the same type and rating of

fuse.

OPERATING TEMPERATURE

This product is designed for a maximum ambient temperature of 40 degrees C.

ALL COUNTRIES

: Install product in accordance with local and National Electrical Codes.

Table of Contents

Electrical Safety and Installation Requirements

..................................iii

Chapter 1

Introduction

.....................................................................................................1

Description...........................................................................................................1

Theory of Operation.............................................................................................2

Features...............................................................................................................2

Front Panel..........................................................................................................3

Rear Panel............................................................................................................4

Power Connection................................................................................................4

Chapter 2

Installation

.......................................................................................................5

Verifying Package Contents................................................................................5

Installing the AT-8116........................................................................................5

Rack Mounting ....................................................................................................6

Network Connections..........................................................................................6

Connecting an Ethernet Device to a 10Base-T or 100Base-TX Port.........6

Chapter 3

Applications and Configurations

................................................................9

Applications.........................................................................................................9

Typical Applications............................................................................................9

Configuring Your Network................................................................................11

Links Between Switches............................................................................11

Device Configuration.........................................................................................11

Appendix A

Technical Specifications

.............................................................................13

Appendix B

Technical Support Fax Order

....................................................................15

Appendix C

Where To Find Us

..........................................................................................17

Chapter 1

Introduction

The AT-8116 is a high-performance 10/100Mbps switch representing

the next generation in switching technology. The AT-8116 employs

highly-integrated ASIC technology and a Gigabit/sec backplane to

significantly boost network performance. Its high density and

performance combine with exceptional functionality, such as RMON

support, VLAN capabilities and Full Duplex switching, to achieve

optimal network switching without expensive changes to the desktop

PC or cabling system. The AT-8116 exemplifies the design flexibility

which enables deployment as both a departmental and enterprise

switch, while enhancing network connectivity.

Description

The AT-8116 high-density switch features 16 dual-speed 10/100 UTP

ports with auto-sensing. Highly-integrated ASIC technology enables a

maximum throughput of over 2,000,000pps and 1.6 Gbps.

The switch boasts extensive management capabilities, such as the

ability to access the learning table and per/port counter statistics, and

to set configurations. Built-in RMON support for Groups 1, 2, 3, and 9

allows in-depth analysis of traffic flow, while implementation of the

Spanning Tree Algorithm prevents broadcast loops and provides fail-

safe network redundancy.

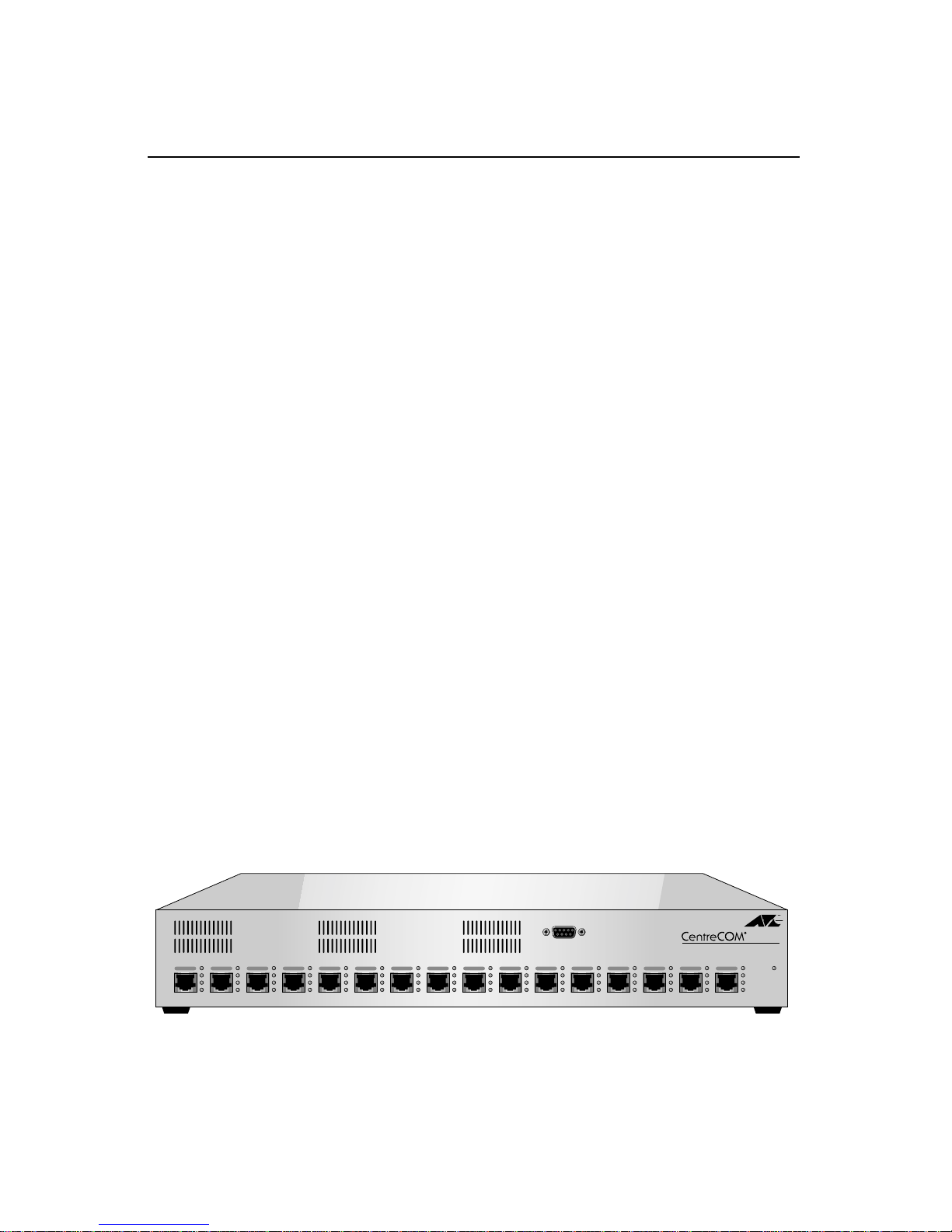

Figure 1:

AT-8116 Front View

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 POWER

100M

COLN/FULL DUP

LINK

ACT

8116

10BASE-T/100BASE-TX 16 PORT ETHERNET SWITCH with Management

TERMINAL

RS232C

Introduction

Theory of Operation

Ethernet segment switches divide a large local network into smaller

segments, insulating each from the other’s local traffic and increasing

aggregate bandwidth, while still retaining full connectivity. The AT-

8116 is designed to be self-configuring and extremely fast, making

installation simple and providing an increase in available bandwidth.

The switch learns on which port stations are located by remembering

the source address of every packet received on every port. When

packets are received for stations that the switch has learned, they will

be forwarded to only the port on which the station is located. This is in

contrast to a hub, which sends every packet to every port.

If the switch receives a packet addressed to a station which the switch

has not learned, the packet is sent to every port, except the port on

which it was received, just as a hub would. This insures that full

connectivityismaintained.ThehighportdensityoftheAT-8116allows

for dedicated high-performance workstation links.

Features

❑

Complies with IEEE 802.3 and IEEE 802.3u standards

❑

Sixteen auto-sensing 10/100Mbps UTP ports

❑

All ports operate at wire speed with an aggregate throughput

of over 2,000,000pps

❑

Employs highly-integrated ASIC technology; high-speed

backplane design; 8 MB of buffer memory

❑

Learning table for up to 8K Mac address entries

❑

Terminal-based Command Line Interface (CLI) management

❑

Spanningtreealgorithmpreventsbroadcastloopsandprovides

fail-safe network redundancy

❑

Port-based VLAN supports broadcast domain VLANs to

eliminate network-clogging broadcast storms

AT-8116 Installation Guide

Front Panel

The front panel of the AT-8116 is illustrated below in Figure 2. The

following tables describe its various LEDs and components and their

functions.

Figure 2:

AT-8116 Front Panel

Table 1:

AT-8116 LEDs and Ports

LED Color Description

100M Green

indicates 100Mbps mode

COLN/

FULL DUP Yellow or

Green Yellow

Blinking

for port collision; Green

when

port is conﬁgured for Full Duplex

LINK Green

indicates a valid link connection

ACT Green

Blinking

indicates port activity

Power Green

indicates normal operation mode

Table 2:

RJ45 and RS232 Ports

RJ45 16, RJ45 10/100 Mb UTP ports

RS232 One, RS232 connection for NMS

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 POWER

100M

COLN/FULL DUP

LINK

ACT

8116

10BASE-T/100BASE-TX 16 PORT ETHERNET SWITCH with Management

TERMINAL

RS232C

RS232C 100M

COLN/Full DUP

LINK

ACT

Power

Introduction

Rear Panel

ThepowerconnectionandON/OFFswitcharelocatedontherearpanel

of the AT-8116. The two fan holes MUST be kept unobstructed.

Power Connection

Plug the power cord into an easily accessible outlet and turn on the ON/

OFF switch.

Altri manuali per AT-8116

Indice

Altri manuali Allied Telesis Interruttore

Allied Telesis

Allied Telesis AT-SB4004 Manuale utente

Allied Telesis

Allied Telesis AT-8100L/8POE-E Manuale utente

Allied Telesis

Allied Telesis AT-FS705EFC Manuale utente

Allied Telesis

Allied Telesis CentreCOM GS970M Series Manuale utente

Allied Telesis

Allied Telesis AT-IX5-28GPX Manuale utente

Allied Telesis

Allied Telesis AT-9924SP Manuale utente

Allied Telesis

Allied Telesis AT-RH505BE Manuale utente

Allied Telesis

Allied Telesis CentreCOM AT-3714F Manuale utente

Allied Telesis

Allied Telesis AT-x230-10GP Manuale utente

Allied Telesis

Allied Telesis AT-SB*908 GEN2 Manuale utente

Allied Telesis

Allied Telesis x530 Series Manuale utente

Allied Telesis

Allied Telesis AT-FS201 Series Manuale utente

Allied Telesis

Allied Telesis AT-8624T/2M, AT-8624PoE Manuale di installazione e funzionamento

Allied Telesis

Allied Telesis AT-IX5-28GPX Manuale utente

Allied Telesis

Allied Telesis x330-52GTX Manuale utente

Allied Telesis

Allied Telesis 4000 Series Manuale di istruzioni

Allied Telesis

Allied Telesis AT-FS709FC Manuale utente

Allied Telesis

Allied Telesis AT-9800 Series Manuale di istruzioni

Allied Telesis

Allied Telesis AT-9424T/POE Manuale utente

Allied Telesis

Allied Telesis AT-IX5-28GPX Manuale utente

Allied Telesis

Allied Telesis AT-8000S/24POE Manuale utente

Allied Telesis

Allied Telesis Extricom AT-EXMS-1000 Manuale utente

Allied Telesis

Allied Telesis 8100L Series Manuale utente

Allied Telesis

Allied Telesis x510 Series Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
