Alloy POEFE404 Manuale utente
POEFE404
8 Port Fast Ethernet Switch with 4 POE
Ports
Version 1.01
Date: 26 September 2005
1. Overview
The POEFE404 is an 8 port Fast Ethernet switch with 4x IEEE 802.3af
compliant 10/100Mbps POE ports and 4 standard ports
The unit is designed in a robust metal casing suitable for use in almost any
environment - Desktop, Rackmount (with add on brackets) or Industrial
applications.
Store-and-Forward switching technology is used to provide the highest level
or reliability and performance for your networking needs.
The POE functionality allows for simplified deployment of IEEE802.3af
compliant POE devices, like VOIP handsets, wireless LAN equipment or
security cameras. Each port can provide up to 15.4Watts of PoE power. The
PoE standard specifies an isolated DC power applied to the network cable to
power remote PoE compliance devices up to a maximum distance of 100
Meters. The power applied to the cable is transparent to non PoE devices.
2. Checklist
Before you start installing the POE Switch, please verify that the package
contains the following items.
- The 8 Port Fast Ethernet Switch with 4 POE Ports
- AC Power Cord
- CD containing this manual
Please notify your sales representative if any of the above items are missing
or damaged.
Fig. 1 8 Port Fast Ethernet Switch with 4 POE

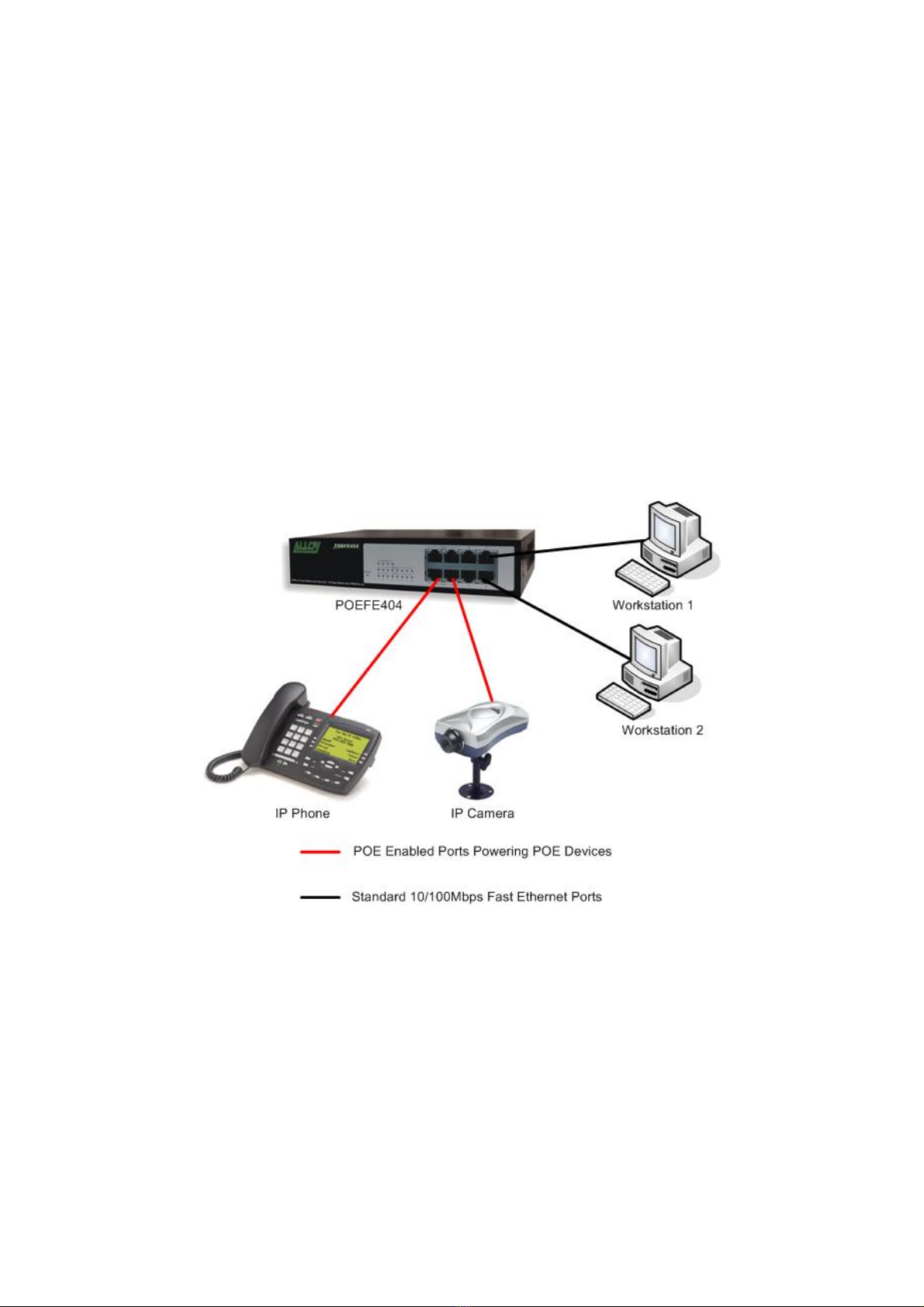

3. Installing the Switch
With ease of installation in mind, the Alloy POEFE404 Fast Ethernet POE
switch will fit seamlessly in to any new or existing network infrastructure. With
Auto MDI/MDI-X auto cross over support on all 8 ports the need for both
straight through and cross over cables are a thing of the past.
ÖUse Cat. 5 grade RJ-45 cable or better to connect the POEFE404
switch to a network aware device, such as a workstation or server.
ÖRepeat the above step as needed to connect up to 8 networking
devices to the POEFE404.
ÖFor Fast Ethernet connections Cat.5 or Cat. 5e cable must be used
with a maximum distance of 100m.
ÖInsert the power cord in to the POEFE404 to supply power to the unit.
ÖIf you are connecting a PD device that will draw power from the
POEFE404 device please ensure that you plug the cable into one of
the four PSE ports. (Ports 1 to 4)
RJ-45 Jack
Endpoint
Cat. 5 Cable
4. LED Description
LED Colour Function
Power Green Lit when power is present
Ports 1 to 8
POE Act (Port 1 to 4) Green Lit when the Port is feeding power
Link/Act Green Lit when link is present
Blinks when traffic is present
10/100Mbps Green Lit when 100Mbps speed is active
Off when 10Mbps speed is active
8 Port Fast Ethernet Switch + 4 Fast Ethernet POE Ports
POEFE404
Fig. 3 Front View of the 8-Port Fast Ethernet Switch with 4 POE Ports
Fig. 4 Rear View of the 8-Port Fast Ethernet Switch with 4 POE Ports
5. Specifications
Standards: IEEE 802.3/802.3u/802.3x
IEEE 802.3af Power over Ethernet
Transmission: 10/100Mbps supports full or half duplex
Data Transfer Rate: 100Mbps: 148,800 PPS
10Mbps: 14,880 PPS
MAC Address: Up to 1K
Buffer Memory: 96Kbyte on chip frame buffer
Flow Control: IEEE 802.3x compliant for full-duplex
Backpressure flow control for half-duplex
Switching Method: Store & Forward
Network Interface: 8x 10/100Mbps RJ-45 ports
UTP Cable: 10Base-T: UTP Cat. 3, 4, 5 or up
100Base-TX: UTP Cat. 5 or up
PSE Power
Feeding Support: (Ports 1 to 4) Endpoint via pin 1, 2, 3, 6
Diagnostic LED’s: System LED: Power
POE LED: POE Act (Port 1 to 4)
Per Port LED: Link/Act, 10/100Mbps
Voltage: 100 – 240VAC
Frequency: 50 – 60Hz
Power
Consumption: Max. 4W (No PD Connected)
Max. 65W (with 4 15.4W POE devices connected)
Operating Temp: 0° to 40°C
Operating
Humidity: 10% to 90%
Storage Temp: 0° to 40°C
Humidity: 5% to 95%
Dimensions: 44(H) x 220(W) x 130.5(D) mm
Complies with FCC Part 15 Class A, CE Mark Approval, C-Tick
