Alware Landing Gear
Type A for Phantom 1 / 2
Assembly Manual
WWW.ALWARERC.COM
All manuals and user guides at all-guides.com
all-guides.com

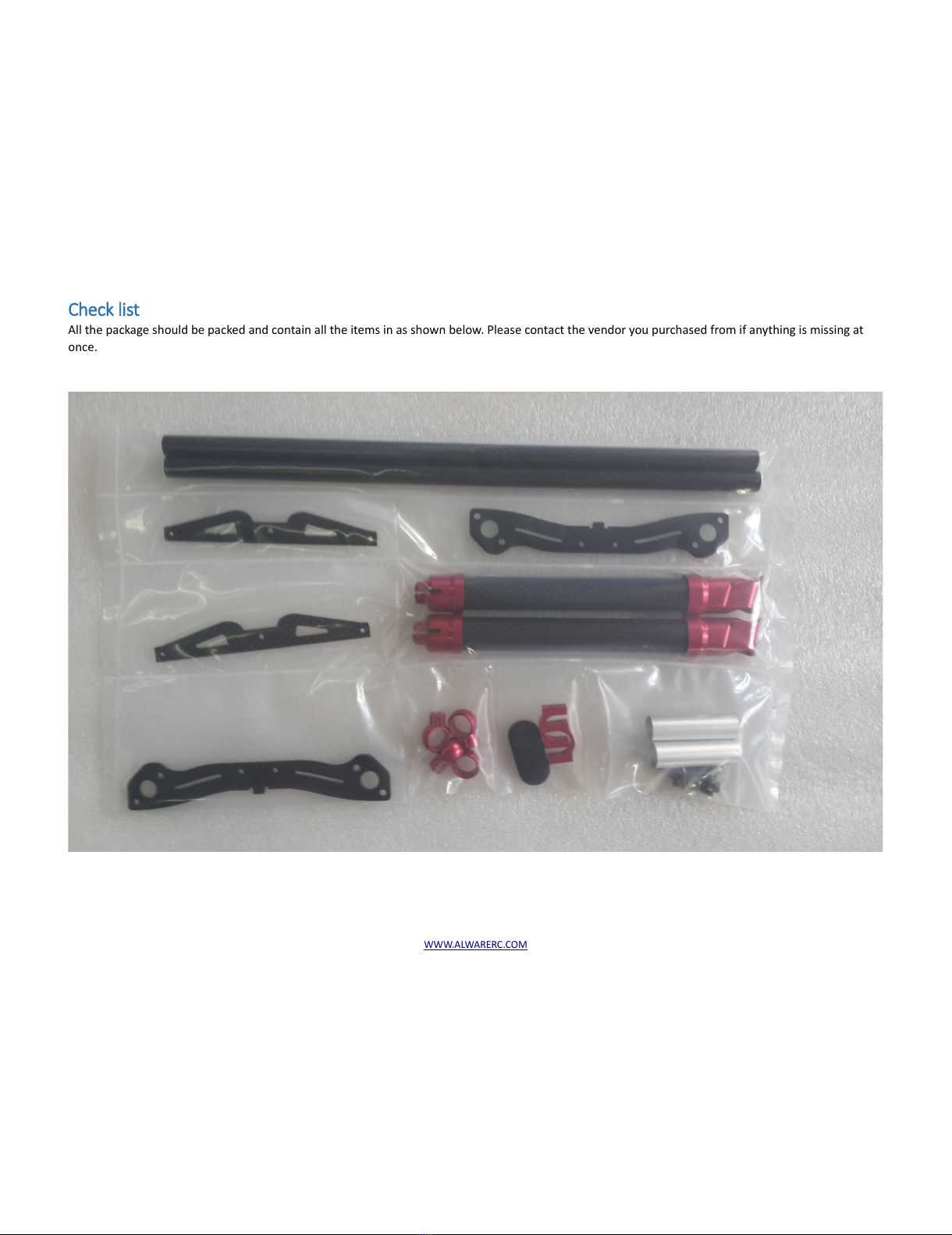

Check list
All the package should be packed and contain all the items in as shown below. Please contact the vendo you pu chased f om if anything is missing at
once.
WWW.ALWARERC.COM
All manuals and user guides at all-guides.com

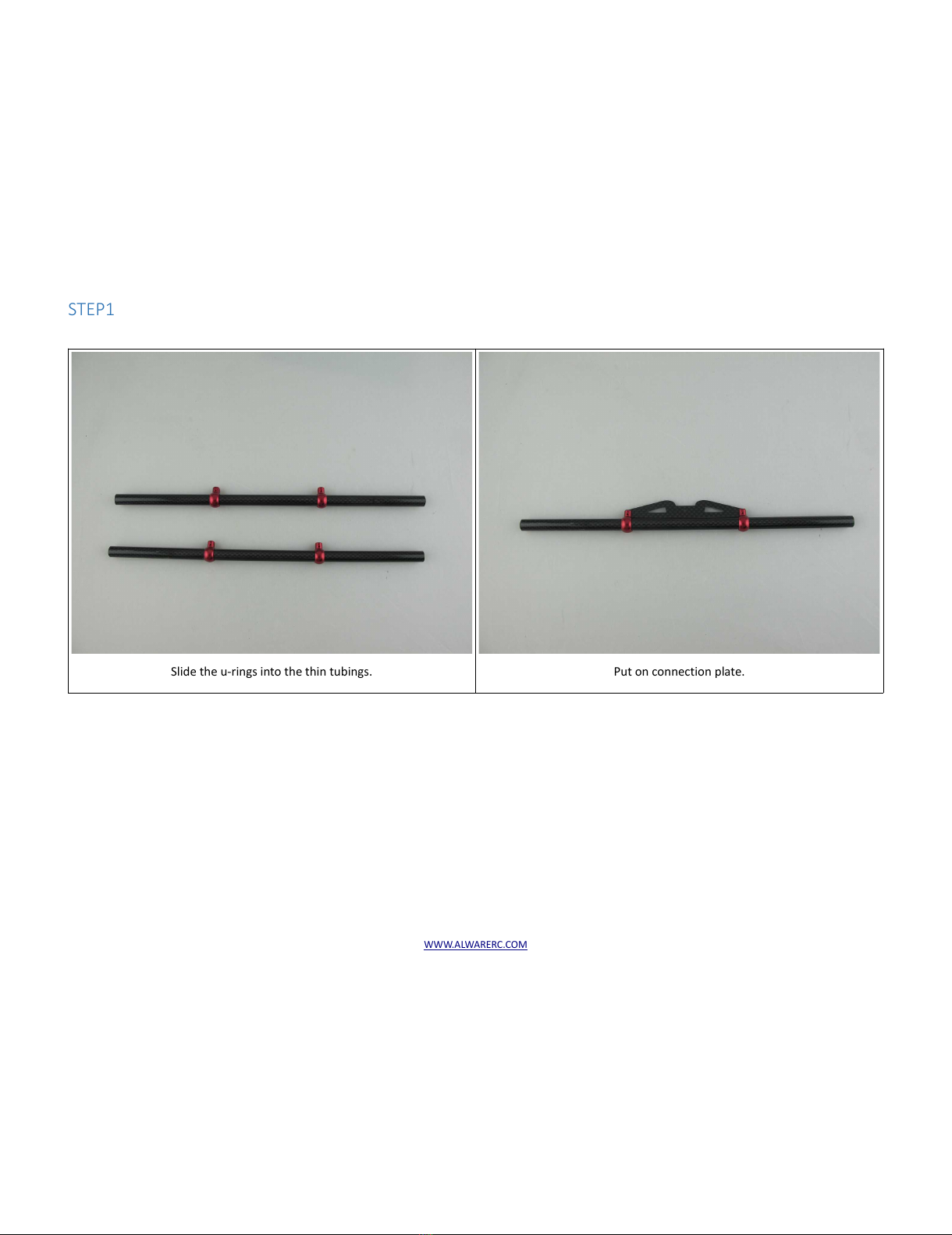

STEP1
Slide the u- ings into the thin tubings. Put on connection plate.
WWW.ALWARERC.COM
All manuals and user guides at all-guides.com

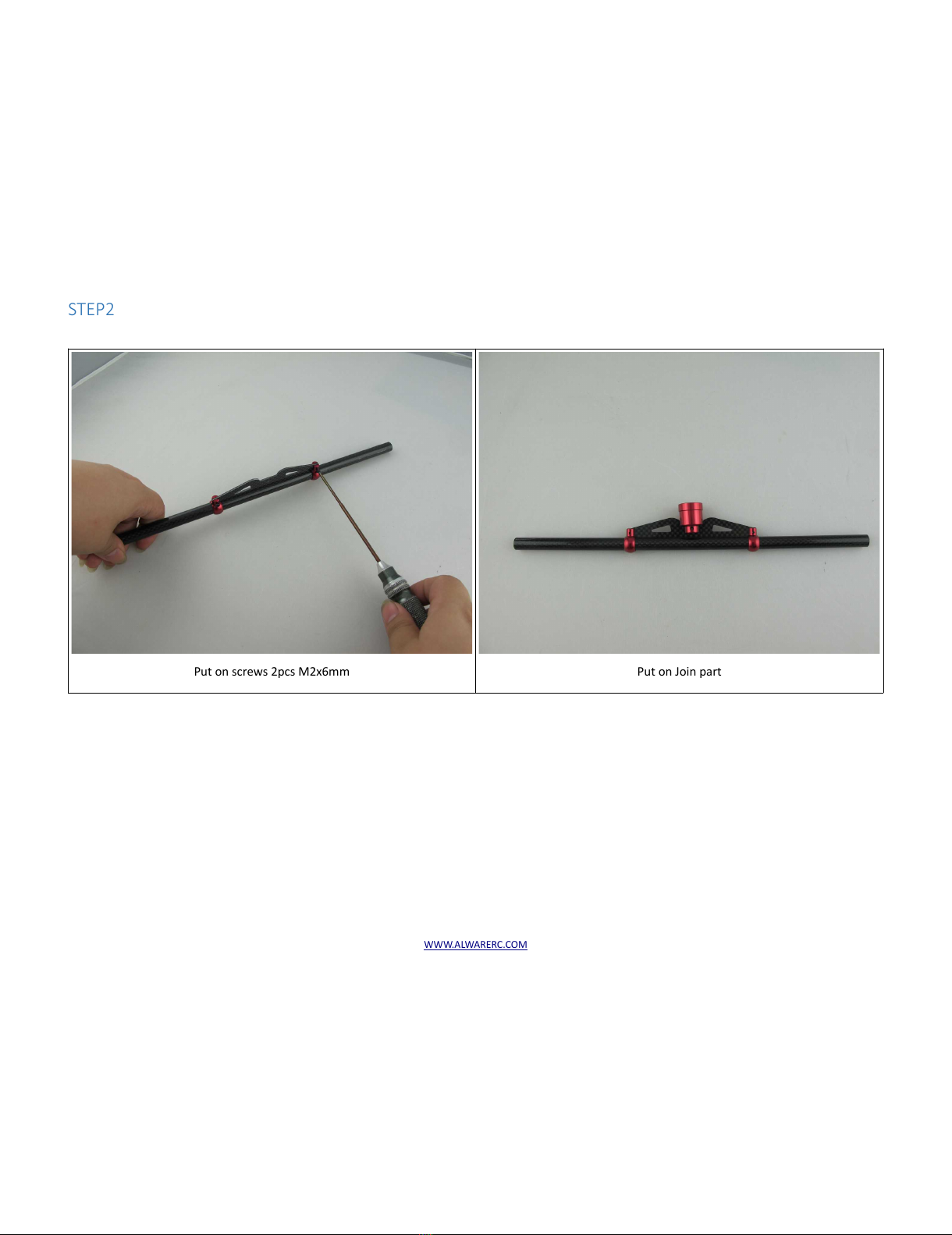

STEP2
Put on sc ews 2pcs M2x6mm Put on Join pa t
WWW.ALWARERC.COM
All manuals and user guides at all-guides.com

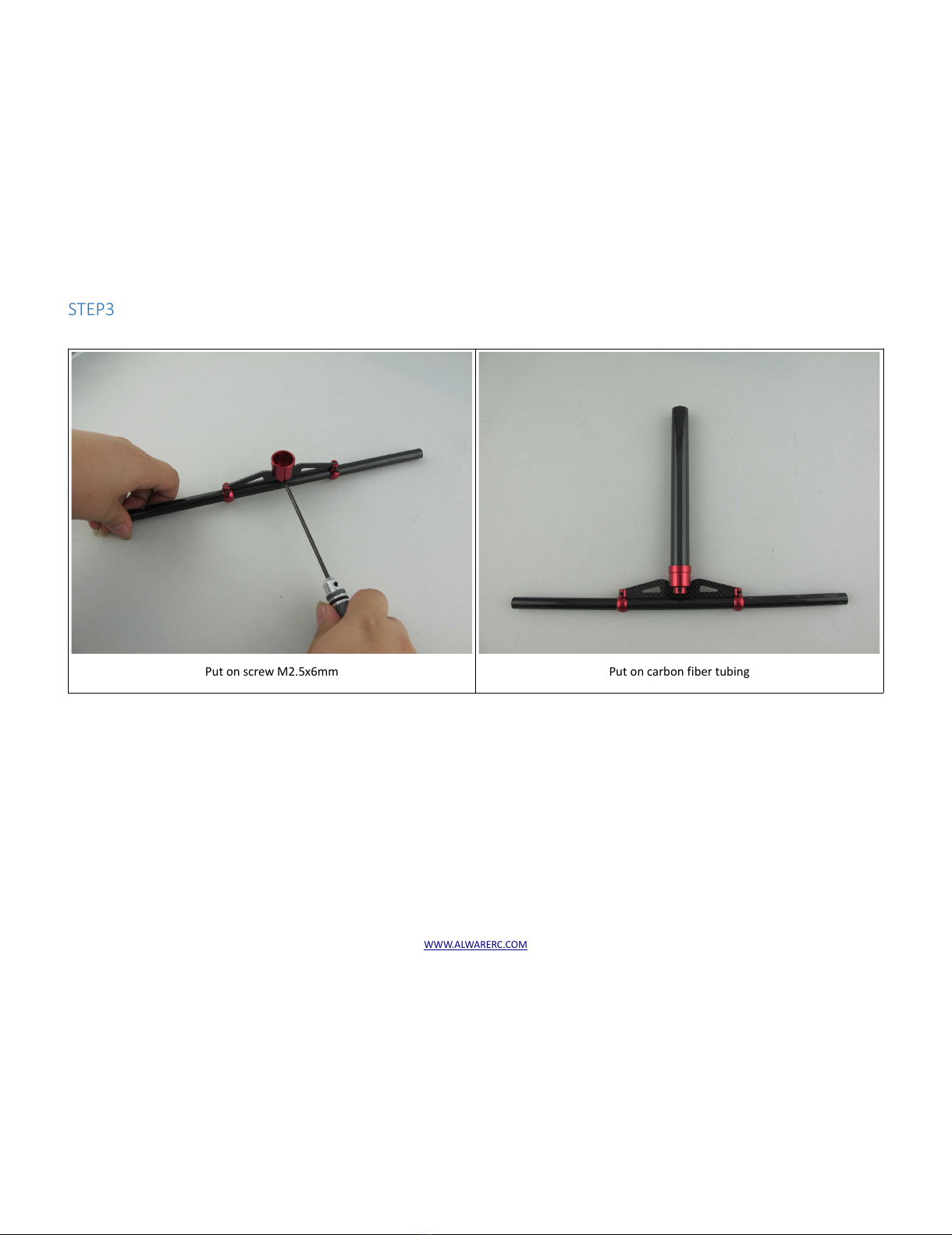

STEP3
Put on sc ew M2.5x6mm Put on ca bon fibe tubing
WWW.ALWARERC.COM
All manuals and user guides at all-guides.com

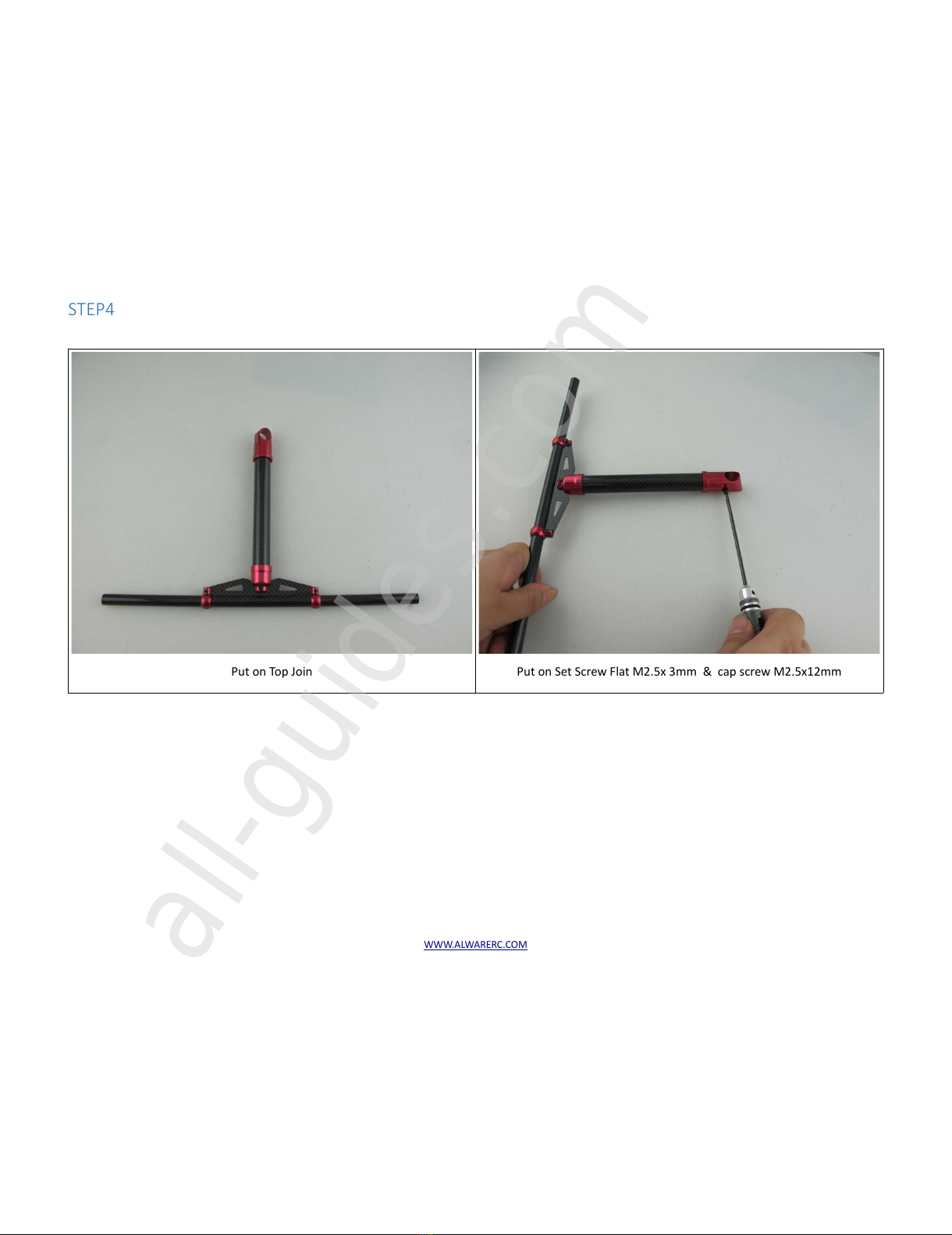

STEP4
Put on Top Join Put on Set Sc ew Flat M2.5x 3mm & cap sc ew M2.5x12mm
WWW.ALWARERC.COM
All manuals and user guides at all-guides.com
all-guides.com

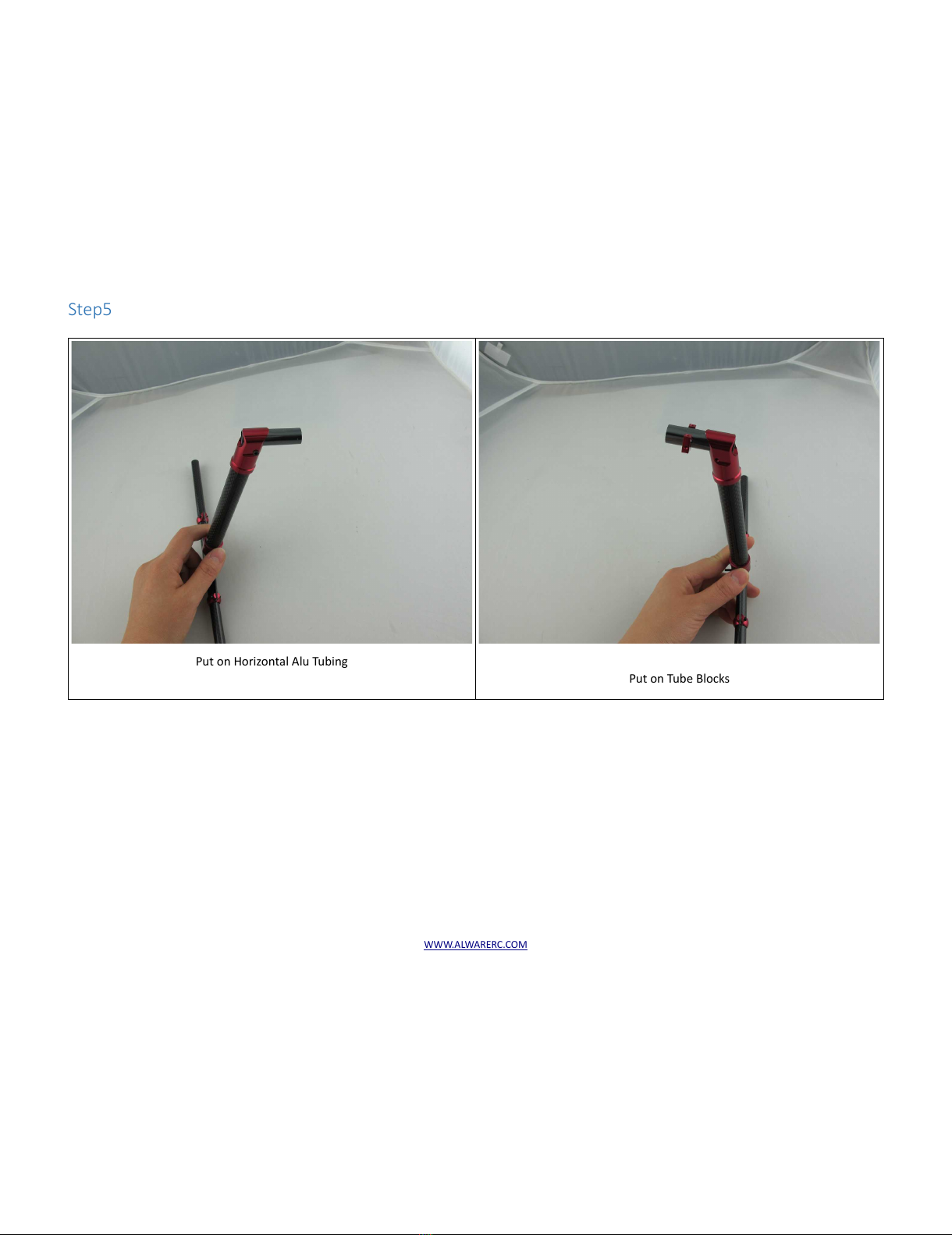

Step5
Put on Ho izontal Alu Tubing
Put on Tube Blocks
WWW.ALWARERC.COM
All manuals and user guides at all-guides.com

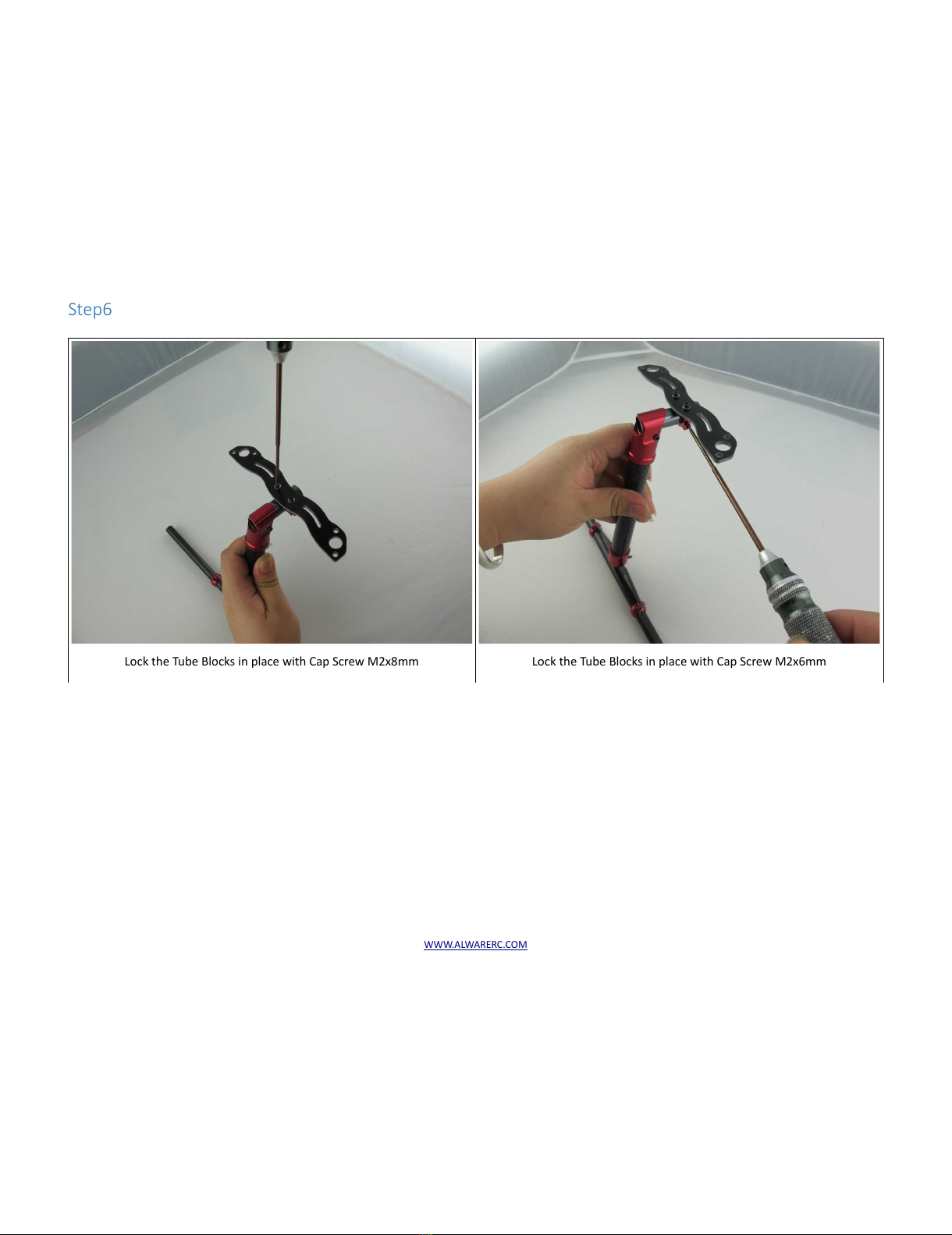

Step6
Lock the Tube Blocks in place with Cap Sc ew M2x8mm Lock the Tube Blocks in place with Cap Sc ew M2x6mm
WWW.ALWARERC.COM
All manuals and user guides at all-guides.com

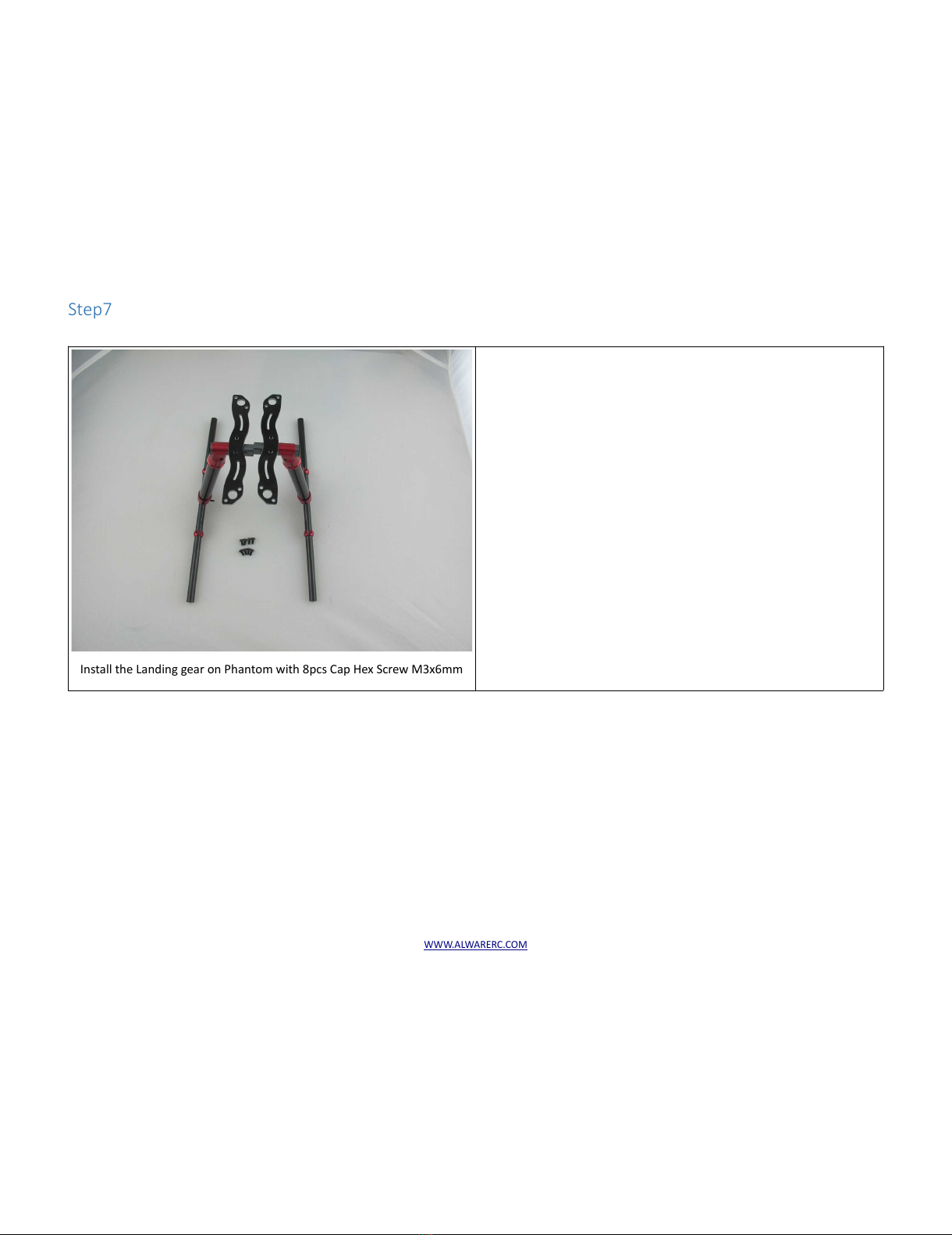

Step7
Install the Landing gea on Phantom with 8pcs Cap Hex Sc ew M3x6mm
WWW.ALWARERC.COM
All manuals and user guides at all-guides.com

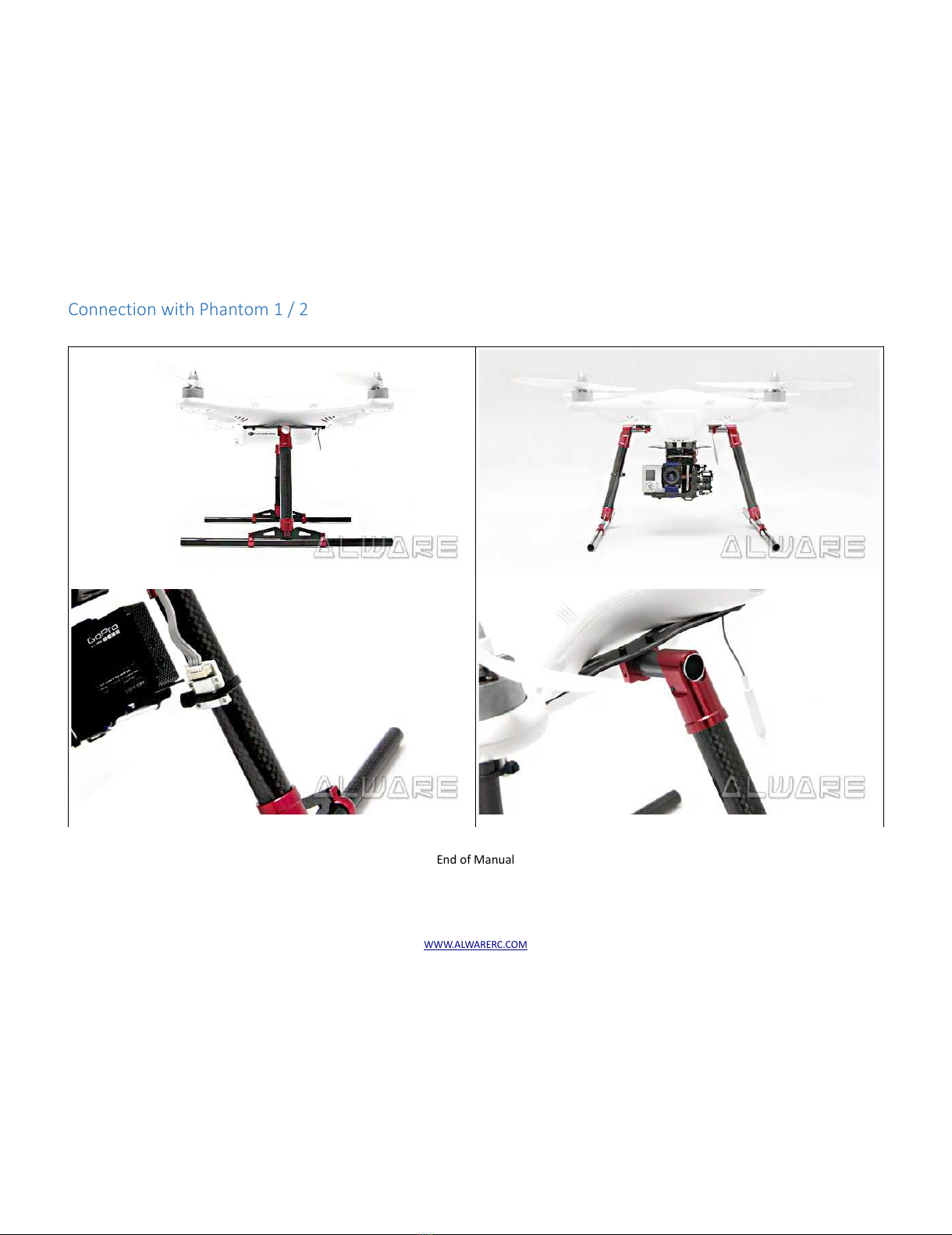

Connection with Phantom 1 / 2
End of Manual
