DJI GOGGLES
EN
4
DJI Goggles
DJI Goggles are equipped with high-performance displays and an ultra-low latency video
downlink for use with DJITM aircraft, giving you a real-time aerial First Person View (FPV)
experience. DJI Goggles can also be used to display HD videos, bringing you an immersive
high-denition viewing experience. DJI Goggles support head tracking, allowing aircraft and
gimbal to be controlled using head movements, introducing a new style of ying.*

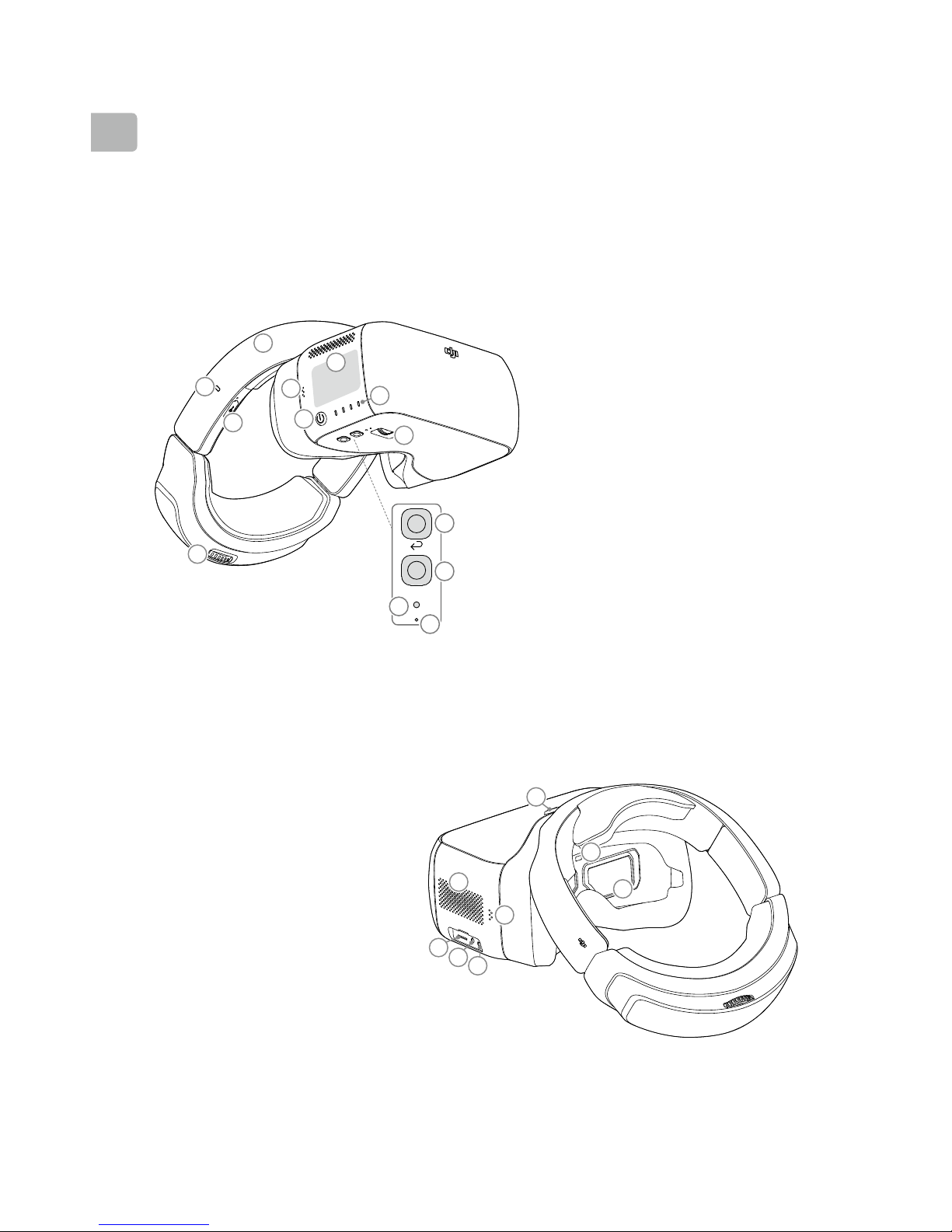

1. Touch Panel
2. Headband
3. Charging Status Indicator
4. Micro USB Port
5. Headband Knob
6. Speaker
7. Power Button
8. Battery Level Indicators
9. Back Button
10. Function Button
11. Link Button
12. Linking Status Indicator
13. IPD (Interpupillary
Distance) Knob
14. Lens
15. Proximity Sensor
16. Headband Buckle
17. Heat Vent
18. Micro SD Card Slot
19. 3.5 mm Audio Port
20. HDMI Type-D Port
21. Speaker
21
16
15
14
18 19 20
17
* Only some aircraft are supported. Please refer to the User Manual for specic models and operations.
1
2
3
4
5
13
6
7
8
Fn
9
10
11
12
EN
5
Installation and Wearing
Insert the Headband Buckle into the
slot above the DJI Goggles body.
Click
Adjust interpupillary distance.
Flip the DJI Goggles body to see outside.
Wear the DJI Goggles and
adjust the Headband.
EN
6

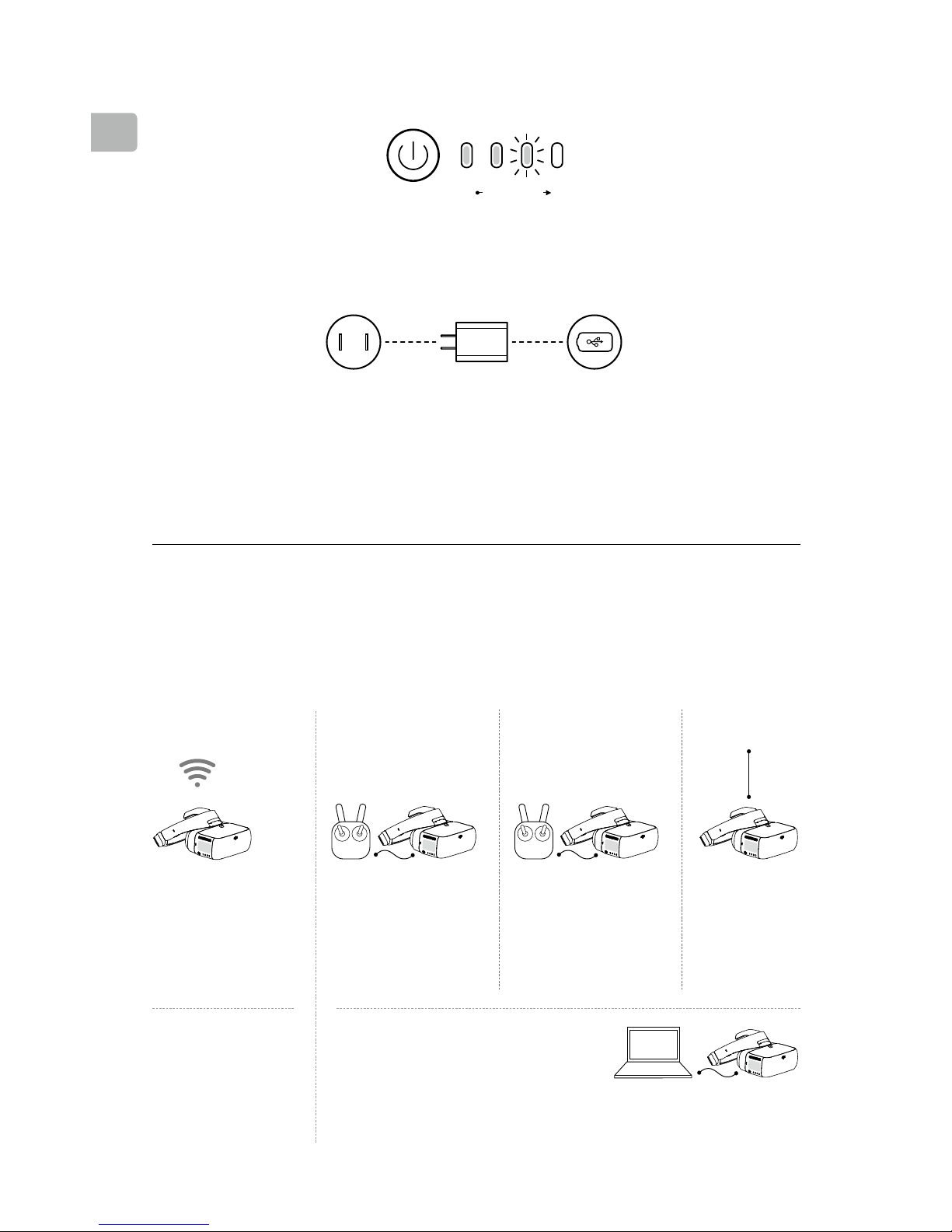

Check the Battery Level and Charging
Press once to check the battery level.
Press once, then again and hold to turn on/off.
The Battery is fully charged when the Charging Status Indicator or the Battery
Level Indicators turn off.
Charge time: ~ 4 hours Maximum run-time: ~ 6 hours
Power Outlet
100~240V
USB Charger Micro USB Port
Activation and Connection
First-time activation is required before using your new DJI Goggles.
Ensure all devices are powered on and that the Aircraft is linked with the Remote
Controller. Make sure both are updated to the latest rmware versions.
Micro USB cable
* Live view only, support
somatic control of focus.
Visit the DJI website for
future updates.
Live view only.
INSPIRETM 2*
PHANTOMTM 4 Series
HDMI cable
INSPIRE Series
PHANTOM 4 PRO+
Activate with
DJI ASSISTANTTM 2
Download: www.dji.com/dji-goggles
Activate with
DJI GOTM 4 App
Please update the app rst.
DJI Assistant 2 can also be
used for activation.
DJI Assistant 2 supports Windows 7 (or
later) or OS X 10.11 (or later).
Connect DJI Goggles to your PC
with Micro USB cable, then run
DJI Assistant 2 to activate.
OCUSYNCTM
Press the Link Buttons
on the Mavic Pro and DJI
Goggles, or enter Tools >
Setting > Linking Setting to
connect.
MAVICTM PRO
HDMI cable
Video Play
Device
Low HighBattery Level
EN
7
Specications
Weight (Typical) DJI Goggles Body: 495 g
Headband: 500 g
Dimensions DJI Goggles Body: 195 × 155 × 110 mm
Headband (folded): 255 × 205 × 92 mm
Screen Size 5 inch × 2
Screen Resolution 3840 × 1080 (single screen: 1920 × 1080)
Communication Frequency 2.4 GHz
Live View Modes 1080p30, 720p60, 720p30
Battery Capacity 9440 mAh
Operating Temperature Range 32° to 104° F (0° to 40° C)
Charger Input: 100-240 VAC, 50 / 60 Hz, 0.5 A
Output: 5 V 3 A / 9 V 2 A / 12 V 1.5 A
DJI is a trademark of DJI.
Copyright © 2017 DJI All Rights Reserved.
The content is subject to change.
Download the latest version from
www.dji.com/dji-goggles

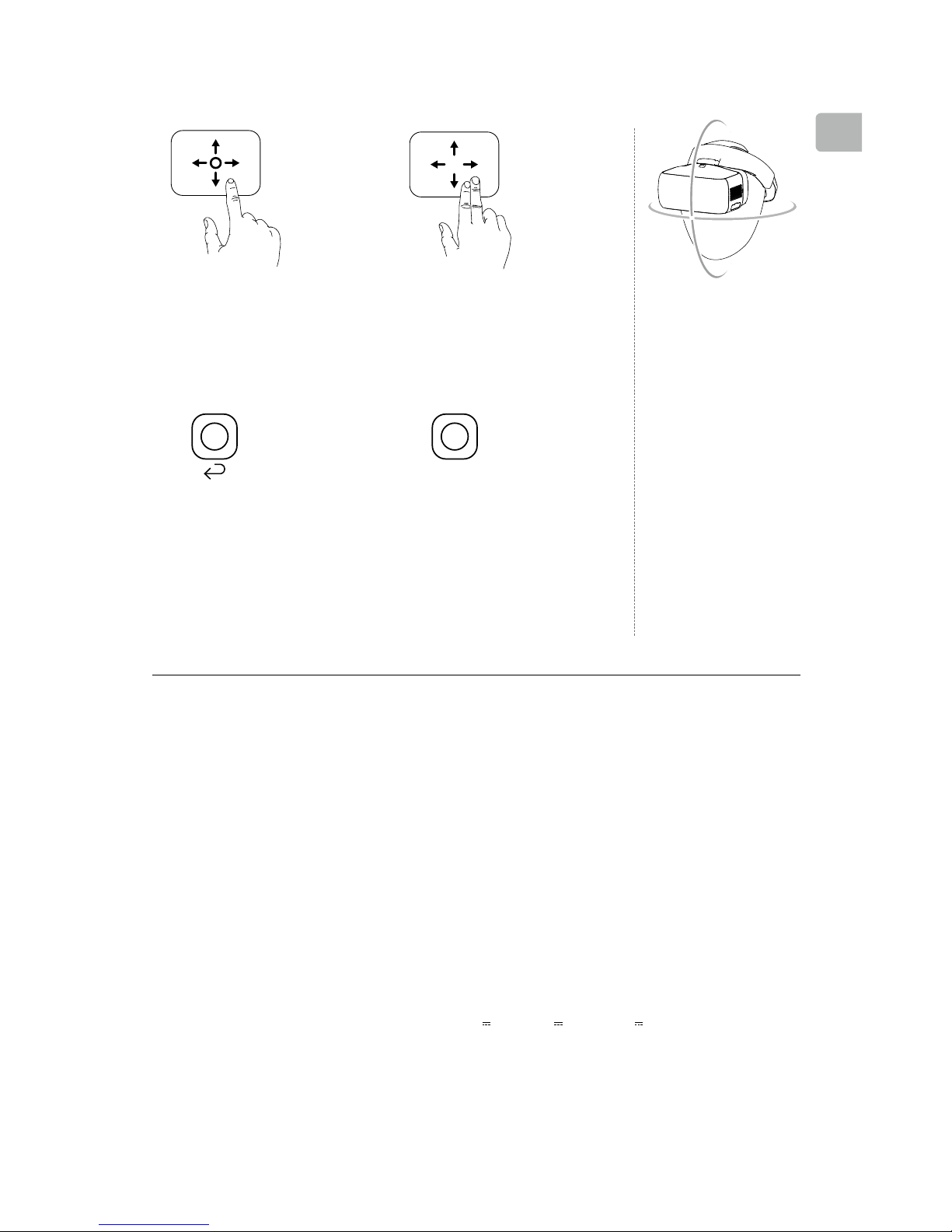

Controls
Single Finger Touch /
5D Button*
●Swipe to scroll on the menu
●Tap to conrm
Two Fingers Touch
●Swipe forward/backward to unlock/
lock the touch panel
●Swipe upward/downward to exit/enter
the shortcut menu
Only support:
Mavic Pro
Phantom 4 Series
Somatic Control
DJI Goggles support
head tracking, allowing
aircraft and gimbal to
be controlled using
head movements. Multi
Intelligent Flight Modes
are also supported.
Function Button / C1 Button*
Press to show the focus cursor, swipe
forward/backward with one nger to zoom
in or zoom out. Move your head then tap
the touch panel to dene the focus point.
Back Button / C2 Button*
Press to return to the previous
menu, or exit the current
Intelligent Flight Mode.
* When connected with Mavic Pro, the 5D, C1, and C2 buttons on the remote controller
will be used to control the DJI Goggles and their original function is disabled.
Fn
