Amano PIX-3000x Series Manuale utente

Electronic TTime RRecorder

PIX-33000x

Operation Manual

PROPRIETARY NOTICE

This document contains proprietary information and such information may not be

reproduced in whole or in part without the written permission from:

Amano Cincinnati, Inc.,

140 Harrison Avenue

Roseland, New Jersey, 07068.

Amano Cincinnati, Inc. reserves the right to make equipment changes and improve-

ments which may not be reflected in this document. Portions of this document may

have been updated to include the latest hardware or firmware version, if applicable.

We recommend that this document be read in its entirety before any attempt is made

to operate the equipment.

Amano Cincinnati, Inc.

For more information about Amano’s complete product line

visit our web site at

http://www.amano.com

Page i

Amano Cincinnati, Inc.

Table of Contents

Chapter 1: Introduction . . . . . . . . . . . . . . . . . . . . . . 1

External View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

Removing the Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Removing the Packing Material . . . . . . . . . . . . . . . . . . . 2

Connecting the Battery . . . . . . . . . . . . . . . . . . . . . . . . . 3

Wall Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Your First Printout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Print Media . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

Print Margin Adjustment . . . . . . . . . . . . . . . . . . . . . . . . 7

Print Methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

Chapter 2: Programming . . . . . . . . . . . . . . . . . . . . . 9

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Front Panel Description . . . . . . . . . . . . . . . . . . . . . . . 10

Standard Program Mode . . . . . . . . . . . . . . . . . . . . . . . 11

Advanced Program Mode . . . . . . . . . . . . . . . . . . . . . . 15

Symbol-Signal Program Mode . . . . . . . . . . . . . . . . . . 20

Resetting All Data to Default Values . . . . . . . . . . . . . . 26

Chapter 3: Maintenance . . . . . . . . . . . . . . . . . . . . . 27

Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27

Extending the Ribbon Life . . . . . . . . . . . . . . . . . . . . . . 28

Checking the Number of Prints . . . . . . . . . . . . . . . . . . 28

Replacing the Ribbon . . . . . . . . . . . . . . . . . . . . . . . . . 29

Page ii

Specifications

Power Requirements: AC 100/120/230 V ±10%, 50/60 Hz

(Depending on model)

Power Consumption: Normal 3W, maximum 6W

Ambient Conditions: Temperature: -10°C to 45°C (14°F to 113°F)

Humidity: 10% to 90% (non condensing)

Dimensions: 176 mm (6.9”) High x 158 mm (5.9”) Wide

x 153 mm (6.0”) Deep

Weight: 2.3 kg (5 lbs.)

Power Reserve: The built-in battery, when fully charged, will

maintain normal operations for 72 hours, or

400 prints, or maintain time and date for

seven days.

Environment: Indoor use only

Dust free

Not in direct sunlight

Amano Cincinnati, Inc.

Page 1

Introduction Amano Cincinnati, Inc.

Chapter 1: Introduction

External View

Components

· Key

·This Manual

Page 2

Removing the Cover

Insert and turn the key clockwise to remove the cover.

Removing the Packing Material

Lift up the Printer Block (A) and remove the Packaging Spacer (B).

Amano Cincinnati, Inc. Introduction

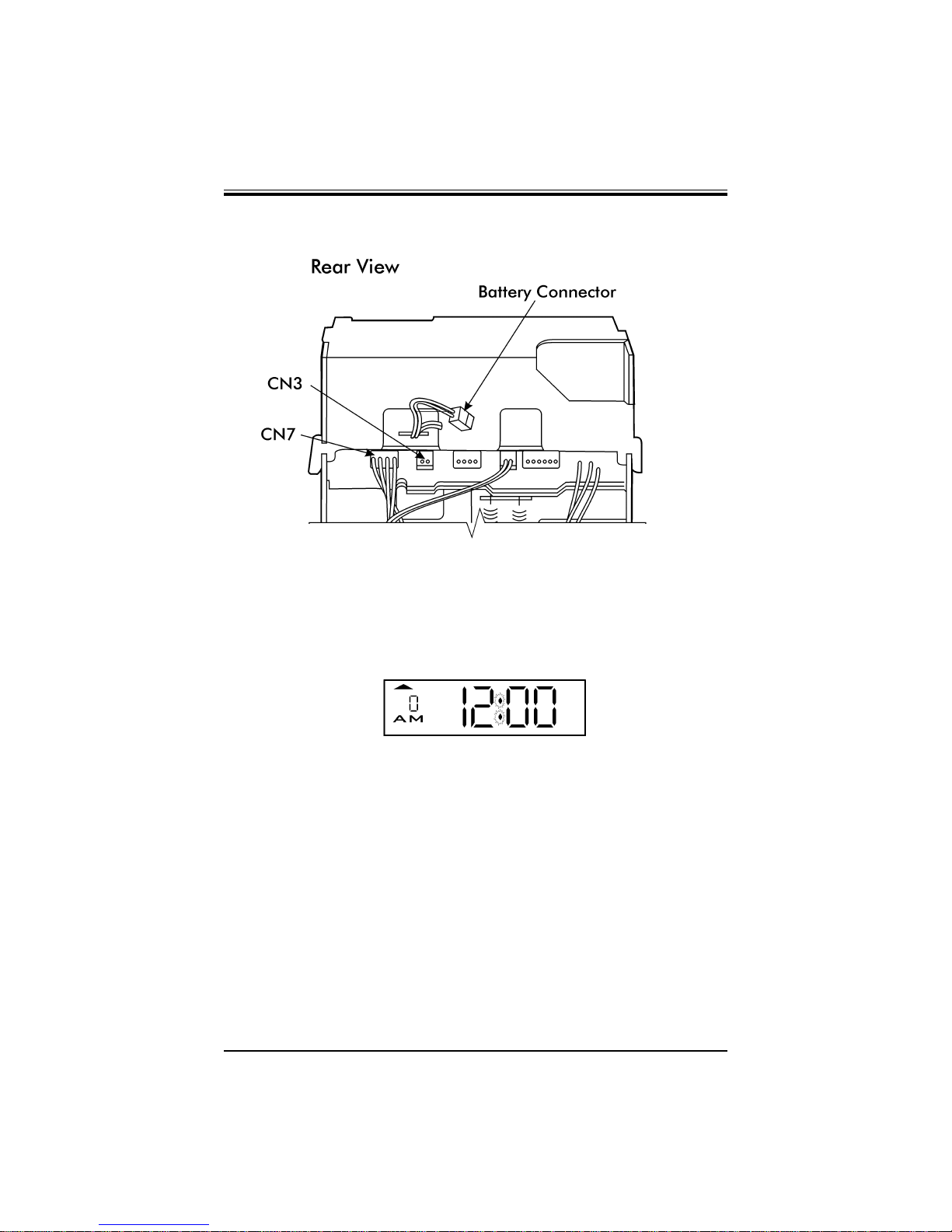

Connecting the Battery

1. Connect the battery cable (the connector with the black and red

wires) into connector CN3.

2. Plug the AC power cord into a wall socket. The time and date of

12:00 am, midnight on January 1st will appear in the display with

a flashing colon.

Note: Turning the AC power on, i.e., plugging the AC power cord into

a wall socket, will cause the printer carriage to move up.

Note: When AC power is not connected properly, the colon will not

flash (see Error Messages).

Note: After connecting the unit to ACpower for the first time, allow it

to charge the batteries for 24 hours without printing. Failure to

do so may result in reduced battery life.

Note: To avoid damaging the power reserve battery, or draining it to

an unrecoverable level, keep the machine plugged into an AC

power source during normal operation. The power reserve

battery is used for limited power outages, not as a power

source during normal operations.

Page 3

Introduction Amano Cincinnati, Inc.

Page 4

Wall Mounting

1. With the cover removed, the wall mount plate can be removed by

using your index finger as shown below to pry open the bottom

portion (see arrow 1). Then slide the wall mount plate down in the

direction of arrow 2.

2. Knock out the three holes in the mounting plate.

3. Mount the plate on the wall using three #10 screws or equivalent.

4. Align the PIX with the hooks on the mounting plate. Press the PIX

down and toward the wall until a "CLICK" is heard. Replace the

cover, lock it and remove the key. Your PIX-3000x is now

mounted.

Amano Cincinnati, Inc. Introduction

Your First Printout

Please verify the following before attempting to print:

1. Is all the packaging material removed from inside the machine?

2. Is the battery connected?

3. Is the cover securely on the machine?

4. Is the PIX plugged into an AC wall outlet?

Once you have verified these items, insert a sheet of paper to make

a test print.

As shipped from the factory, the PIX-3000x will print the following

format:

If this format is acceptable, the print style does not have to be

changed. If the print style has to be changed, please refer to

Chapter 2: Programming.

Page 5

Introduction Amano Cincinnati, Inc.

Page 6

Print Media

Print Media is defined as the type of material you will be using in the

machine to time stamp (time cards, mail, etc.). To avoid damaging the

print head, it is recommended that you do not exceed a media

thickness of 0.3 mm (0.01"). The following are general specifications

for different media dimensions.

Time Card: Time card thickness less than or equal to 0.3 mm (0.01").

Small Ticket: Tickets, slips, receipts or other validation media should

be no smaller than 100 mm (4”) long x 60 mm (2.25") wide.

Larger Paper: When using standard paper sizes, such as 8.5" x 11",

make sure the paper is heavy enough to push the Paper Sensor. If

the weight of the paper (thickness) is too light, the paper will curl up

and tear off inside the PIX. This may result in jams or damage to the

PIX.

Carbon Paper: The PIX will print on both carbon and carbonless

paper. The imprint will print through up to six copies, depending on

the quality of the document used. Carbon and carbonless paper

deteriorates over time. This process is accelerated by humidity, high

temperatures and sunlight. For maximum print performance, use only

high grade, uncontaminated carbon or carbonless paper.

Amano Cincinnati, Inc. Introduction
