AMC 04 Manuale utente
y
y
x
25
o
Minimum Usage 18mm
Minimum Usage 18mm
04 & 05 wall mount plastic loudspeakers
Please pay attention: Mount the loudspeaker on the reliable base only.
Rotate the logo horizontally or vertically depending on used the mounting position.
INSTALLATION MANUAL 04 & 05 Cabinet loudspeaker

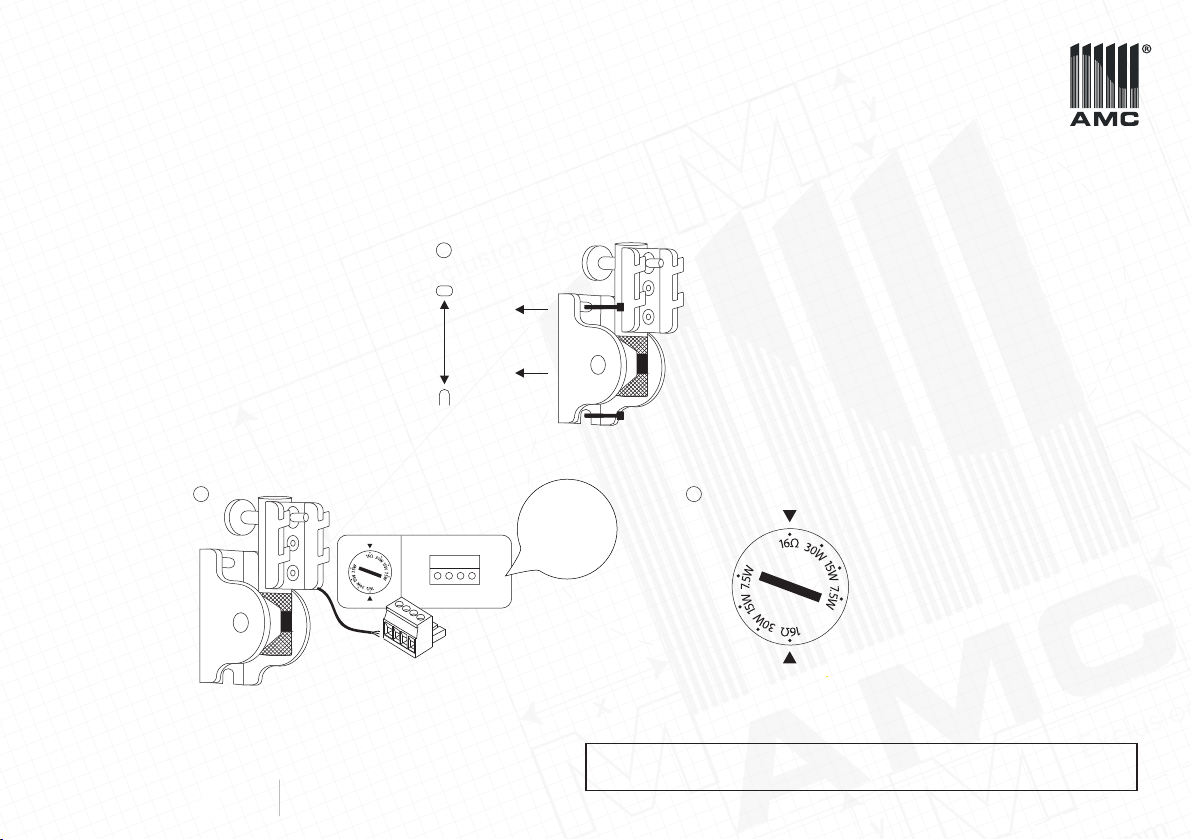

Drill the holes according to the drawing.
Distance between the mounting points - 45 mm.
Fix the loudspeaker bracket on the wall with fasteners
suitable for your wall type.
Package contains:
Loudspeaker 1pc.
Bracket 1pc.
Euro block connector 1pc.
Installationmanual 1pc.
45 mm
Connect the audio cable to the Euro block connector and the socket. Set the desired loudspeaker power tap.
IN OUT
+ - + -
23
– + – +
1
Minimum Usage 18mm
Minimum Usage 18mm
y
y
x
25
o
Minimum Usage 18mm
Minimum Usage 18mm
04 & 05 wall mount plastic loudspeakers
INSTALLATION MANUAL 04 & 05 Cabinet loudspeaker

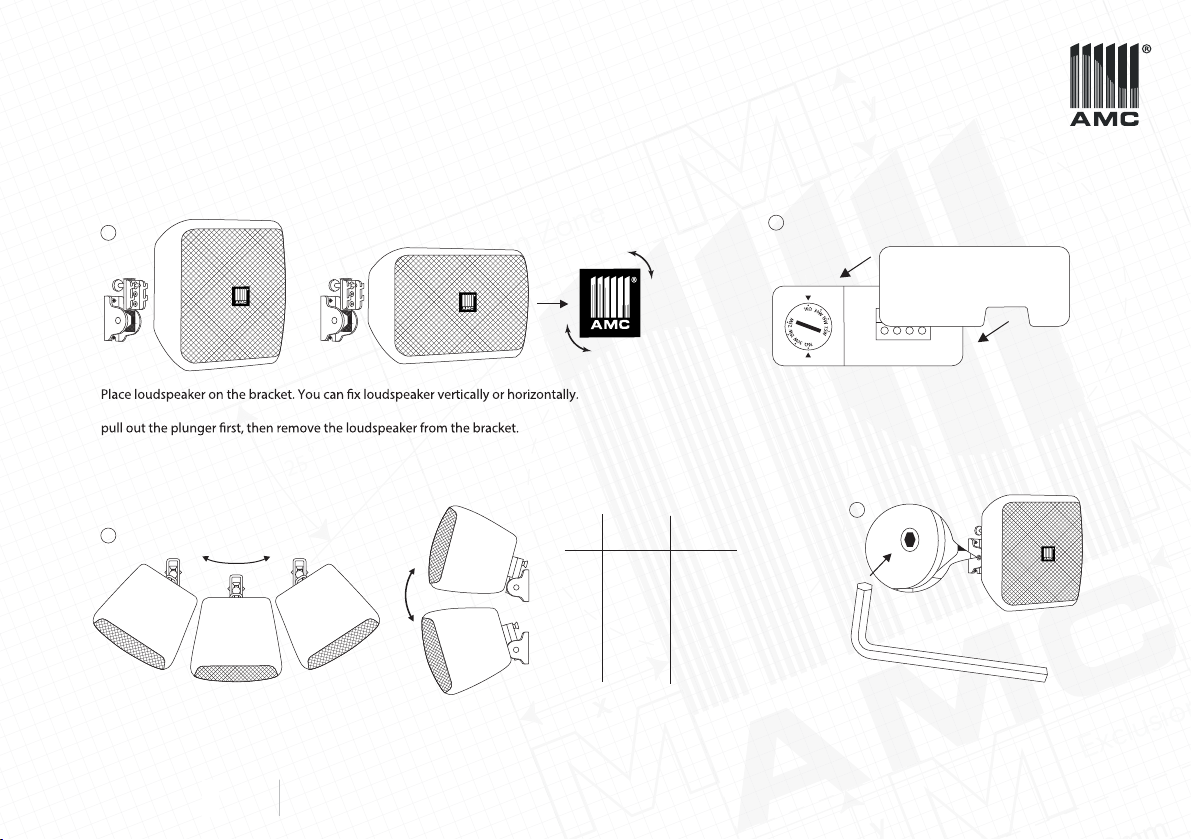

The logo can be adjusted according to the loudspeaker’s axis. To remove the bracket
Loudspeaker’s angle can be adjusted according to vertical and horizontal axis.
4
6
Use the hexagon key to tighten bracket
angle adjusting screw.
7
Vertical
Orientation
Tilt
Angle
15°
0°
30°
45°
70°
Max
Rotation
Angle
22°
49°
39°
33°
13°
Max
Rotation
Angle
23°
43°
37°
36°
41°
Horizontal
Orientation
Put the plastic cover on.
5
– + – +
