Ameriwood HOME 2090335COM Manuale utente

2090335COM

4 Drawer Dresser

B342090335COM00MP

THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT

SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Follow Ameriwood Home

Tube

You

Date of Purchase ___ / ___ / ___

Lot Number:

Do Not Return This Product!

Contact our customer service team for help rst.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Assembly Di culty Meter

Easy Tough

Secure Your Furniture

Keep your home and family safe

with the wall anchor kit that is

included with the product.

Serious or fatal crushing injuries can

occur from g furniture.

WARNING: Manufacturer assumes no liability

for improper on or excessive loads

placed on screws or bracket. This wall anchor

is not a subs tute for proper adult supervision.

Helpful Hints

ameriwoodhome.com

Do NOT return this product!

Contact our friendly customer service team t for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com to view the

limited warranty valid in the U.S. and Canada.

Assembly Tips

Tube

You

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ESTIMATED ASSEMBLY TIME: 45 MINUTES

- Compression dowels are lightly tapped in with a hammer.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

ameriwoodhome.com

Before You Start

Quick

Tip

Assembly

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver #2 Phillips Head

Screwdriver and Hammer

Cau on: If using a power drill or power screwdriver for screwing

please be aware to slow down and stop when screw is ght.

Failure to do so may result in stripping the screw.

pre-drill nut

turn switch to lock

This Cam Lock Fastening System will be used througout the assembly process.

ameriwoodhome.com

Not actual size

Le Panel

T2090335010MP

Right Panel

Back

Support

Top

(x4)

Drawer Back

(x4)

Drawer Front

(x4)

Drawe m

Back Panel

This part is paperboard

construction. It is not made from

wood, but is required for the

assembly of your unit.

(x4)

Drawer Side

Kick

Drawer Support

(x4)

T2090335020MP

T2090335030MP T2090335050MP

T2090335040MP T2090335060MP

T2090335070MP

T2090335090MP T2090335100MP T2090335110MP

T2090335130MP T2090335140MP

T2090335120MP

(x4)

Drawer Side

T2090335080MP

ameriwoodhome.com

Not actual size

This part is paperboard

is not made

from wood but is required

for the assembly of your unit.

ameriwoodhome.com

Part List

Actual Size

Not Actual Size

(x8)

drawer

bracket

(x4)

handle

(x1)

TMP84050

safety bracket kit

TMP54520

TMP50680

Hardware Bag Reference number :

22090335COM0MP

(x24)

wood dowel

(x46)

7/16" pan screw

(x18)

TMP4703

nail (x16)

TMP21970

drive fastener

(x8)

3/4" pan screw

(x4)

TMP53600

angle bracket

TMP8002 TMP12120

TMP12700

8c 8d

ameriwoodhome.com

STEP 1

(x1)

TMP84050

Install Safety Bracket (8a) to Top Panel (C).

ameriwoodhome.com

STEP2

(x2)

TMP8002

(x8)

TMP12120

(x4)

TMP53600





ameriwoodhome.com

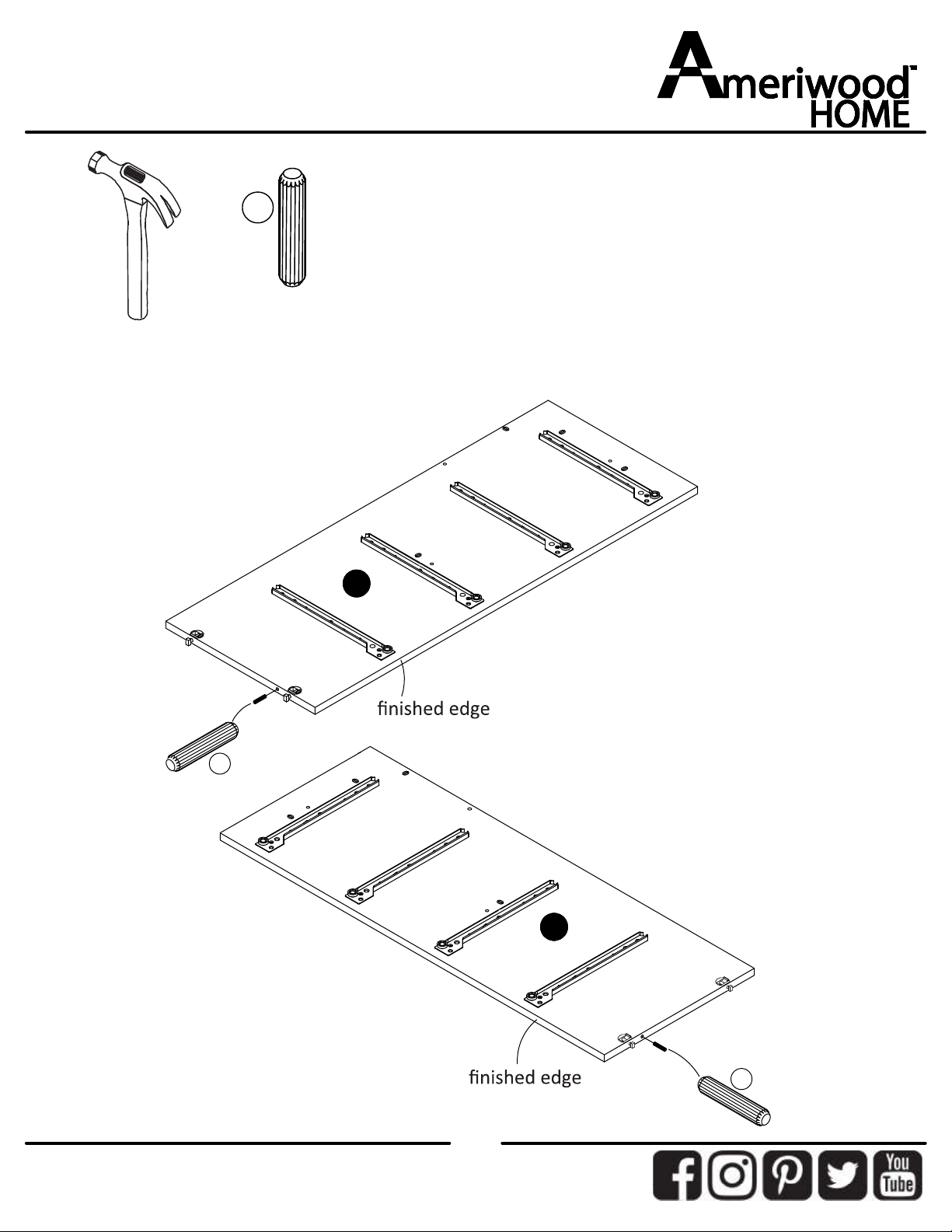

STEP3

(x20)

TMP8002

Insert Wood Dowel (1) to Drawer Support (M),

Support Panel (J) and Back Support (E).

(x2)

TMP8002

ameriwoodhome.com

STEP 4


