Ameriwood HOME 2548339COM Manuale utente

2548339COM

Nightstand

B342548339COM0

THIS INSTRUCTION BOOKLET CONTAINS

IMPORTANT

SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.

Follow Ameriwood Home

Tube

You

Date of Purchase ___ / ___ / ___

Lot Number:

Do Not Return This Product!

Contact our customer service team for help first.

Call: 1-800-489-3351 (toll free)

Monday-Friday 9am - 5pm CST

Visit: www.ameriwoodhome.com

Assembly Difficulty Meter

Easy Tough

Secure Your Furniture

Keep your home and family safe

with the wall anchor kit that is

included with the product.

Serious or fatal crushing injuries can

occur from tipping furniture.

WARNING: Manufacturer assumes no liability

for improper installation or excessive loads

placed on screws or bracket. This wall anchor

is not a substitute for proper adult supervision.

Helpful Hints

ameriwoodhome.com

Do NOT return this product!

Contact our friendly customer service team first for help.

Call us!

1-800-489-3351

Monday-Friday

9am - 5pm CST

Visit ameriwoodhome.com to view the

limited warranty valid in the U.S. and Canada.

Assembly Tips

- Open your item in the area you plan to keep it to avoid excessive heavy lifting.

- Identify, sort and count the parts before attempting assembly.

- Compression dowels are lightly tapped in with a hammer.

- Slides are labeled with a

(right) and

(left) for proper placement.

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge.

- Use all the nails provided for the back panel and spread them out equally.

- Back panel must be used to make sure your unit is sturdy.

- Do NOT use harsh chemicals or abrasive cleaners on this item.

- Never push, pull, or drag your furniture.

Tube

You

PEOPLE NEEDED FOR ASSEMBLY: 1-2

ameriwoodhome.com

Before You Start

Quick

Tip

Assembly

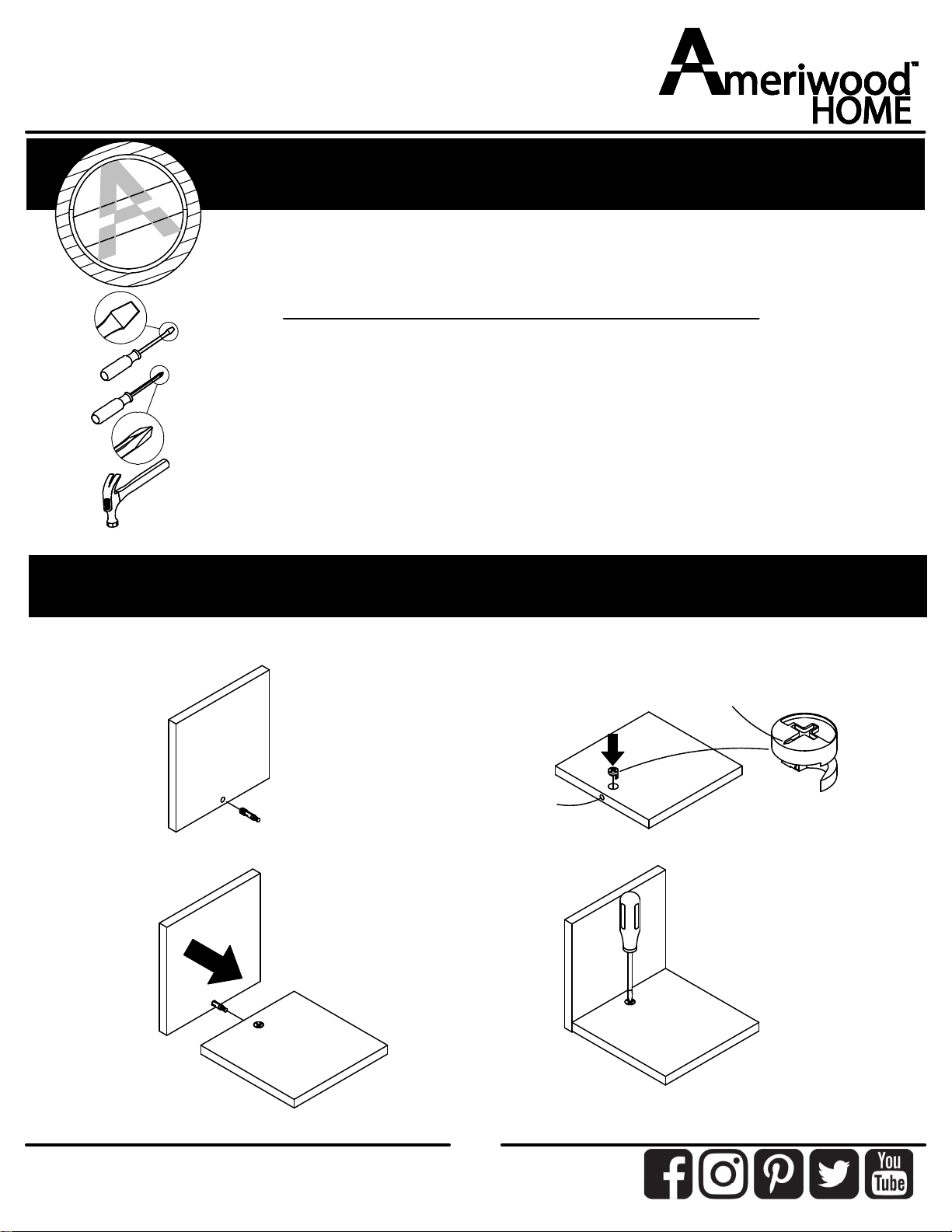

Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Parts are labeled on the surface or edge of the part

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, #2 Phillips Head

Screwdriver and Hammer

Caution: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is tight.

Failure to do so may result in stripping the screw.

Press parts together so CAM BOLT inserts

into edge hole.

Press CAM BOLT into hole. Press CAM LOCK into hole.

End hole

Using a screwdriver, turn the CAM LOCK clockwise to

lock the CAM LOCK and CAM BOLT into their holes

and fastening parts together.

Arrow to point towards end

hole in edge of part.

ameriwoodhome.com

Before You Start

Quick

Assembly

Tip

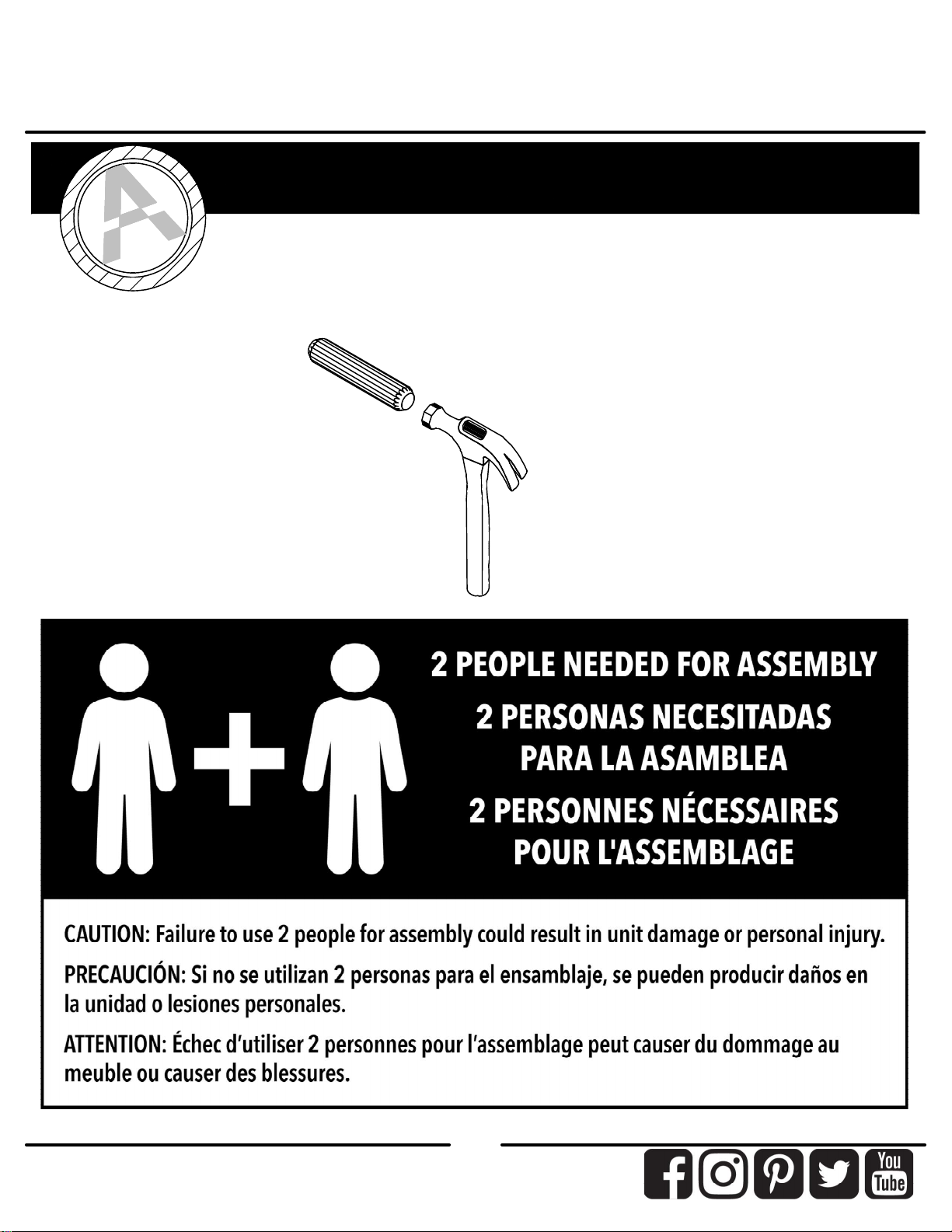

Please Note:

You may need to lightly tap the wood dowels into the holes during

your assembly process.

ameriwoodhome.com

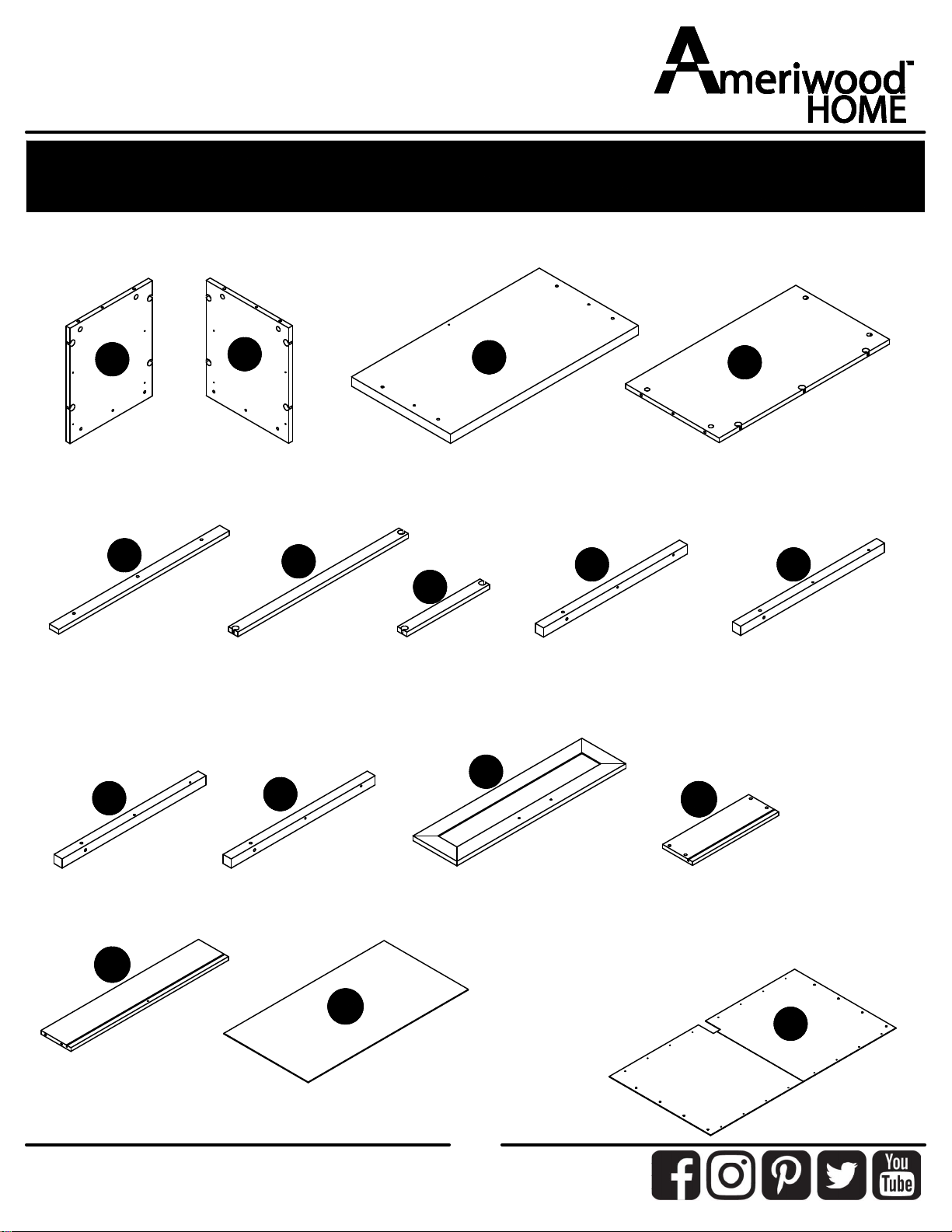

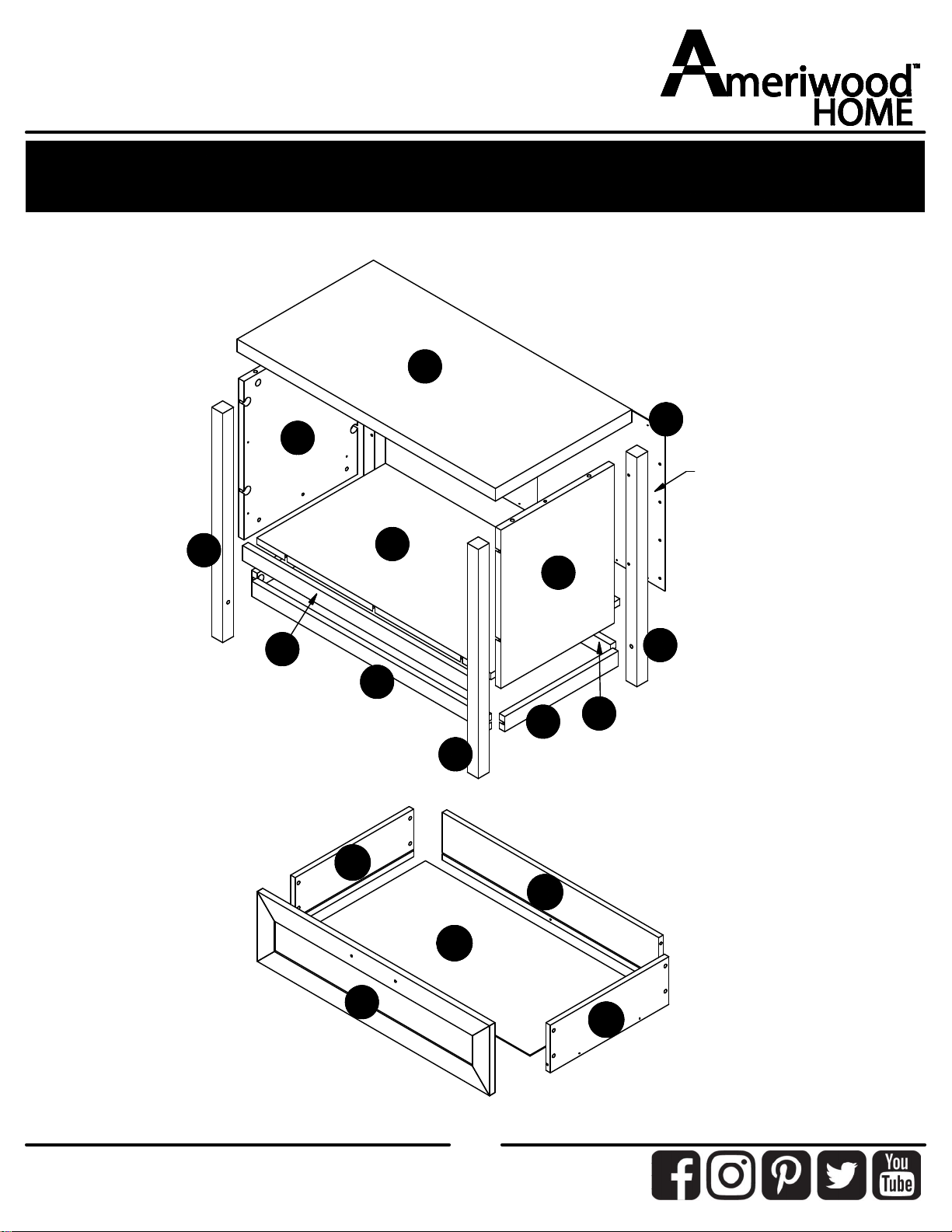

Board Identification

Not actual size

This piece is paperboard

construction. IIt is not made

from wood, but is required

for the assembly of your

unit.

Left Panel

32548339010 Right Panel

32548339020

Top

32548339030 Bottom

32548339040

Bottom Shelf Rail

32548339050 (x2)

Lower Rail

32548339060

(x2)

Side Rail

32548339070

Left Front Leg

32548339080 Left Raer Leg

32548339090

Right Front Leg

32548339100 Right Rear Leg

32548339110 (x2)

Drawer Front

32548339120

(x4)

Drawer Side

39991120346200C

(x2)

Drawer Side

39991120063290B

(x2)

Drawer Bottom

39991338064510D

Back Panel

K254800000

ABCD

EFGH

JKL

DWR

SIDE

DWR

BACK

DWR

BTM

ameriwoodhome.com

Board Identification

Not actual size

DWR

SIDE

DWR

SIDE

DWR

BACK

DWR

BTM

This piece is paperboard

construction. IIt is not made

from wood, but is required

for the assembly of your

unit.

ameriwoodhome.com

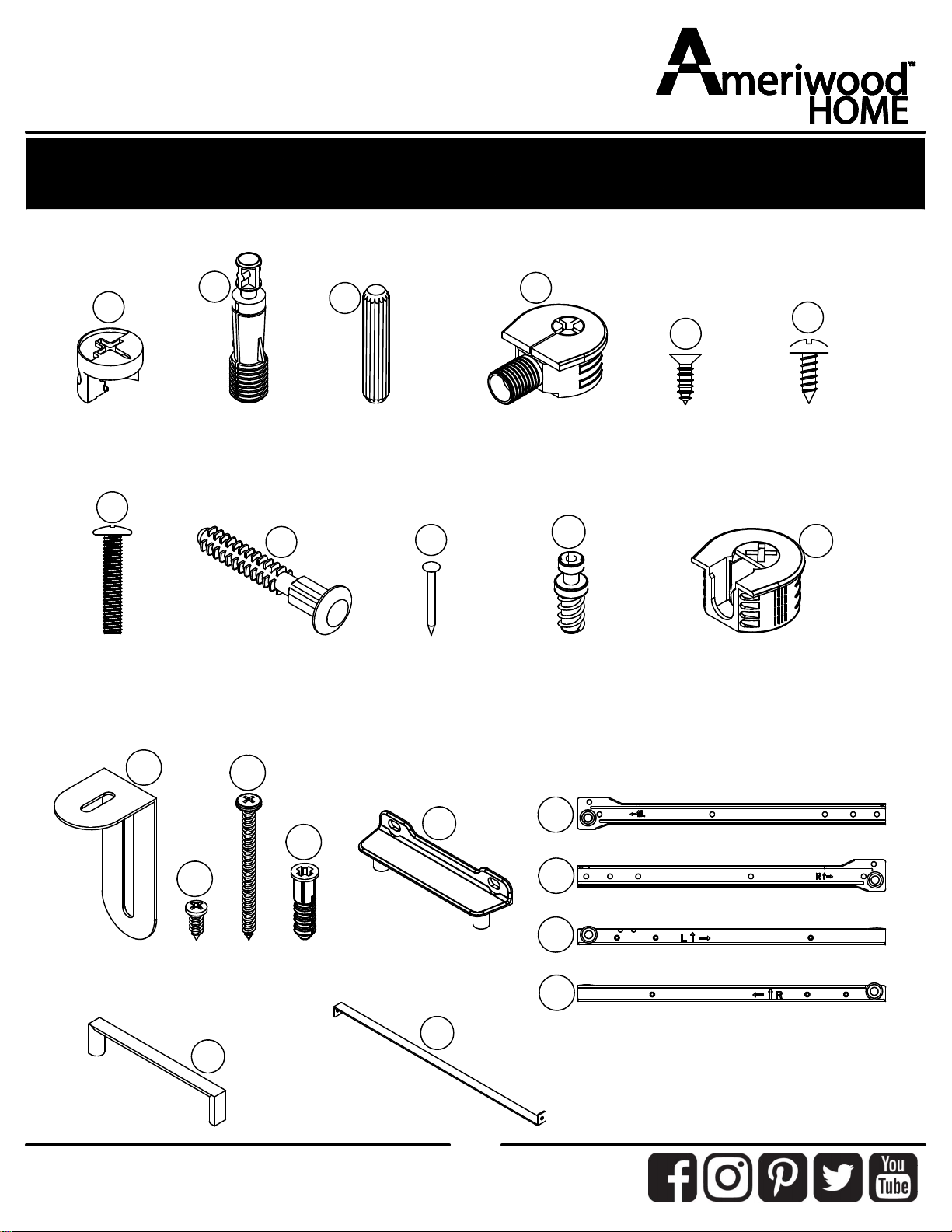

Part List

Actual Size

Not Actual Size

123

(x8)

#A22700

cam lock

(x8)

#A22710

cam bolt

(x4)

#A21670

wood dowel

(x11)

#A22770

quick lock

(x16)

#A11080

#6 x 7/16"

flat head

(x28)

#A12120

#8 x 7/16"

round head

(x4)

7/8" truss

#A17400

(x16)

nail

#A21110

(x8)

connector bolt

#A22910

(x8)

connector

#A22900

(x8)

#A21970

drive fastener

8911 12

10a

10b

10c

10d

(x1)

#A84050

safety bracket kit

14a

14b

14d

14c

left cabinet member

right cabinet member

left drawer member

right drawer member

(x2)

drawer slide package

#A56770

(x2)

drawer brace

#A54900

(x2)

handle

#A50385

(x4)

drawer bracket

#A54510

ameriwoodhome.com

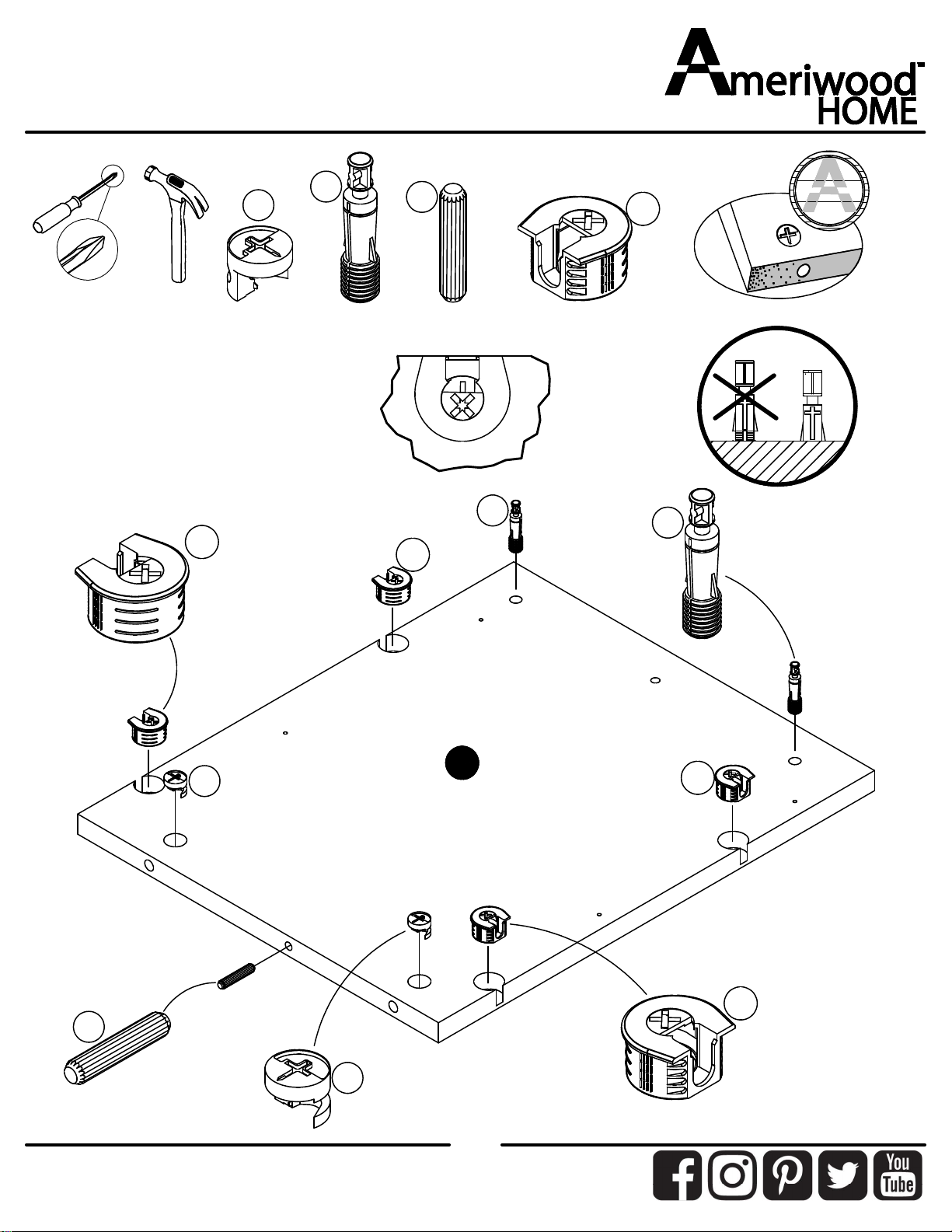

STEP1

Proper orientation of CAM LOCK

Tip

Assembly

Quick

(x2)

12312

(x2) (x1) (x4)

You will need to tap connector (12)

with a hammer to fully insert. Be

sure the connector is positioned as

shown before tapping into hole.

ameriwoodhome.com

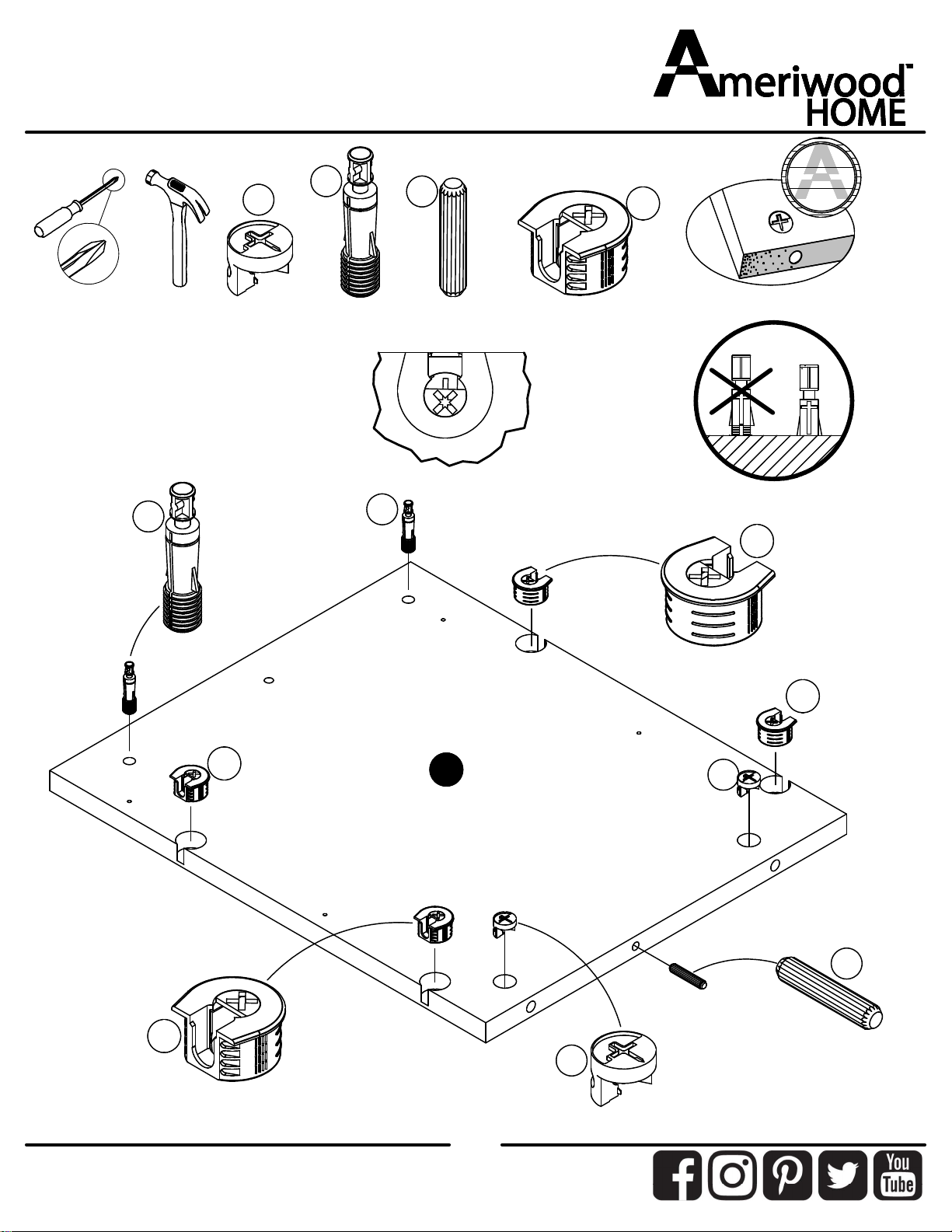

STEP2

Proper orientation of CAM LOCK

Tip

Assembly

Quick

(x2) (x2) (x1) (x4)

You will need to tap connector (12)

with a hammer to fully insert. Be

sure the connector is positioned as

shown before tapping into hole.

ameriwoodhome.com

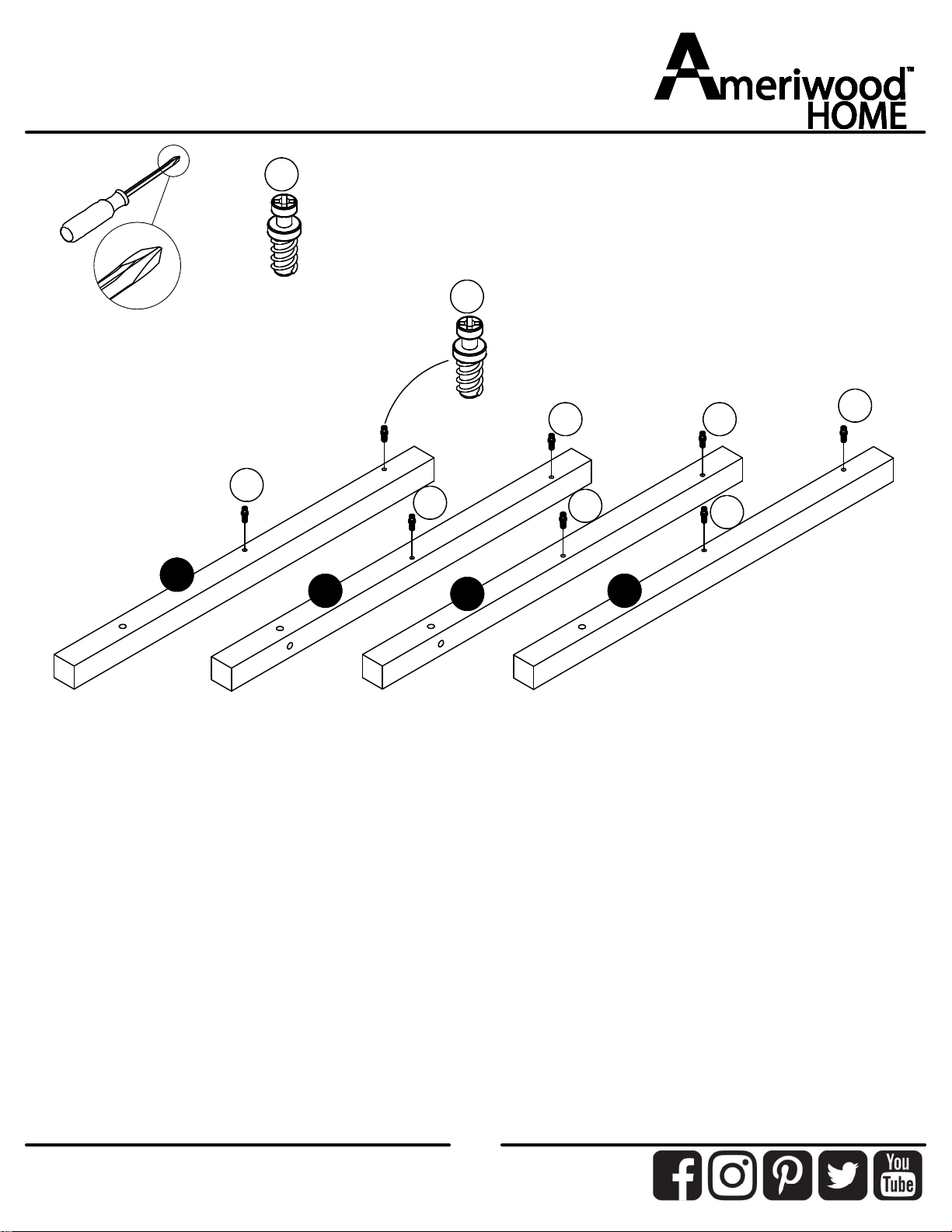

STEP3

(x8)

11 11
