Ameriwood HOME River Layne 5983330COM Manuale utente

- Anchor unit to stud in wall

- Do Not allow children to climb on unit

- Put heavy items on lower shelves or drawers

- Two people required for assembly

Unit can p over causing severe injury or death.

Keep this Assembly Manual for future reference ameriwoodhome.com

WARNING

Follow Ameriwood Home

Tube

You

B345983330COM00

River Layne Twin Sized Headboard

5983330COM

Warning

Helpful Hints

ameriwoodhome.com

Do NOT return this product!

Contact our friendly customer service team ﬁrst for help.

Call us!

1-800-489-3351

Monday-Friday

9am- 5pm CST

Visit ameriwoodhome.com

Assembly Tips

- Open your item in the area you plan to keep it for less heavy liing

- Idenfy, sort and count the parts before aempng assembly

- Compression dowels are tapped in with a hammer

- Slides are labeled with a R(right) andL (le) for proper placement

- Make sure to always face the point on the top of the Cam Lock towards the

outer edge

- Use all the nails provided for the back panel and spread them out equally

- Back panel must be used to make sure your unit is sturdy

- Do NOT use harsh chemicals or abrasive cleaners on this item

- Never push, pull, or drag your furniture

Tube

You

Tube

You

ameriwoodhome.com

Board Idenﬁcaon

Not actual size

Tube

You

T5983330010

T5983330060

Back Panel

T5983330090

Top Panel

T5983330100

Shelf Panel

T5983330110

Upper headboard

T5983330070

Lower headboard

T5983330080

T5983330020 T5983330030 T5983330040 T5983330050

GHI

River Layne Twin Sized Headboard

5983330COM

Le Side Panel

Fixed Shelf

Le Front Proﬁle Right Side Panel Right Front Proﬁle Top Panel

ameriwoodhome.com

Part List

Actual Size

Tube

You

Cam Bolt

TPB0001

Cam Lock (13/15)

TPB0002

1 x32 2 x32

Ø8x30mm

Wood Dowel

TPB0004

4 x15

Csk Screw

TPB0007

7 x8

Ø3.5x15mm

Unitar Screw

TPB0018

18 x1

Ø6.3x40mm

River Layne Twin Sized Headboard

5983330COM

Ø6x25mm

JCBC Screw

TPB0019

19 x4

JCN Nut

TPB0020

20 x4

Ø9x12mm

Allen Key

TPB0015

15 x1

Glue

TPB0016

16 x1

Not Actual Size

Metal L-Bracket

TPB0013

13 x4

(2mm)

ameriwoodhome.com

Before You Start



Quick

Tip

Assembly



Cam Lock Fastening System

This Cam Lock Fastening System will be used throughout the assembly process.

Tube

You

Read through each step carefully and follow the proper order

Separate and count all your parts and hardware

Give yourself enough room for the assembly process

Have the following tools: Flat Head Screwdriver, Phillips Head

Screwdriver and Hammer

Cauon: If using a power drill or power screwdriver for screwing,

please be aware to slow down and stop when screw is ght.

Failure to do so may result in stripping the screw.



River Layne Twin Sized Headboard

5983330COM

ameriwoodhome.com

* Raw edges are shaded

Step 1

Tube

You

Ø8x30

TPB0004

4 x15

River Layne Twin Sized Headboard

5983330COM

Glue

Pegamento

Colle

ameriwoodhome.com

* Raw edges are shaded

Step 2

Tube

You

TPB0001

1 x32

River Layne Twin Sized Headboard

5983330COM

Do not over ghten

No lo presione tanto

ne pas serrer excesslvement

ameriwoodhome.com

* Raw edges are shaded

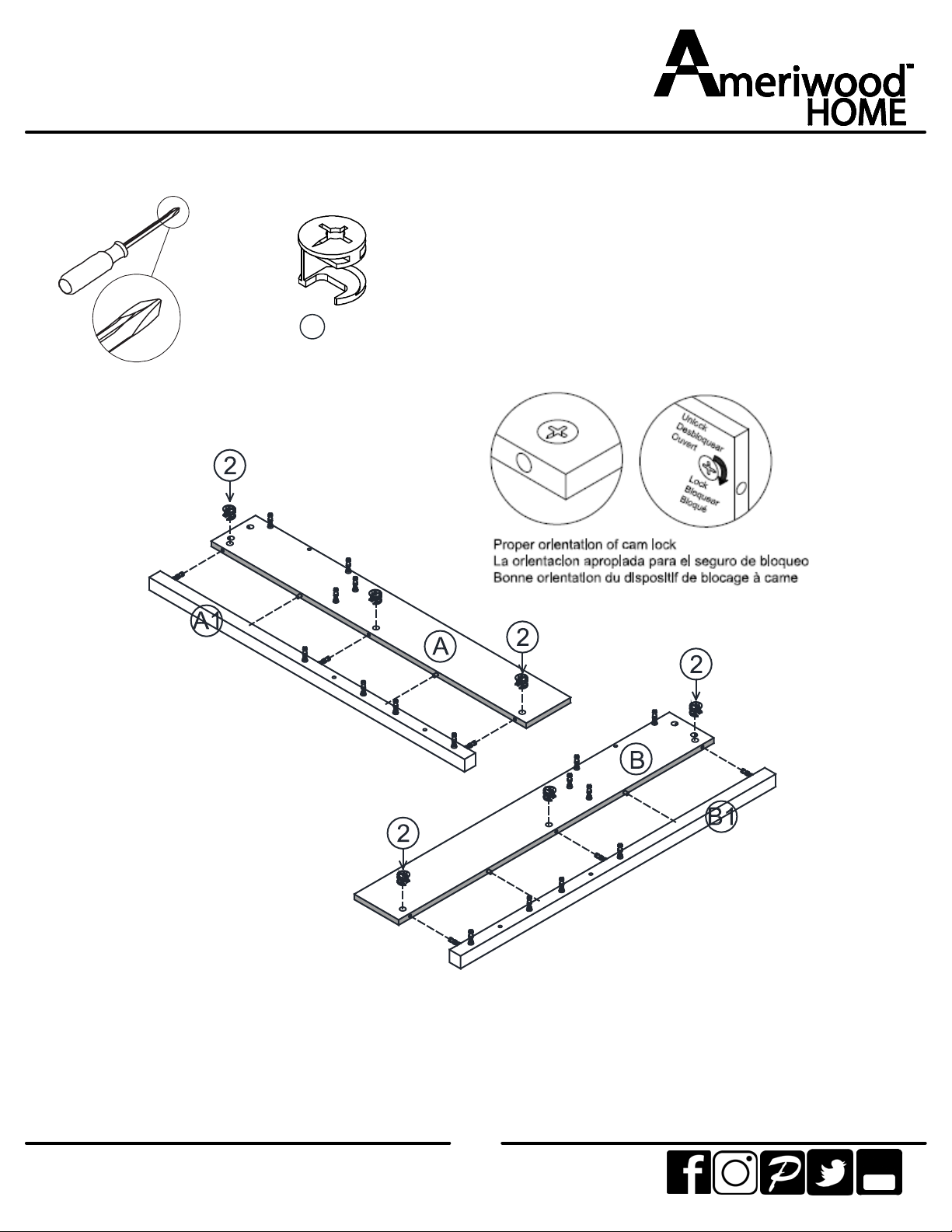

Step 3

Tube

You

TPB0002

2 x6

River Layne Twin Sized Headboard

5983330COM

ameriwoodhome.com

* Raw edgesare shaded

Step 4

Tube

You

7 x8

TPB0007

River Layne Twin Sized Headboard

5983330COM

13 x4

TPB0013

ameriwoodhome.com

* Raw edges are shaded

Step 5

Tube

You

TPB0002

2 x6

River Layne Twin Sized Headboard

5983330COM
