FCC ID PMJT1500
This device complies with part 15 of the FCC Rules. Operation is subjected
to the following two conditions: 1) This device may not cause harmful
interference and 2) this device must accept any interference received,
including interference that may cause undesired operation.
Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
User and Installation Guide
R
Step1
Connecting the transmitter

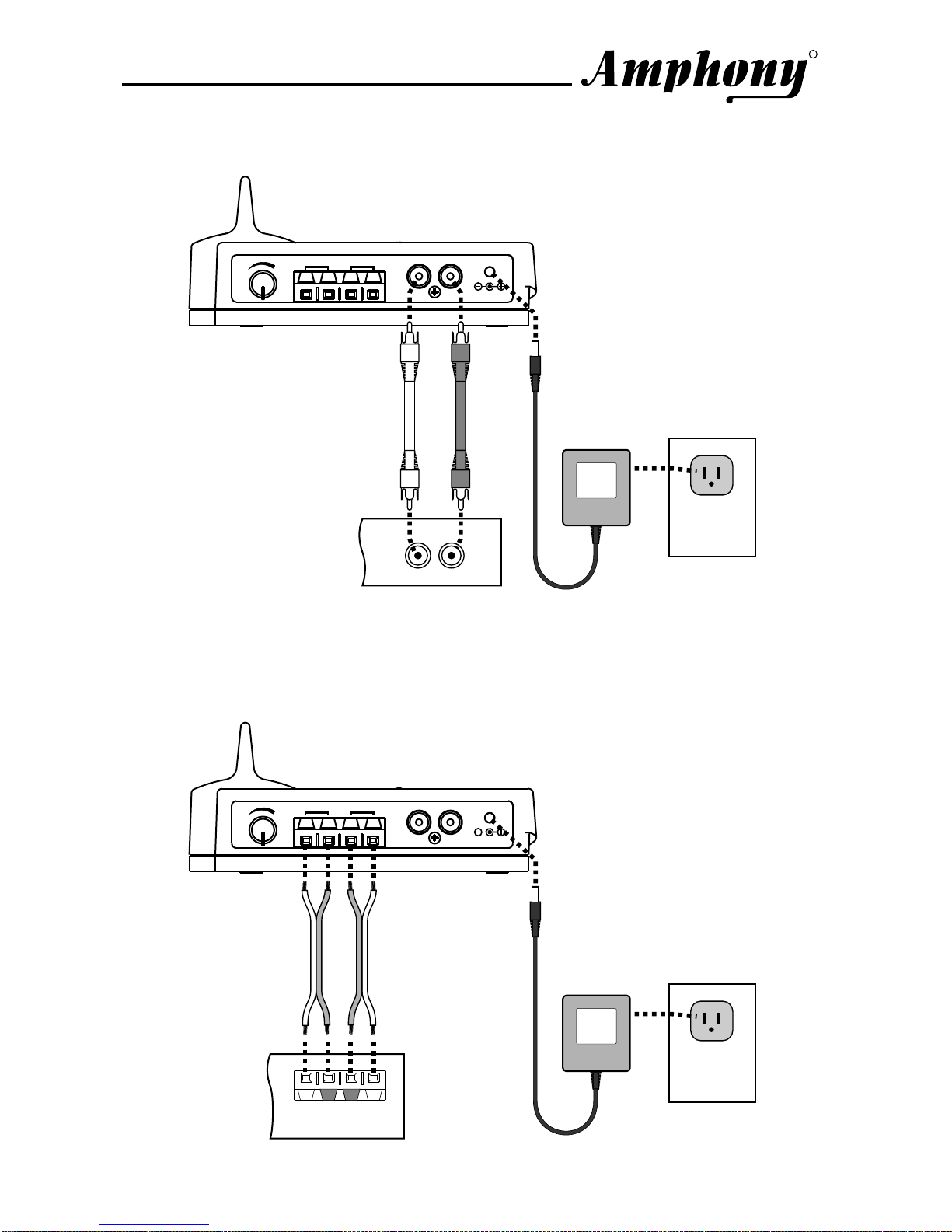

The transmitter connects either to a standard line-out audio interface via the
supplied RCA cable or to an amplified speaker output via the supplied short
speaker cables.
If the transmitter is connected via speaker cables, observe the polarity of the
cable connection to ensure that the transmitter will be fed with a correct
polarity signal. If one of the cables is switched (reversed), one speaker will
receive an opposite polarity signal which will degrade sound performance.
The transmitter can also be connected to other audio outputs by using an
appropriate adapter.
Connect the supplied small AC adapter’s barrel-shaped plug into the DC 9V
jack, and then plug the transformer into a standard AC outlet. We recommend
the use of a surge protector to protect the transmitter from power surges.
Unpacking: Check that this package contains:
One 5.8 GHz Digital Audio transmitter - Model 1550, two 5.8 GHz Digital Audio
amplifiers - Model 1550, one small and two large AC adapters (wallwarts), four
short speaker cables, one RCA audio cable.
ATTENTION! Do not use both the speaker cables and RCA cable. Do not connect
speakers to the transmitter. Do not connect the large AC adapter to
the transmitter.
