AMS TMF882X-SHIELD Manuale utente

Quick Start Guide

QG001023

TMF882X-SHIELD

Quick Start Guide

v1-00 •2022-Feb-25

Document Feedback

TMF882X-SHIELD ●

Content Guide

Quick Start Guide •PUBLIC

QG001023 •v1-00 • 2022-Feb-25

10 │2

Content Guide

1Out of the Box................................ 3

2Software Installation ..................... 4

3Hardware Overview....................... 5

4Schematic ...................................... 7

5Bill of Materials.............................. 8

6Layout ............................................ 9

7Cover Glass Drawing...................10

Document Feedback

TMF882X-SHIELD ●

Out of the Box

Quick Start Guide •PUBLIC

QG001023 •v1-00 • 2022-Feb-25

10 │3

1 Out of the Box

The TMF882X-SHIELD board is an Arduino UNO form factor development platform for quick

evaluation of the TMF8820, TMF8821 & TMF8828 multi-zone dToF sensors.

Featuring a small (20 mm x 12 mm) sensor breakaway board, this kit can be easily integrated into

custom, prototype hardware.

Several cover glass and air gap spacers are provided, this helps to evaluate the system for optimal

optical performance.

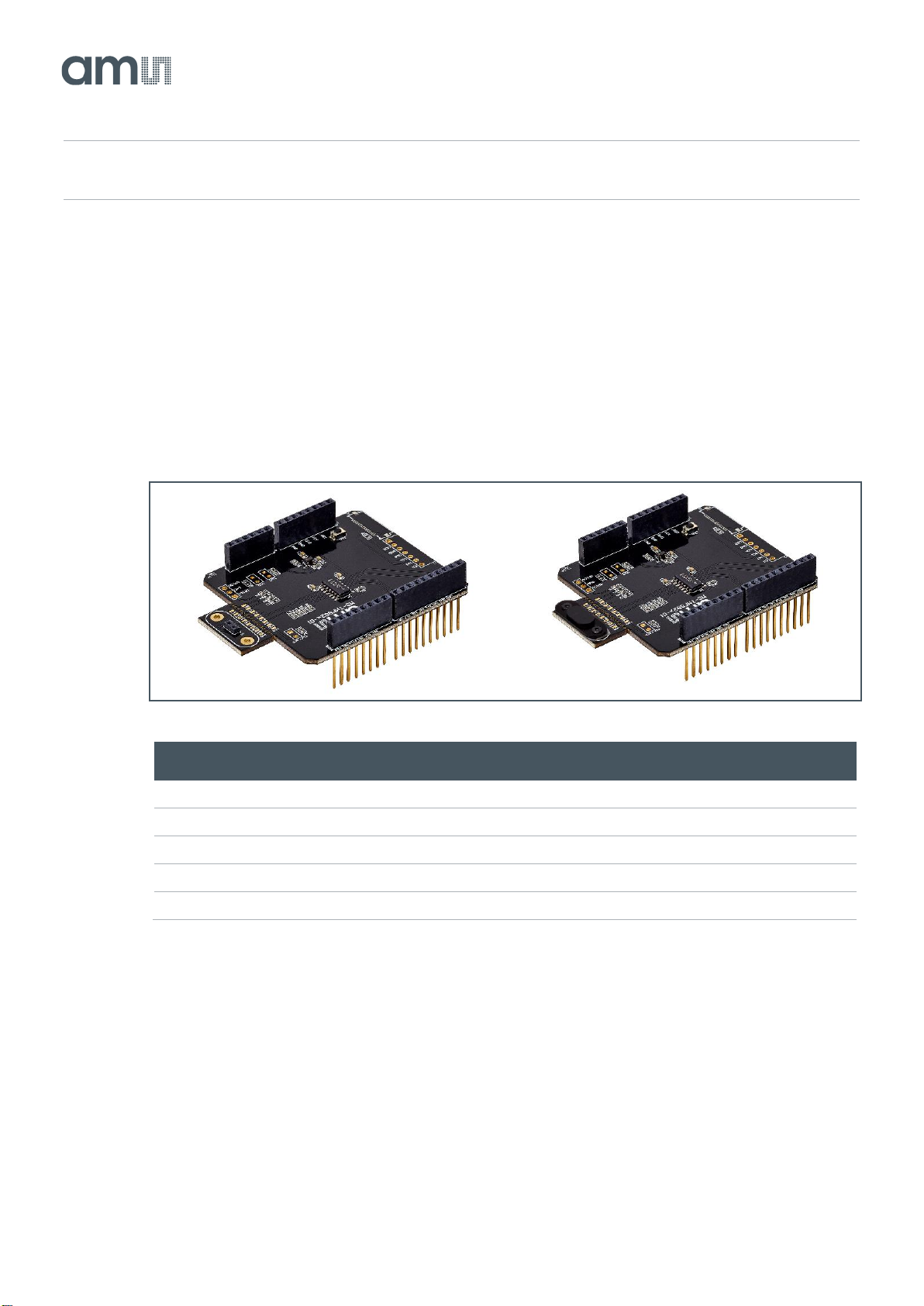

Figure 1:

TMF882X-SHIELD With and Without Airgap Spacer & Cover Glass

No.

Item

Description

TMF882X-SHIELD

Main PCB with TMF8828 sensor breakaway board

x4 Cover Glass

0.5 mm / 0.6 mm / 0.7 mm / 0.8 mm - thickness

x4 Air gap spacers

0.17 mm / 0.25 mm / 0.38 mm / 0.5 mm - thickness

2 screws

Screws for securing cover glass to PCB

Screwdriver

Screwdriver for securing screws

Document Feedback

TMF882X-SHIELD ●

Software Installation

Quick Start Guide •PUBLIC

QG001023 •v1-00 • 2022-Feb-25

10 │4

2 Software Installation

The TMF882X-SHIELD is designed to operate with a variety of MCU hardware platforms.

A Software Development Kit (SDK) for the TMF8828 has been developed to run on the NXP

LPC55S69-EVK.

SDK Source code examples include:

●Sensor calibration

●Simple configuration (9 zone distance reporting)

●Histogram output (9 zone configuration and 128bin reporting)

●Custom SPAD maps (reconfigure device to 4x4 mode)

LPC55S69 SDK download LINK

Please download the latest revision of the SDK, TMF882X_Driver_SDK_Source_vx.xx.zip from

ams.com and refer to TMF8828_Software_Development_Kit_Getting_Started_Guide.pdf for

installation and operations details.

Document Feedback

TMF882X-SHIELD ●

Hardware Overview

Quick Start Guide •PUBLIC

QG001023 •v1-00 • 2022-Feb-25

10 │5

3 Hardware Overview

The TMF882X-SHIELD board is an Arduino UNO form factor development platform for quick

evaluation of the TMF8820, TMF8821 & TMF8828 multi-zone dToF sensors.

Featuring a small sensor breakaway board, this EVM can be integrated into custom, prototype

hardware. The EVM includes an I2C level shifter and supply voltage regulator to allow the EVM to be

used with input voltages upto 5 V.

4 cover glass and air gap spacers are provided, to enabling evaluation of the optical performance.

Key Features

●Arduino UNO form factor development board

●TMF8828 sensor mounted on breakaway board

●Cover glass samples included, 0.5 mm / 0.6 mm / 0.7 mm/ 0.8 mm - thicknesses

●Air gap spacer samples included, 0.17 mm / 0.25 mm / 0.38 mm / 0.5 mm - thicknesses

●Breakaway board Vdd current sense test point

●Reset button

●Onboard LDO and I2C level shifter

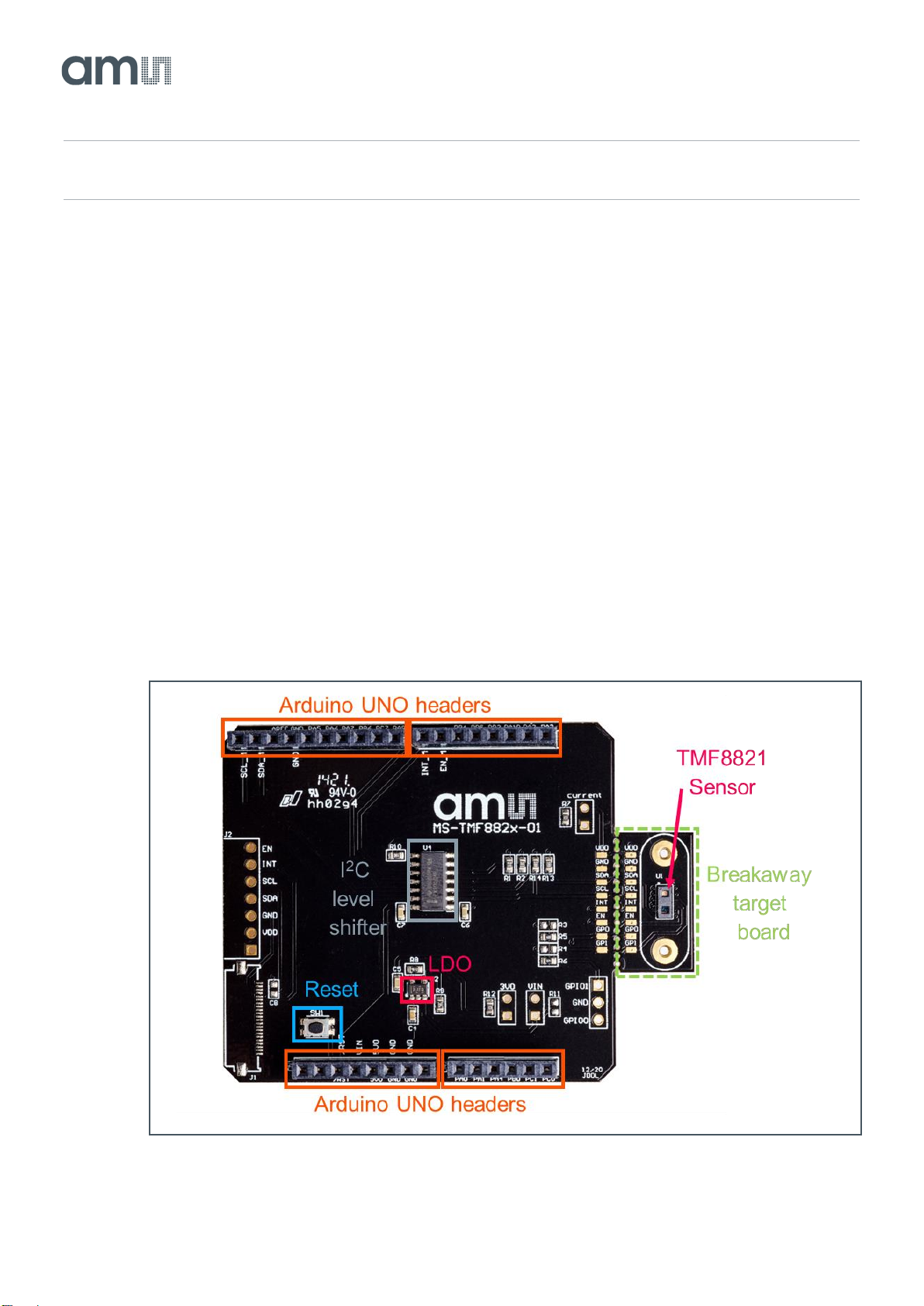

Figure 2:

TMF882X-SHIELD Hardware Overview

Document Feedback

TMF882X-SHIELD ●

Hardware Overview

Quick Start Guide •PUBLIC

QG001023 •v1-00 • 2022-Feb-25

10 │6

Attention

Please check latest TMF8828 datasheet for maximum supply and IO voltages. Failure to adhere to

these voltage levels may result in permanent damage to the TMF882X-SHIELD.

Document Feedback

TMF882X-SHIELD ●

Schematic

Quick Start Guide •PUBLIC

QG001023 •v1-00 • 2022-Feb-25

10 │7

4 Schematic

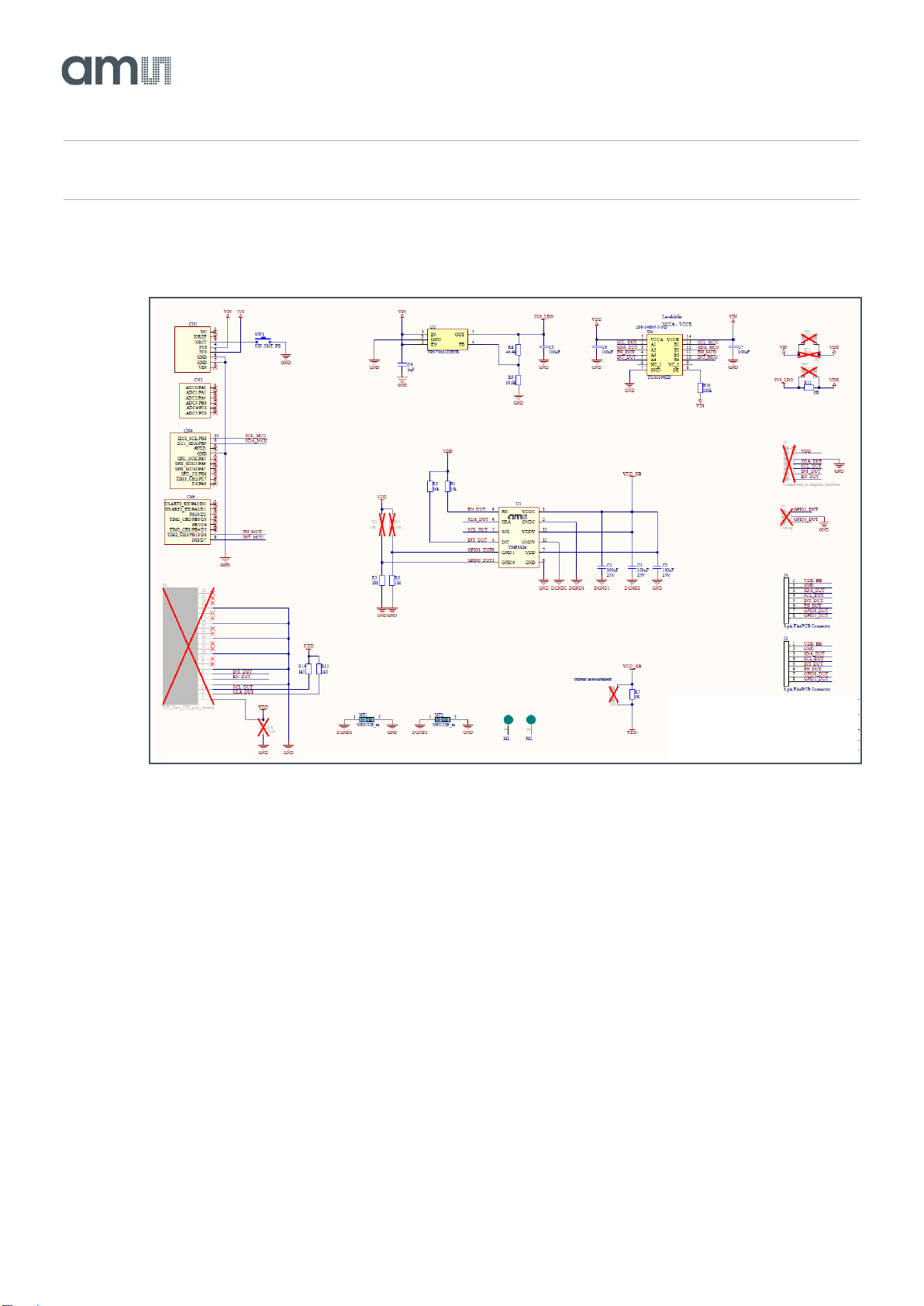

Figure 3:

TMF882X-SHIELD Schematic

Document Feedback

TMF882X-SHIELD ●

Bill of Materials

Quick Start Guide •PUBLIC

QG001023 •v1-00 • 2022-Feb-25

10 │8

5 Bill of Materials

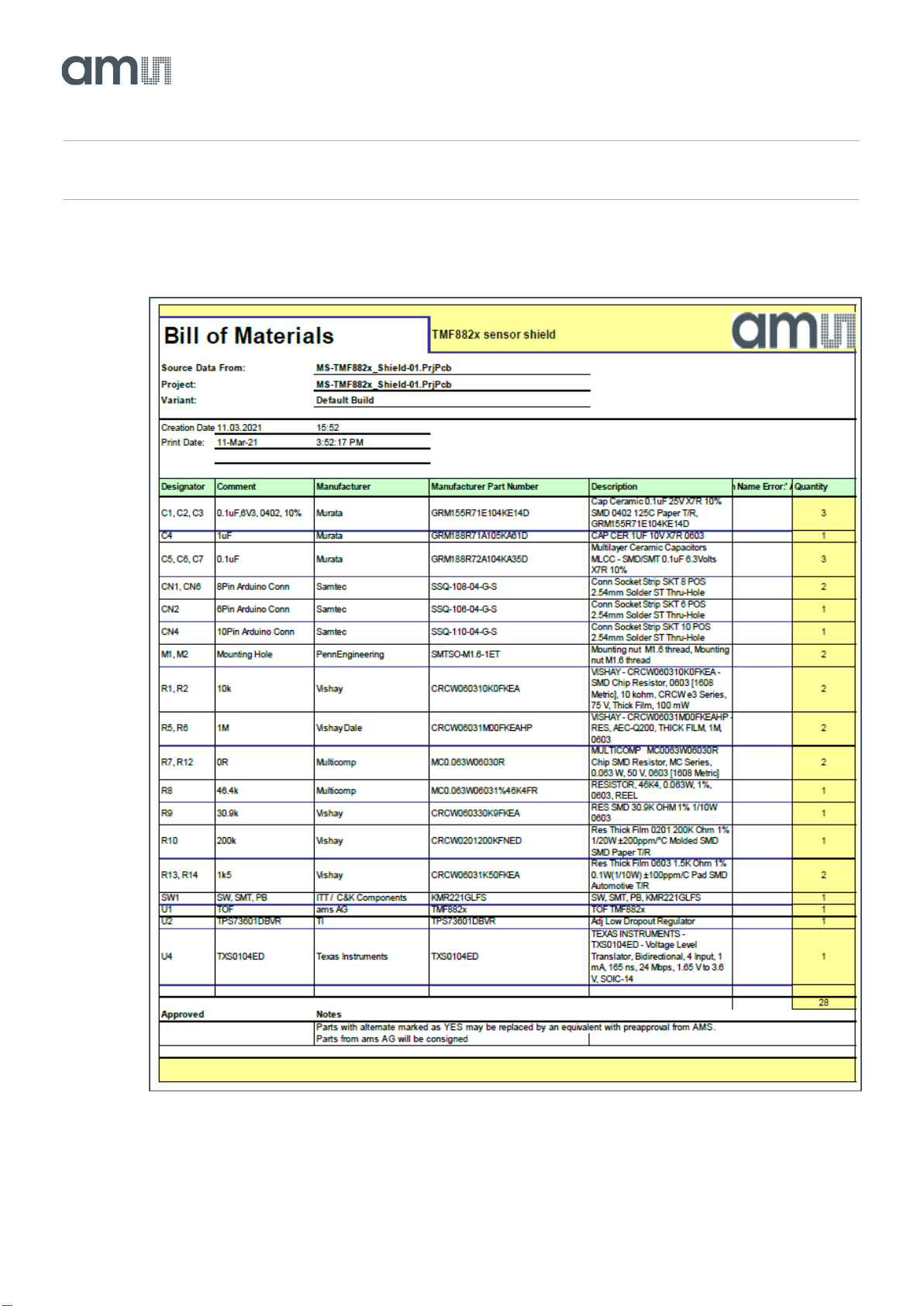

Figure 4:

Bill of Materials

Document Feedback

TMF882X-SHIELD ●

Layout

Quick Start Guide •PUBLIC

QG001023 •v1-00 • 2022-Feb-25

10 │9

6 Layout

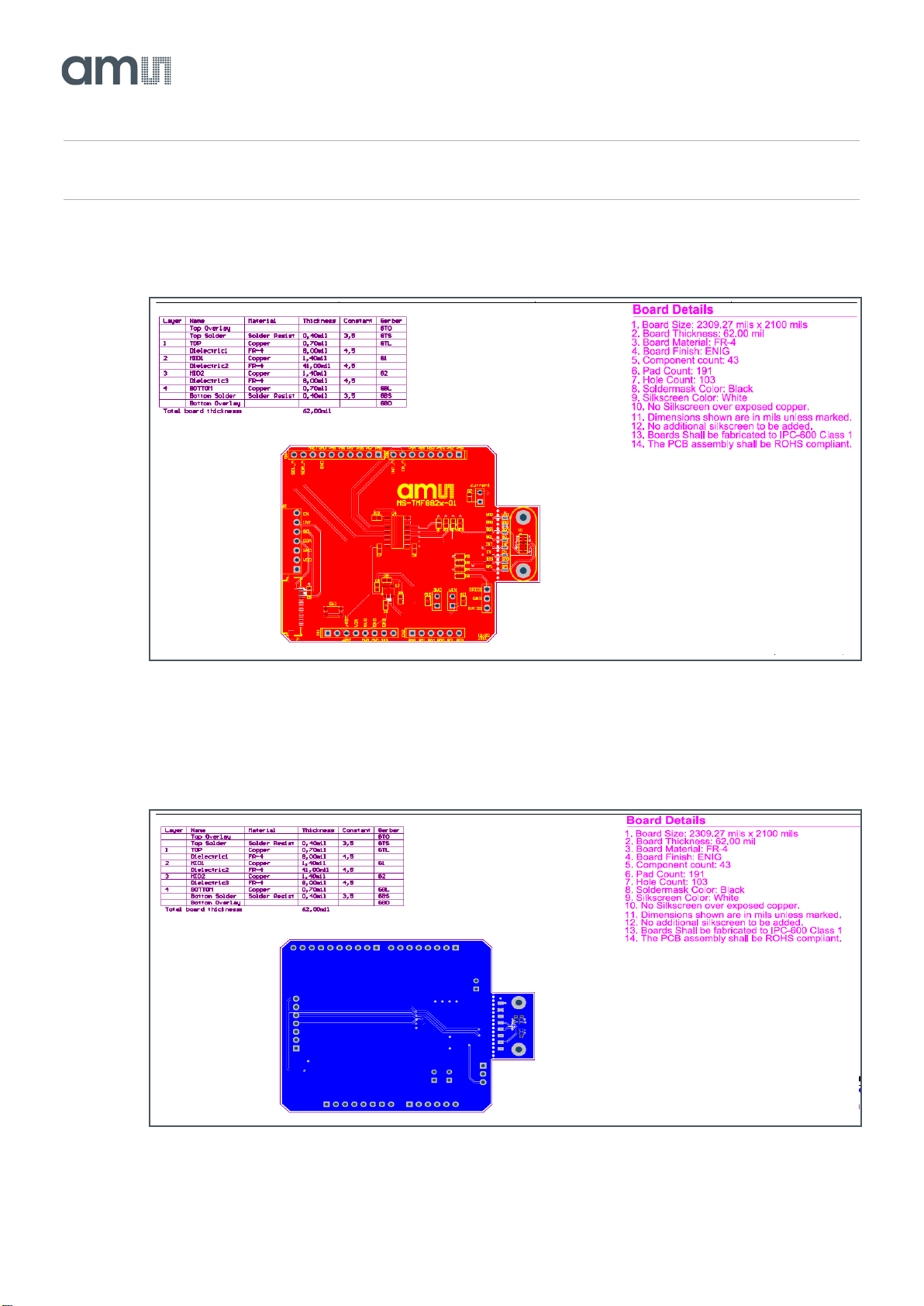

Figure 5:

Layer 1(1)

(1) Full layout details can be found in TMF882x_AD001003_1-00.pdf.

Figure 6:

Layer 4(1)

(1) Full layout details can be found in TMF882x_AD001003_1-00.pdf.

Document Feedback

TMF882X-SHIELD ●

Cover Glass Drawing

Quick Start Guide •PUBLIC

QG001023 •v1-00 • 2022-Feb-25

10 │10

7 Cover Glass Drawing

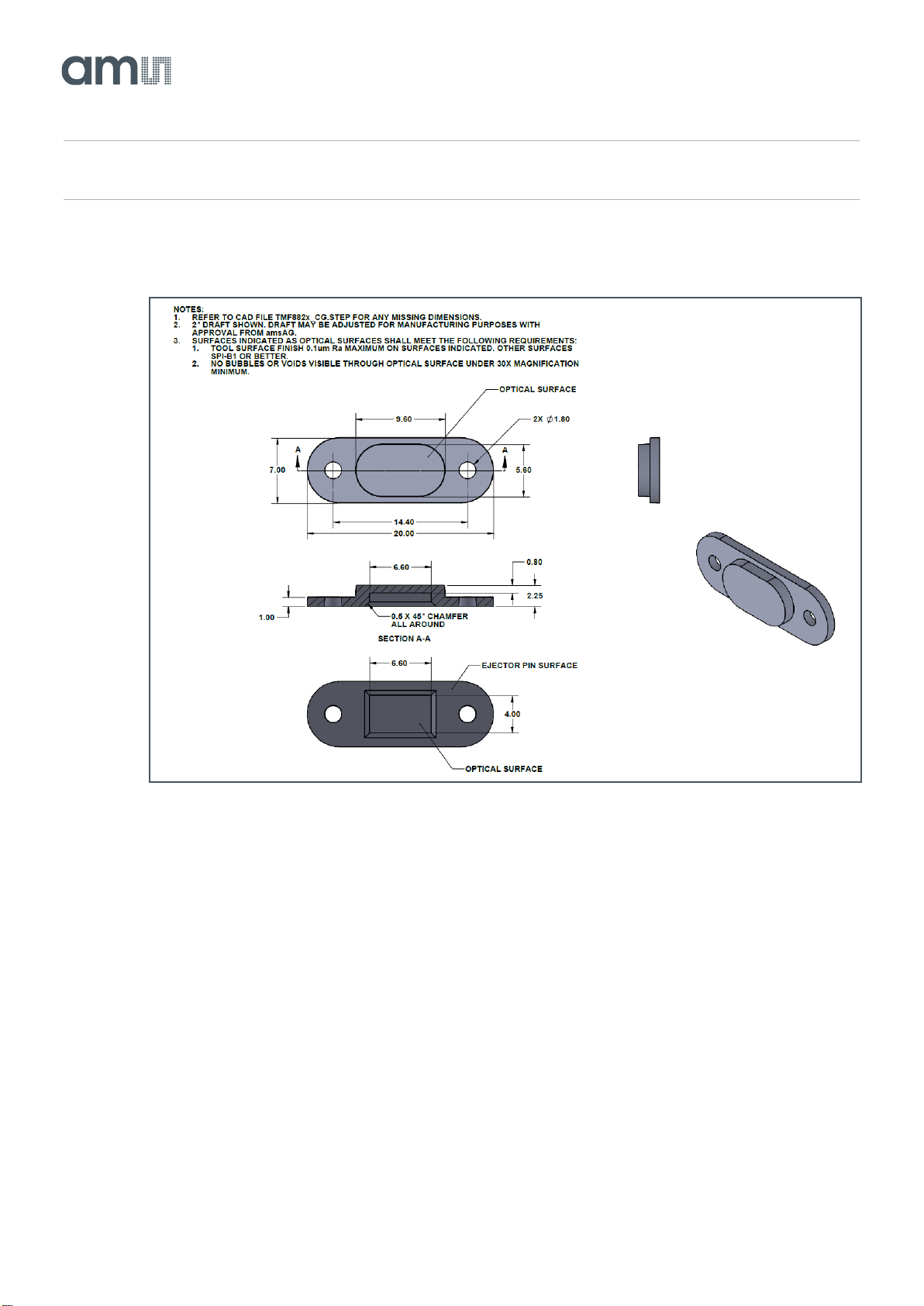

Figure 7:

Cover Glass Mechanical Drawing

Headquarters

ams-OSRAM AG

Tobelbader Strasse 30

8141 Premstaetten

Austria, Europe

Tel: +43 (0) 3136 500 0

Please visit our website at www.ams.com

Buy our products or get free samples online at www.ams.com/Products

Technical Support is available at www.ams.com/Technical-Support

Provide feedback about this document at www.ams.com/Document-Feedback

For sales offices, distributors and representatives go to www.ams.com/Contact

For further information and requests, e-mail us at ams[email protected]

merged, translated, stored, or used without the prior written consent of the copyright owner.

ams-OSRAM AG shall not be liable to recipient or any third party for any damages, including but not limited to personal injury,

property damage, loss of profits, loss of use, interruption of business or indirect, special, incidental or consequential damages,

of any kind, in connection with or arising out of the furnishing, performance or use of the technical data herein. No obligation or

liability to recipient or any third party shall arise or flow out of ams-OSRAM AG rendering of technical or other services.
