Analog Devices EVAL-ADAU1860 Manuale utente

User Guide | EVAL-ADAU1860

UG-2017

Evaluating the ADAU1860 Three ADCs, One DAC, Low Power Codec with Audio DSPs

PLEASE SEE THE LAST PAGE FOR AN IMPORTANT

WARNING AND LEGAL TERMS AND CONDITIONS. Rev. 0 | 1 of 26

EVALUATION KIT CONTENTS

►EVAL-ADAU1860EBZ evaluation board

►USB cable with micro USB plug

►mIDAS-Link emulator

DOCUMENTS NEEDED

►ADAU1860 data sheet

►EVAL-ADAU1860EBZ user guide

GENERAL DESCRIPTION

This user guide explains the design and setup of the EVAL-

ADAU1860EBZ evaluation board.

The EVAL-ADAU1860EBZ provides access to all the analog and

digital inputs and outputs on the ADAU1860. The ADAU1860 core

is controlled by Analog Devices, Inc., Lark Studio™ software, which

interfaces to the EVAL-ADAU1860EBZ via a USB connection. In

addition, users can communicate and debug with the Tensilica HiFi

3z DSP core through the JTAG port by using the mIDAS-Link

emulator. The software development kit (SDK) is also provided by

Analog Devices for code development.

The EVAL-ADAU1860EBZ can be powered by the USB bus or by a

single 5 V supply. These supply options are regulated to the voltag-

es required on the EVAL-ADAU1860EBZ. The printed circuit board

(PCB) is a 4-layer design, with a ground plane and a power plane

on the inner layers. The EVAL-ADAU1860EBZ contains connectors

for external microphones and speakers. The master clock can be

provided externally or by the on-board 24.576 MHz oscillator.

EVAL-ADAU1860EBZ BOARD PHOTOGRAPH

Figure 1.

Analog Devices is in the process of updating documentation to provide terminology and language that is culturally appropriate. This is a process

with a wide scope and will be phased in as quickly as possible. Thank you for your patience.

User Guide EVAL-ADAU1860

TABLE OF CONTENTS

analog.com Rev. 0 | 2 of 26

Evaluation Kit Contents......................................... 1

Documents Needed...............................................1

General Description...............................................1

EVAL-ADAU1860EBZ Board Photograph............. 1

Evaluation Board Block Diagram...........................3

Setting Up the Evaluation Board........................... 4

Installing the Lark Studio Software.....................4

Installing the USB Drivers.................................. 4

Default Switch and Jumper Settings.................. 4

Setting Up Communication in Software.................5

Powering Up the Evaluation Board.................... 5

Connecting the Audio Cables.............................5

Creating a Basic Signal Flow............................. 5

Using the Evaluation Board................................... 9

Power Supply..................................................... 9

Control Port...................................................... 10

Codec System.................................................. 11

Audio Inputs and Outputs................................. 11

Serial Audio Interface.......................................12

Other Interfaces................................................12

Hardware Description.......................................... 13

Jumpers............................................................13

Evaluation Board Schematics and Artwork......... 15

Ordering Information............................................24

Bill of Materials.................................................24

REVISION HISTORY

10/ 2021—Revision 0 0: Initial Version

User Guide EVAL-ADAU1860

EVALUATION BOARD BLOCK DIAGRAM

analog.com Rev. 0 | 3 of 26

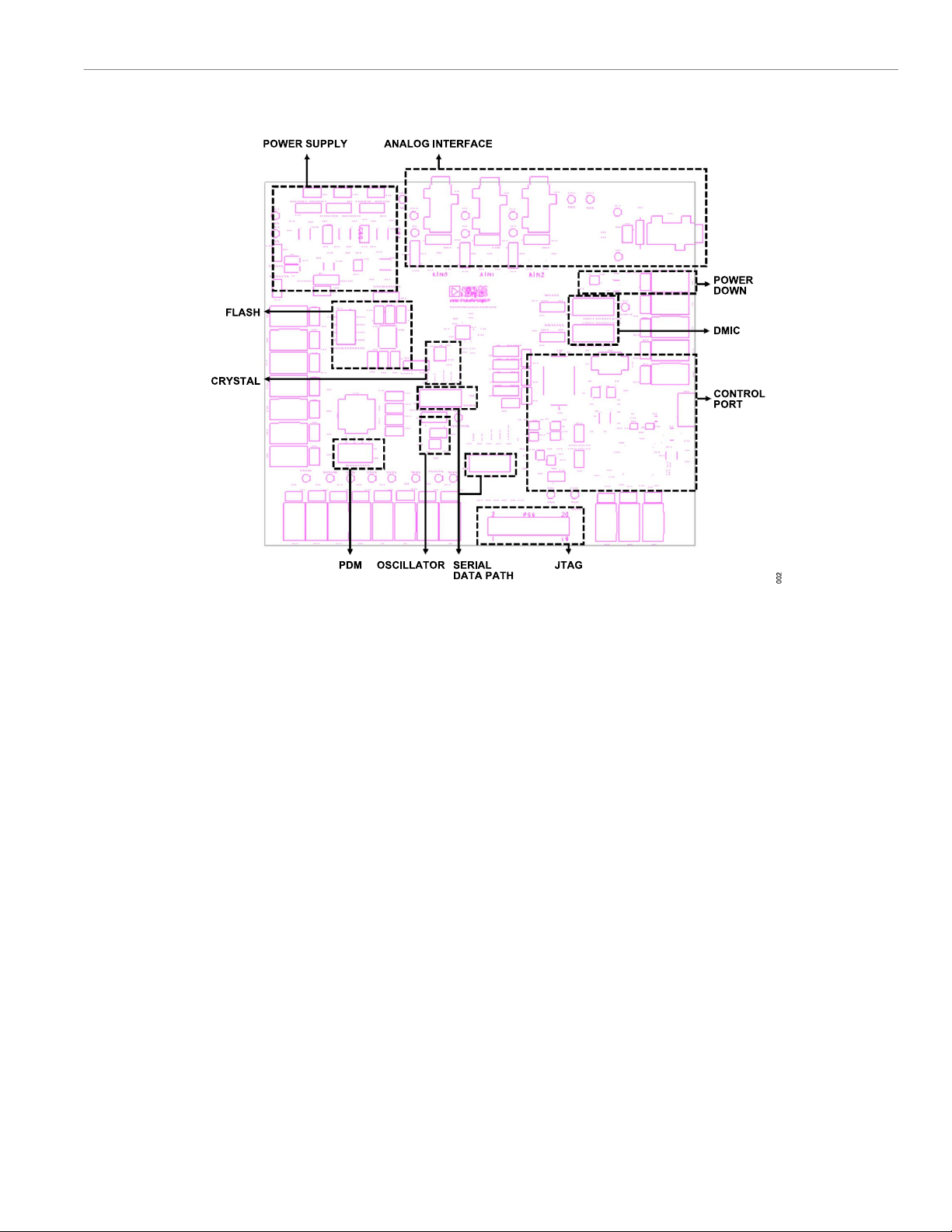

Figure 2. EVAL-ADAU1860EBZ Board Block Diagram

User Guide EVAL-ADAU1860

SETTING UP THE EVALUATION BOARD

analog.com Rev. 0 | 4 of 26

INSTALLING THE LARK STUDIO SOFTWARE

Download and install the latest version of Lark Studio by completing

the following steps:

1. Download the installer and run the executable file.

2. Follow the prompts, including accepting the license agreement,

to install the software.

INSTALLING THE USB DRIVERS

If the USB interface is not recognized by the Lark Studio software

and PC, go to the Future Technology Devices International (FTDI)

Chip official web page and download the relevant drivers.

DEFAULT SWITCH AND JUMPER SETTINGS

Table 1 shows the default switch and jumper settings.

Table 1. Default Switch and Jumper Settings

Jumper and Switch Connections Option Selected

Pin 1 to Pin 2 of P17 AVDD and HPVDD supplied by 1.8 V on-board low dropout (LDO) regulator

Pin 1 to Pin 2 of P48 and JP3 Removed IOVDD supplied by 1.8 V on-board LDO

Pin 1 to Pin 2 of P19 and JP2 Connected HPVDD_L supplied by 1.3 V on-board LDO

Pin 1 to Pin 2 of P18 and JP1 Connected DVDD supplied by 0.9 V on-board LDO

Pin 2 to Pin 3 of P26 Self boot disabled

Pin 2 to Pin 3 of P24 REG_EN disabled

Pin 2 to Pin 3 of P29 ROM boot disabled

S1 Down (SPI), Pin 2 to Pin 3 of P1, Pin 2 to Pin 3 of P4, Pin 2 to Pin 3 of P5, and

Pin 2 to Pin 3 of P6

SPI communication

Pin 1 of S14 to GND and Pin 2 of S14 to GND I2C Address 0x64

Pin 1 to Pin 2 of P8 and Pin 2 to Pin 3 of P27 to P27 The master clock source is the on-board, 24.576 MHz oscillator

Pin 1 to Pin 2 of P104 and Pin 1 to Pin 2 of P105 ADC0 differential mode

Pin 1 to Pin 2 of P12 and Pin 1 to Pin 2 of P14 ADC1 differential mode

Pin 1 to Pin 2 of P13 and Pin 1 to Pin 2 of P15 ADC2 differential mode

User Guide EVAL-ADAU1860

SETTING UP COMMUNICATION IN SOFTWARE

analog.com Rev. 0 | 5 of 26

POWERING UP THE EVALUATION BOARD

To power up the EVAL-ADAU1860EBZ evaluation board, connect

the ribbon cable to P22 of the EVAL-ADAU1860EBZ.

CONNECTING THE AUDIO CABLES

Three channels of the microphone inputs support both differential

and single-end modes. The headphone output is differential and

is dc-coupled. The digital audio signal can be I2S or time division

multiplexing (TDM) mode through the serial audio interface.

CREATING A BASIC SIGNAL FLOW

To create a basic signal flow in LARK Studio, follow these steps:

1. Download and install Lark Studio from www.ana-

log.com/ADAU1860.

2. Start Lark Studio by double clicking the shortcut on the desktop.

3. Click New Project from the Project menu, or click Create a

New Project in the Welcome section to create a new project,

as shown in Figure 3. The New Project window shows the

Project Type options.

4. Click on the Lark option for the ADAU1860 and then OK.

5. Edit the file name, and save the file to a user specified location.

6. Click on Target Connection in the left navigation panel, and

configure the Connection settings panel that opens on the

right to set up the connection. If the USB connects, Target

Connected displays (see Figure 4).

Figure 3. Create a New Project

User Guide EVAL-ADAU1860

SETTING UP COMMUNICATION IN SOFTWARE

analog.com Rev. 0 | 6 of 26

Figure 4. Connect with EVAL-ADAU1860EBZ

Configure the Register Control, FastDSP, and EQ settings on

the left navigation panel. Lark Register Control has multiple tabs

that control different sections of the ADAU1860. Figure 5 shows

the Power tab, which allows the user to power up or power down

various blocks within the ADAU1860. When a block is powered up,

that block can be configured.

The Clock tab allows the phase-locked loop (PLL) to be used or

bypassed. By register default, the PLL is disabled to save power.

To generate a 24.576 MHz master clock, enable or disable the PLL

according to the provided clock source. On the evaluation board,

a 24.576 MHz oscillator and a crystal with same frequency are

supplied. To configure an application, follow these steps:

1. Select Hibernate1, BLOCKS_ON, and CM_BST_ON in the

CHIP_PWR block in the Power tab, and then click Write (see

Figure 5 ).

2. With the default 24.576 MHz oscillator on board, select

MCLK_FREQ_24P576 of MCLK_FREQ_INDEX and set

PLL_FM_BYPASS to PLL_FM_BP in the Clock tab, then click

on Write.

3. Configure the other blocks.

When a register value is changed, click the related Write button in

a block to update a single register, or the Write this Page button

below the tabs to update multiple registers. Click Write All after all

User Guide EVAL-ADAU1860

SETTING UP COMMUNICATION IN SOFTWARE

analog.com Rev. 0 | 7 of 26

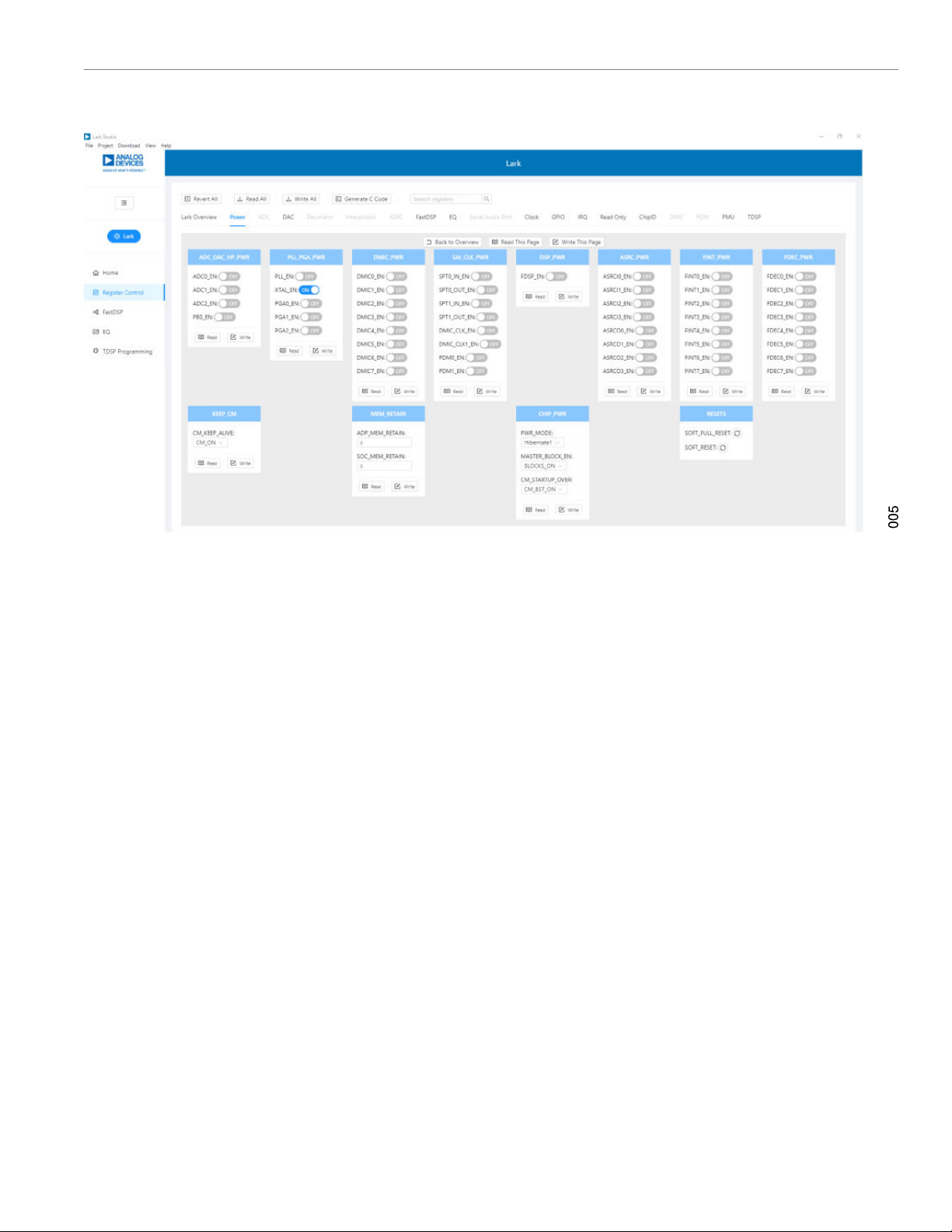

Figure 5. Register Configurations

If FastDSP is required in the project, a schematic must be created

with the desired path for the ADAU1860 as follows:

1. Click FastDSP in the left navigation panel.

2. In the left pane of the Lark FastDSP Schematic window, click

an arrow to expand a folder.

3. Select and drag an icon into the schematic window, for exam-

ple, the ADC icon within the IO folder (see Figure 6). In

this example, AIN1 and ASRCI0 are being routed to FastDSP

Output 0 and Output 1 separately.

4. To download the correct parameter generated from the sche-

matic, set fs to be the same as the FastDSP source,

FDSP_RATE_SOURCE, which is set in the FastDSP tab in

the Lark Register Control window.

5. Click Download to Target to write the parameter and command

to FastDSP memory. After the download finishes, FastDSP is

enabled and runs automatically.

If the equalizer is required in the project, a configuration of the

filters must be set for the ADAU1860 as follows:

1. Click on EQ in the navigation panel.

2. Select the filter numbers and relative filter parameters.

3. Set fs to be same as the equalizer source, EQ_ROUTE, which

is set in the EQ tab in the Lark RegisterControl window.

4. Click Download to Target to write the parameter and command

to equalizer memory. After the download finishes, the equalizer

is enabled and runs automatically.

If Tensilica HiFi 3z DSP (TDSP) is used, a hex file for the TDSP

program code can be uploaded via Lark Studio as follows:

1. Click TDSP Programming in the navigation panel.

2. Select the hex file that will be uploaded.

3. Click TDSP Program.

4. After uploading is finished, type in the Reset Address for the

program, and then click TDSP Reset. The TDSP then runs

automatically with the uploaded program.

For full details on the operation of Lark Studio, click Getting Start

Guide from the Help menu of the Lark Studio graphical user

interface (GUI).

User Guide EVAL-ADAU1860

SETTING UP COMMUNICATION IN SOFTWARE

analog.com Rev. 0 | 8 of 26

Figure 6. FastDSP Schematic Configuration

User Guide EVAL-ADAU1860

USING THE EVALUATION BOARD

analog.com Rev. 0 | 9 of 26

POWER SUPPLY

Power can be supplied to the EVAL-ADAU1860EBZ in one of three

following ways:

1. Connecting the USB cable to P22.

2. Connecting the 5 V dc power to P47.

3. Connecting the isolated external power supply to P42 for AVDD

and HPVDD, P43 for IOVDD, P45 for HPVDD_L, and P46 for

DVDD.

The FTDI 4232 is powered by an on-board LDO regulator with a

3.3 V output.

Table 2. Power Supply Jumper Setting

Power Source

On-Board LDO Regulator External

Jumper Settings Power Supply Voltage (V) Jumper Settings Port

AVDD and HPVDD Pin 1 to Pin 2 of P17 1.8 Pin 2 to Pin 3 of P17 P42

IOVDD Pin 1 to Pin 2 of P48, JP3 removed 1.8 Pin 2 to Pin 3 of P48, JP3 removed P43

JP3 connected, P48 removed 1.8, connected to AVDD and HPVDD

HPVDD_L Pin 1 to Pin 2 of P19, JP2 connected 1.3 Pin 2 to Pin 3 of P19 P45

Pin 1 to Pin 2 of P19, JP2 removed 1.5

DVDD Pin 1 to Pin 2 of P18, JP1 connected 0.9 Pin 2 to Pin 3 of P18 P46

Pin 1 to Pin 2 of P18, JP1 removed 1.1

User Guide EVAL-ADAU1860

USING THE EVALUATION BOARD

analog.com Rev. 0 | 10 of 26

CONTROL PORT

The EVAL-ADAU1860EBZ is configured to serial peripheral inter-

face (SPI) mode by default. To operate the codec in I2C or universal

asynchronous receiver/transmitter (UART) mode, see Table 3.

Table 3. Control Port Jumper and Switch (S1) Settings

Communication Port Address Setting Jumper Settings Switch Settings

SPI Not applicable Pin 2 to Pin 3 of P1, Pin 2 to Pin 3 of P4, Pin 2 to Pin 3 of P5, and Pin 2

to Pin 3 of P6

Down

I2C S14, default 0x64 (00), 0x65 (01), 0x66 (10),

0x67 (11)

Pin 2 to Pin 3 of P1, Pin 2 to Pin 3 of P4, Pin 2 to Pin 3 of P5, and Pin 2

to Pin 3 of P6

UART Not applicable Pin 1 to Pin 2 of P1, Pin 1 to Pin 2 of P4, Pin 1 to Pin 2 of P5, and Pin 1

to Pin 2 of P6

Indice

Altri manuali Analog Devices Hardware per computer

Analog Devices

Analog Devices ADP8860SHIELD-EVALZ Manuale utente

Analog Devices

Analog Devices EZ-KIT Lite ADSP-21364 Guida utente

Analog Devices

Analog Devices SHARC ADSP-21065L Manuale utente

Analog Devices

Analog Devices ADSP-2181 Manuale utente

Analog Devices

Analog Devices LTC2949 Manuale utente

Analog Devices

Analog Devices Linear SCP-LT8362-S-EVALZ Guida rapida alla configurazione

Analog Devices

Analog Devices SHARC ADSP-21367 Manuale utente

Analog Devices

Analog Devices LTC5597 Manuale utente

Analog Devices

Analog Devices Linear LTM 4700 Manuale utente

Analog Devices

Analog Devices AD7194 Manuale utente

Analog Devices

Analog Devices Blackfin ADSP-BF537 Guida all'applicazione

Analog Devices

Analog Devices EZ-KIT Lite ADSP-BF537 Manuale utente

Analog Devices

Analog Devices ADuCM322 Manuale utente

Analog Devices

Analog Devices ICE-100B Manuale utente

Analog Devices

Analog Devices SHARC ADSP-21020 Manuale utente

Analog Devices

Analog Devices Linear ADP5070 Guida rapida alla configurazione

Analog Devices

Analog Devices ADSP-BF53x Blackfin Manuale di servizio

Analog Devices

Analog Devices EVAL-ADG5401FEBZ Manuale utente

Analog Devices

Analog Devices EZ-KIT LITE ADSP-2191 Manuale utente

Analog Devices

Analog Devices ADSST-EM-3040 Manuale utente

Analog Devices

Analog Devices ADSP-BF535 Blackfin Guida all'applicazione

Analog Devices

Analog Devices AD9843A Manuale utente

Analog Devices

Analog Devices HPUSB Manuale utente

Analog Devices

Analog Devices SHARC ADSP-214 Series Guida all'applicazione

Manuali Hardware per computer popolari di altre marche

EMC2

EMC2 VNX Series Manuale del proprietario

Panasonic

Panasonic DV0PM20105 Manuale utente

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manuale utente

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manuale utente

Raidon

Raidon iT2300 Manuale utente

National Instruments

National Instruments PXI-8186 Manuale utente

Hauppauge

Hauppauge WinTV-HVR-2250 Manuale utente

Kontron

Kontron CP6002 Manuale utente

Manhattan

Manhattan 702843 Manuale utente

Aphex

Aphex 230 Manuale utente

AMD

AMD Phenom II Manuale operativo

Intel

Intel NUC 12 Pro Manuale utente

dbx

dbx Zone Pro 1260 Manuale utente

Galaxy

Galaxy GHDX2-2430S-24F4D Manuale utente

Intel

Intel AXXRMFBU4 Manuale utente

Kontron

Kontron DIMM-PC/MD Manuale utente

ST X-NUCLEO-SAFEA1B Istruzioni operative

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manuale utente
