DEMO MANUAL DC2702B-B

Rev. 0

DESCRIPTION

LTM4700

Single 100A µModule Regulator with

Digital Power System Management

Demonstration circuit 2702B-B is a single output, dual-

phase, high efficiency, high density, µModule

regulator

with a 4.5V to 16V input range. The output voltage is

adjustable from 0.5V to 1.8V and can supply 100A maxi-

mum load current. The DC2702B-B demo board has a

LT M

4700 µModule regulator, a dual 50A or single 100A

step-down regulator with digital power system man-

agement. Refer to the LTM4700 data sheet for more

detailedinformation.

DC2702B-B powers up to default settings and produces

power based on configuration resistors without serial bus

communication. This feature allows easy evaluation of

the DC/DC converter. To fully explore the extensive power

system management features of the LTM4700, download

All registered trademarks and trademarks are the property of their respective owners.

the GUI software LTpowerPlay

onto your PC and use

Analog Devices I2C/SMBus/PMBus dongle DC1613Ato

connect to the board. LTpowerPlay allows the user to

reconfigure the part on-the-fly, store the configuration in

EEPROM, view telemetry of voltage, current, temperature

and faultstatus.

Graphic User Interface (GUI) Download

The software can be downloaded from LTpowerPlay.

For more details and instructions on LTpowerPlay, refer to

LTpowerPlay GUI for LTM4700 Quick Start Guide.

Design files for this circuit board are available.

Figure1. Single Output LTM4700/DC2702B-B Demo Circuit

BOARD PHOTO

Part marking is either ink mark or laser mark

DEMO MANUAL DC2702B-B

Rev. 0

QUICK START PROCEDURE

Demonstration circuit 2702B-B is easy to set up to evalu-

ate the performance of the LTM4700EY. See Figure2 for

the proper measurement equipment setup and follow the

procedure below.

1. With power off, connect the input power supply to VIN

(4.5V to 16V) and GND (input return).

2. Connect the 1.0V output load between VOUT0 and GND

(Initial load: no load).

3. Connect the Digital Voltmeters (DVMs) to the input

and outputs. Set default jumper position:

JP1: ON

JP2: ON

JP3: ON

4. Turn ontheinputpowersupplyandcheckfortheproper

output voltages. VOUT0 should be 1.0V ±0.5%.

5. Once the proper output voltages are established,

adjust the loads within the operating range and ob-

serve theoutput voltage regulation, ripple voltage and

otherparameters.

6. Connect the dongle and control the output voltages

fromtheGUI.Formoredetails,refertotheLTpowerPlay

GUI for the LTM4700 Quick Start Guide.

Notes

The internal bias circuit is enabled when VIN >7V and JP3

isON.

When measuring the output or input voltage ripple, do

not use the long ground lead on the oscilloscope probe.

See Figure3 for the proper scope probe technique. Short,

stiff leads need to be soldered to the (+) and (–) terminals

of an output capacitor. The probe’s ground ring needs to

touch the (–) lead, and the probe tip needs to touch the

(+) lead.

PERFORMANCE SUMMARY

Specifications are at TA= 25°C

PARAMETER CONDITIONS MIN TYP MAX UNITS

Input Voltage Range 4.5 16 V

Output Voltage, VOUT0 VIN = 4.5V to 16V, IOUT0 = 0A to 100A 0.5 1.0 1.8 V

Maximum Output Current, IOUT0 VIN = 4.5V to 16V, VOUT0 = 0.5V to 1.8V 100 A

Typical Efficiency VIN = 12V, VOUT0 = 1.0V, IOUT0 = 100A 88.7 (See Figure5) %

Default Switching Frequency 350 kHz

MAXIMUM OUTPUT CURRENT NUMBER OF OUTPUTS

NUMBER OF LTM4700 µModule

REGULATORS ON THE BOARD DEMO BOARD NUMBER

50A 2 1 DC2702B-A

100A 1 1 DC2702B-B

200A 1 2 DC2784B-A

300A 1 3 DC2784B-B

400A 1 4 DC2784B-C

DEMO MANUAL DC2702B-B

Rev. 0

QUICK START PROCEDURE

+ –

VOUT GND

COUT

DC2702B-B F03

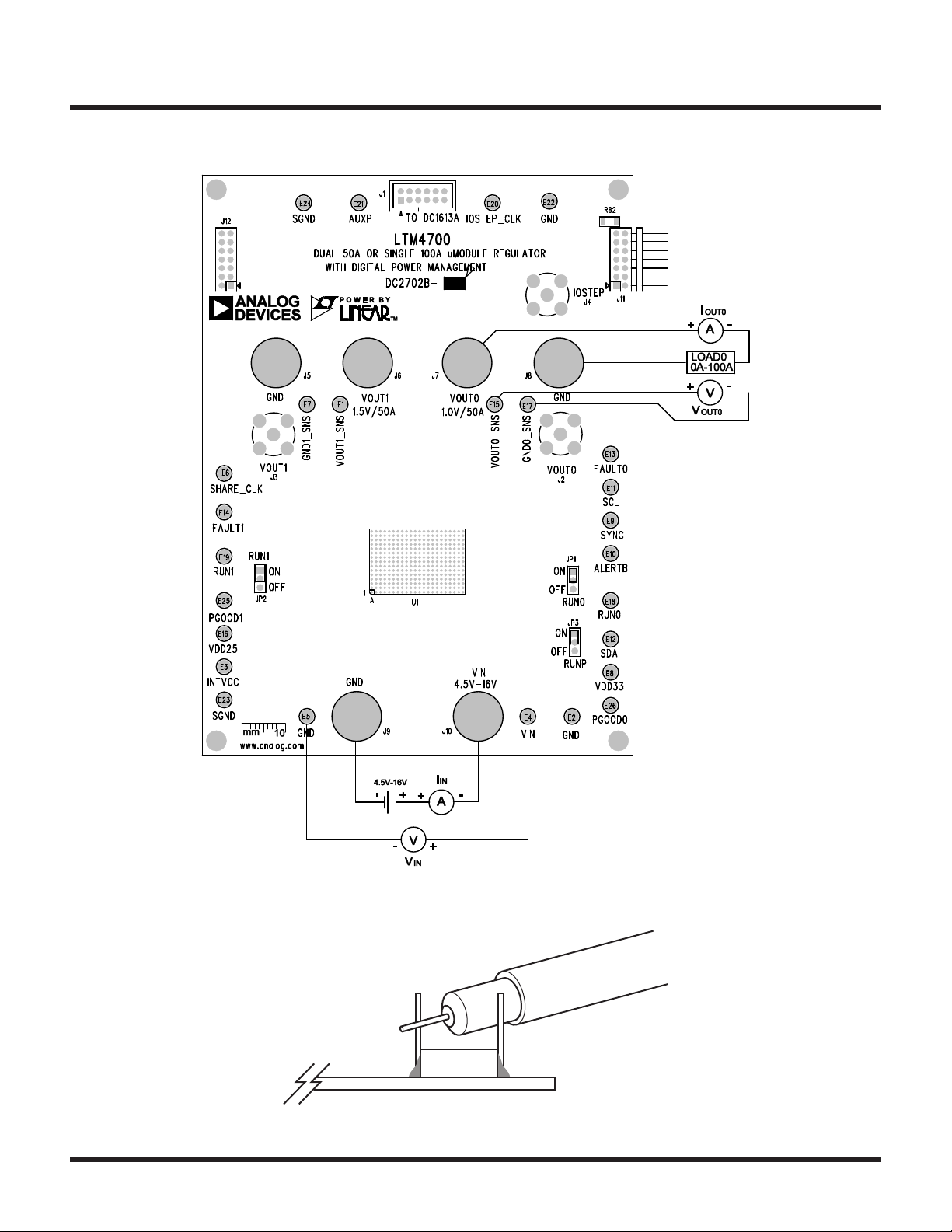

Figure2. Proper Measurement Equipment Setup

Figure3. Measuring Output Voltage Ripple

DEMO MANUAL DC2702B-B

Rev. 0

Figure5. Efficiency vs Load Current at VOUT0 = 1V, fSW = 350kHz (RUNP is ON)

QUICK START PROCEDURE

Connecting a PC to DC2702B-B

A Personal Computer (PC) can be used to reconfigure

the power managementfeatures of the LTM4700, such

as nominal VOUT, marginset points, OV/UV limits, tem-

perature fault limits, sequencing parameters, the fault

log, fault responses, GPIOs and other functionalities. The

DC1613A dongle may be plugged in when VIN is present.

Figure4. Demo Setup with PC

VIN = 6V

VIN = 12V

LOAD CURRENT (A)

100

EFFICIENCY (%)

DC2702B-B F05

INPUT POWER

SUPPLY

USB TO I2C/PMBus

DONGLE DC1613A

LTM4700 DEMO

BOARD DC2702B-B LOAD0

USB CABLE

12-PIN (J1)

CONNECTOR DC2702B-B F04

VIN

VOUT0

DEMO MANUAL DC2702B-B

Rev. 0

QUICK START PROCEDURE

Figure6. Output Voltage VOUT0 vs Load Current (VOUT0 = 1.0V)

Figure7. Output Voltage Ripple at VIN = 12V, VOUT0 = 1.0V, IOUT0 = 100A

Figure8. Thermal at VIN = 12V, VOUT0 = 1.0V, IOUT0 = 100A, TA= 25°C, No Airflow

DC2702B-B F06

VOUT0

(20MHz BW)

20mV/DIV

LOAD STEP

50A TO 75A/DIV

DC2702B-B F07

VOUT0

(20MHz BW)

5mV/DIV

DEMO MANUAL DC2702B-B

Rev. 0

LTpowerPlay is a powerful Windows-based development

environment that supports Analog Devices power sys-

tem management ICs and μModule ICs, including the

LTM4675, LTM4676, LTM4677, LTM4678, LTC3880,

LTC3882 and LTC3883. The software supports a variety

of different tasks. You can use LTpowerPlay to evalu-

ate Analog Devices ICs by connecting to a demo board

system. LTpowerPlay can also be used in an offline mode

(with no hardware present) to build a multichip configura-

tion file that can be saved and reloaded later. LTpowerPlay

provides unprecedented diagnostic and debug features. It

becomes a valuable diagnostic tool during board bring-

up to program or tweak the power management scheme

LTpowerPlay SOFTWARE GUI

Figure9. LTpowerPlay Main Interface

in a system, or to diagnose power issues when bring-

ing up rails. LTpowerPlay utilizes the DC1613A USB-

to-SMBus controller to communicate with one of many

potential targets, including the LTM4675, LTM4676,

LTM4677, LTM4678, LTC3880, LTC3882, LTC3883’s

demo system, or a customer board. The software also

provides an automatic update feature to keep the software

current with the latest set of device drivers and docu-

mentation. The LTpowerPlay software can be downloaded

from LTpowerPlay.

To access technical support documents for Analog

Devices’Digital Power Products, visit the LTpowerPlay

Help menu. Online help is also available through the

LTpowerPlay.

DEMO MANUAL DC2702B-B

Rev. 0

LTpowerPlay QUICK START PROCEDURE

The following procedure describes how to use LTpowerPlay

to monitor and change the settings of LTM4700.

1. Download and install the LTpowerPlay GUI.

2. Launch the LTpowerPlay GUI.

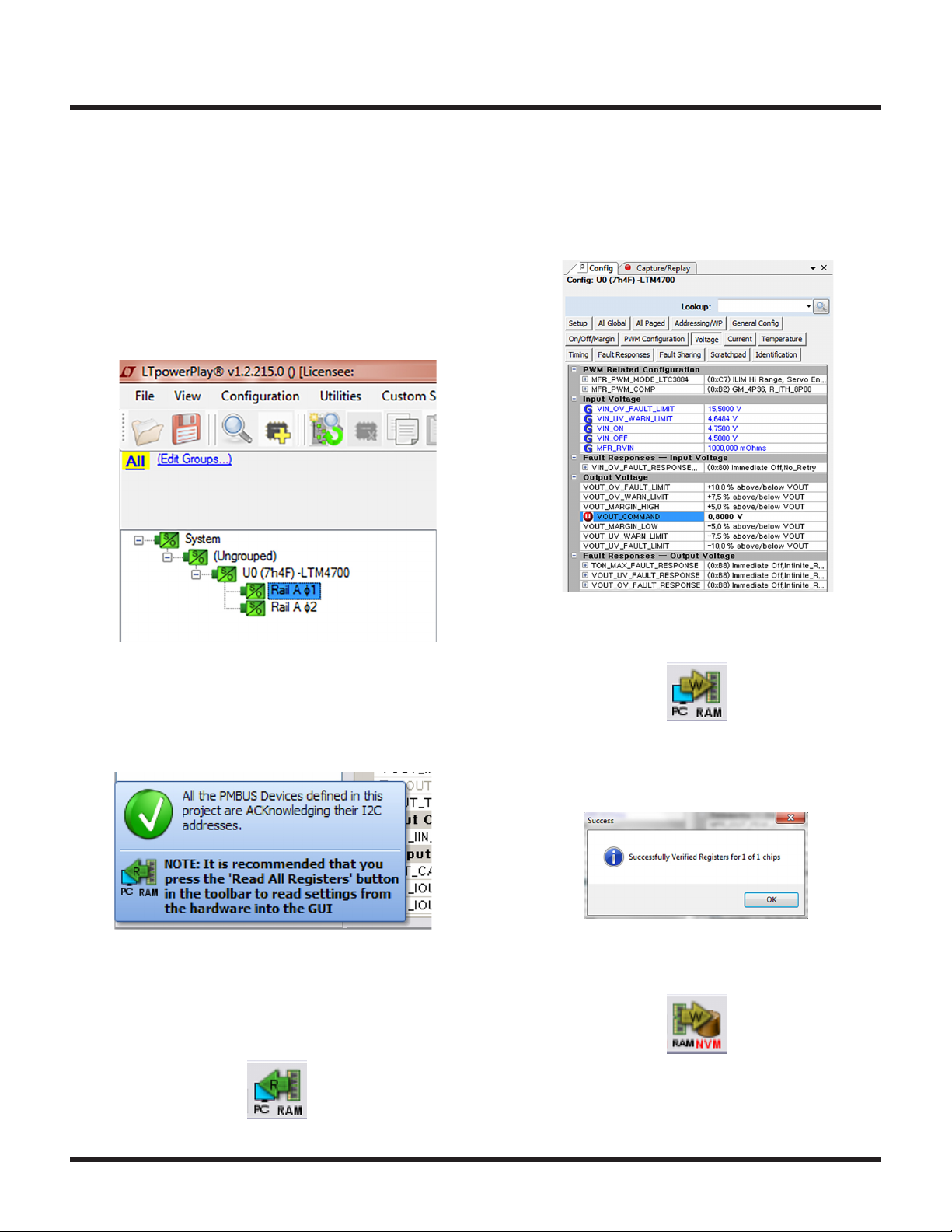

a. The GUI should automatically identify the

DC2702B-B. The system tree on the left-hand side

should look like as shown in the following ﬁgure:

b. A green message box shows for a few seconds in

thelowerleft-handcorner,conﬁrmingthatLTM4700

iscommunicating:

c. In the toolbar, click the “R” (RAM to PC) icon to

read the RAM from the LTM4700. This step reads

the conﬁguration from the RAM of LTM4700 and

loads it into theGUI.

d. Ifyou want tochangetheoutput voltage toadifferent

value, 0.8V. In the Config tab, type in 0.8 in the

VOUT_COMMAND box as shown in the following

ﬁgure:

e. Then, click the “W” (PC to RAM) icon to write these

step, the output voltage changes to0.8V.

f. If the write is successful, the following message

will be seen:

g. Changes can be saved into the NVM. In the toolbar,

click the “RAM to NVM” button:

h. Save the demo board conﬁguration to a (*.proj)

ﬁle. Click the Save icon and save the ﬁle.

DEMO MANUAL DC2702B-B

Rev. 0

PARTS LIST

ITEM QTY REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER

Required Circuit Components

1 18 COUT1-COUT10, COUT14-COUT16,

COUT18-COUT22

CAP., 330μF, X6S, 4V, 20%, 1210 TAIYO YUDEN, AMK325AC6337MM-P

2 1 CIN1 CAP., 180μF, ALUM. POLY., 25V, 20%,

8mm × 12mm SMD, E12

PANASONIC, 25SVPF180M

3 1 C15 CAP., 6800pF, X7R, 50V, 5%, 0603 AVX, 06035C682JAT2A

4 8 CIN2-CIN9 CAP., 22μF, X5R, 25V, 10%, 1210 AVX, 12103D226KAT2A

MURATA, GRM32ER61E226KE15L

TAIYO YUDEN, TMK325BJ226KM-P

TAIYO YUDEN, TMK325BJ226KM-T

5 3 C21, C22, C24 CAP., 1μF, X5R, 25V, 10%, 0603 AVX, 06033D105KAT2A

NIC, NMC0603X5R105K25TRPF

6 1 C23 CAP., 1μF, X7R, 25V, 10%, 0805 AVX, 08053C105KAT2A

7 1 C26 CAP., 0.1μF, X5R, 16V, 10%, 0603 AVX, 0603YD104KAT2A

NIC, NMC0603X5R104K16TRPF

8 2 C27, C28 CAP., 0.01μF, X7R, 25V, 5%, 0603 AVX, 06033C103JAT2A

9 1 C33 CAP., 22μF, X5R, 6.3V, 20%, 0603 MURATA, GRM188R60J226MEA0D

10 2 Q1, Q2 XSTR., MOSFET, N-CH, 40V, TO-252 (DPAK) VISHAY, SUD50N04-8M8P-4GE3

11 1 Q3 XSTR., MOSFET, P-CH, 20V, 5.9A, TO-236

(SOT23-3)

VISHAY, SI2365EDS-T1-GE3

12 15 R10-R16, R18, R19, R24, R52, R77,

R94, R95, R106

RES.,10k, 5%, 1/10W, 0603, AEC-Q200 NIC, NRC06J103TRF

PANASONIC, ERJ3GEYJ103V

VISHAY, CRCW060310K0JNEA

13 4 R25, R32, R69, R70 RES., 10Ω, 1%, 1/10W, 0603 NIC, NRC06F10R0TRF

PANASONIC, ERJ3EKF10R0V

ROHM, MCR03EZPFX10R0

VISHAY, CRCW060310R0FKEA

YAGEO, RC0603FR-0710RL

14 2 R30, R31 RES., 2.43k, 1%, 1/10W, 0603, AEC-Q200 NIC, NRC06F2431TRF

PANASONIC, ERJ3EKF2431V

VISHAY, CRCW06032K43FKEA

15 2 R50, R51 RES., 30Ω, 1%, 1W, 2512, AEC-Q200 VISHAY, CRCW251230R0FKEG

16 1 R53 RES., 0.01Ω, 1%, 1/2W, 2010, SENSE, AEC-Q200 VISHAY, WSL2010R0100FEA

17 2 R72, R73 RES., 4.99k, 1%, 1/10W, 0603, AEC-Q200 NIC, NRC06F4991TRF

PANASONIC, ERJ3EKF4991V

VISHAY, CRCW06034K99FKEA

18 1 R78 RES., 15.8k, 1%, 1/10W, 0603, AEC-Q200 NIC, NRC06F1582TRF

PANASONIC, ERJ3EKF1582V

VISHAY, CRCW060315K8FKEA

19 1 R90 RES., 0.001Ω, 1%, 1W, 2010, HP METAL,

SENSE, AEC-Q200

VISHAY, WSL20101L000FEA18

20 1 U1 IC, DUAL 50A POP PSM MODULE, BGA

15mm × 22mm × 7.82mm

ANALOG DEVICES, LTM4700EY#PBF

21 1 U2 IC, MEMORY, EEPROM, 2KBIT

(256mm × 8mm), TSSOP-8, 400kHz

MICROCHIP, 24LC025-I/ST

MICROCHIP, 24LC025T-I/ST

DEMO MANUAL DC2702B-B

Rev. 0

PARTS LIST

ITEM QTY REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER

Additional Demo Board Circuit Components

1 0 C1, C2, C14, C16, C17, C29, C31, C32 CAP., OPTION, 0603

2 0 D1, D2 DIODE, OPTION, SOD-323

3 0 R3, R8, R26, R27, R61, R62, R64, R67,

R68, R74, R75, R83, R88, R89, R93

RES., OPTION, 0603

4 16 R9, R28, R29, R33, R35, R38, R41,

R63, R65, R66, R91, R92, R96-R99

RES., 0Ω, 1/10W, 0603, AEC-Q200 NIC, NRC06ZOTRF

VISHAY, CRCW06030000Z0EA

5 5 R48, R100-R103 RES., 0Ω, 3/4W, 2010, AEC-Q200 NIC, NRC50ZOTRF

PANASONIC, ERJ12ZY0R00U

VISHAY, CRCW20100000Z0EF

6 0 R49 RES., OPTION, 2010

7 0 R82 RES., OPTION, 1206

8 0 R104, R105 RES., OPTION, 0805

Hardware

1 26 E1-E26 TEST POINT, TURRET, 0.064", MTG. HOLE MILL-MAX, 2308-2-00-80-00-00-07-0

2 3 JP1, JP2 CONN., HDR, MALE, 1mm × 3mm × 2mm,

VERT, STR, THT

WURTH ELEKTRONIK, 62000311121

3 1 J1 CONN., SHROUDED HDR, MALE,

2 × 6, 2mm, VERT, STR, THT

FCI, 98414-G06-12ULF

4 3 J2, J3, J4 CONN., RF, BNC, RCPT JACK,5-PIN, STR,

THT, 50Ω

AMPHENOL RF, 112404

5 6 J5-J10 STUD, FASTENER, #10-32s PENNENGINEERING, KFH-032-10ET

6 12 J5-J10 NUT, HEX, STEEL, ZINC PLATE, 10-32 KEYSTONE, 4705

7 6 J5-J10 RING, LUG, CRIMP, #10, NONINSULATED,

SOLDERLESS TERMINALS

KEYSTONE, 8205

8 6 J5-J10 WASHER, FLAT, STEEL, ZINC PLATE, OD:

0.436 [11.1]

KEYSTONE, 4703

9 1 J11 CONN., HDR, MALE, 2 × 7, 2mm, R/A THT MOLEX, 0877601416

MOLEX, 877601416

10 1 J12 CONN., HDR, FEMALE, 2 × 7, 2mm, R/A THT SULLINS CONNECTOR SOLUTIONS,

NPPN072FJFN-RC

11 4 MH1-MH4 STANDOFF, NYLON, SNAP-ON, 0.50" WURTH ELEKTRONIK, 702935000

12 3 XJP1, XJP2 CONN., SHUNT, FEMALE, 2 POS, 2mm WURTH ELEKTRONIK, 60800213421

DEMO MANUAL DC2702B-B

Rev. 0

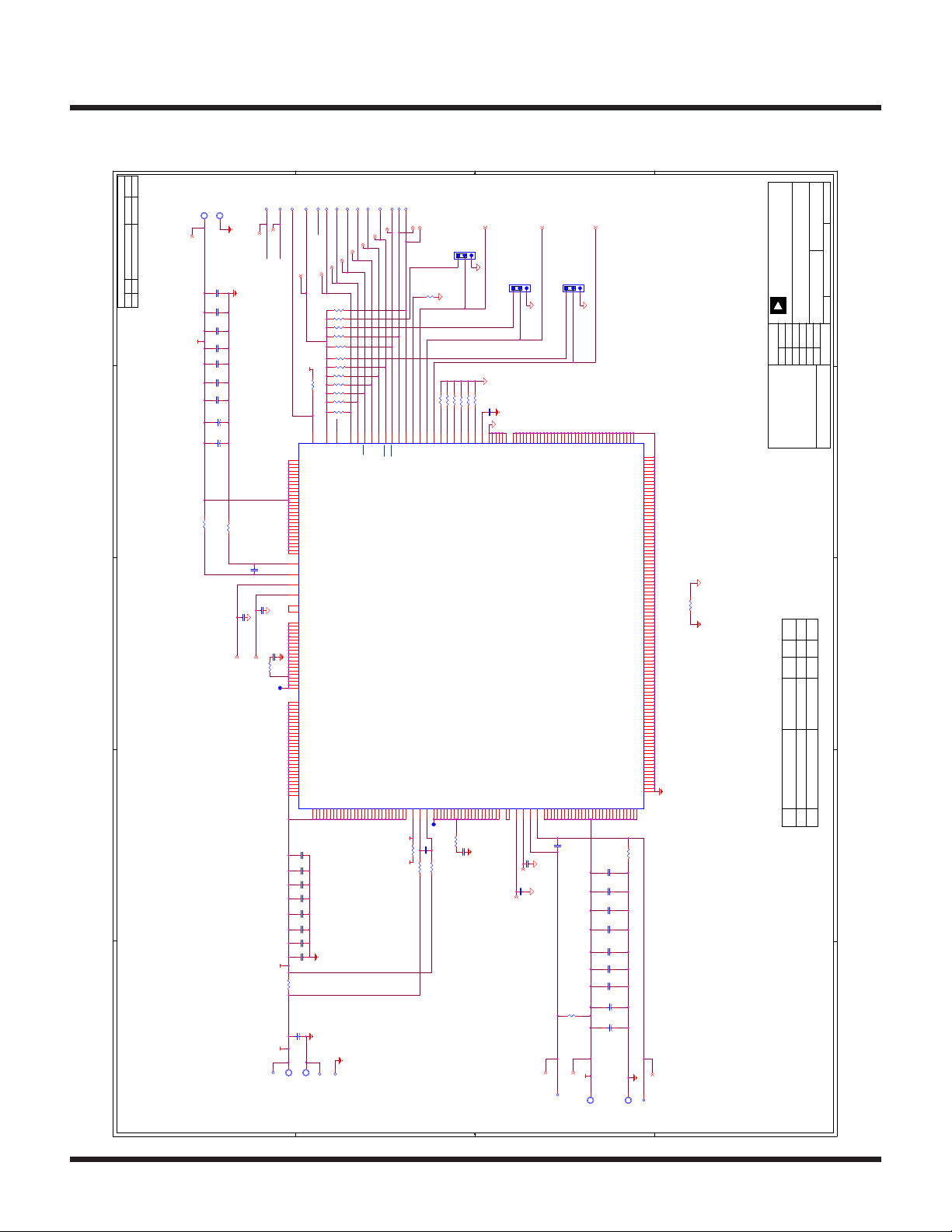

SCHEMATIC DIAGRAM

D D

C C

B B

A A

NOTE: UNLESS OTHERWISE SPECIFIED

1. ALL RESISTORS AND CAP ARE 0603.

1.0V/50A

1.5V/50A

0.035 VIA

TESTPOINTS

OFF

25V

4.5V - 16V

OFF

ASSY

R28,R35,R38,R41,R96,R97,R98,R99

OPT

0 OHM

R100,R101,R102,R103

-A

-B 0 OHM

R93, R3

10 OHMOPT

OPT

6.8nF

OPT

R31

4.22K

2.43K

2. WHEN VIN < 5.75V, SHORT INTVCC TO SVIN WITH R8=0 OHM

DUAL 50A OR SINGLE 100A uMODULE REGULATOR

WITH DIGITAL POWER MANAGEMENT

Friday, July 23, 2021

VOUT0

VOUT1

SVIN

VIN VIN1

SVINVIN

SYNC

SHARE_CLK

ALERTB

SCL

SDA

FAULT0

FAULT1

COMP0b

RUN0

RUN1

VDD33

PGOOD1

PGOOD0

VOSNS0+

VOSNS0-

VOSNS1+

VOSNS1-

COMP0a

VOUT1

VOUT0

RUNP

COMP1b

COMP1a

REVISION HISTORY

DESCRIPTION DATEAPPROVEDECO REV

HZPRODUCTION1 07-24-21

REVISION HISTORY

DESCRIPTION DATEAPPROVEDECO REV

HZPRODUCTION1 07-24-21

REVISION HISTORY

DESCRIPTION DATEAPPROVEDECO REV

HZPRODUCTION1 07-24-21

DATE:

SHEET OF

TITLE: SCHEMATIC

APPROVALS

PCB DES.

APP ENG.

SIZE:

SCHEMATIC NO. AND REVISION:

CUSTOMER NOTICE

THIS CIRCUIT IS PROPRIETARY TO ANALOG DEVICES AND

SUPPLIED FOR USE WITH ANALOG DEVICES PARTS.

SKU NO.

IC NO.

ANALOG DEVICES HAS MADE A BEST EFFORT TO DESIGN A

CIRCUIT THAT MEETS CUSTOMER-SUPPLIED

SPECIFICATIONS; HOWEVER, IT REMAINS THE CUSTOMER'S

RESPONSIBILITY TO VERIFY PROPER AND RELIABLE

OPERATION IN THE ACTUAL APPLICATION. COMPONENT

SUBSTITUTION AND PRINTED CIRCUIT BOARD LAYOUT

MAY SIGNIFICANTLY AFFECT CIRCUIT PERFORMANCE

OR RELIABILITY. CONTACT ANALOG DEVICES

APPLICATIONS ENGINEERING FOR ASSISTANCE.

ANALOG

DEVICES

LTM4700EY

DC2702B(A,B)

710-DC2702B(A,B)_REV01

N/A DATE:

SHEET OF

TITLE: SCHEMATIC

APPROVALS

PCB DES.

APP ENG.

SIZE:

SCHEMATIC NO. AND REVISION:

CUSTOMER NOTICE

THIS CIRCUIT IS PROPRIETARY TO ANALOG DEVICES AND

SUPPLIED FOR USE WITH ANALOG DEVICES PARTS.

SKU NO.

IC NO.

ANALOG DEVICES HAS MADE A BEST EFFORT TO DESIGN A

CIRCUIT THAT MEETS CUSTOMER-SUPPLIED

SPECIFICATIONS; HOWEVER, IT REMAINS THE CUSTOMER'S

RESPONSIBILITY TO VERIFY PROPER AND RELIABLE

OPERATION IN THE ACTUAL APPLICATION. COMPONENT

SUBSTITUTION AND PRINTED CIRCUIT BOARD LAYOUT

MAY SIGNIFICANTLY AFFECT CIRCUIT PERFORMANCE

OR RELIABILITY. CONTACT ANALOG DEVICES

APPLICATIONS ENGINEERING FOR ASSISTANCE.

ANALOG

DEVICES

LTM4700EY

DC2702B(A,B)

710-DC2702B(A,B)_REV01

N/A DATE:

SHEET OF

TITLE: SCHEMATIC

APPROVALS

PCB DES.

APP ENG.

SIZE:

SCHEMATIC NO. AND REVISION:

CUSTOMER NOTICE

THIS CIRCUIT IS PROPRIETARY TO ANALOG DEVICES AND

SUPPLIED FOR USE WITH ANALOG DEVICES PARTS.

SKU NO.

IC NO.

ANALOG DEVICES HAS MADE A BEST EFFORT TO DESIGN A

CIRCUIT THAT MEETS CUSTOMER-SUPPLIED

SPECIFICATIONS; HOWEVER, IT REMAINS THE CUSTOMER'S

RESPONSIBILITY TO VERIFY PROPER AND RELIABLE

OPERATION IN THE ACTUAL APPLICATION. COMPONENT

SUBSTITUTION AND PRINTED CIRCUIT BOARD LAYOUT

MAY SIGNIFICANTLY AFFECT CIRCUIT PERFORMANCE

OR RELIABILITY. CONTACT ANALOG DEVICES

APPLICATIONS ENGINEERING FOR ASSISTANCE.

ANALOG

DEVICES

LTM4700EY

DC2702B(A,B)

710-DC2702B(A,B)_REV01

N/A

INTVCC

C17

OPT

R19

10K

R91

COUT18

330uF

1210

C29

OPT

VIN

LTM4700EY

VOUT0

P15

VOUT0

R15

VOUT0

T15

VOUT0

V14

VOUT1 A15

VOUT1 B12

VOUT1 B13

VOUT1 B14

VOUT0

U12

VOUT0

U13

VOUT0

U14

VOUT0

V15

VOUT1 B15

VOUT1 C12

VOUT1 C13

VOUT1 C14

VOUT0

U15

VOUT0

V12

VOUT0

V13

VOUT0

W12

GND

VOUT1 C15

VOUT1 D12

VOUT1 D13

GND

A10

GND

A11

GND

ASEL H11

VTRIM1_CFG H9

GND

FAULT0 H13

FAULT1 H12

GND

TSNS0B

T14 TSNS0A

K13

ALERT J13

RUN0 J12

VOUT0_CFG J10

TSNS1A L13

TSNS1B G14

GND

C10

GND

C11

GND

SDA H14

SCL J14

RUN1 K12

VOUT1_CFG H10

WP J8

GND

D11

GND

SYNC K14

GND

SHARE_CLK K8

VDD33 K9

GND

E10

GND

E11

GND

G13 GND

G12

GND

COMP0a

N13

COMP0b

M13

SGND L12

SGND M10

COMP1b L9

COMP1a L8

GND

VOSNS0+

P14

VOSNS0-

N14

INTVCC R10

RUNP Y10

VOSNS1+ M9

GND

F10

SW0

GND

G11

GND

F11

GND

VIN0

P7 VIN0

P6 VIN0

N7 VIN0

GND

SW0

GND

VIN1 A6

VIN1 A7

VIN1 A8

VIN1 B6

VIN0

T6 VIN0

R8 VIN0

R7 VIN0

SVIN

GND

VIN1 B7

VIN1 B8

VIN1 C6

VIN1 C7

SGND L10

SGND L11

GND

D10

SW1 A2

SW1 A1

SW0

SW1 B1

VOSNS1- M8

VOUT0

W13

VOUT0

W14

VOUT0

W15

VOUT1 A14

VOUT1 A13

VOUT1 A12

VDD25 G10

PGOOD0 R14

PGOOD1 N9

FSWPH_CFG J11

VTRIM0_CFG J9

IN+

R13

IN-

P13

GND

K10

GND

K11

VIN0

AA6

VIN0

AA7

VIN0

AA8

VIN0

AB6

VIN0

AB7

VIN0

AB8

VIN1 C8

VIN1 D6

VIN1 D7

VIN1 D8

VIN1 E6

VIN1 E7

VIN1 E8

VIN1 F6

VIN1 F7

VIN1 F8

VIN1 G6

VIN1 G7

VIN1 G8

VIN1 H6

VIN1 H7

VIN1 H8

VIN1 J6

VIN1 J7

VIN1 K6

VIN1 K7

SW0

AA1

SW0

AA2

SW0

AB1

SW0

AB2

SW1 B2

SW1 C1

SW1 C2

SW1 D1

SW1 D2

SW1 E1

SW1 E2

SW1 F1

SW1 F2

SW1 G1

SW1 G2

SW1 H1

SW1 H2

SW1 J1

SW1 J2

SW1 K1

SW1 K2

VOUT0

Y12

VOUT0

Y13

VOUT0

Y14

VOUT0

Y15

VOUT0

AA12

VOUT0

AA13

VOUT0

AA14

VOUT0

AA15

VOUT0

AB12

VOUT0

AB13

VOUT0

AB14

VOUT0

AB15

VOUT1 D14

VOUT1 D15

VOUT1 E12

VOUT1 E13

VOUT1 E14

VOUT1 E15

VOUT1 F12

VOUT1 F13

VOUT1 F14

VOUT1 F15

VOUT1 G15

VOUT1 H15

VOUT1 J15

VOUT1 K15

GND

B10

GND

B11

GND

L14

GND

L15

SGND M11

SGND M12

GND

M14

GND

M15

GND

N10

GND

N11

GND

N12

VOUT0

N15

GND

P10

GND

P11

GND

P12

GND

R11

GND

R12

GND

T10

VBIAS T11

GND U3

GND T13

GND T12

GND U9

GND U5

GND U4

GND U11

GND U10

GND V11

GND V10

GND V5

GND V4

GND V3

GND W11

GND W10

GND W9

GND W5

GND W4

GND W3

GND AA3

GND Y11

GND Y9

GND Y5

GND Y4

GND Y3

GND AA11

GND AA10

GND AA9

GND AA5

GND AA4

GND AB11

GND AB10

GND AB9

GND AB5

GND AB4

GND AB3

R27 OPT

COUT3

330uF

1210

COUT16

330uF

1210

CIN5

22uF

1210

E15

VOUT0_SNS

COUT20

330uF

1210

C31

OPT

E26

PGOOD0

CIN3

22uF

1210

R10

10K

CIN7

22uF

1210

R104

OPT

R92

R28 *

R32

R95

10K

J6 VOUT1

R93

R90

0.001

2010

CIN9

22uF

1210

E12

SDA

E25

PGOOD1

COUT8

330uF

1210

R9 0

COUT15

330uF

1210

JP2

RUN1

GND

J10

VIN

R14

10K

C14

OPT

COUT9

330uF

E17

GND0_SNS

R18

10K

C15

6.8nF

COUT4

OPT

2.5V

COUT10

330uF

R16

10K

VOUT1_SNS

COUT7

330uF

1210

OPT

VDD33

COUT22

330uF

1210

R24

10K

R29 0

COUT21

330uF

1210

R33

CIN2

22uF

1210

COUT14

330uF

1210

SHARE_CLK

COUT5

OPT

2.5V

C16

OPT

COUT19

330uF

1210

COUT1

330uF

1210

E14

FAULT1

CIN4

22uF

1210

R94

10K

COUT6

330uF

1210

JP3

RUNP

E11

SCL

C32

OPT

R13

10K

GND

R30 2.43K

CIN1

180uF

R106

10K

GND

R11

10K

R31 *

E16

VDD25

CIN8

22uF

1210

E10

ALERTB

R25

R26 OPT

CIN6

22uF

1210

R105

OPT

JP1

RUN0

E13

FAULT0

R15

10K

VOUT0

C33

22uF

GND

OPT

GND

R12

10K

COUT2

330uF

1210

GND1_SNS

SYNC

SHARE_CLK

ALERTB

SCL

SDA

FAULT0

FAULT1

ASEL

FSWPH_CFG

VTRIM1_CFG

VTRIM0_CFG

VOUT0_CFG

VOUT1_CFG

RUN1

VDD25

RUN0

VDD25

VOSNS1+

VOSNS1-

VOSNS0+

VOSNS0-

RUNP

VOSNS1+

VOSNS1-

INTVCC

Indice

Altri manuali Analog Devices Scheda madre

Analog Devices

Analog Devices MAX17553C EV Kit A Manuale utente

Analog Devices

Analog Devices AD9272 Manuale utente

Analog Devices

Analog Devices ADP1071-1EVALZ Manuale utente

Analog Devices

Analog Devices ADP1055-EVALZ Manuale utente

Analog Devices

Analog Devices ADMV8913-EVALZ Manuale utente

Analog Devices

Analog Devices ADZS-AD2428MINI Manuale utente

Analog Devices

Analog Devices EV-ADF4360-7EB1Z Manuale utente

Analog Devices

Analog Devices Hittite HMC900LP5E Manuale utente

Analog Devices

Analog Devices EVAL-SSM2317-MINI Manuale utente

Analog Devices

Analog Devices SSM2317-EVALZ Manuale utente

Analog Devices

Analog Devices ADV7281-M Manuale utente

Analog Devices

Analog Devices MAX16165 Manuale utente

Analog Devices

Analog Devices AD9523 Manuale utente

Analog Devices

Analog Devices ADSP-BF518F EZ-Board Manuale utente

Analog Devices

Analog Devices Linear Technology DC2070A Guida rapida alla configurazione

Analog Devices

Analog Devices ADZS-21569-EZKIT Manuale utente

Analog Devices

Analog Devices EVAL-LTC7066-AZ Manuale utente

Analog Devices

Analog Devices AD8224-EVALZ Manuale utente

Analog Devices

Analog Devices DC2747A Guida rapida alla configurazione

Analog Devices

Analog Devices ADSP-BF561 EZ-KIT Lite Manuale utente

Analog Devices

Analog Devices Linear Technology DC2043B Guida rapida alla configurazione

Analog Devices

Analog Devices ADP5014-EVALZ Manuale utente

Analog Devices

Analog Devices EVAL-AD5696RSDZ Manuale utente

Analog Devices

Analog Devices EVAL-AD5932EBZ Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
