Analog Devices LTM4626 Guida rapida alla configurazione

DEMO MANUAL DC2665B-A

Rev. 0

DESCRIPTION

LTM4626

20VIN, 12A Step-Down

µModule Regulator

Demonstration circuit 2665B-A features the LTM

4626

µModule

regulator, a high performance, high efficiency

step-down regulator. The LTM4626 is a complete DC/DC

point-of-load regulator in a thermally enhanced 6.25mm

× 6.25mm × 3.87mm BGA package. The LTM4626 has an

operating input voltage range of 3.1V to 20V and provides

an output current up to 12A. The output voltage is pro-

grammable from 0.6V to 5.5V and can be remotely sensed.

The stacked inductor design improves thermal dissipation

and significantly reduces the package area. Output volt-

age tracking is available through the TRACK/SS pin for

All registered trademarks and trademarks are the property of their respective owners.

supply rail sequencing. External clock synchronization

is available through the SYNC/MODE pin. For high effi-

ciency at low load currents, select discontinuous current

mode(DCM) operation using the MODE jumper (JP7) in

less noise sensitive applications. Refer to the LTM4626

data sheet in conjunction with this demo manual for

working on or modifyingthe DC2665B-A.

Design files for this circuit board are available.

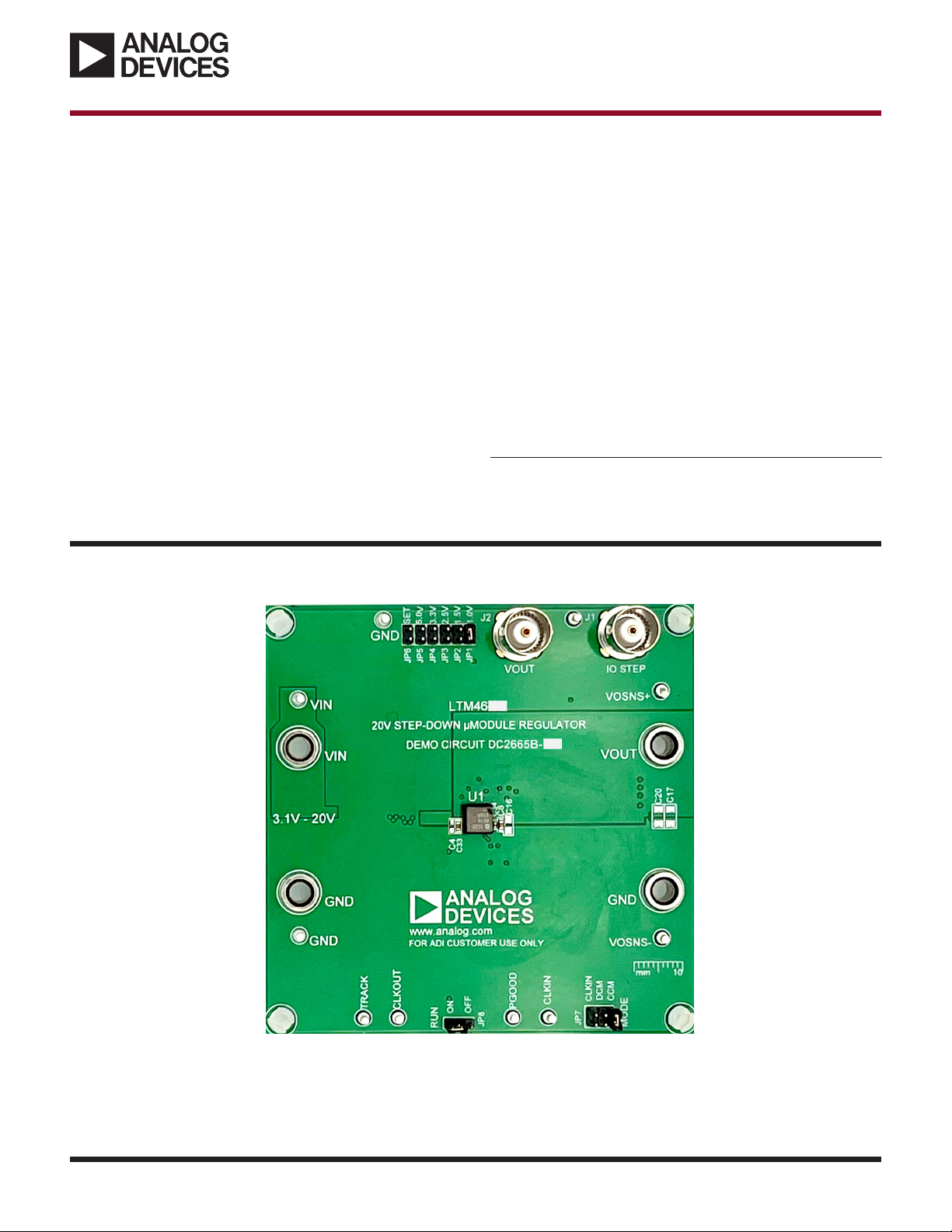

BOARD PHOTO

Part marking is either ink mark or laser mark

DEMO MANUAL DC2665B-A

Rev. 0

Demonstration circuit 2665B-A is an easy way to evaluate

the performance of the LTM4626EY. Refer to Figure1 for

test setup connections and use the following procedure.

1. With power off, place the jumpers in the following

positions:

JP8 JP7 JP1 TO JP6

RUN MODE VOUT Select

ON CCM 1V

2. Before connecting the input supply, load, and meters,

preset the input voltage supply between 3.1V and 20V.

Preset the load current to 0A.

3. With the power off, connect the load, input voltage

supply, and meters as shown in Figure1.

4. Turn on the input power supply. The output voltage

meters for each phase display the ±1.2% programmed

output voltage .

5. Once the proper output voltage is established, adjust

the load current in the 0A to 12A range and observe

the load regulation, efficiency, and other parameters.

Measure the output voltage ripple across the furthest

output cap with a BNC cable and oscilloscope from J2.

6. Place the MODE pin jumper (JP7) in the DCM position

to observe increased light load efficiency.

For optional load transient testing, an onboard

transient circuit is provided to measure transient

response. Place a positive pulse signal between the

IO_STEP_CLK (E10) pin and GND pin. The pulse

amplitude sets the load step current amplitude. Keep

the pulse width short (<1ms) and the pulse duty cycle

low (<15%) to limit the thermal stress on the load

transient circuit. Monitor the load step with a BNC

connected to J1 (5mV/A).

QUICK START PROCEDURE

PERFORMANCE SUMMARY

Specifications are at TA= 25°C

PARAMETER CONDITIONS MIN TYP MAX UNITS

Input Voltage Range 3.1 20 V

Output Voltage, VOUT Jumper Selection on JP1

Jumper Selection on JP2

Jumper Selection on JP3

Jumper Selection on JP4

Jumper Selection on JP5

0.98

1.47

2.45

3.23

4.9

1.0

1.5

2.5

3.3

5.0

1.02

1.53

2.55

3.37

5.1

Maximum Continuous Output Current Derating Is Necessary for Certain Operating Conditions

(See Data Sheet for Details)

12 A

Default Operating Frequency 600 kHz

Efficiency VIN = 12V, VOUT = 1V, IOUT = 12A 85 %

DEMO MANUAL DC2665B-A

Rev. 0

QUICK START PROCEDURE

Figure1. Test Setup of DC2665B-A

NOTES:

1. To achieve the minimum output ripple voltage, optimize the operation frequency at different input and output volt-

ages. Suggested operation frequencies at different voltages are shown in Table1. Adjust the operation frequency by

changing the value of RfSET (R5). Refer to the LTM4626 data sheet for a detailed calculation of RfSET (R5).

Table1. Suggested Operation Frequencies

3.3VIN 5VIN 12VIN

VOUT (V) 1 1.2 1.5 1.8 2.5 1 1.2 1.5 1.8 2.5 3.3 1 1.2 1.5 1.8 2.5 3.3 5

fSW (kHz) 600 600 600 600 600 600 600 800 800 1000 1000 600 800 800 1000 1500 1500 2000

For applications that require small output voltage ripple, add shunt-through three-terminal capacitors on the output

at C41 and C42.

DEMO MANUAL DC2665B-A

Rev. 0

QUICK START PROCEDURE

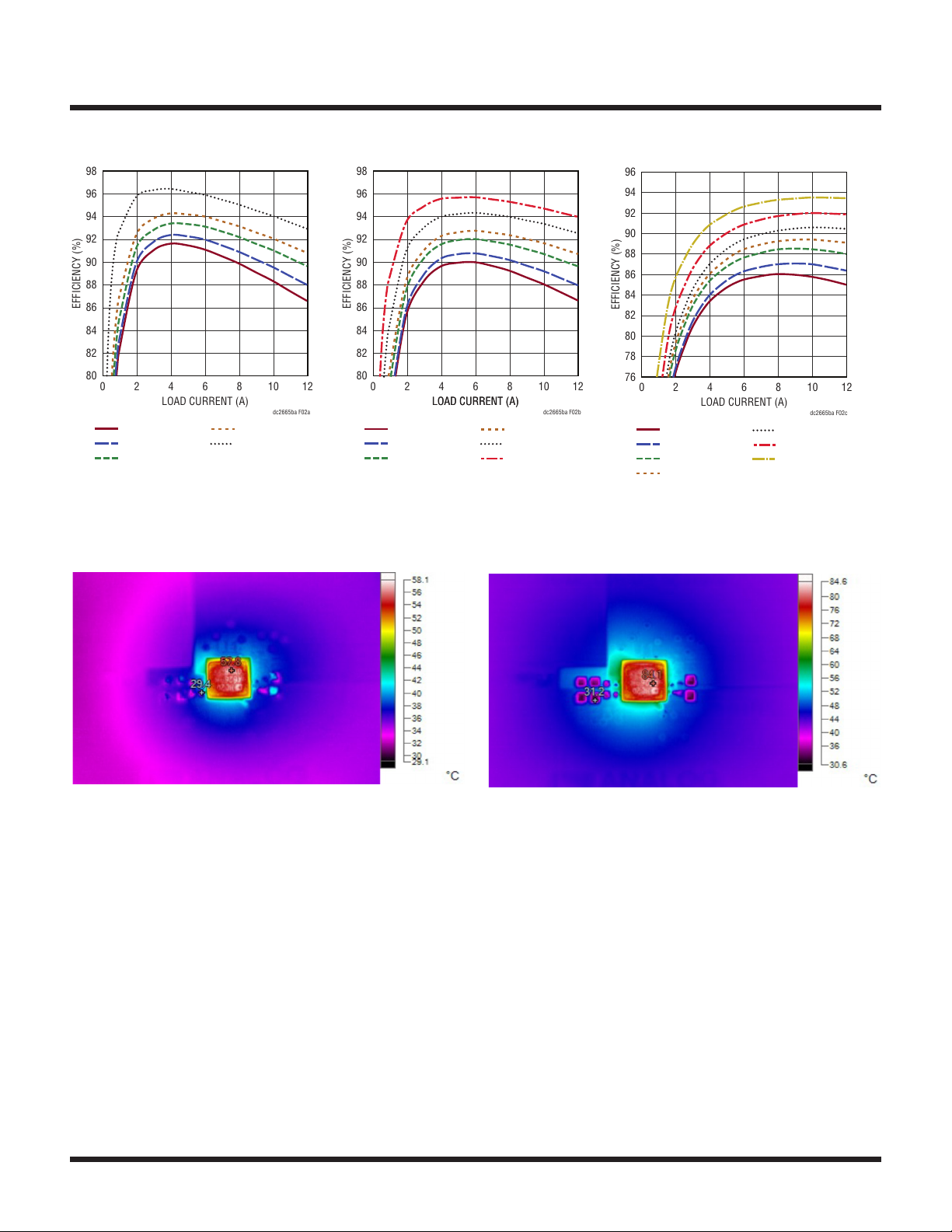

Figure2. Measured Supply, CCM Efficiency vs Load Current

Figure3. Measured Thermal Capture at 12V

, I

OUT

=12A at 25°C Ambient with No Airflow

(a) 3.3VIN (b) 5VIN (c) 12VIN

(a) 1VOUT, 600kHz (b) 5VOUT, 2MHz

dc2665ba F02a

LOAD CURRENT (A)

EFFICIENCY (%)

1VOUT, 600kHz

1.2VOUT, 600kHz

1.5VOUT, 600kHz

1.8VOUT, 600kHz

2.5VOUT, 600kHz

dc2665ba F02b

LOAD CURRENT (A)

EFFICIENCY (%)

1VOUT, 600kHz

1.2VOUT, 600kHz

1.5VOUT, 800kHz

1.8VOUT, 800kHz

2.5VOUT, 1MHz

3.3VOUT, 1MHz

dc2665ba F02c

LOAD CURRENT (A)

EFFICIENCY (%)

1VOUT, 600kHz

1.2VOUT, 800kHz

1.5VOUT, 800kHz

1.8VOUT, 1MHz

2.5VOUT, 1.5MHz

3.3VOUT, 1.5MHz

5VOUT, 2MHz

DEMO MANUAL DC2665B-A

Rev. 0

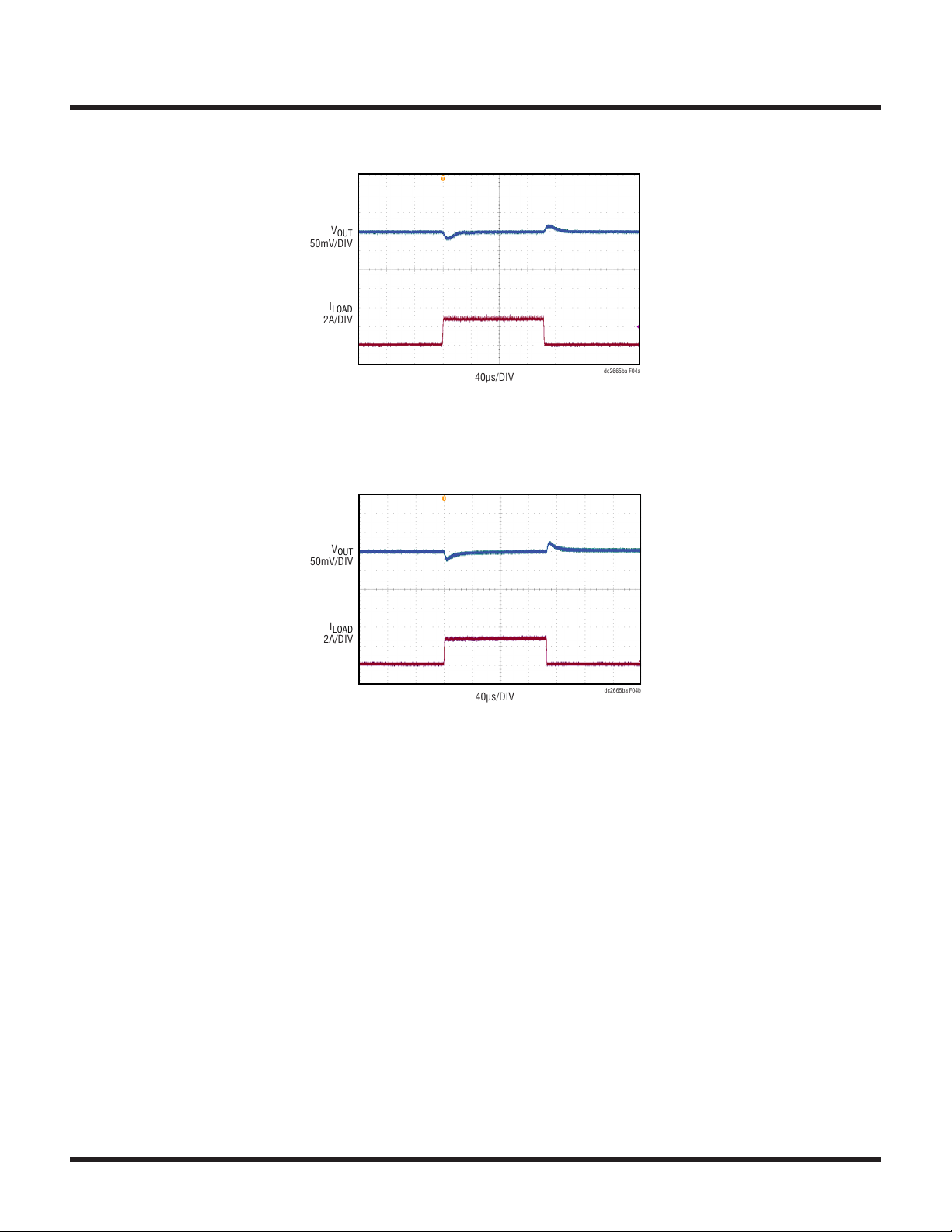

Figure4. Load Transient (6A to 9A) Response Waveform at 12VIN

(a) 1VOUT

(b) 5VOUT

dc2665ba F04a

40μs/DIV

VOUT(PK-PK) = 42mV

VOUT

50mV/DIV

ILOAD

2A/DIV

dc2665ba F04b

40μs/DIV

VOUT(PK-PK) = 52mV

VOUT

50mV/DIV

ILOAD

2A/DIV

QUICK START PROCEDURE

DEMO MANUAL DC2665B-A

Rev. 0

QUICK START PROCEDURE

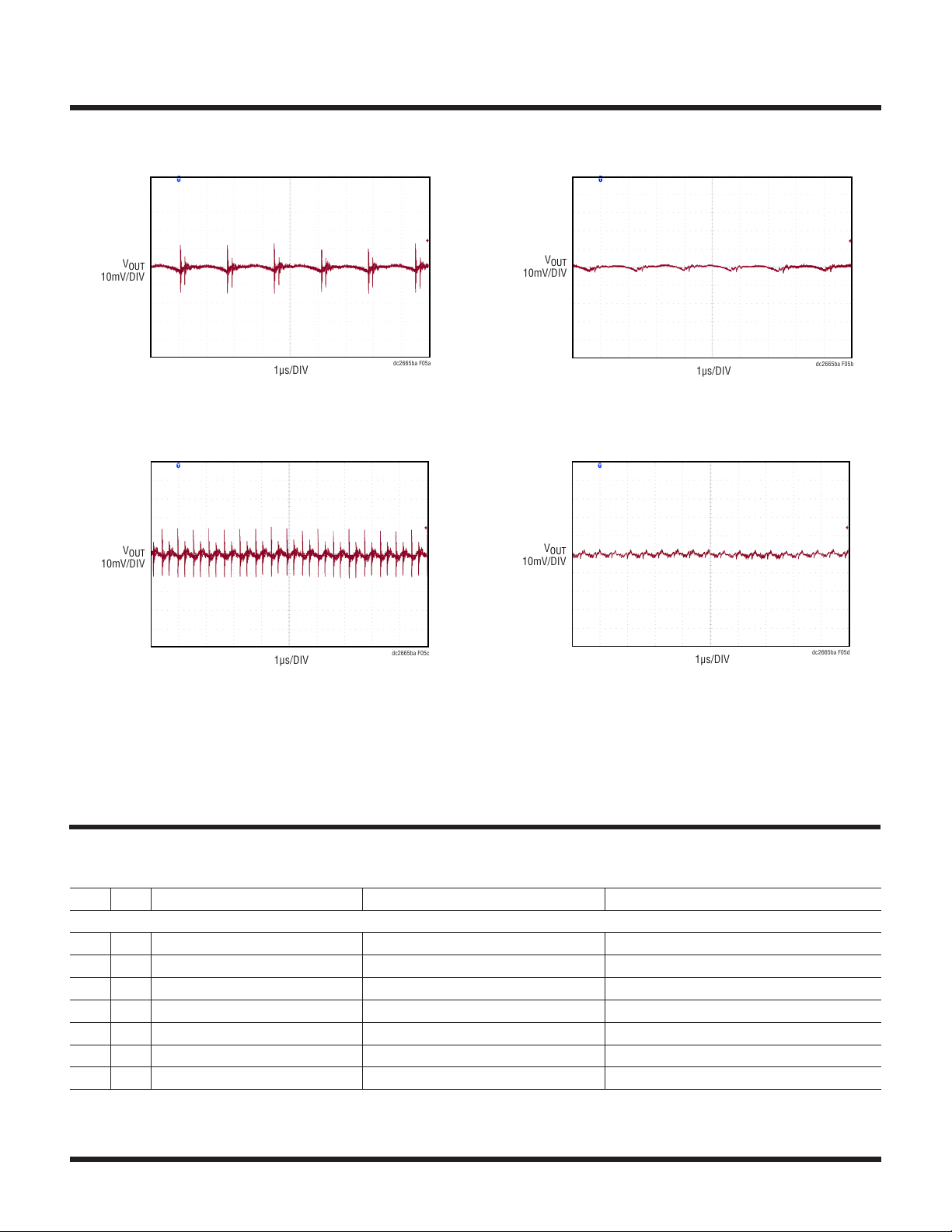

Figure5. Tested VOUT AC Ripple at 12VIN, IOUT = 12A, VOUT Ripple Is Tested Across C12

(a) 1VOUT, 600kHz, Full Bandwidth (500MHz) (b) 1VOUT, 600kHz, 20MHz Bandwidth

PARTS LIST

ITEM QTY REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER

Required Circuit Components

1 3 C1, C6, C31 CAP., 2.2μF, X7R, 10V, 20%, 0603 TDK, C1608X7R1A225M080AC

2 3 C2, C3, C38 CAP., 22μF, X5R, 25V, 10%, 1206 AVX, 12063D226KAT2A

3 1 C33 CAP., 1μF, X7R, 25V, 10%, 0603 TDK, C1608X7R1E105K080AB

4 4 C5, C11, C12, C30 CAP., 220μF, X5R, 6.3V, 20%, 1206 MURATA, GRM31CR60J227ME11L

5 1 C7 CAP., 0.1μF, X7R, 25V, 10%, 0603 AVX, 06033C104KAT2A

6 1 C8 CAP., 100pF, X7R, 25V, 5%, 0603 AVX, 06033C101JAT2A

7 1 C10 CAP., 220μF, ALUM HYB, 35V, 20% SUN ELECTRONIC, 35HVH220M

dc2665ba F05a

1μs/DIV

VOUT(PK-PK) = 27.6mV

VOUT

10mV/DIV

dc2665ba F05b

1μs/DIV

VOUT(PK-PK) = 4.8mV

VOUT

10mV/DIV

dc2665ba F05c

1μs/DIV

VOUT(PK-PK) = 27.6mV

VOUT

10mV/DIV

dc2665ba F05d

1μs/DIV

VOUT(PK-PK) = 5.6mV

VOUT

10mV/DIV

DEMO MANUAL DC2665B-A

Rev. 0

ITEM QTY REFERENCE PART DESCRIPTION MANUFACTURER/PART NUMBER

8 1 C18 CAP., 1μF, X7R, 10V, 20%, 0603 AVX, 0603ZC105MAT2A

9 1 C29 CAP., 0.022μF, X7R, 50V, 10%, 0603 KEMET, C0603C223K5RAC7867

10 1 C34 CAP., 1μF, X7R, 6.3V, 10%, 0402 MURATA, GRM155R70J105KA12D

11 1 R3 RES., 10k, 1%, 1/10W, 0603 VISHAY, CRCW060310K0FKEAC

12 1 R4 RES., 90.9k, 0.5%, 1/10W, 0603 SUSUMU, RG1608P-9092-D-T5

13 1 R6 RES., 40.2k, 0.5%, 1/10W, 0603 SUSUMU, RG1608P-4022-D-T5

14 1 R14 RES., 13.3k, 0.5%, 1/10W, 0603 SUSUMU, RG1608P-1332-D-T5

15 1 R15 RES., 19.1k, 0.5%, 1/10W, 0603 SUSUMU, RG1608P-1912-D-T5

16 1 R24 RES., 8.25k, 0.5% 1/10W 0603 SUSUMU, RG1608P-8251-D-T5

17 2 R8, R16 RES., 100k, 1%, 1/10W, 0603 STACKPOLE ELECTRONICS, RMCF0603FG100K

18 2 R9, R10 RES., 0Ω, 5%, 1/16W, 0402 ROHM, SFR01MZPJ000

19 1 R17 RES., 0Ω, 1/10W, JUMPER, 0603 YAGEO, RC0603FR-070RL

20 1 R7 RES., 150k, 5%, 1/10W, 0603 YAGEO, RC0603JR-07150KL

21 1 Q1 XSTR, MOSFET, N-CH, 40V, TO-252 (DPAK) VISHAY, SUD50N04-8M8P-4GE3

22 1 RS2 RES., SENSE, 0.005Ω, 1%, 1W, 2512 VISHAY, WSL25125L000FEA

23 1 U1 IC, 20V, 12A STEP-DOWN μModule REG. ANALOG DEVICES, INC. LTM4626EY#PBF

Additional Demo Board Circuit Components

24 0 C4, C9, C15, C36, C19, C43, C44 CAP., OPTION, 0603 OPTION

25 0 C13, C16, C22-C24, C37 CAP., OPTION, 0805 OPTION

26 0 C21, C20, C17 CAP., OPTION, 1206 OPTION

27 0 C25-C28 CAP., OPTION, 1210 OPTION

28 0 C39 CAP., OPTION, 0805, 3 PC PAD MURATA, NFM21PC104R1E3D

29 0 C40 CAP., OPTION, 1206, 3 PC Pad TDK, YFF31HC2A104MT000N

30 0 C41 CAP., OPTION, 0603, 3 PC PAD MURATA, NFM18CC223R1C3D

31 0 C42 CAP., OPTION, 1206, 3 PC PAD MURATA, NFM31PC276B0J3L

32 0 R18 RES., OPTION, 0805 OPTION

33 0 C35 CAP., OPTION, 0805 OPTION

34 0 R21-R23 RES., OPTION, 0402 OPTION

35 0 R1, R2, R5, R11-R13, R19, R20 RES., OPTION, 0603 OPTION

36 0 L1 IND., OPTION, 1812 OPTION

37 0 L2 IND., OPTION, 4mm × 4mm, AEX-Q200 COILCRAFT, XEL4020-800MEC

Hardware: For Demo Board Only

38 10 E1, E3, E5, E6, E8-E12, E14 TESTPOINT, TURRET 0.064" MILL-MAX, 2308-2-00-80-00-00-07-0

39 4 E2, E4, E7, E13 JACK, BANANA KEYSTONE, 575-4

40 2 J1, J2 CONN, BNC, 5 PINS AMPHENOL RF, 112404

41 5 JP1-JP6 HEADER, 1×2, 2mm SULLINS, NRPN021PAEN-RC

42 1 JP7 HEADER, 2×3, 2mm SULLINS, NRPN032PAEN-RC

43 1 JP8 HEADER, 1×3, 2mm SAMTEC, TMM-103-02-L-S

44 4 MP1-MP4 STAND-OFF, NYLON 0.5" KEYSTONE, 8833(SNAP ON)

45 3 XJP1, XJP7, XJP8 SHUNT, 2mm SAMTEC, 2SN-BK-G

PARTS LIST

DEMO MANUAL DC2665B-A

Rev. 0

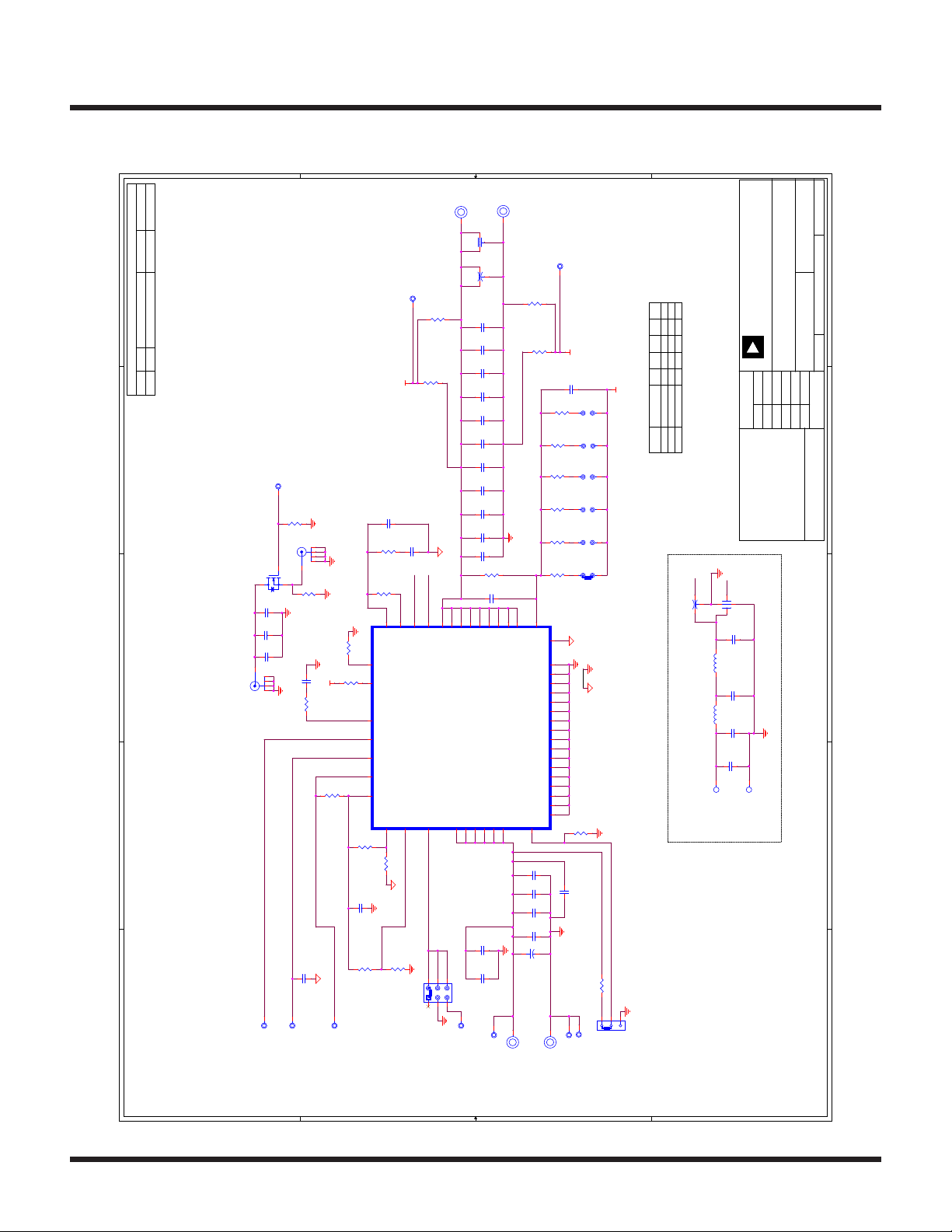

SCHEMATIC DIAGRAM

D D

C C

B B

A A

CLKIN

CCM

DCM

3.1V - 20V

NOTES: UNLEES OTHERWISE SPECIFIED,

1. ALL RESISTORS AND CAPACITORS ARE 0603.

OFF

OPT EMI FILTER

REVISION HISTORY

DATEDESCRIPTION

S J

REV APPROVED

PRODUCTION

ECO

11/15/22

OPT

20V STEP-DOWN µMODULE REGULATOR

LTM4638EY#PBF

- A

VERSION

LTM4626EY#PBF

- B

8.25k

40.2k

R15R4

90.9k

40.2k 19.1k

R14 R24R6U1

19.1k

- C

90.9k 13.3k

LTM4657EY#PBF 60.4k 31.1k 15k

13.3k

10.7k

8.25k

6.65k

VOSNS-

VOSNS+

VIN

VOSNS-

DATE:

SHEET OF

TITLE: SCHEMATIC

APPROVALS

PCB DES.

APP ENG.

SIZE:

SCHEMATIC NO. AND REVISION:

CUSTOMER NOTICE

THIS CIRCUIT IS PROPRIETARY TO ANALOG DEVICES AND

SUPPLIED FOR USE WITH ANALOG DEVICES PARTS.

SKU NO.

IC NO.

ANALOG DEVICES HAS MADE A BEST EFFORT TO DESIGN A

CIRCUIT THAT MEETS CUSTOMER-SUPPLIED

SPECIFICATIONS; HOWEVER, IT REMAINS THE CUSTOMER'S

RESPONSIBILITY TO VERIFY PROPER AND RELIABLE

OPERATION IN THE ACTUAL APPLICATION. COMPONENT

SUBSTITUTION AND PRINTED CIRCUIT BOARD LAYOUT

MAY SIGNIFICANTLY AFFECT CIRCUIT PERFORMANCE

OR RELIABILIT Y. CONTACT ANALOG DEVICES

APPLICATIONS ENGINEERING FOR ASSISTANCE.

ANALOG

DEVICES

Sun J.

LTM46XXEY

DC2665B

710-DC2665B_REV 01

N/A Tuesday, November 15, 2022

DATE:

SHEET OF

TITLE: SCHEMATIC

APPROVALS

PCB DES.

APP ENG.

SIZE:

SCHEMATIC NO. AND REVISION:

CUSTOMER NOTICE

THIS CIRCUIT IS PROPRIETARY TO ANALOG DEVICES AND

SUPPLIED FOR USE WITH ANALOG DEVICES PARTS.

SKU NO.

IC NO.

ANALOG DEVICES HAS MADE A BEST EFFORT TO DESIGN A

CIRCUIT THAT MEETS CUSTOMER-SUPPLIED

SPECIFICATIONS; HOWEVER, IT REMAINS THE CUSTOMER'S

RESPONSIBILITY TO VERIFY PROPER AND RELIABLE

OPERATION IN THE ACTUAL APPLICATION. COMPONENT

SUBSTITUTION AND PRINTED CIRCUIT BOARD LAYOUT

MAY SIGNIFICANTLY AFFECT CIRCUIT PERFORMANCE

OR RELIABILIT Y. CONTACT ANALOG DEVICES

APPLICATIONS ENGINEERING FOR ASSISTANCE.

ANALOG

DEVICES

Sun J.

LTM46XXEY

DC2665B

710-DC2665B_REV 01

N/A Tuesday, November 15, 2022

DATE:

SHEET OF

TITLE: SCHEMATIC

APPROVALS

PCB DES.

APP ENG.

SIZE:

SCHEMATIC NO. AND REVISION:

CUSTOMER NOTICE

THIS CIRCUIT IS PROPRIETARY TO ANALOG DEVICES AND

SUPPLIED FOR USE WITH ANALOG DEVICES PARTS.

SKU NO.

IC NO.

ANALOG DEVICES HAS MADE A BEST EFFORT TO DESIGN A

CIRCUIT THAT MEETS CUSTOMER-SUPPLIED

SPECIFICATIONS; HOWEVER, IT REMAINS THE CUSTOMER'S

RESPONSIBILITY TO VERIFY PROPER AND RELIABLE

OPERATION IN THE ACTUAL APPLICATION. COMPONENT

SUBSTITUTION AND PRINTED CIRCUIT BOARD LAYOUT

MAY SIGNIFICANTLY AFFECT CIRCUIT PERFORMANCE

OR RELIABILIT Y. CONTACT ANALOG DEVICES

APPLICATIONS ENGINEERING FOR ASSISTANCE.

ANALOG

DEVICES

Sun J.

LTM46XXEY

DC2665B

710-DC2665B_REV 01

N/A Tuesday, November 15, 2022

E13

GND

E14

GND

2.2uF

10V

C41

1 3

C40

*U1

FREQ

PHMODE

TSENSE+ A6

TRACK/SS E2

COMPa D1

RUN

PGOOD B5

VOUT A2

GND

C4 INTVCC B3

CLKOUT F2

MODE/CLKIN

VIN

G4 VOUT1 G1

VOUT A3

VOUT1 G3

VOUT1 F3

GND

VOUT A1

VIN

GND

VIN

VOUTS- C2

VOUTS+ B1

FB C1

COMPb F1

TSENSE- A7

SW B7

SGND

VOUT A4

VOUT A5

VOUT1 G2

C19

OPT

0.1uF

25V

22uF

25V

1206

C15

OPT

VIN

TP2

VIN EMI

L1 OPT

1812

JP7

MODE

1 2

3 4

5 6

R18

OPT

0805

C38

22uF

25V

1206

JP2

1.5V

*R6

C35

OPT

0805

C23

OPT

C20

OPT

1206

2.2uF

10V

TP3

GND EMI

C25

OPT

1210

TRACK

R17

GND

C17

OPT

1206

*R4

C21

OPT

1206

22uF

25V

1206

E10

IO STEP CLK

VOUT

C26

C29

0.022uF

0603

50V

R21

OPT

SUD50N04-8m8P

VOSNS-

E11

GND

CLKIN

C39

1 3

C16

OPT

0805

C10

220uF

35V

VIN

C28

OPT

*R15

C33

1uF

25V

JP8

RUN

R7 150k

100k

JP5

5.0V

100pF

25V

C31

2.2uF

10V

*R14

OPT

C42

OPT

C12

220uF

6.3V

1206

R19

OPT

R10

C44

OPT

220uF

6.3V

1206

C34

1uF

0402

6.3V

X7R

10k

OPT

0603

C22

JP3

2.5V

JP6

SET

R20

OPT

C24

0805

C30

220uF

6.3V

1206

OPT

*R24

C11

220uF

6.3V

1206

R11

OPT

0603

R22

OPT

0402

PGOOD

C43

OPT

R12

OPT

C18

1uF

10V

JP1

1.0V

RS2

0.005

2512

CLKOUT

R16

100k

R13

OPT

C27

OPT

1210

E12

VOSNS+

IO STEP

R23

OPT

VOUT

C36

OPT

JP4

3.3V

VOUT

VOSNS+

VOSNS-

CLKOUT

VIN

VOUT

DEMO MANUAL DC2665B-A

Rev. 0

Information furnished by Analog Devices is believed to be accurate and reliable. However, no responsibility is assumed by Analog

Devices for its use, nor for any infringements of patents or other rights of third parties that may result from its use. Specifications

subject to change without notice. No license is granted by implication or otherwise under any patent or patent rights of Analog Devices.

REVISION HISTORY

DEMO BOARD

REV

DEMO MANUAL

REV DATE DESCRIPTION PAGE NUMBER

DC2665A-A 0 02/19 Initial Release. —

DC2665B-A 0 12/22 DC2665B-A replaces DC2665A-A for low HF VOUT ripple. —

DEMO MANUAL DC2665B-A

Rev. 0

 ANALOG DEVICES, INC. 2023

2/23

www.analog.com

ESD Caution

ESD (electrostatic discharge) sensitive device. Charged devices and circuit boards can discharge without detection. Although this product features patented or proprietary protection

circuitry, damage may occur on devices subjected to high energy ESD. Therefore, proper ESD precautions should be taken to avoid performance degradation or loss of functionality.

Legal Terms and Conditions

By using the evaluation board discussed herein (together with any tools, components documentation or support materials, the “Evaluation Board”), you are agreeing to be bound by the terms and

conditions set forth below (“Agreement”) unless you have purchased the Evaluation Board, in which case the Analog Devices Standard Terms and Conditions of Sale shall govern. Do not use the Evaluation

Board until you have read and agreed to the Agreement. Your use of the Evaluation Board shall signify your acceptance of the Agreement. This Agreement is made by and between you (“Customer”)

and Analog Devices, Inc. (“ADI”), with its principal place of business at One Technology Way, Norwood, MA 02062, USA. Subject to the terms and conditions of the Agreement, ADI hereby grants to

Customer a free, limited, personal, temporary, non-exclusive, non-sublicensable, non-transferable license to use the Evaluation Board FOR EVALUATION PURPOSES ONLY. Customer understands and

agrees that the Evaluation Board is provided for the sole and exclusive purpose referenced above, and agrees not to use the Evaluation Board for any other purpose. Furthermore, the license granted

is expressly made subject to the following additional limitations:Customer shall not (i) rent, lease, display, sell, transfer, assign, sublicense, or distribute the Evaluation Board;and (ii) permit any Third

Party to access the Evaluation Board. As used herein, the term “Third Party”includes any entity other than ADI, Customer, their employees, affiliates and in-house consultants. The Evaluation Board is

NOT sold to Customer;all rights not expressly granted herein, including ownership of the Evaluation Board, are reserved by ADI. CONFIDENTIALITY. This Agreement and the Evaluation Board shall all

be considered the confidential and proprietary information of ADI. Customer may not disclose or transfer any portion of the Evaluation Board to any other party for any reason. Upon discontinuation of

use of the Evaluation Board or termination of this Agreement, Customer agrees to promptly return the Evaluation Board to ADI. ADDITIONAL RESTRICTIONS. Customer may not disassemble, decompile

or reverse engineer chips on the Evaluation Board. Customer shall inform ADI of any occurred damages or any modifications or alterations it makes to the Evaluation Board, including but not limited

to soldering or any other activity that affects the material content of the Evaluation Board. Modifications to the Evaluation Board must comply with applicable law, including but not limited to the RoHS

Directive. TERMINATION. ADI may terminate this Agreement at any time upon giving written notice to Customer. Customer agrees to return to ADI the Evaluation Board at that time. LIMITATION OF

LIABILITY. THE EVALUATION BOARD PROVIDED HEREUNDER IS PROVIDED “AS IS”AND ADI MAKES NO WARRANTIES OR REPRESENTATIONS OF ANY KIND WITH RESPECT TO IT. ADI SPECIFICALLY

DISCLAIMS ANY REPRESENTATIONS, ENDORSEMENTS, GUARANTEES, OR WARRANTIES, EXPRESS OR IMPLIED, RELATED TO THE EVALUATION BOARD INCLUDING, BUT NOT LIMITED TO, THE

IMPLIED WARRANTY OF MERCHANTABILITY, TITLE, FITNESS FOR A PARTICULAR PURPOSE OR NONINFRINGEMENT OF INTELLECTUAL PROPERTY RIGHTS. IN NO EVENT WILL ADI AND ITS

LICENSORS BE LIABLE FOR ANY INCIDENTAL, SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES RESULTING FROM CUSTOMER’S POSSESSION OR USE OF THE EVALUATION BOARD, INCLUDING

BUT NOT LIMITED TO LOST PROFITS, DELAY COSTS, LABOR COSTS OR LOSS OF GOODWILL. ADI’S TOTAL LIABILITY FROM ANY AND ALL CAUSES SHALL BE LIMITED TO THE AMOUNT OF ONE

HUNDRED US DOLLARS ($100.00). EXPORT. Customer agrees that it will not directly or indirectly export the Evaluation Board to another country, and that it will comply with all applicable United States

federal laws and regulations relating to exports. GOVERNING LAW. This Agreement shall be governed by and construed in accordance with the substantive laws of the Commonwealth of Massachusetts

(excluding conflict of law rules). Any legal action regarding this Agreement will be heard in the state or federal courts having jurisdiction in Suffolk County, Massachusetts, and Customer hereby submits

to the personal jurisdiction and venue of such courts. The United Nations Convention on Contracts for the International Sale of Goods shall not apply to this Agreement and is expressly disclaimed.

Indice

Altri manuali Analog Devices Scheda madre

Analog Devices

Analog Devices EVAL-AD5680DBZ Manuale utente

Analog Devices

Analog Devices EVAL-AD5344DBZ Manuale utente

Analog Devices

Analog Devices EVAL-ADG5209FEBZ Manuale utente

Analog Devices

Analog Devices EZ-Extender Audio EI3 Manuale utente

Analog Devices

Analog Devices AD5162 Manuale utente

Analog Devices

Analog Devices EV-ADA4571RSDZ Manuale utente

Analog Devices

Analog Devices EVAL-ADUCM331QSPZ Manuale utente

Analog Devices

Analog Devices EVAL-LT8356-1-AZ Guida rapida alla configurazione

Analog Devices

Analog Devices EVAL-AD5753SDZ Manuale utente

Analog Devices

Analog Devices EVAL-AD7625FMCZ Manuale utente

Analog Devices

Analog Devices UG-127 Manuale utente

Analog Devices

Analog Devices ADuC7024 Manuale utente

Analog Devices

Analog Devices ADSP-21161N Manuale utente

Analog Devices

Analog Devices Linear DC2515 Guida rapida alla configurazione

Analog Devices

Analog Devices DC2685A Guida rapida alla configurazione

Analog Devices

Analog Devices Linear Technology DC2085 Guida rapida alla configurazione

Analog Devices

Analog Devices EVAL-SSM6515 Manuale utente

Analog Devices

Analog Devices EV-ADUCRF101 Manuale utente

Analog Devices

Analog Devices EVAL-AD1974AZ Manuale utente

Analog Devices

Analog Devices ADP1650 Manuale utente

Analog Devices

Analog Devices ADSP-TS201S EZ-KIT Lite Manuale utente

Analog Devices

Analog Devices UG-189 Manuale utente

Analog Devices

Analog Devices Linear ADI Power SCP-LT8618-BEVALZ Guida rapida alla configurazione

Analog Devices

Analog Devices ADN2841 Istruzioni per l'installazione e il funzionamento

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
