LMP-1204G-SFP Series User Manual V2.1

LMP-0601G-SFP-24-V2 Series

6-PortIndustrial PoE+ Managed Ethernet Switch, w/4*10/100/1000Tx (30W/Port),

1*10/100/1000Tx, and 1*100/1000 SFP Slot, 12~48VDC Power Input; Version 2

Hardware

Hardware Manual

Version 1.0

(October 2019)

Antaira Technologies - Industrial EthernetSwitches

LMP-0601G-SFP-24-V2 Series Hardware Manual V1.0

This document contains information, which is protected by copyright. Reproduction, adaptation or translation

without prior permission is prohibited, except as allowed under the copyright laws.

Trademark Information

Antaira is a registered trademark of Antaira Technologies, LLC., Microsoft Windows and the Windows logo are

the trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the

registered trademarks of Wi-Fi Alliance. All other brand and product names are trademarks or registered

trademarks of their respective owners.

translation without prior permission of Antaira Technologies, LLC. is prohibited, except as allowed under the

Disclaimer

Antaira Technologies, LLC. provides this manual without warranty of any kind, expressed or implied, including but

not limited to the implied warranties of merchantability and fitness for a particular purpose. Antaira Technologies,

LLC. may make improvements and/or changes to the product and/or specifications of the product described in

this manual, without prior notice. Antaira Technologies, LLC. will not be liable for any technical inaccuracies or

typographical errors found in this guide. Changes are periodically made to the information contained herein and

will be incorporated into later versions of the manual. The information contained is subject to change without prior

notice.

Antaira Technologies - Industrial EthernetSwitches

LMP-0601G-SFP-24-V2 Series Hardware Manual V1.0

iii

FCC Warning

This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part

15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio frequency energy. It may cause

harmful interference to radio communications if the equipment is not installed and used in accordance with the

instructions. However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

•

Reorient or relocate the receiving antenna.

•

Increase the separation between the equipment andreceiver.

•

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

•

Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user's

authority to operate the equipment.

CE Mark Warning

This is a Class-A product. In a domestic environment this product may cause radio interference in which case the

user may be required to take adequate measures.

Industrial Ethernet Switches

Industrial Grade Gigabit PoE Managed Ethernet Switches

Hardware Manual

Version 1.0 (October 2019)

This manual supports the following models:

•

LMP-0601G-SFP-24-V2

•

LMP-0601G-SFP-24-T-V2

Antaira Technologies - Industrial EthernetSwitches

LMP-0601G-SFP-24-V2 Series Hardware Manual V1.0

iv



Table of Contents
Introduction .................................................................1
1 Product Overview 1
2 Product Software Features 1
3 Product Hardware Features 2
4 Package Contents 3
5 Safety Precaution 3
Hardware Description .................................................4
1 Physical Dimensions 4
2 Front Panel 5
3 Top View 5
4 LED Indicators 6
5 Reset Button 7
6 Ethernet Ports 7
7 Cabling 8
8 Wiring the Power Inputs 8
9 Wiring the Fault Alarm Contact 9
10 Grounding Note 9
Mounting Installation.................................................10
1 DIN-Rail Mounting 10
2 Wall Mounting 11
Hardware Installation.................................................12
1 Installation Steps 12
2 Maintenance and Service 13
Technical Specifications ..........................................13

Antaira Technologies - Industrial EthernetSwitches

LMP-0601G-SFP-24-V2 Series Hardware Manual V1.0

1. Introduction

All Antaira industrial managed switches come with a pre-installed “user-friendly” web console

interface, which allows users to easily configure and manage the units, whether one is using a serial

console and Command Line Interface (CLI) commands like Telnet, SSH, HTTP (Web GUI) or Simple

Network Management Protocols (SNMP).

1.1 Product Overview

Antaira Technologies’ LMP-0601G-SFP-24-V2 series

is a 6-port industrial Gigabit PoE+ managed

Ethernet switch embedded with 4*10/100Tx Ethernet ports that support IEEE802.3at/af for a

maximum of 30W/port and 1*100/1000 SFP port. The LMP-0601G-SFP-24-V2 is a fully manageable

Layer 2 Ethernet switch that is pre-loaded with a user-friendly web management console design. It

supports the ring network redundancy function using the market’s open standard ITU-T G.8032

ERPS (Ethernet Ring Protection Switch) protocol that has a <50ms network recovery time. The

advanced network filtering and security functions, such as IGMP, VLAN, QoS, SNMP, RMON,

Modbus TCP, and 802.1X/HTTPS/SSH/SSL increase determinism and improve network

management for remote SCADA systems or control networks.

The LMP-0601G-SFP-24-V2 series is IP30 rated and DIN-rail mountable. There are also two wide

operating temperature models for either a standard temperature range (STD: -10°C to 70°C) or an

extended temperature range (EOT: -40°C to 75°C). It also provides high EFT and ESD protection for

industrial networking applications, such as, power/utility, water wastewater, oil/gas/mining, factory

automation, security surveillance, ITS and any other outdoor or harsh environment.

1.2 Product Software Features



Network Redundancy

➢

STP, RSTP, MSTP, ITU-T G.8032 Ethernet Ring Protection Switch (ERPS) for

network redundancy



Network Management

➢

Web UI based management, SNMP v1/v2/v3, Serial Console

➢

Qos, traffic classification QoS, Cos, bandwidth control for Ingress and Egress,

broadcast storm control, Diffserv

➢

IEEE802.1q VLAN tagging, port-based VLAN support

Antaira Technologies - Industrial EthernetSwitches

LMP-0601G-SFP-24-V2 Series Hardware Manual V1.0

➢

IGMP snooping v1/v2, IGMP filtering / throttling, IGMP query up to 256group

➢

Supports IPv4/IPv6, RMON, MIB II, port mirroring, event syslog, DNS, NTP/SNTP,

HTTPS, SSH/SSL, TFTP

➢

MODBUS TCP for SCADA system integration



Port Configuration

➢

Status, statistics, mirroring, rate limiting, event syslog



Event Handling

➢

Event notification by Email: Cold/Warm Start, Power Failure, Authentication, SNMP

trap and Fault Alarm Relay Output



Software Upgrade via TFTP and HTTP



Configuration Backup –USB Port

1.3 Product Hardware Features



System Interface and Performance

•

All RJ45 ports support Auto MDI/MDI-X Function

•

Embedded 4*10/100/1000Tx (PSE: 30W/Port) RJ45 ports, 1*10/100/1000Tx RJ45 port,

and1*100/1000SFPslot

•

Store-and-forward switching architecture

•

8K MAC address table

•

Power line EFT protection: 2,000VDC; Ethernet ESD protection:6,000VDC



Power Input

•

DC 12~48V redundant, with a 6-pin removal terminal block

•

It is recommended to use a UL listed industrial power supply



Operating Temperature

•

Standard operating temperature model: -10°C to 70°C

•

Extended operating temperature model: -40°C to 75°C



Case/Installation

•

IP30 protection

•

DIN-Rail and wall mount design

Antaira Technologies - Industrial EthernetSwitches

LMP-0601G-SFP-24-V2 Series Hardware Manual V1.0

1.4 Package Contents



1 –LMP-0601G-SFP-24(-T)-V2



1 –Quick Installation Guide



1 –Wall mounting bracket set with screws



1 –DC cable –18 AWG & DC jack 5.5 x 2.1mm



1 –RJ45 dust cover set



1 –RJ45 to DB9 serial console cable

1.5 Safety Precaution

Attention:

If the DC voltage is supplied by an external circuit, please use a protection

device on the power supply input. The industrial Ethernet switch’s

hardware specs, ports, cabling information, and wiring installation will be

described within this user manual.

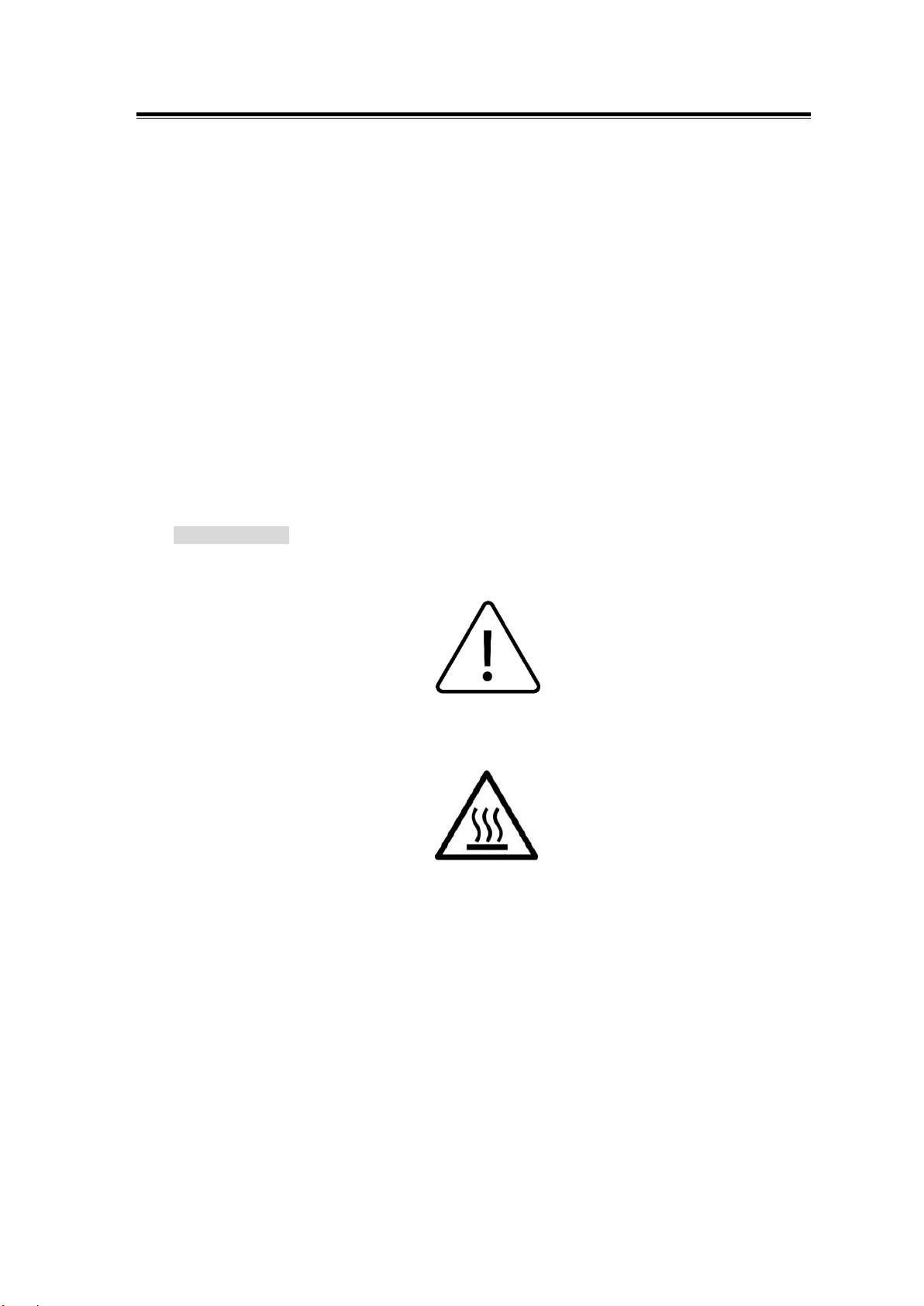

Warning Labels

The caution label means that you should check the certain information on user manual when working

with the device. (Shown in Figure 1.1)

Figure 1.1 - Caution Label

Figure 1.2 - Hot Surface Warning Label

Antaira Technologies - Industrial EthernetSwitches

LMP-0601G-SFP-24-V2 Series Hardware Manual V1.0

2. Hardware Description

2.1 Physical Dimensions

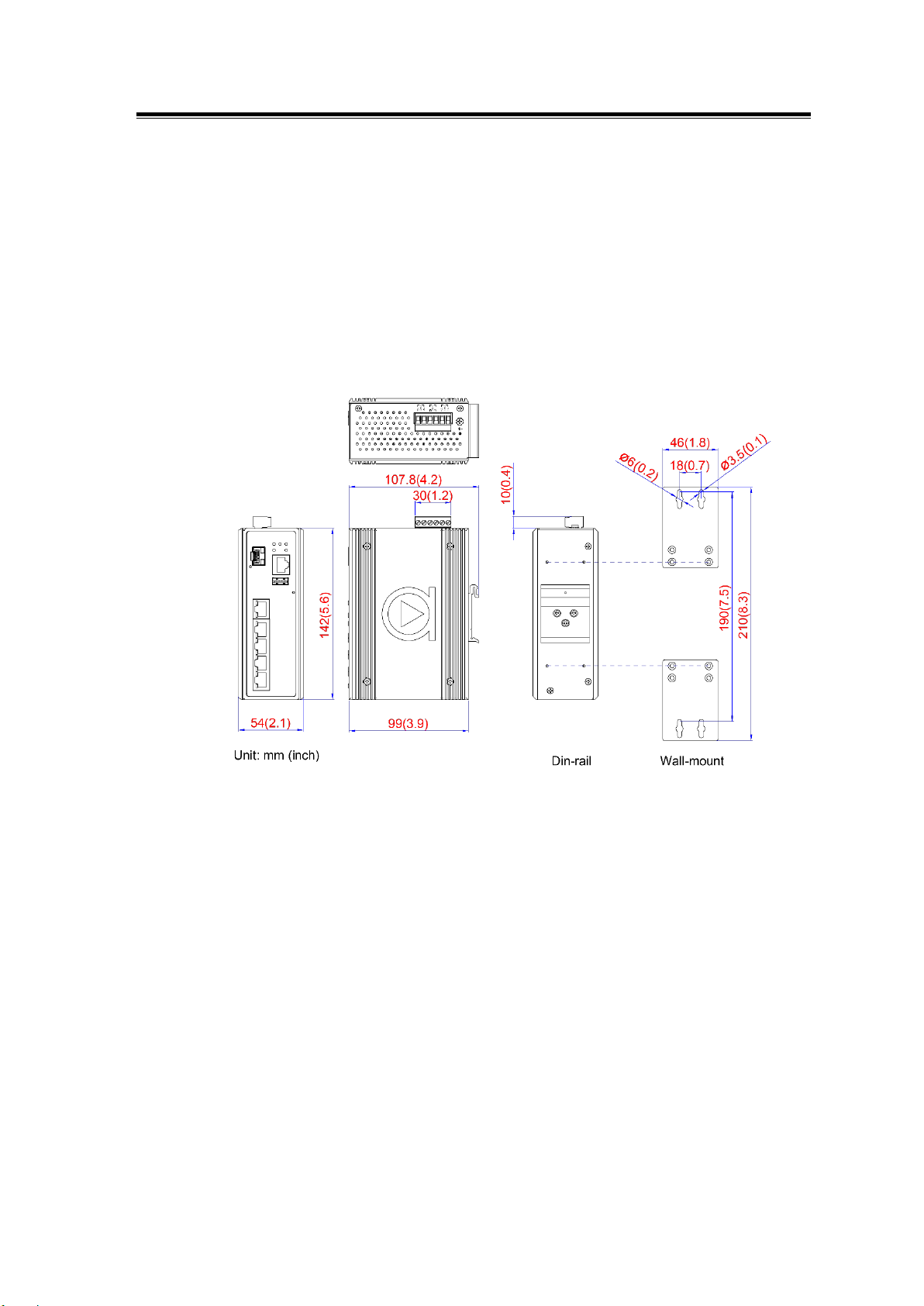

Figure 2.1, below, shows the physical dimensions of Antaira’s LMP-0601G-SFP-24-V2 series:

(W x D x H) is

54mm x 99mm x 142mm

Figure 2.1

LMP-0601G-SFP-24-V2 Series Physical Dimensions

Antaira Technologies - Industrial EthernetSwitches

LMP-0601G-SFP-24-V2 Series Hardware Manual V1.0

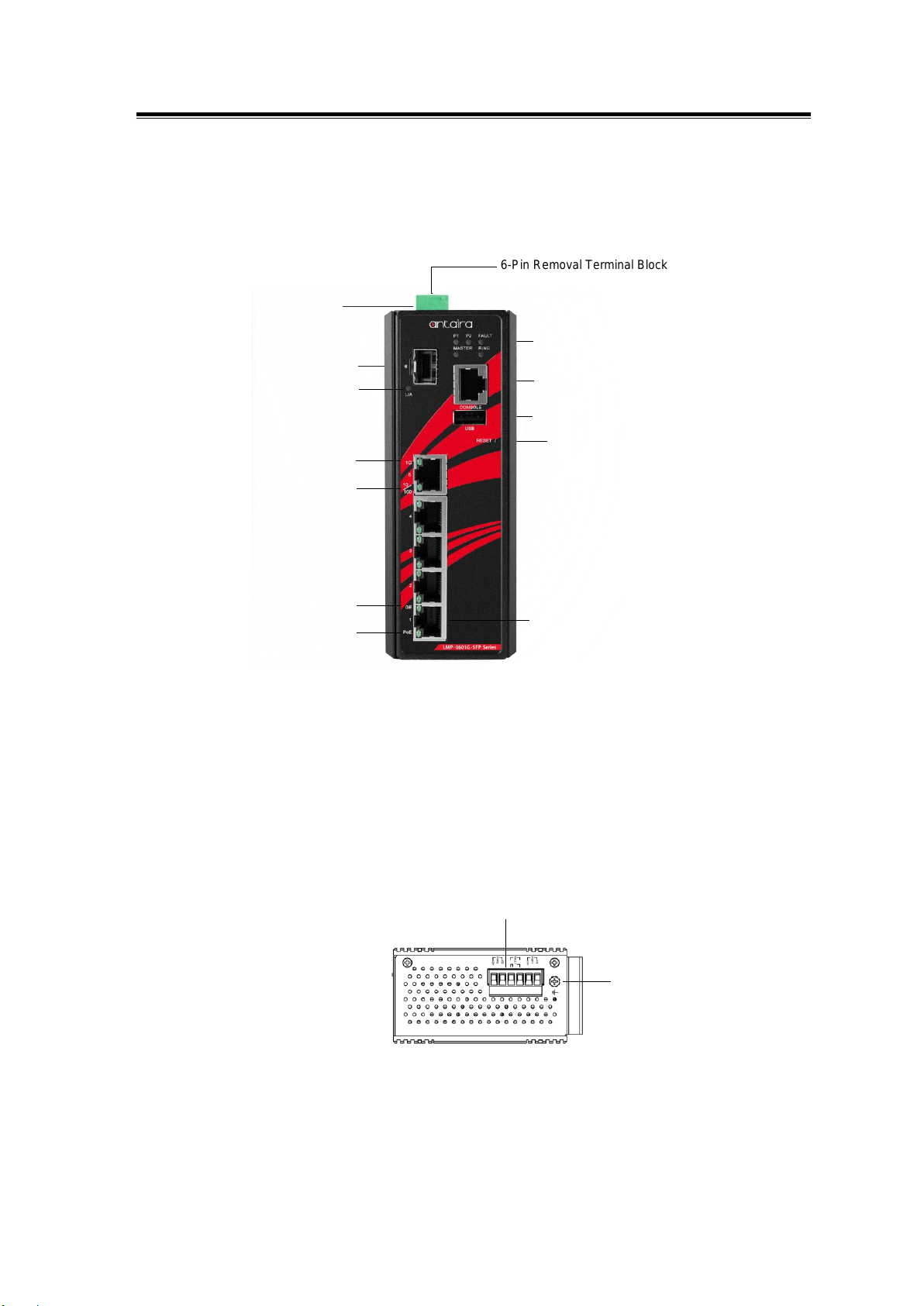

2.2 Front Panel

The front panel of the LMP-0601G-SFP-24-V2 series industrial gigabit PoE+ managed Ethernet

switch is shown below in Figure 2.2.

Figure2.2

The Front Panel of LMP-0601G-SFP-24-V2 Series

2.3 Top View

Figure 2.3, below, shows the top panel of the LMP-0601G-SFP-24-V2 series is equipped with

one 6-pin removal terminal block connector for dual DC power inputs (12~48VDC).

Figure2.3

Top Panel View of LMP-0601G-SFP-24-V2 Series

6-Pin Removal Terminal Block

Grounding Screw

Reset Button

LAN# 1~4 LED for

Link/Activity Status

10/100/1000Mbps

LAN# 1~4 LED for PoE Status

LED for Power 1, Power 2, Fault, Master, and Ring

Console Port

USB for Configuration

SFP Port# 6 LED for

Link/Activity Status

100/1000

LAN# 1~5 –10/100/1000Tx RJ45

SFP Port# 6 –100/1000

6-Pin Removal Terminal Block

Grounding Screw

LAN# 5 LED for

Link/Activity Status

10/100Mbps

LAN# 5 LED for

Link/Activity Status

1000Mbps

Antaira Technologies - Industrial EthernetSwitches

LMP-0601G-SFP-24-V2 Series Hardware Manual V1.0

2.4 LED Indicators

There are LED light indicators located on the front panel of the industrial Ethernet switch that

display the power status and network status. Each LED indicator has a different color and has

its own specific meaning, see below in Table 2.1.

LED

Color

Description

Green

Power input 1 is active

Off

Power input 1 is inactive

Green

Power input 2 is active

Off

Power input 2 is inactive

Fault

Green

System is ready

Off

System is booting

Red

Fault Alarm

Off

System is in normal state

Owner

Green

ERPS Owner Mode (Ring Master) is ready

Off

ERPS Owner Mode is not active

Ring

Green

Ring Network is active

Off

Ring Network is not active

LAN Port 1~4

(Upper LED)

Green

Connected to Network, 10/100/1000Mbps

Flashing

Network is active

Off

Not connected to network

LAN Port 1~4

(Lower LED)

PoE Indicators

Green

The port is supplying power to the powered-device

Off

No powered-device attached or power supplying fails

LAN Port 5

(Upper LED)

Green

Connected to network, 1000Mbps

Flashing

Networking is active

Off

Not connected to network

LAN Port 5

(Lower LED)

Green

Connected to Network, 10/100Mbps

Flashing

Network is active

Off

Not connected to network

SFP Port 6

LINK/ACT

Green

Connected to network

Flashing

Networking is active

Off

Not connected to network

Table 2.1 - LED Indicators for LMP-0601G-SFP-24-V2 Series

Caution: "P1" is the abbreviation for "Power ", “P2”is for “Power 2”, “LNK”is for “Link”, and

"ACT" is for "Activity".

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali ANTAIRA Interruttore

ANTAIRA

ANTAIRA LMX-2012G-SFP Series Manuale utente

ANTAIRA

ANTAIRA LNX-0602 series Manuale utente

ANTAIRA

ANTAIRA LMX-2828G-10G-SFP Manuale utente

ANTAIRA

ANTAIRA LNP-0800G Series Manuale utente

ANTAIRA

ANTAIRA LMX-0804G-SFP Series Manuale utente

ANTAIRA

ANTAIRA LMP-0501-24-V2 Series Manuale utente

ANTAIRA

ANTAIRA LMX-1802G-M12-10G-SFP-67-110 Series Manuale utente

ANTAIRA

ANTAIRA Lanolinx LNX-1002GN Manuale utente

ANTAIRA

ANTAIRA LMP-2004G-SFP Series Manuale utente

ANTAIRA

ANTAIRA LMP-1802G-M12-10G-SFP-67-24 Series Manuale utente

ANTAIRA

ANTAIRA LNP-800-M12-T Manuale utente

ANTAIRA

ANTAIRA LMP-1202M-SFP-24 Manuale utente

ANTAIRA

ANTAIRA LNP-1002C-SFP-24 Series Manuale utente

ANTAIRA

ANTAIRA LMX-3228G-10G-SFP Series Manuale utente

ANTAIRA

ANTAIRA LNP-0702G-SFP Series Manuale utente

ANTAIRA

ANTAIRA LMP-2012G-SFP Series Manuale utente

ANTAIRA

ANTAIRA LMP-0804G-SFP Series Manuale utente

ANTAIRA

ANTAIRA LNX-1002G-10G-SFP Manuale utente

ANTAIRA

ANTAIRA LMX-0804G-SFP-T Manuale utente

ANTAIRA

ANTAIRA LNP-0500-24 Series Manuale utente

ANTAIRA

ANTAIRA LNX-1002C-SFP Series Manuale utente

ANTAIRA

ANTAIRA LNX-1600-E Series Manuale utente

ANTAIRA

ANTAIRA LNX-0601G-SFP Manuale utente

ANTAIRA

ANTAIRA LNX-602N Manuale utente

Manuali Interruttore popolari di altre marche

URC

URC Total Control MFS-8 Manuale utente

Azbil

Azbil HPQ-D11 Manuale utente

Sony

Sony DFS-900M Manuale utente

SICK

SICK i17S Manuale utente

F&F

F&F SZR-277 Manuale utente

Shure

Shure UAMS/BK Manuale utente

Dräger

Dräger X-zone Switch Off Manuale utente

Asco

Asco Joucomatic 349 Series Manuale utente

BT Mini Hub Manuale utente

D-Link

D-Link DES-1226G Manuale utente

Johnson Controls

Johnson Controls FS80-C Manuale utente

Alcatel-Lucent

Alcatel-Lucent 7450 ESS-12 Manuale utente

MicroNet

MicroNet SP1200A Manuale utente

Ruijie

Ruijie RG-PF2920 Series Manuale di installazione e funzionamento

Altinex

Altinex DA1914SX Manuale utente

MiLAN

MiLAN MIL-SM2401M Manuale utente

RJM

RJM MASTERMIND PBC/6X Manuale utente

Atlas

Atlas MMK-KVM8 Manuale utente
