ANTAIRA LNX-800A Series Manuale utente

Antaira Industrial Ethernet Switches

LNX-800A Series User Manual V2.4

LNX-800A

8-Port Industrial Unmanaged Ethernet Switches w/8*10/100Tx

User Manual

Version 2.4

Antaira Industrial Ethernet Switches

LNX-800A Series User Manual V2.4

This document contains information, which is protected by copyright. Reproduction, adaptation or translation

without prior permission is prohibited, except as allowed under the copyright laws.

Trademark Information

Antaira is a registered trademark of Antaira Technologies, LLC, Microsoft Windows and the Windows logo are the

trademarks of Microsoft Corp. NetWare is the registered trademark of Novell Inc. WMM and WPA are the

registered trademarks of Wi-Fi Alliance. All other brand and product names are trademarks or registered

trademarks of their respective owners.

translation without prior permission of Antaira Technologies, LLC is prohibited, except as allowed under the

Disclaimer

Antaira Technologies, LLC provides this manual without warranty of any kind, expressed or implied, including but

not limited to the implied warranties of merchantability and fitness for a particular purpose. Antaira Technologies,

LLC may make improvements and/or changes to the product and/or specifications of the product described in this

manual, without prior notice. Antaira Technologies, LLC will not be liable for any technical inaccuracies or

typographical errors found in this guide. Changes are periodically made to the information contained herein and

will be incorporated into later versions of the manual. The information contained is subject to change without prior

notice.

Antaira Industrial Ethernet Switches

LNX-800A Series User Manual V2.4

iii

FCC Warning

This equipment has been tested and found to comply with the limits for a Class-A digital device, pursuant to Part

15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a

residential installation. This equipment generates, uses, and can radiate radio frequency energy. It may cause

harmful interference to radio communications if the equipment is not installed and used in accordance with the

instructions. However, there is no guarantee that interference will not occur in a particular installation. If this

equipment does cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

 Reorient or relocate the receiving antenna.

 Increase the separation between the equipment and receiver.

 Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

 Consult the dealer or an experienced radio/TV technician for help.

Caution: Any changes or modifications not expressly approved by the grantee of this device could void the user's

authority to operate the equipment.

CE Mark Warning

This is a Class-A product. In a domestic environment this product may cause radio interference in which case the

user may be required to take adequate measures.

Industrial Ethernet Switches

Industrial Grade Gigabit Unmanaged Ethernet Switches

User Manual

Version 2.4 (July 2018)

This manual supports the following models:

 LNX-800A

 LNX-800A-T

This document is the current official release manual. Please check our website (www.antaira.com) for any

updated manual or contact us by e-mail ([email protected]).

Antaira Industrial Ethernet Switches

LNX-800A Series User Manual V2.4

Table of Contents

1. Overview………………… ............................................. 1

1.1 Key Features….. ................................................ 1

1.2 Package Contents .............................................. 2

1.3 Safety Precaution……… .................................. 2

2. Hardware Description ................................................. 3

2.1 Physical Dimensions .......................................... 3

2.2 Front Panel……. ................................................ 4

2.3 Top View ............................................................ 4

2.4 LED Indicators…. ............................................... 5

2.5 Ethernet Ports….. .............................................. 5

2.6 Cabling ............................................................... 7

2.7 Wiring the Power Inputs ..................................... 7

2.8 Wiring the Fault Alarm Contact .......................... 8

3. Mounting Installation .................................................. 9

3.1 DIN-Rail Mounting .............................................. 9

3.2 Wall Mounting….. ............................................. 11

4. Hardware Installation ................................................ 12

4.1 Installation Steps .............................................. 12

5. Network Application ................................................. 13

6. Trouble Shooting ...................................................... 14

7. Technical Specification ............................................ 15

Antaira Industrial Ethernet Switches

LNX-800A Series User Manual V2.4

1. Overview

Antaira’s LNX-800A industrial unmanaged Ethernet switch series are IP30 rated and DIN-Rail

mountable. Each unit is designed with five 10/100Tx Fast Ethernet ports, which the RJ-45 interface

provides auto detection of MDI or MDI-X, and each port builds with data memory buffers that support

the store-and-forward mechanism.

The LNX-800A series provides high EFT and ESD protection to prevent any unregulated voltage and

is suitable for harsh environments. It supports the power redundancy feature using a dual power input

design with reverse polarity protection.

In addition, the built-in relay warning function alerts maintainers when power failures or port breaks

occur.

The LNX-800A series includes two models: one with an operating temperature range of -10 to 70°C,

and the other one with an extended operating temperature range of -40 to 75°C. It is a perfectly

designed product to fulfill special needs for industrial automation, outdoor applications and harsh

weather environments.

1.1 Key Features

 System Interface/Performance

 RJ-45 ports support auto MDI/MDI-X function

 Embedded 8-port 10/100Tx Fast Ethernet

 Store-and-forward switching architecture

 Port break alarm mask

 Power line EFT protection: 2,000VDC; Ethernet ESD protection: 6,000VDC

 Power Input

 DC 12 ~ 48V redundant power

 Operating Temperature

 Standard operating temperature model: -10°C ~ 70°C

 Extended operating temperature model (–T): -40°C ~ 75°C

 Case/Installation

 Metal / IP-30 protection

 Installation in pollution degree to environment

 DIN-Rail and wall mount design

Antaira Industrial Ethernet Switches

LNX-800A Series User Manual V2.4

1.2 Package Contents

 LNX-800A(T): 8-port industrial unmanaged Ethernet switch, w/8*10/100Tx

 User manual

 1-Product CD

 2-Wall mounting brackets and screws

 1-DC cable –18 AWG &DC jack 5.5x2.1mm

1.3 Safety Precaution

Attention: If the DC voltage is supplied by an external circuit, please use a protection

device on the power supply input. The industrial Ethernet switch’s

hardware specs, ports, cabling information, and wiring installation will be

described within this user manual.

Antaira Industrial Ethernet Switches

LNX-800A Series User Manual V2.4

2. Hardware Description

2.1 Physical Dimensions

Figure 2.1, below, shows the physical dimensions of Antaira’s LNX-800A series: 8-port industrial

unmanaged Ethernet switch with 8*10/100Tx.

(W x D x H) is 30mm x 99mm x 142mm

Figure 2.1

LNX-800A Series Physical Dimensions

Antaira Industrial Ethernet Switches

LNX-800A Series User Manual V2.4

2.2 Front Panel

The front panel of the LNX-800A series industrial unmanaged

Ethernet s

witch is shown below in

Figure 2.2.

2.3 Top View

Figure 2.3, below, shows the top panel of the LNX-800A series switch that is equipped with

one 6-pin removal terminal block connector for dual DC power inputs (12~48VDC).

Figure 2.2

The Front Panel of LNX-800A Series

Figure 2.3

Top Panel View of LNX-800A Series

Antaira Industrial Ethernet Switches

LNX-800A Series User Manual V2.4

2.4 LED Indicators

There are LED light indicators located on the front panel of the industrial Ethernet switch that

display the power status and network status. Each LED indicator has a different color and has

its own specific meaning, see below in Table 2.1.

LED Color Description

Green On Power input 1 is active

Off Power input1 is inactive

Green On Power input 2 is active

Off Power input 2 is inactive

Fault

Red

On Power input 1 or 2 is inactive

Off Power input 1 and 2 are both functional or no power,

inputs

Link/Active

LAN Port 1~8

Green

On Connected to network

Flashing Networking is active

Off Not connected to network

Duplex/Collision

LAN Port 1~ 8

Orange

On Ethernet port full duplex

Flashing Collision of packets occurs

Off Ethernet port half duplex or not connect to network

2.5 Ethernet Ports

 RJ-45 Ports

RJ-45 Ports (Auto MDI/MDIX): The RJ-45 ports are auto-sensing for 10Base-T, 100Base-TX

devices connections. Auto MDI/MDIX means that the switch can connect to another switch or

workstation without changing the straight-through or crossover cabling. See the figures as below

for straight-through and crossover cabling schematics.

Table 2.1

LED Indicators of LNX-800A Series

Antaira Industrial Ethernet Switches

LNX-800A Series User Manual V2.4



RJ-45 Pin Assignments(Table 2.2)

Pin Number Assignment

1 Rx+

2 Rx-

3 Tx+

6 Tx-

All ports on this industrial Ethernet switch support automatic MDI/MDI-X operation. Users can use

straight-through cables (see figure below) for all network connections to PCs, servers, other

switches or hubs. With straight-through cable, pins 1, 2, 3, and 6, at one end of the cable are

connected straight through to pins 1, 2, 3 and 6 at the other end of the cable. The table below

(Table 2.3) shows the 10BASE-T, 100BASE-TX MDI and MDI-X port pin outs.

Pin MDI-X Signal Name MDI Signal Name

1 Receive Data plus (RD+) Transmit Data plus (TD+)

2 Receive Data minus (RD-) Transmit Data minus (TD-)

3 Transmit Data plus (TD+) Receive Data plus (RD+)

6 Transmit Data minus (TD-) Receive Data minus (RD-)

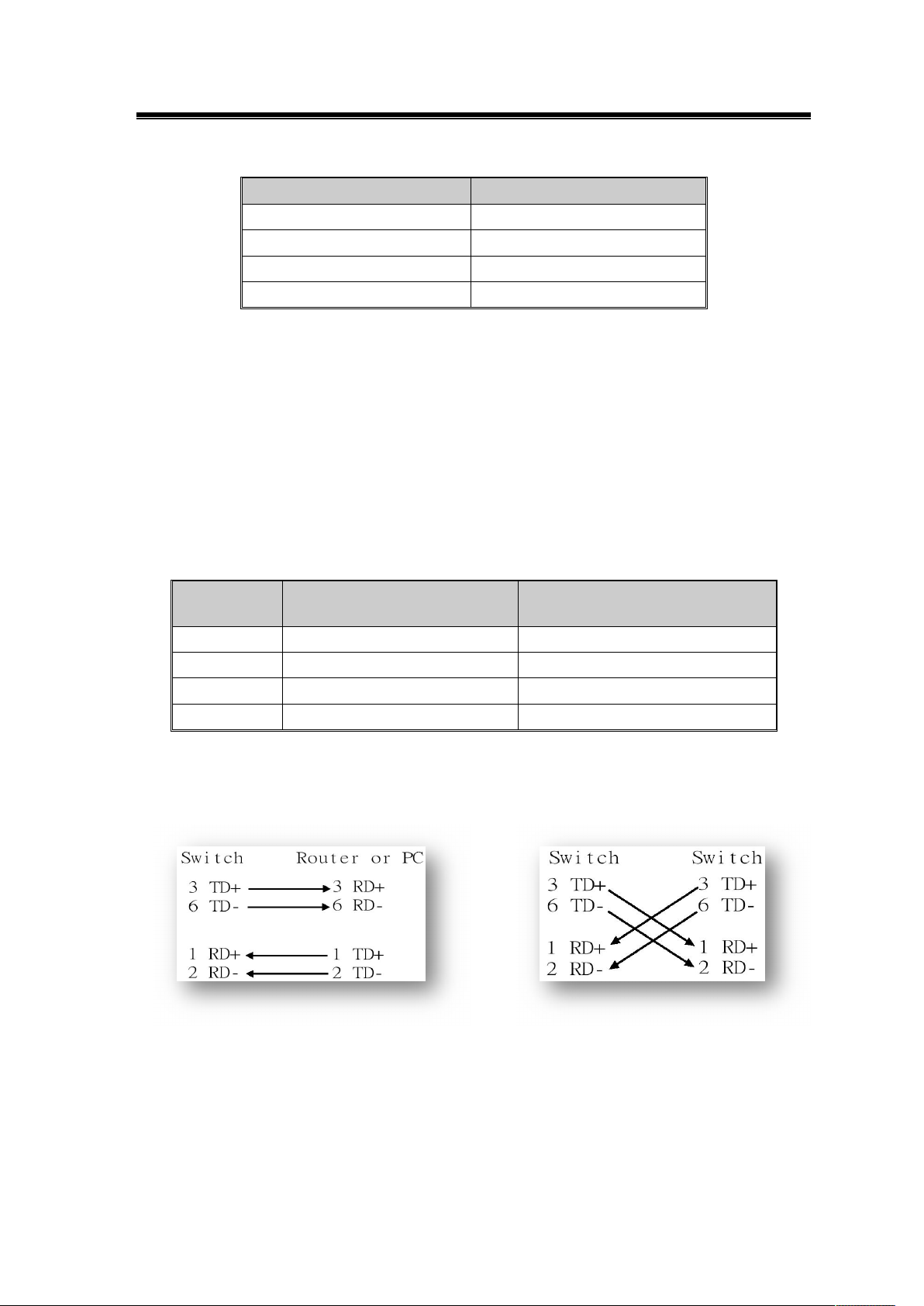

The following figures show the cabling schematics for straight-through and crossover.

Figure 2.4 Figure 2.5

Straight-Through Cable Schematic Crossover Cable Schematic

Note

“+” and “-” signs represent the polarity of the wires that make up each wire pair.

Table 2.2

RJ45 Pin Assignments

Table 2.3

Ethernet Signal Pin Outs
