Anthony Gallo Acoustics Nucleus Reference 3 Manuale utente

ANTHONY GALLO

ACOUSTICS

Reference3

Owner’s Manual

To find a dealer near you, please visit our web site at: www.roundsound.com

Anthony Gallo Acoustics, 20841 Prairie Street, Chatsworth, CA 91311 USA

Phone (818) 341-4488 • Fax (818) 341-2188

ANTHONY GALLO

ACOUSTICS

Anthony Gallo Acoustics

20841 Prairie Street

Chatsworth, CA 91311 USA

Place

Stamp

Here

Fill Out Warranty Information on back, detach and

return to us for your five year product warranty.

Name: Reference3Serial #

Address:

City: State: Zip:

Telephone: Email:

Where did you first hear about the Reference3?

Magazine Web Dealer Other

How influential was your dealer in your decision to purchase the Reference3?

Very Somewhat Not At All

What type of system did you purchase?

Stereo Home Theatre

What other Speakers did you listen to before choosing the Reference3?

What’s the dealers name and address you purchased this Product ?

Excellent Very Good Good Fair Poor

Appearance

Build Quality

Size

Sound Quality

Ease of Set Up

Mounting Options

Match my decor

Owners Manual

Introduction

Welcome to Anthony Gallo Acoustics!

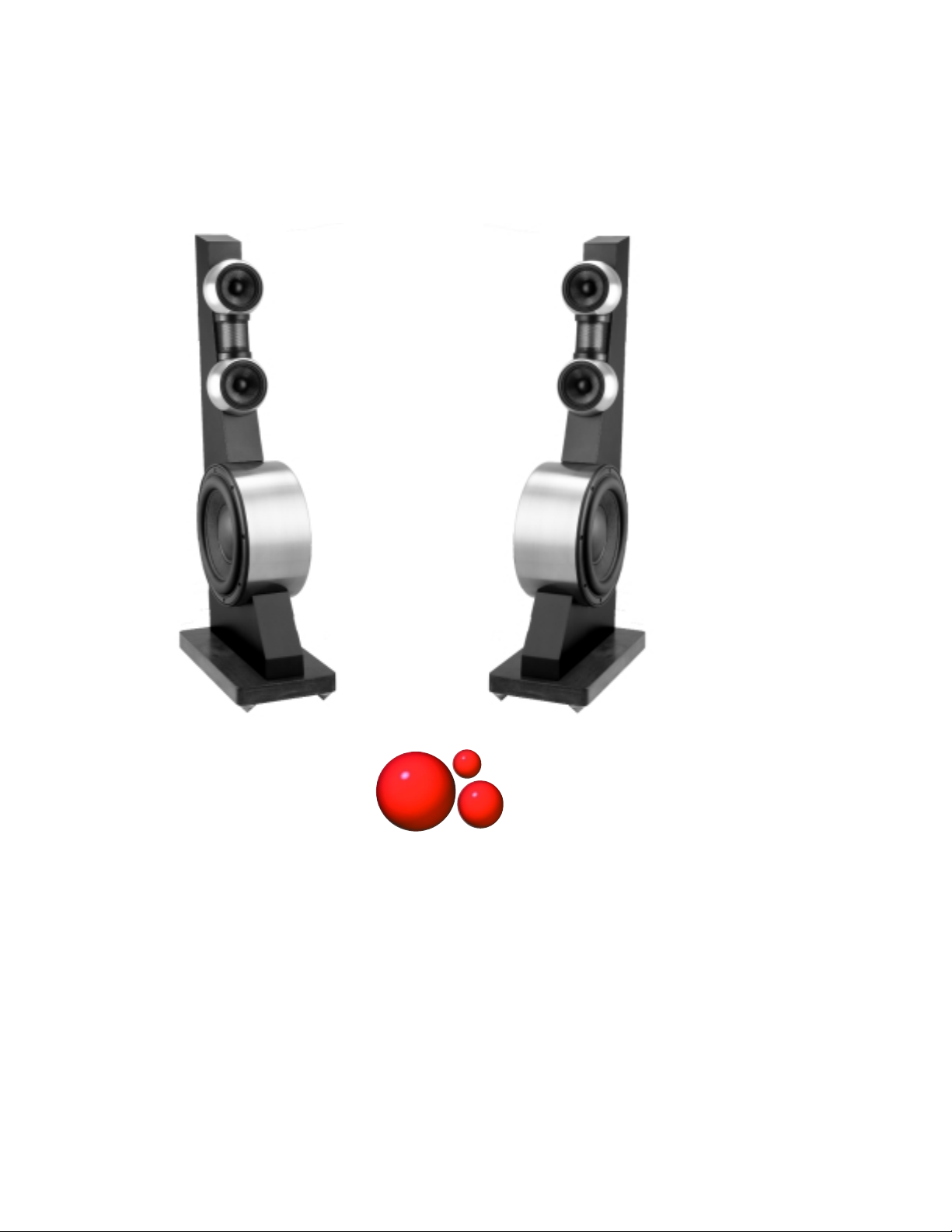

The Nucleus Reference3was designed with the performance conscious audiophile in mind. This elegant

new model builds on the success of our original round sound designs, the Nucleus Solo and Nucleus

Reference.

The Nucleus Reference3is uniquely equipped to demonstrate the advantages of the leading high

resolution formats, DVD-Audio and Super Audio CD. Very few high-end speakers, including the majority

of $10K+ models can approach, much less equal, the Nucleus Reference3’s extended high frequency

response, and few offer near omni directional (300 degree) dispersion. For the ultimate in neutrality and

transparency, the Nucleus Reference3operates without a crossover across most of its bandwidth -- from

125 Hz to 50 kHz!

Please take a moment to review the information in this manual so you can properly install your Nucleus

Reference3speakers. If you have any questions about any Anthony Gallo Acoustics' product, please call

818 341 4488 or send us an e-mail at [email protected]. As one of our valued customers your

feedback is always welcome.

System Set-Up and Operation

Unpacking

We recommend two people unpack each Nucleus Reference3speaker. Carefully slide the speaker out

the shipping box.

Save the boxes and packing so you can easily ship or transport your Reference3’s in the future

Adjustable Cone Feet

Carefully lay each Nucleus Reference3speaker on its side and screw on the supplied cone feet -- the

two taller cones in the front, and the shorter cones in the rear. Take care not to "cross thread" them;

screw the cones in all the way for now, but chances are you will need to adjust them later. Once the

cones are installed, stand the speakers up, and please exercise caution when moving the speakers

about. Pick them up by grasping the rear stalk and bottom plate -- avoid holding onto the speakers by

the cones.

Getting Connected -- Hooking up your Nucleus Reference3Speakers

PLEASE NOTE: Turn your sound system OFF before proceeding with the installation of your new

speakers.

Stereo Set-Up

The Nucleus Reference3’s speaker binding posts accept bare wire ends, banana jacks or "U"

shaped spade connectors.The dual sets of connectors might easily be mistaken for "bi-wire"

binding posts, but they are not. The top two connectors are labeled "Speaker In," and offer a "full

range" connection to the Nucleus Reference3’s woofer, midranges, and tweeter.

The lower binding posts, labeled "Sub In," connect to the Nucleus Reference3woofer’s secondary

voice coil – they’re designed to work with the optional Anthony Gallo Acoustics’ Reference3SA

Power Amplifier. The SA amp works independently from your main amp and dramatically

enhances the Nucleus Reference3’s deep bass performance -- down to the range we associate

with full-size subwoofers.The SA amp will allow the Nucleus Reference3’s to reach 22 Hertz. For

more information about the remarkable Reference3SA Power Amplifier, see your Anthony Gallo

Acoustics dealer.

As you hook-up the cables make sure the +/- speaker connections on your receiver/amplifier and

the Nucleus Reference3are properly oriented. In other words, confirm that ALL of the

connections are positive-to-positive (red-to-red) and negative-to-negative (black-to-black) -- even

one flip-flop may result in lower bass output or compromised stereo imaging.

Home Theater Set-Up

The following set-up procedure is nearly identical to the previous recommendations. Locate your

receiver/pre/pro’s speaker set-up menu select "Large" for the Left/Right front speakers.You may need to

consult your receiver’s owner’s manual to learn more about home theater set-up.

The Nucleus Reference3speakers may produce enough bass on their own – especially when used with

our Reference3SA subwoofer amplifier – so you may not need a separate subwoofer.

The Nucleus Reference3’s speaker connectors accept bare wire ends, banana jacks or small spades.

The dual sets of connectors might easily be mistaken for "bi-wire" binding posts, but they are not.The

two top connectors are labeled "Speaker In," and offer a true "full range" connection to the Nucleus

Reference3’s woofer, midranges, and tweeter.

The lower binding posts are labeled "Sub In" -- they connect to the Nucleus Reference3woofer’s

secondary voice coil – they’re designed to receive power from the optional Anthony Gallo Acoustics’

Reference3SA Power Amplifier. The SA amp works independently from your main amp and dramatically

enhances the Nucleus Reference3’s deep bass performance -- down to the range we associate with full-

size subwoofers.The SA amp will allow the Nucleus Reference3’s to reach 22 Hertz. For more

information about the remarkable Reference3SA Power Amplifier, see your Anthony Gallo Acoustics

dealer.

As you hook-up the wires make sure the +/- speaker connections on your receiver/amplifier and the

Nucleus Reference3are properly oriented. In other words, confirm that ALL of the connections are

positive-to-positive (red-to-red) and negative-to-negative (black-to-black) -- even one flip-flop may result

in lower bass output or compromised stereo imaging.

Advanced Set-Up Information

Speaker "Break In"

Your new Nucleus Reference3speakers will need a little time to develop their full sound potential.They

will sound pretty good right out of the box, but after a few hours of use the sound will lose some high

frequency detail – don’t worry – the speakers will gradually regain their extended frequency response.

To hasten the process leave a radio or CD playing, at a fairly high level, when you’re not home.You'll

hear a marked increase in bass and treble detail after 100 hours of vigorous use. Complete the break-in

before attempting to critically place the speakers.

Speaker Placement Tips

The Nucleus Reference3speakers are sold in mirror-imaged pairs -- they can be set-up with their side-

mounted woofers facing outwards towards the walls of the room OR you may reverse the left and right

speakers so the woofers are facing in towards each other We recommend starting with the woofers’ in the

facing-out orientation. (The speaker’s serial numbers are preceded by a #1 or #2. In the recommended

configuration the speaker marked #1 will be on the left side, and the speaker marked #2 will be the right.)

Each room is different, so the safest approach is to try it both ways. Play a variety of bass heavy recordings,

and note which orientation yields a smoother and more extended bass response. If you have a large piece of

furniture or massive rear projection TV between the speakers they should always be in the outward facing

orientation.

Advanced Set-Up Information

Tweeter Level

Your Nucleus Reference3’s are outfitted with a three-position tweeter level switch to compensate for

varying room acoustics.We recommend the "-2 dB setting" in bright rooms, i.e., rooms with

hardwood or tiled floors, or lots of exposed windows or mirrors. If your room has wall to wall

carpeting, thick drapes, and overstuffed furniture, which all soak up high frequencies -- move the

tweeter level switch up to the "+2 dB" position. Most rooms fall in the middle range, not too bright

or absorptive – in those rooms the speakers will sound best when the switch is in the "0" position.

Feel free to use the + 2dB level during break-in if the speakers sound to dull or soft. It may take as

many as 100 hours of vigorous use before the Nucleus Reference3’s attain the full performance

level.

Sound Advice

While the Nucleus Reference3can handle substantial amounts of power, please use common

sense when playing music or home theater programs at very high levels. If you hear "popping"

sounds or distortion from the speakers, immediately lower the volume!

Grill Removal

The grill is removed by unscrewing the three knurled machine screws from the rear grill braces.

This is easily done with the use of a supplied allen wrench. Start with the bottom screw and work

your way up to the top. Once these screws are removed carefully lift the grill off from the top using

caution not to hit the 3-way tweeter switch. Because the metal grill cage is quite substantial it is

possible to break this switch if it is struck by one of the grills braces.

Advanced Set-Up Information-Continued

Depending on décor considerations you may wish to position your Nucleus Reference3’s within a just a few

inches of the wall behind them, but the sound will be more "open" when the speakers are 12 to 36 inches out

into the room.The Nucleus Reference3’s can fire straight ahead, OR angled in, towards the listening position.

Stereo imaging will be more specific when angled in, and upper bass will be more prominent and "faster

sounding.

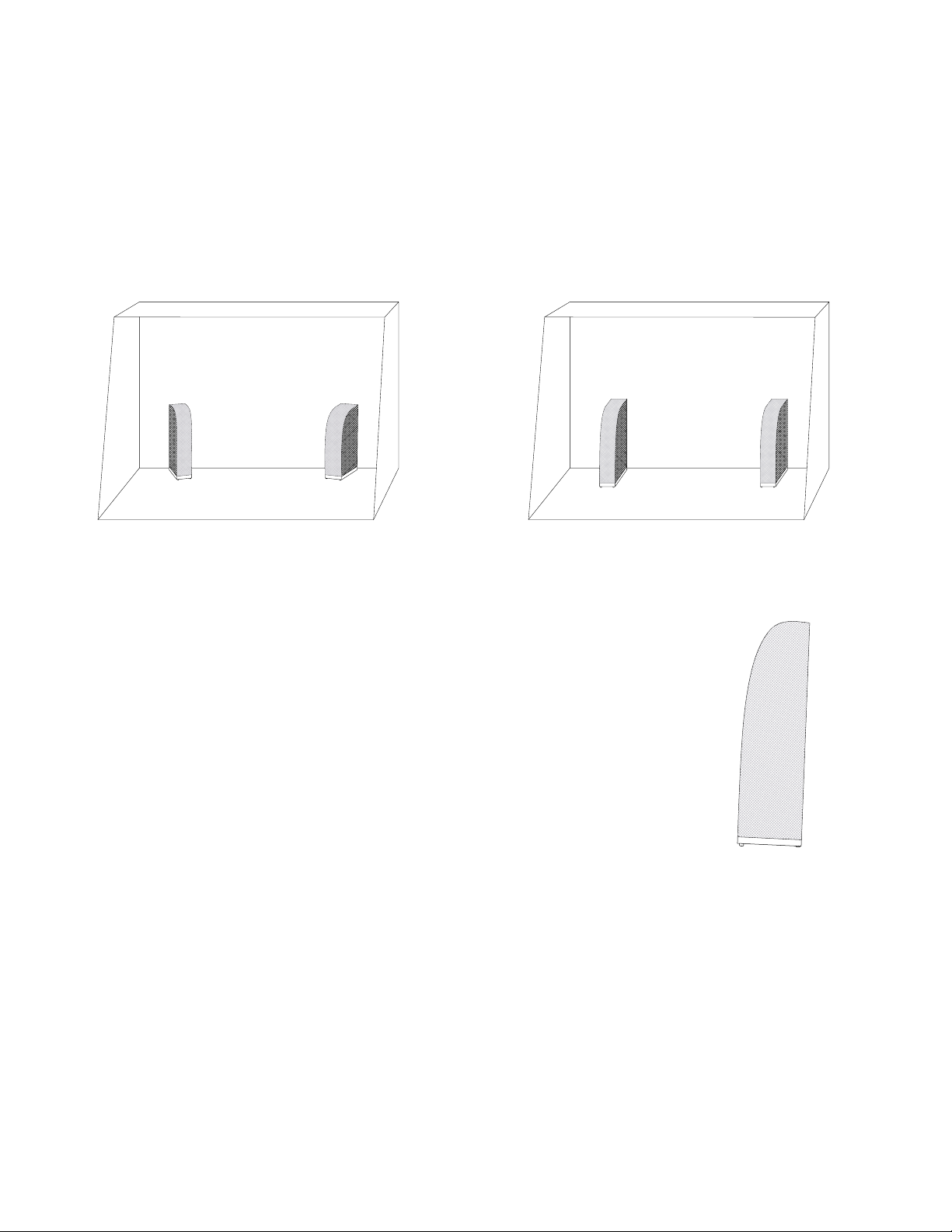

Toe In Placement Straight Ahead Placement

Tilt Back Position

Finally, the Nucleus Reference3’s profile is angled back to project the sound up, but

you may need to adjust the tilt back angle (with the front and rear cones) to ensure

the tweeters are aimed at the seated listeners’ ears. Once the cones are properly

adjusted, make sure the speakers aren’t "rocking" on three of the four cones, and

then go ahead and firmly tighten the nuts to lock the cones in place.

Please note: the Nucleus Reference3isn’t magnetically shielded so avoid placing it

next to a CRT-type televion (anything more than 12 inches will be OK).
