1 ACB336 User Manual
Chapter 1 Introduction
1.1 Introduction
ACB336 is an HDTV receiver box. It receives ATSC, NTSC and
digital cable clear QAM programs. RF pass- through is
supported for 2nd box or TV, so you won’t need another antenna.
It has EIA-909 smart antenna control interface and
user-selectable CVBS, Components (YPbPr) and HDMI output.
EPG, V-chip and closed captioning are also supported.
1.2 Accessories

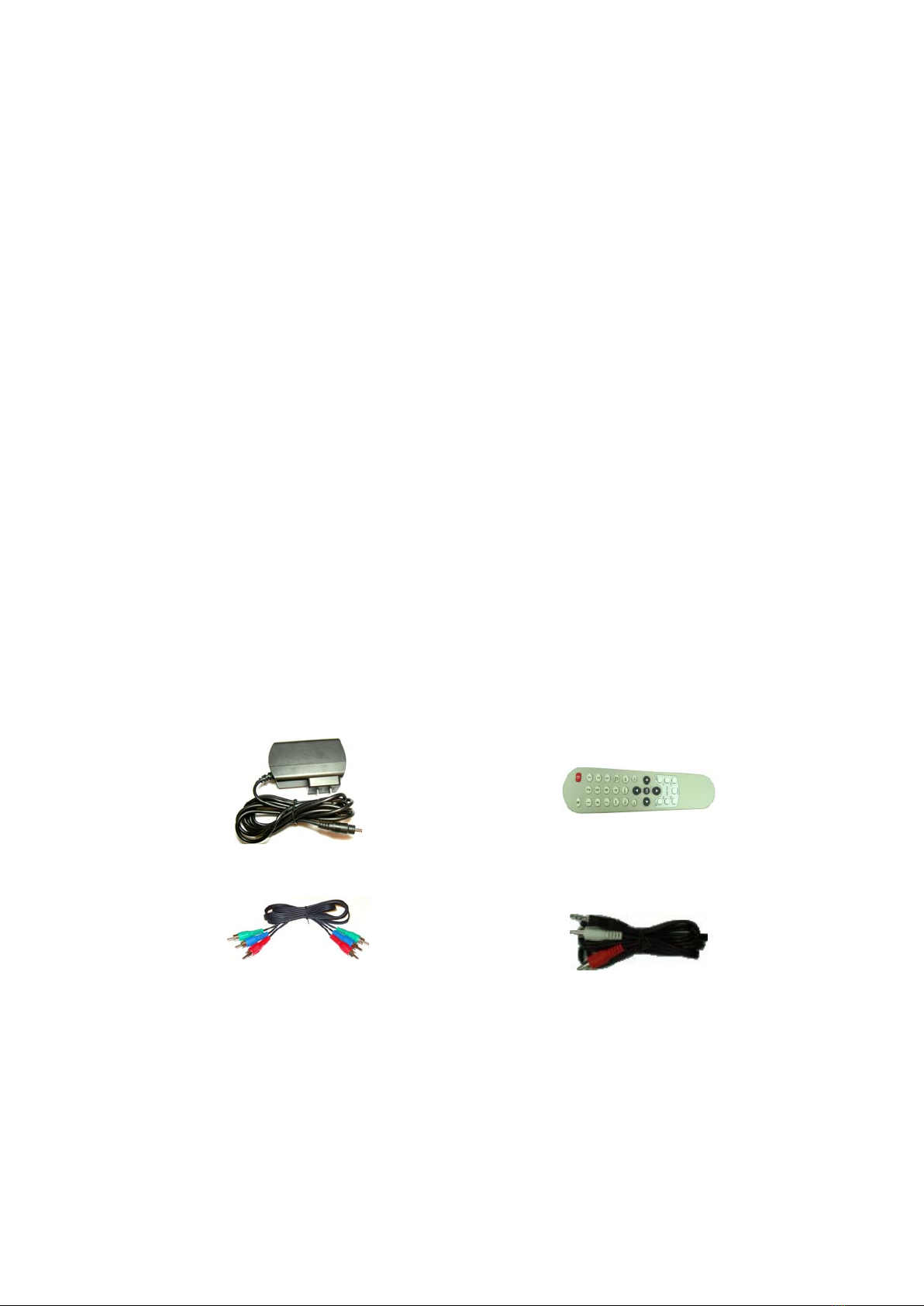

Power adapter (12VDC/1A) x 1 Remote control with battery x 1
Component Cable (Green, Blue, Red) x 1 Audio Cable x 1
User’s manual x 1
2 ACB336 User Manual
Chapter 2 Cable Connection and First Power On
1. Connect antenna or cable RF output to box “ANT IN” F-connector.
2. If EIA-909 smart antenna is connected, use RJ-11 cable to connect
antenna control box and “SMART ANTENNA” jack in the box.
3. If TV supports composite AV only, use attached YPbPr cable (Green
plug) to connect TV AV IN (yellow jack) and box “Y” (Green jack).
4. Switch the “OUT SELECT” slide switch to the right side (near HDMI
jack).
5. Go to step 12 to continue audio connection.
6. If TV supports HDMI interface, use HDMI cable (not included) to
connect TV HDMI IN jack and box “HDMI” jack.
7. Switch the “OUT SELECT” slide switch to left side (near DIAG jack).
8. Go to step 12 to continue audio connection.
9. If TV supports component YPbPr video, use included component cable
(Green, Blue, Red plug) to connect TV YPbPr IN (Green, Blue, Red
jack) and box “YPbPr” (Green, Blue, Red jack) at the rear cover.
10. Switch the “OUT SELECT” slide switch to center position.
11. Go to step 12 to continue audio connection.
12. Use included audio cable (White, Red plug and 3.5” phone plug) to
connect box “AUDIO” jack and TV AUDIO IN. White plug is for TV
White jack (left channel) and Red plug is for TV Red jack (right
channel).
13. Now, you can turn on the power by plug in the power adapter to box
and wall power socket.
14. When DC power is applied, Red LED will be on at front panel. Use
remote POWER key to turn on box, Green LED will be on and wait for
20 sec to finish boot up. A Start Scan menu will be displayed and you
can select signal source from Air or Cable (STD, HRC and IRC).
Please check local cable operator to learn which cable frequency plan
in your area.
3 ACB336 User Manual

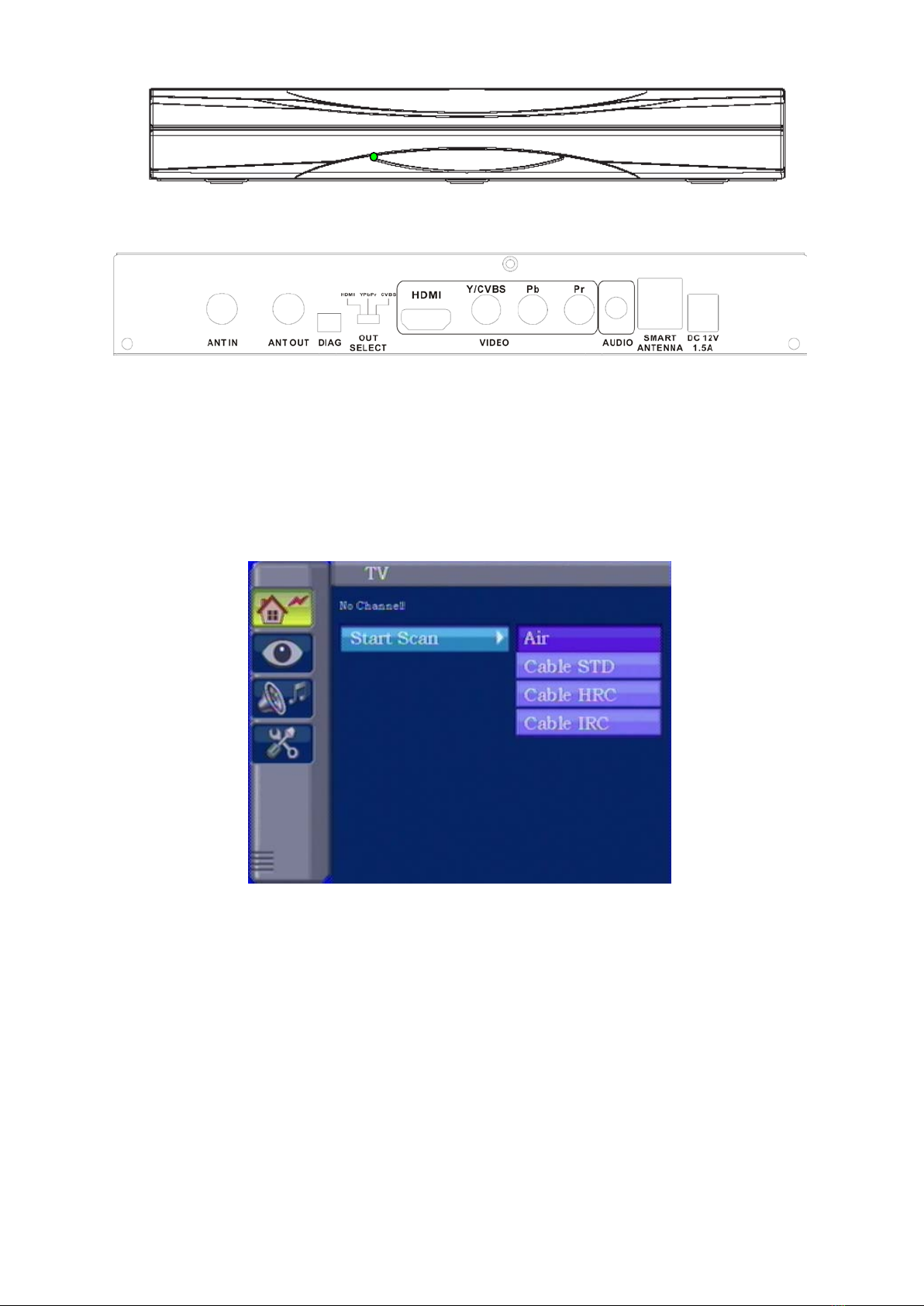

Front Panel
Back Panel
NOTE: DIAG is a technical service port only. DO NOT USE IT!
NOTE: Composite CVBS and Component Y (Green jack) share
the same connector!
Start Scan menu
4 ACB336 User Manual

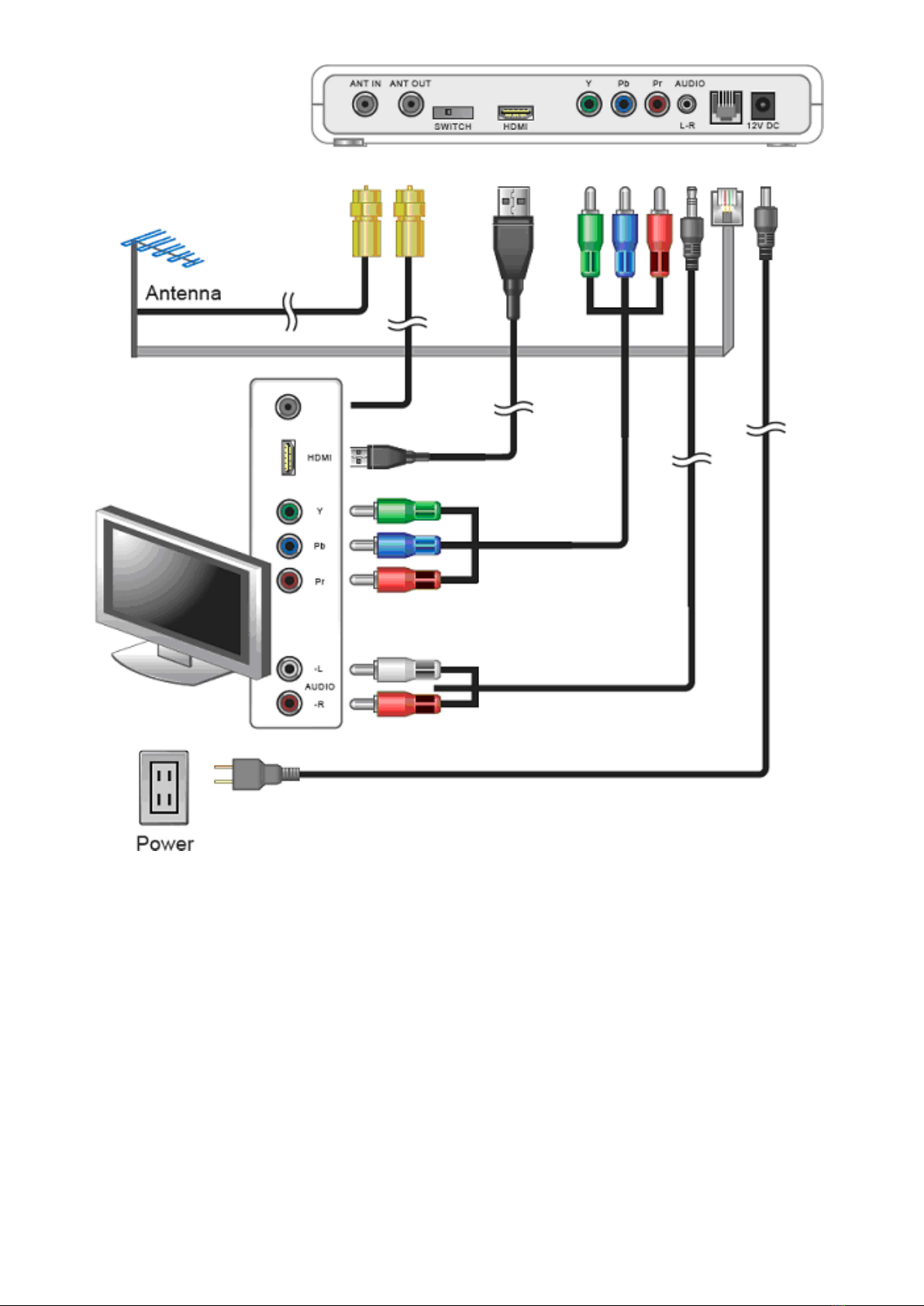

Cable Connection Illustration
5 ACB336 User Manual

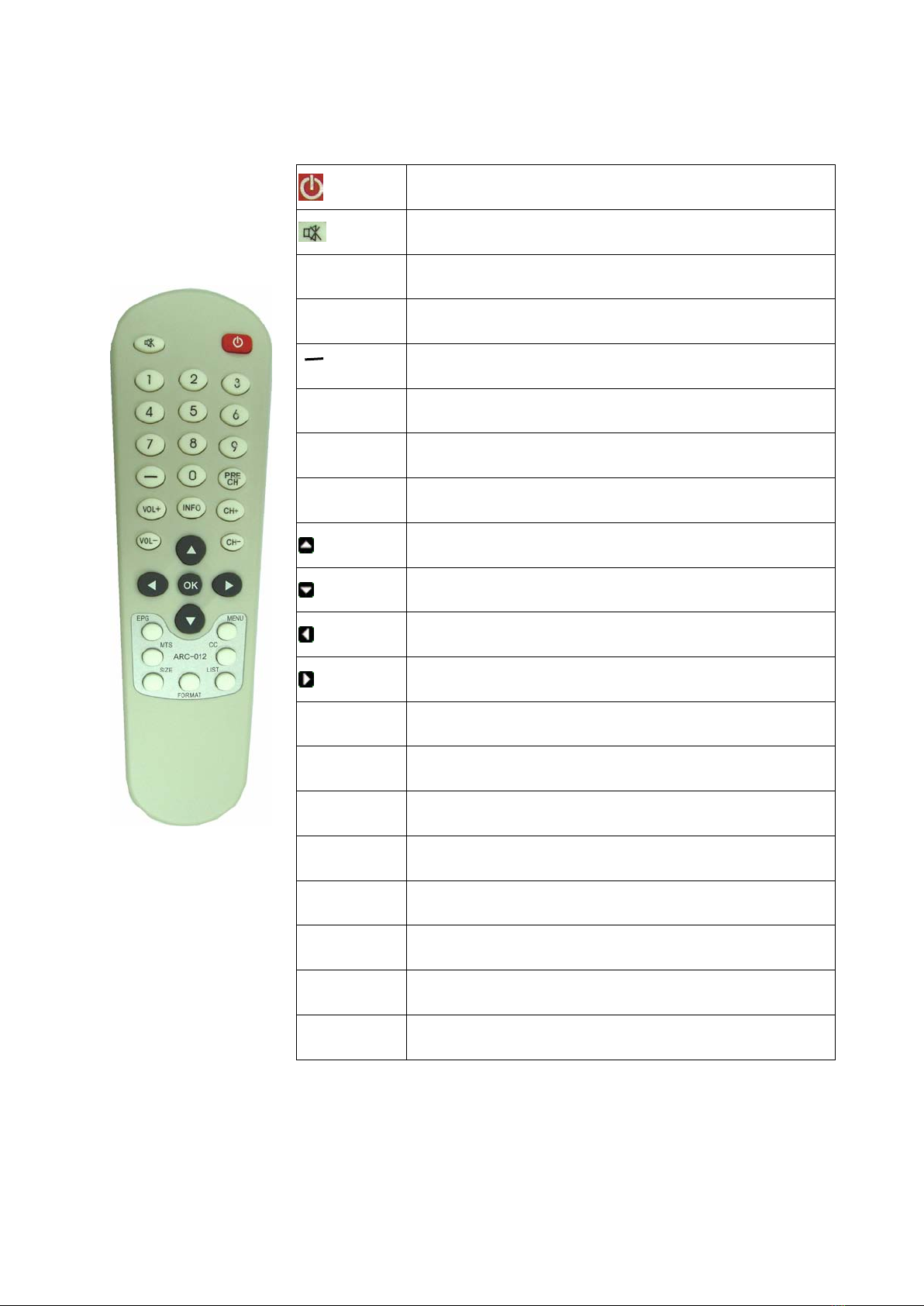

Chapter 3 Remote
Power On/Standby
Mute
0..9 0,1,2,3,4,5,6,7,8,9
PRE-CH Back to previous viewing channel
Separator for Major and Minor Channel
VOL+/- Volume up/down
CH+/- Channel up/down
INFO Display program information
Move up
Move down
Move left
Move right
OK Confirm/Enter
MENU OSD menu
EPG Display electronic program guide
MTS Select speech language
CC Select closed captioning
LIST List all available channels
SIZE Select video aspect ratio
FORMAT Select YPbPr and HDMI resolutions
6 ACB336 User Manual
Chapter 4 Menu Operation
4.1 How to use OSD Menu

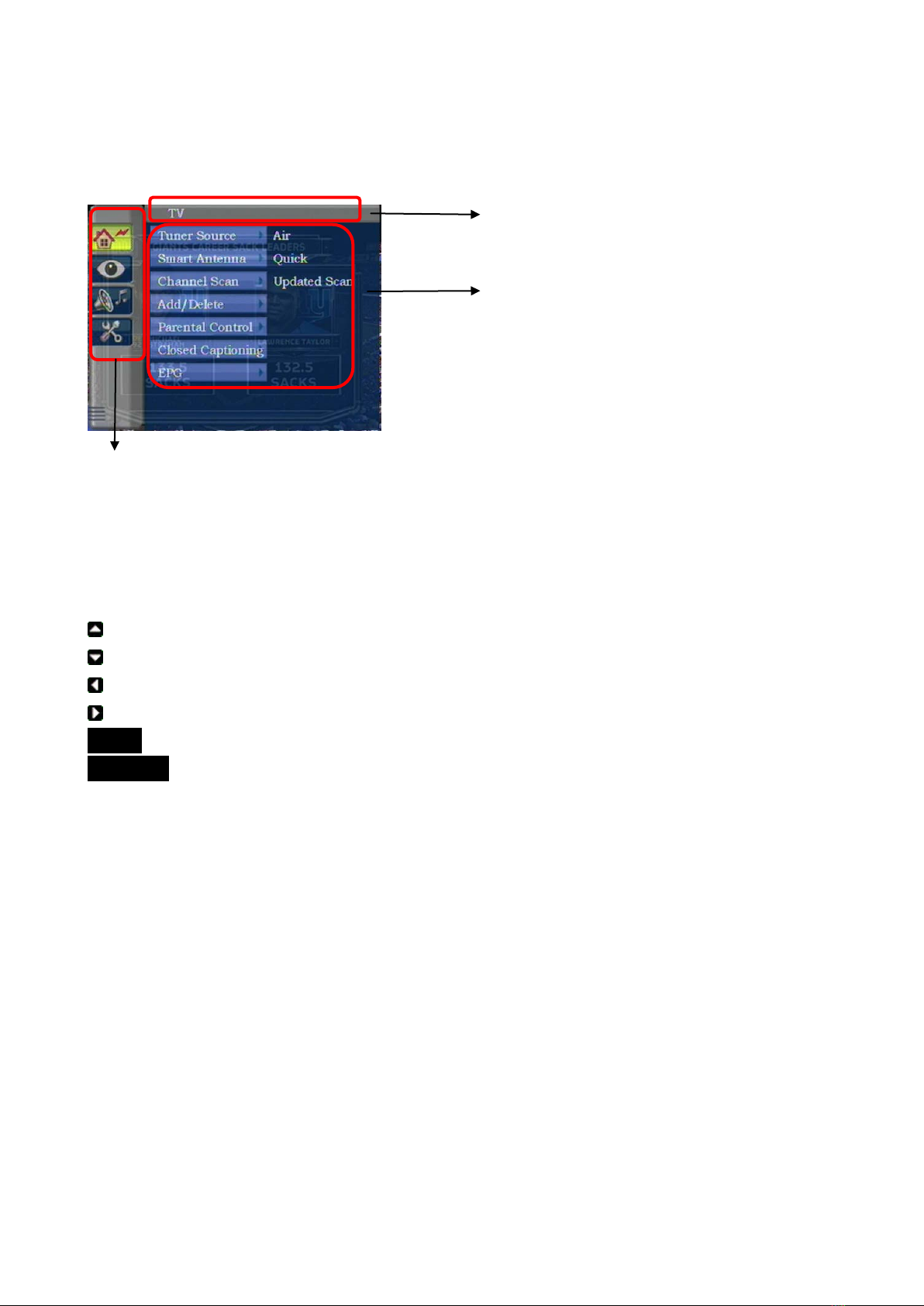

Press remote MENU key to display OSD menu. There are
three areas for each OSD menu – Main Menu, Sub-
Menu
Title, and Sub-Menu List.
: move the menu bar up
: move the menu bar down
: go to upper menu level
: go to lower menu level or show the options
OK : Confirm an action
MENU : OSD menu On/Off
Sub-Menu Title
Sub-Menu List
Main
7 ACB336 User Manual
4.2 TV menu
TV
This submenu provide TV channel related functions,
such as scanning, parental control, EPG and CC.

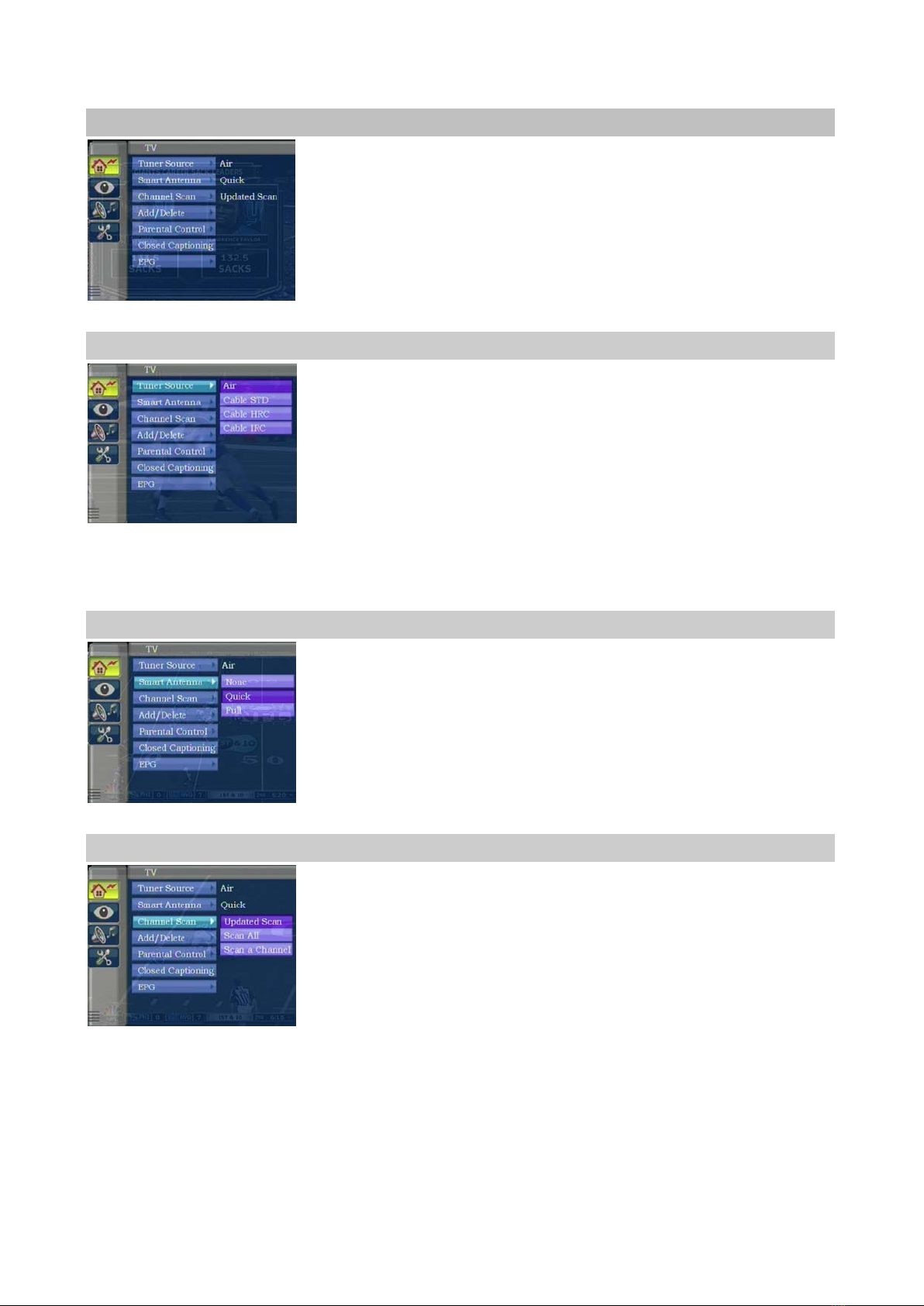

TV – Tuner Source
Tuner Source is to select the signal source.
Air: ATSC/NTSC reception of broadcast physical
channels 2-69
Cable: NTSC/QAM reception of cable channels
2-125 (STD) and 1-125 (HRC, IRC)
When watching program from local cable operator.
Please check local cable operator to learn which cable
frequency plan in your area.
TV – Smart Antenna
To detects if a smart antenna is used for air reception.
When smart antenna is detected
, it provides quick and
full scan options. Full scan will try all possible
directions and look for best signal for you but it takes a
lot longer.
TV – Channel Scan
There are three kinds of scanning mode.
Updated Scan: Scan channels which are not in
channel list and add new found channels to existing
channel list.
Scan All: Clear all locked channels data before
doing a full range scan.
Scan a Channel: Scan a specified channel number.
The channel frequency scanned is based on tuner
source selection.
8 ACB336 User Manual
TV – Add/Delete
To delete or un-
delete a channel from channel list, so it
will hide the channel you select when changing
channels (CH +/-).
TV – Parental Control
This feature restricts content viewing. Enter
password to set rating limits. Initial password is
「0000」.

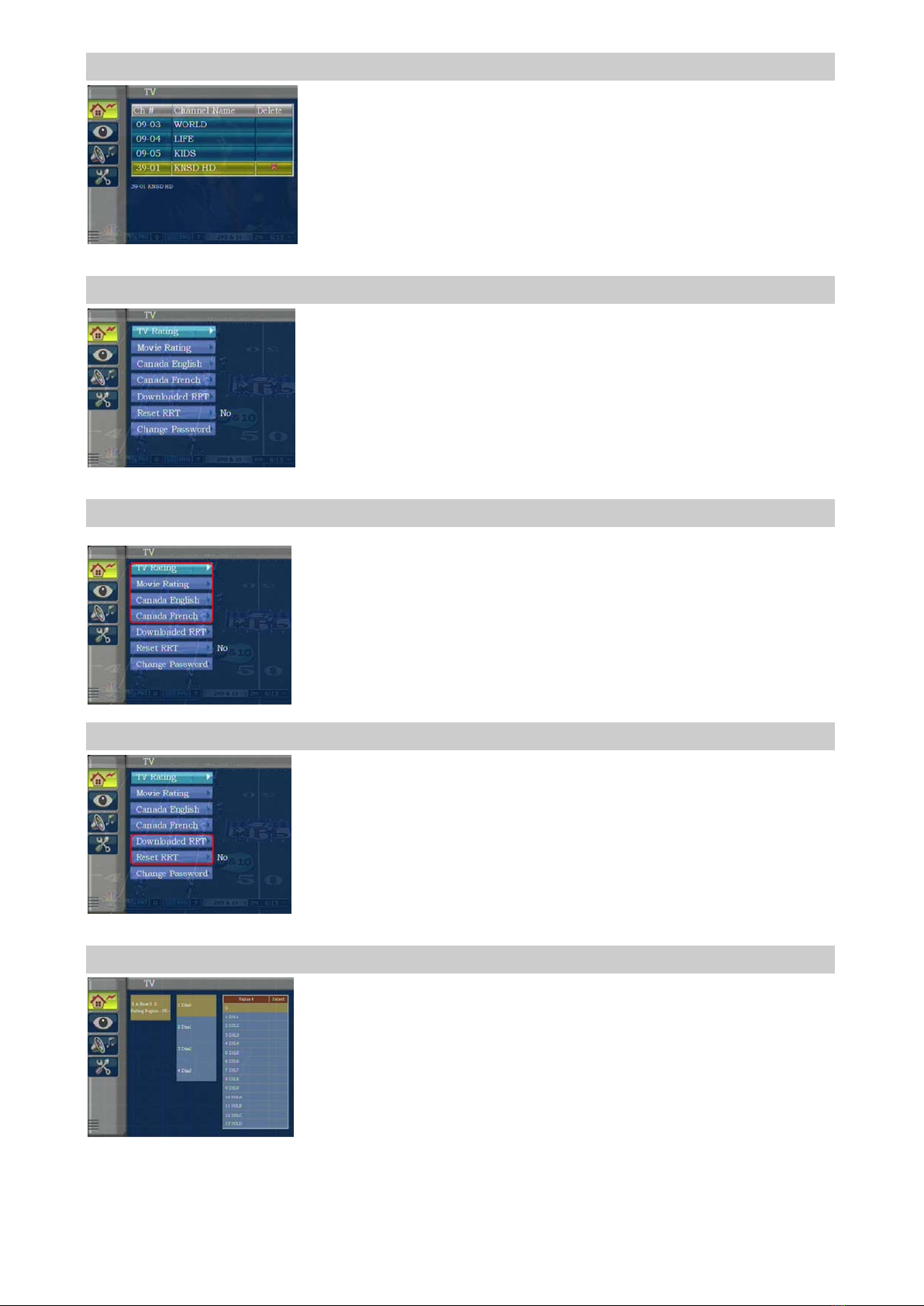

TV – Parental Control – V-Chip
TV Rating: US TV rating table
Movie Rating: US Movie rating table
Canada English: Canada English rating table
Canada French: Canada French rating table
TV – Parental Control – RRT
Downloaded RRT: Downloaded region rating table
Reset RRT: Clear downloaded region rating table
TV – Parental Control – Downloaded RRT
An example of downloaded RRT
