AOpen AX4S-U Manuale utente

478-pin CPU Socket

FSB400/533MHz Intel®P4 CPU

Supported

CPU Fan Connector with H/W

Monitoring

Server Works GC-SL Chipset

North Bridge:Server Works GC-SL

184-pin DIMMx4 supports ECC DDR200

/ 266 maximum up to 4GB

Front Panel Connector

32bit/33MHz PCI Slot x1

Flash ROM BIOS

FDD Connector

68pin SCSI connector(AX4S Plus-U only)

CPU 2

RJ45 LAN

Jack

IDE Connector x 2

stem Fan Connector 2

Adaptec AIC-7901X Ultra 320

SCSI Controller (AX4S Plus-U only)

TI Ra

eXL Controller

64bit/33MHz PCI Slot x3

Buzzer

64bit/33MHz (3.3V) PCI Slot x1

(AX4S Plus-U supports ZCR Function)

Intel®82540EM GbE

Ethernet Controller

USB Connector

stem Fan Connector 3

South Bridge: Server Works CSB6

CPU2 CPU1

JP15 Boot Block Select Jumper

stem Fan Connector 1

SPP/EPP/ECP Parallel Port

4-pin 12V. ATX Power Connector

ATX Power Connector

JP14 CMOS Clear Jumper

AOpen reserves the right to revise all the specifications and information contained in this documentation, which is subject to change without notice.

PS/2 Mouse

Connecto

PS/2 Keyboard

Connector USB1.1

Port

1 GbE

Ethernet

Port

COM 2 Port

COM 1 Port VGA Port

1. Installing CPU

2. Installing CPU & Housing Fan

Everything you need to boot

this motherboard is included in

this Easy Installation Guide.

For more information, a

complete Online User's Manual

can be found in the Bonus

Pack CD. Thanks for the help

of saving our earth.

PART NO: 90.56J30.002 DOC. NO: AX4SU-EG-E0211A

¾Screw Pack for I/O Port

¾Easy Installation Guide x 1

¾Jumper setting sticker label x1

¾Ultra320 SCSI Cable x 1 (AX4S Plus-U only)

¾Bonus Pack CD x 1

¾Norton Anti-Virus CD x 1

¾Floppy/IDE Cable Package

¾User Manual x1

Plug in the CPU fan cable to the 3-pin CPU FAN connector and housing fan cable to the HFan

connectors.

1. Pull up the CPU socket lever and up to

90-degree angle.

2. Locate Pin 1 in the socket and look for a

(golden) cut edge on the CPU upper interface.

Match Pin 1 and cut edge. Then insert the

CPU into the socket.

3. Press down the CPU socket lever and finish

CPU installation.

Note: If you do not match the CPU

socket Pin 1 and CPU cut edge

well, it may damage the CPU.

CPU Pin 1 and cut edge

CPU socket lever

Note: Some CPU fans do not have sensor pin, so that

cannot support fan monitoring.

GND

+12V

SENSOR

CPU FAN1

GND

+12V

SENSOR

HFan 3

GND

+12V

SENSOR

HFan 1

GND

+12V

SENSOR

HFan 2

Primary

Master (1st)

Primary

Slave (2nd)

Pin 1

Secondary

Slave (4th)

Secondary

Master (3rd)

CPU Ratio 8x, 9x, 10x… 21x, 22x, 23x, 24x

CPU FSB 100~248MHz by 1MHz stepping

Northwood CPU CPU Core Frequency FSB Clock System Bus Ratio

Pentium 4 2.0G 2000MHz 100MHz 400MHz 20x

Pentium 4 2.2G 2200MHz 100MHz 400MHz 22x

Pentium 4 2.26G 2260MHz 133MHz 533MHz 17x

Pentium 4 2.4G 2400MHz 100MHz 400MHz 24x

Pentium 4 2.4G 2400MHz 133MHz 533MHz 18x

Pentium 4 2.53G 2530MHz 133MHz 533MHz 19x

Pentium 4 2.66G 2660MHz 133MHz 533MHz 20x

Pentium 4 2.80G 2800MHz 133MHz 533MHz 21x

Celeron CPU CPU Core Frequency FSB Clock System Bus Ratio

1.8G 1800MHz 100MHz 400MHz 18x

5. Setting CPU Voltage & Frequency

3. Connecting IDE and Floppy Cables

4. JP14 Clear CMOS Jumper

Setting CPU Core Voltage

This motherboard supports CPU VID function. The CPU core voltage will be automatically

detected and the range is from 1.10V to 1.85V. It is not necessary to set CPU Core

Voltage.

Setting CPU Frequency

The CPU Frequency will be automatically detected. It is not necessary to set CPU

Frequency.

Core Frequency = CPU FSB Clock * CPU Ratio

Connect 34-pin floppy cable and 40-pin, 80-wire IDE cable to floppy connector FDC and

IDE connector. Be careful of the pin1 orientation. Wrong orientation may cause system

damage.

ATA 33/66/100/133

IDE Connector

FDD Connector

IDE 1 (Primary)

IDE 2 (Secondary)

You can clear CMOS to restore system default setting. To

clear the CMOS, follow the procedure below.

1. Turn off the system and unplug the AC power.

2. Remove ATX power cable from connector PWR2.

3. Locate JP14 and short pins 2-3 for a few seconds.

4. Return JP14 to its normal setting by shorting pin 1 & pin 2.

5. Connect ATX power cable back to connector PWR2.

Tip: When should I Clear CMOS?

1. Boot fail because of

overclocking…

2. Forget password…

3. Troubleshooting…

Normal Operation

(default)

Clear CMOS

7. Connecting ATX Power Connector

8. Connecting Front Panel Connector

Attaching such as power switch, reset switch, HDD LED connector, etc.… to

corresponding pins.

9. Connecting 68pin Ultra320 SCSI Cable

6. Install DIMM Modules

The AX4S Plus-U provides one 68-pin Ultra320 SCSI connectors for 16-bit or 16-bit

differential SCSI devices. The Adaptec AIC-7901X controller provides 160MB/sec

maximum data throughput. (AX4S Plus-U only)

This motherboard has four 184-pin DIMM sockets that allow you to install PC200/266

Registered memory up to 4.0GB.

DIMM 1

DIMM 2

DIMM 3

DIMM 4

This motherboard comes with a 20-pin and 4-pin ATX power connector. Make sure you

plug in the right direction. We strongly recommend you to connect the 4-pin 12V ATX

connector before connecting the 20-pin ATX power connector

ATX

Power Switch

Power LED

Reset Switch

HDD LED

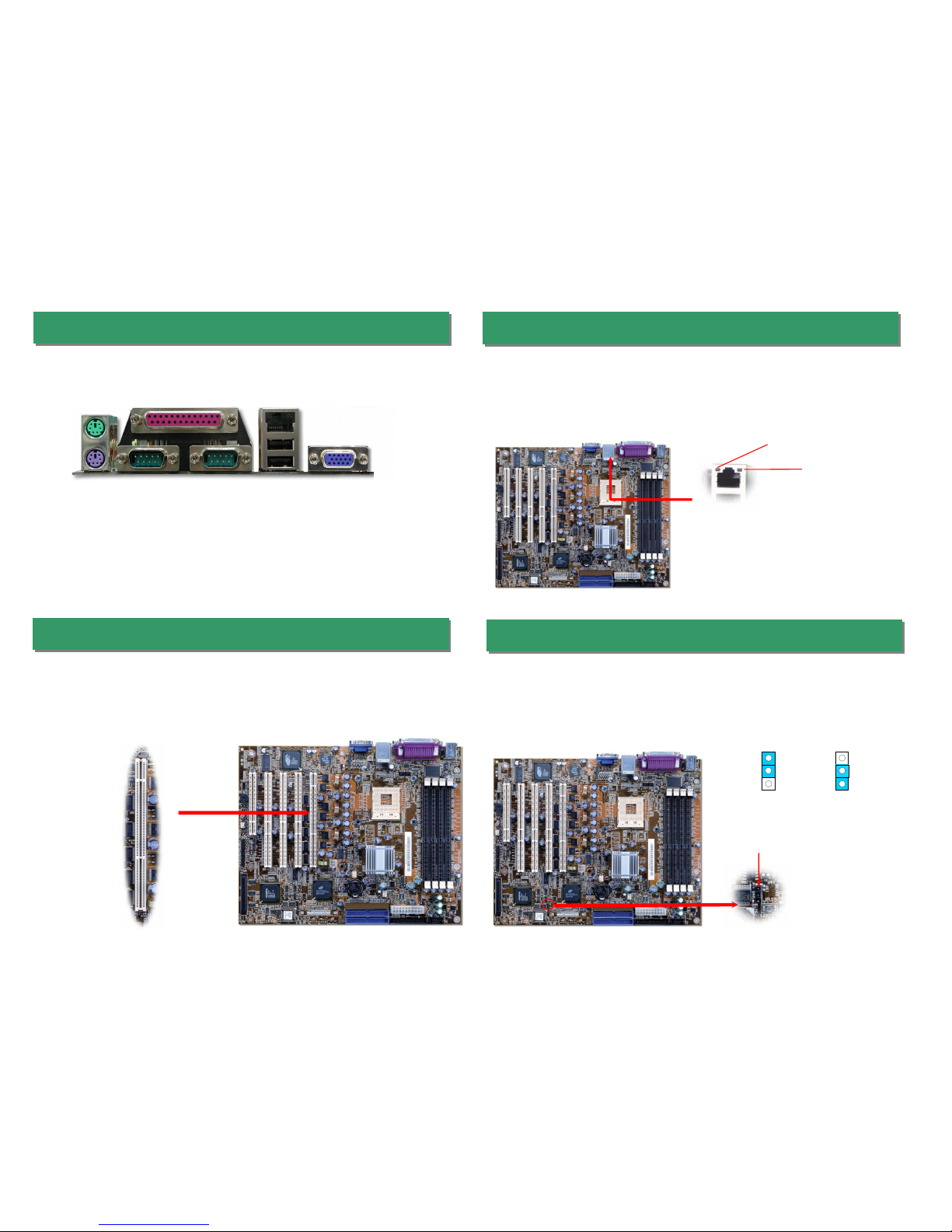

12. Support 1Gbps LAN onboard

13. JP15 Boot Block Jumper

10. PC99 Color Coded Back Panel

11. ZCR (Zero Channel RAID) Function

When the PC tries to boot and finds the BIOS code corrupted, the boot block will

try to recover the BIOS code. You may have to change JP15 setting to enable this

capability. The boot block will load the BIOS code and then when you next reboot,

the regular BIOS code should be in place and the problem resolved.

The onboard I/O devices are PS/2 Keyboard, PS/2 Mouse, COM1, VGA, Printer and

USB1.1. The view angle of drawing shown here is from the back panel of the housing.

JP15 Boot Block Jumper

PS/2 Keyboard: For standard keyboard, which is using a PS/2 plug.

PS/2 Mouse: For PC-Mouse, which is using a PS/2 plug.

USB Port: Available for connecting USB devices.

Parallel Port: To connect with SPP/ECP/EPP printer.

COM1/COM2: To connect with pointing devices, modem or others serial devices.

VGA Connector: To connect with PC monitor.

1GbE Ethernet Port: To connect RJ-45 Ethernet Cable.

SPP/EPP/ECP Parallel Port

VGA Port

PS/2 Keyboard

Connector

PS/2 Mouse

Connecto

USB1.1

Port

1 GbE

Ethernet

Port

COM 1 Port COM 2 Port

A ZCR card is a PCI card that allows a RAID card to use the onboard SCSI chip, thus

lowering cost of RAID solution. A "Zero-channel" RAID adapter is a PCI RAID

controller that doesn't have any SCSI channels on board. Instead, it is designed to

use the on-board SCSI channels of the motherboard to implement a cost-effective

Hardware RAID solution. Please be informed that only the first PCI slot supports

ZCR function. (AX4S Plus-U only)

Pin 1

Normal Operation

(default)

Enable

The Intel 82540EM integrates Intel’s fourth-generation Gigabit MAC design with fully

integrated, physical-layer circuitry to provide a standard IEEE 802.3 Ethernet interface for

1000BASE-T and 100BASE-TX applications. The left green LED indicates the link mode,

it lights when linking to network and blinking when transferring data. The right green LED

indicates the transfer mode, and it lights when data is transferring in 1Gbps/100Mbps

mode.

Green/ACT

Green/100MB

Orange/1Gpbs

1Gb Ethernet Port

16. Part Number and Serial Number

After you finish the setting of jumpers and connect correct cables. Power on and

enter the BIOS Setup, press <Del> during POST (Power On Self Test). Choose

"Load Default Settin

" for recommended o

timal

erformance.

Del

15. Power-On and Load BIOS Setup 17.BIOS version

BIOS V4.1 R2.04

------------------------------------------------

01048192KB Memory Good

BIOS version can be found on upper leftcorner of first boot screen (POST screen).

For example:

R2.04 is BIOS version

14. Support the 2nd USB1.1 Channel

This motherboard provides two USB channels to link USB devices, such as mouse,

keyboard, modem, printer, etc. There are two connectors on the PC99 back panel. You

can use proper cable to connect other USB connectors to the back panel or front panel of

chassis.

USBPWR0

USB_FP_P0-

USB_FP_P0+

GND

KEY

USBPWR0

USB_FP_P1-

USB_FP_P1+

GND

The Part Number and Serial number are printed on bar code label. You can find this

bar code label on the outside packing, on PCI slot or on component side of PCB. For

example:

P/N: 91.88110.201 is part number, S/N: 91949378KN73 is serial number.

Part No. Serial No.

If you encounter any trouble to boot you system, follow the

procedures accordingly to resolve the problem.

Online Manual: Please check the manual carefully and make sure the

jumper settings and installation procedure are correct.

http://english.aopen.com.tw/tech/download/manual/default.htm

Test Report: We recommend choosing board/card/device from the

compatibility test reports for assembling your PC.

http://english.aopen.com.tw/tech/report/default.htm

FAQ: The latest FAQ (Frequently Asked Questions) may contain a

solution to your problem.

http://club.aopen.com.tw/faq/

Download Software: Check out this table to get the latest updated

BIOS/utility and drivers.

http://english.aopen.com.tw/tech/download/default.htm

News Group: Our support engineer or professional users on the news

group probably had answered your problem.

http://club.aopen.com.tw/forum/

Contact Distributors/Resellers: We sell our products through resellers

and integrators. They should know your system configuration very well and

should be able to solve your problem efficiently and provide important

reference for you if next time you want to buy something else from them.

before contacting us. The part number, serial number and BIOS version

are also very helpful.

Then connect your monitor and keyboard.

The problem was probably caused

by power supply or motherboard

failure. Please contact your reselle

or local distributor for repairing.

Perhaps your monitor is defective.

Yes

It is very possible that your keyboard

is defective.

During system rebooting, press Del to enter BIOS Setup. Choose

“Load Setup Default".

The problem should be caused by the

IDE cables or HDD itself.

Re-install Windows 2000.

Yes

Turn off the power and unplug the AC power cable, then remove all

of the addon cards and cables, including VGA, IDE, FDD, COM1,

COM2 and Printer.

Turn on the power, and check if

the power supply and CPU fan

work properly.

Start

Check if there is display.

Press Ctrl, and Alt key at the

same time, hold them and then

press Del to see if the

stem reboots.

Turn off the system and

re-connect the IDE cable.

Check if the system can

reboot successfully.

End

Clear CMOS

Dear Customer,

Thanks for choosing AOpen products. To provide the best and fastest service to

our customer is our first priority. However, we receive numerous emails and

phone-calls worldwide everyday, it is very hard for us to serve everyone on time.

We recommend you follow the procedures below and seek help before contact

us. With your help, we can then continue to provide the best quality service to

more customers.

Thanks very much for your understanding!

AOpen Technical Supporting Team

Web Site: english.aopen.com.tw

E-mail: Send us email by going through the contact form below.

English http://english.aopen.com.tw/tech/default.htm

Japanese http://www.aopen.co.jp/tech/default.htm

Chinese http://www.aopen.com.tw/tech/default.htm

German http://www.aopencom.de/tech/default.htm

Simplified Chinese http://www.aopen.com.cn/tech/default.htm

Pacific Rim

AOpen Inc.

Tel: 886-2-3789-5888

Fax: 886-2-3789-5899

Europe

AOpen Computer b.v.

Tel: 31-73-645-9516

Fax: 31-73-645-9604

Germany

AOpen Computer GmbH.

Tel: 49-1805-559191

Fax: 49-2102-157799

China

艾爾鵬國際貿易(上海)有限公司

Tel: 86-21-6225-8622

Fax: 86-21-6225-7926

Japan

AOpen Japan Inc.

Tel: 81-048-290-1800

Fax: 81-048-290-1820

America

AOpen America Inc.

Tel: 1-510-489-8928

Fax: 1-510-489-1998

Altri manuali per AX4S-U

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali AOpen Scheda madre

AOpen

AOpen MX3W Pro Guida all'installazione

AOpen

AOpen MX4BS Scheda tecnica

AOpen

AOpen XC CUBE UX915G Manuale utente

AOpen

AOpen MX46U2-VN Guida all'installazione

AOpen

AOpen AK77-8X Guida all'installazione

AOpen

AOpen AX37D Pro Guida all'installazione

AOpen

AOpen i915Ga-PLF Manuale utente

AOpen

AOpen AX34 Pro II Guida all'installazione

AOpen

AOpen AX34 Pro II Scheda tecnica

AOpen

AOpen s760GXm-SL Manuale utente

AOpen

AOpen DXPS Scheda tecnica

AOpen

AOpen AX45-533 PLUS Scheda tecnica

AOpen

AOpen AX4GER Scheda tecnica

AOpen

AOpen AX4T II Guida all'installazione

AOpen

AOpen AK79G MAX Manuale utente

AOpen

AOpen AX4SG-GN Guida all'installazione

AOpen

AOpen AX33 Guida all'installazione

AOpen

AOpen s661FXm-7S Scheda tecnica

AOpen

AOpen AX4S-U Manuale utente

AOpen

AOpen AK77-600GN Guida all'installazione

AOpen

AOpen AX45H-8X Max Guida all'installazione

AOpen

AOpen MX46LS-V Guida all'installazione

AOpen

AOpen AX4BS Pro Guida all'installazione

AOpen

AOpen AX4GE Tube-G Guida all'installazione

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
