AOpen AX4T 2-533 Scheda tecnica

MIC-In

Line-In

Speaker-Out

PS/2 Keyboard

Connector USB Port

SPP/EPP/ECP

Parallel Port

COM 1 Connector COM2 Connector

MIDI/Game Port

RJ-45 LAN Connector

(AX4T II-533N only)

Resetable Fuse

478-pin CPU socket with

Voltage and Frequency

Auto-detection that supports

Intel®Pentium®4

1.4GHz~2.4GHz CPU

AGP Expansion Slot

CPU Fan Connector

184-pin RIMM Socket x4

supports PC-600/800/1066

RDRAM maximum up to 2GB

Low ESR Capacitors

CD-IN Connecto

Front Audio Connecto

CNR Expansion Slot

IrDA Connecto

Front Panel Connecto

JP14 CMOS Clear Jumpe

Chassis Intrusion Detecto

FDD Connecto

FAN3 Connecto

FAN2 Connecto

TA33/66/100 IDE Connector x2

TX Power Connecto

Intel

850E chipset with MCH, ICH2

and FWH that supports LAN, Ultra

ATA/100, RDRAM Solution

orts 2

USB Connecto

32-bit PCI Expansion Slot x5

4Mbit Flash ROM BIOS

MODEM-CN Connecto

JP28 USB and PS/2

Keyboard/Mouse Wakeup

4-pin 12V ATX Power Connecto

PS/2 Mouse

Connector

1. Pull up the CPU socket lever and up to

90-degree angle.

2. Locate Pin 1 in the socket and look for a

(golden) cut edge on the CPU upper interface.

Match Pin 1 and cut edge. Then insert the

CPU into the socket.

3. Press down the CPU socket lever and finish

CPU installation.

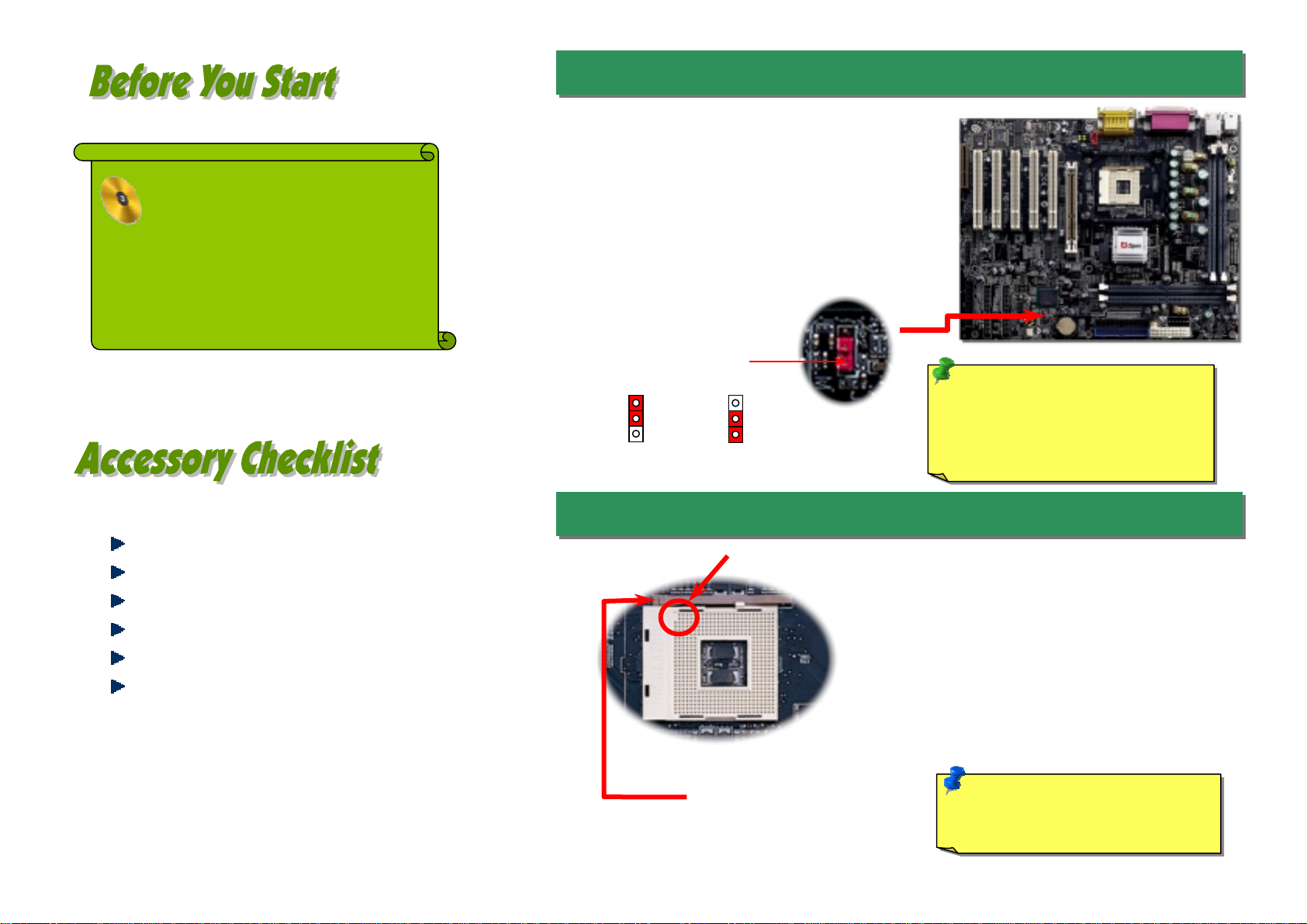

1. JP14 Clear CMOS

2. Installing CPU

Everything you need to boot this

motherboard is included in this

Easy Installation Guide. For more

information, a complete Online

User's Manual can be found in the

Bonus Pack CD. Thanks for the

help of saving our earth.

PART NO: 49.89F06.001 DOC. NO: AX4T2533N-EG-E0204A

80-Wire IDE Cable x 1

Floppy Drive Cable x 1

Bonus Pack CD x 1

This Easy Installation Guide x 1

AntiVirus CD x1

Registration Card

You can clear CMOS to restore system default setting. To

clear the CMOS, follow the procedure below.

1. Turn off the system and unplug theAC power.

2. RemoveATX power cable from connector PWR2.

3. Locate JP14 and short pins 2-3 for a few seconds.

4. Return JP14 to its normal setting by shorting pin1 & pin2.

5. ConnectATX power cable back to connector PWR2.

Tip: When should I Clear CMOS?

1. Boot fail because of overclocking…

2. Forget password…

3. Troubleshooting…

CPU socket lever

CPU Pin 1 and cut edge

Note: If you do not match the CPU

socket Pin 1 and CPU cut edge well,

you may damage the CPU.

Pin 1

Normal Operation

(

Default

)

Clear CMOS

Plug in the CPU fan cable to the 3-pin CPU FAN connector. If you have chassis fan,

you can also plug it on FAN2 or FAN3 connector.

CPU Ratio 8x, 9x, 10x… 21x, 22x, 23x, 24x

CPU FSB 100~248MHz by 1MHz stepping

Northwood

CPU CPU Core

Frequency FSB

Clock System

Bus Ratio

Pentium 4

1.6G 1600MHz 100MHz 400MHz 16x

Pentium 4

1.6G 1600MHz 133MHz 533MHz 12x

Pentium 4

1.7

1700MHz 133MHz 533MHz 13x

Pentium 4

1800MHz 100MHz 400MHz 18x

Pentium 4

2.0G

2000MHz 100MHz 400MHz 20x

Pentium 4

2.2G 2200MHz 100MHz 400MHz 22x

Pentium 4

2.4G 2400MHz 100MHz 400MHz 24x

Pentium 4

2.4G 2400MHz 133MHz 533MHz 18x

This motherboard provides keyboard / mouse wake-up function. You can use JP28 to

enable or disable this function, which could resume your system from suspend mode with

keyboard or mouse. The factory default setting is “Enable”(1-2), and you may disable this

function by setting the jumper to 2-3.

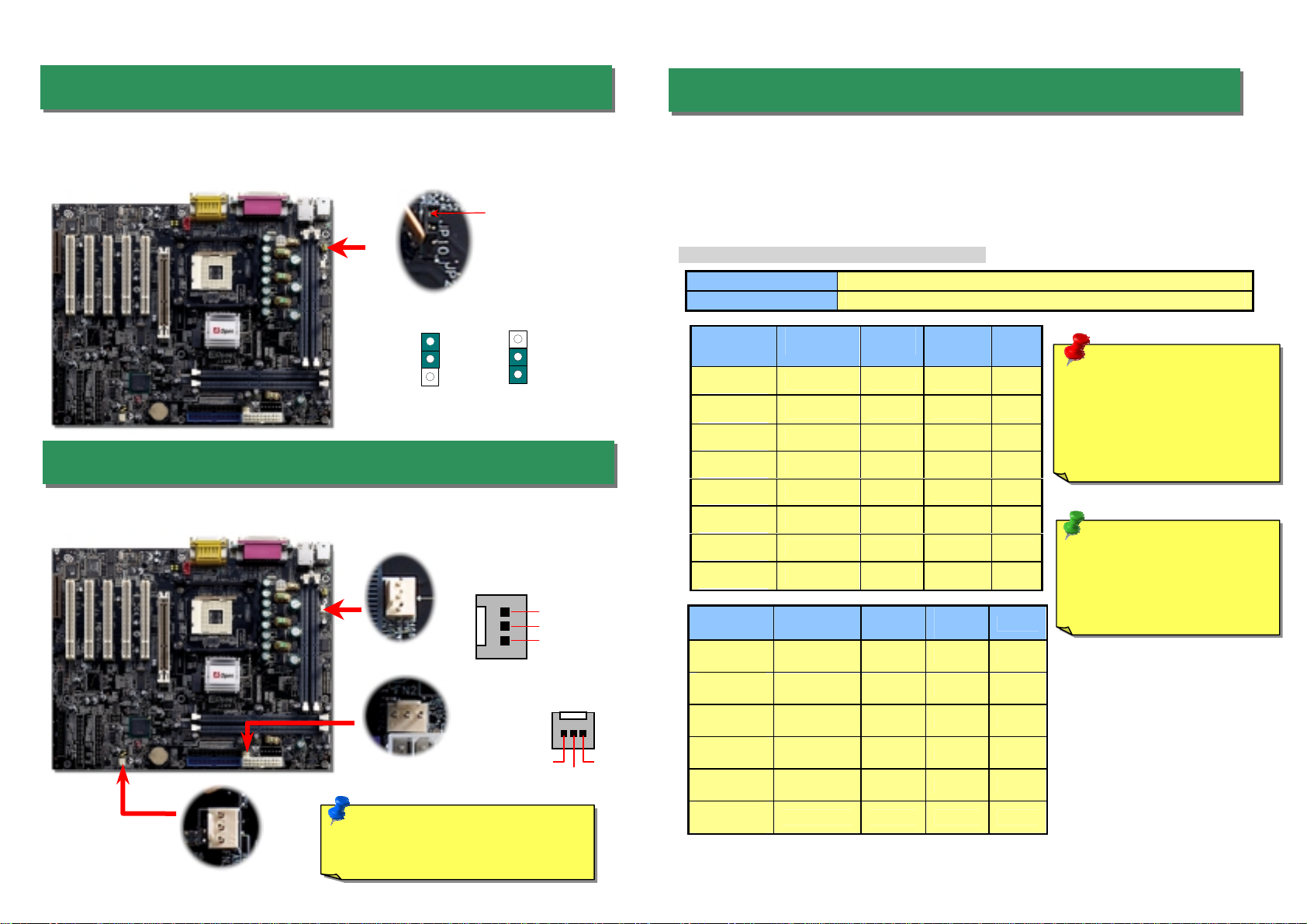

5. Setting CPU Voltage & Frequency

4. Installing CPU & Housing Fan

3. JP28 Keyboard/Mouse Wakeup Select Jumper

Note: Some CPU fans do not have

sensor pin, so that they cannot

support fan monitorin

FAN2 Connector

CPUFAN Connector Tip: If your system hangs or

fails to boot because of

overclocking, simply use

<Home> key to restore the

default settin

Setting CPU Core Voltage

This motherboard supports CPU VID function. The CPU core voltage will be automaticall

detected and the range is from 1.10V to 1.85V. It is not necessary to set CPU Core

Voltage.

Setting CPU Frequency

This motherboard is CPU jumper-less design, you can set CPU frequency through the

BIOS setup, and no jumpers or switches are needed.

Core Frequency = CPU FSB Clock * CPU Ratio

Warning: Intel®850E chipset

supports maximum 400MHz

(100MHz*4) system bus and

66MHz AGP clock, higher

clock setting may cause

serious system damage.

FAN3 Connector

GNDSENSOR +12V

Pin 1

Disable

Enable

(Default)

GND

+12V

SENSOR

Willamette

CPU CPU Core

Frequency FSB

Clock System

Bus Ratio

Pentium 4

1.5G 1500MHz 100MHz 400MHz 15x

Pentium 4

1.6G 1600MHz 100MHz 400MHz 16x

Pentium 4

1.7G 1700MHz 100MHz 400MHz 17x

Pentium 4

1.8G 1800MHz 100MHz 400MHz 18x

Pentium 4

1.9G 1900MHz 100MHz 400MHz 19x

Pentium 4

2.0G 2000MHz 100MHz 400MHz 20x

7. Front Audio Connector

6. IrDA Connector 8. Connecting RIMM Sockets

9. Connecting Front Panel Cable

The IrDA connector can be configured to support wireless infrared module. This

connector supports HPSIR (115.2Kbps, 2 meters) andASK-IR (56Kbps).

Install the infrared module onto the IrDA connector and enable the infrared function from

BIOS Setup, UART2 Mode, make sure to have the correct orientation when you plug in

the IrDAconnector.

If the housing is designed with an audio port on the front panel, you can connect onboard

audio to front panel through this connector. Please remove the jumper cap from the Front

Panel Audio Connector before you connect the cable. Do not remove this yellow jumper

cap if your housing does not have an audio port on the front panel.

This motherboard has four 184-pin RIMM sockets that allow you to install PC600, PC800

and PC1066 RDRAM up to 2GB. AX4T II-533 / AX4T II-533N will detect the RDRAM

speed automatically while system is in POST, but it still allows you to select the RDRAM

type manually by BIOS setup program. Please note that 400MHz FSB doesn’t support

RIMM PC1066.

Attach the power LED, speaker, and reset switch connectors

to the corresponding pins. If you enable “Suspend Mode”

item in BIOS Setup, the ACPI & Power LED will keep

flashing while the system is in suspend mode.

Locate the power switch cable from your ATX housing. It is

2-pin female connector from the housing front panel. Plug

this connector to the soft-power switch connector marked

PWR.

Pin 1

Speaker

IDE LED

Power Switch

+ ACPI &

Power LED

Reset

SPWR

GND

ACPI LED-

GND

ACPI LED+

GND

RESET

GND

+5V

IDE LED

+5V

GND

SPEAKER

UD_GND

UD_VCC

UD_RET_R

HP_ON

AUD

FPOUT

AUD_RET_L

UD_FPOUT_R

UD_MIC_BIAS

MIC

KEY

GND

IR_RX

+5V

IR_TX

Note: Based on Intel 850E

chipset specification, AX4T II

has dual memory channel.

Please note that when you

insert RIMM modules, you

have to insert them into RIMM

1 and 4, and have terminators

inserted into RIMM 2 and 3.

Or you can insert RIMM

modules into RIMM 2 and 3,

and have terminators inserted

into RIMM 1 and 4.

RIMM3

RIMM4

RIMM1

RIMM2

The ATX power supply uses a 20-pin connector shown below. Make sure you plug in

the right direction. We strongly recommend you to connect the 4-pin 12V ATX connecto

before connecting the 20-pinATX power connector.

12. Intel® PRO/100 Network Connection(For AX4T II-533N)

13. Installing LAN Driver(For AX4T II-533N)

10. Connecting ATX Power Connector

11. Support 2nd USB Port

This motherboard supports four USB ports. Two of them are on back panel connector, the

other two are on the left side of this motherboard. With proper cable, you can connect

them to front panel.

This motherboard has a fast Ethernet controller on chip. On the strength of LAN chip onboard, i

provides 10/100M bps Ethernet for office and home use, the Ethernet connector is located on top

of USB connectors.

Pin 1

GND

SBD3+

SBD3-

+5V

KEY

GND

SBD2+

SBD2-

+5V

2 1

10 9

This motherboard comes with an Intel®10/100Mbps LAN controller. You can find the LAN

driver from the Bonus Pack CD.

+5V

+3.3V

COM

COM COM

COM

COM COM

-5V

COM

-12V

PS-ON

PW-OK

+12V

5VSB

After you finish the jumper settings and connect correct cables, power on and

enter the BIOS Setup. Press <Del> during POST (Power On Self Test).

Choose "Load Setup Defaults" for recommended optimal performance.

http://210.63.73.14/tech/download/manual/mb/k7.htm

14. Power-on and Load BIOS Setup

15. AOpen Bonus Pack CD 17. BIOS Upgrade

You may accomplish BIOS upgrade procedure with EZWinFlash by the following steps,

and it’s STRONGLY RECOMMMANDED to close all the applications before you start the

upgrading.

1. Download the new version of BIOS package zip file from AOpen official web site. (ex:

http://www.aopen.com)

2. Unzip the download BIOS package (ex: WAX4T2533102.ZIP) with WinZip

(http://www.winzip.com) in Windows environment.

3. Save the unzipped files into a folder, for example, WAX4T2533102.EXE &

WAX4T2533102.BIN.

4. Double click on WAX4T2533102.EXE, EZWinFlash will detect the model name and

BIOS version of your motherboard. If you had got the wrong BIOS, you will not be

allowed to proceed with the flash steps.

5. You may select preferred language in the main menu, then click [Start Flash] to star

the BIOS upgrade procedure.

6. EZWinFlash will complete all the process automatically, and a dialogue box will pop

up to ask you to restart Windows. You may click [YES] to reboot Windows.

7. Press <Del> at POST to enter BIOS setup, choose "Load Setup Defaults", then “Save

& Exit Setup”. Done!

It is strongly recommended NOT to turn off the power or run any application during

FLASH PROCESS.

16. Installing Onboard Audio Driver

You can use the autorun menu of Bonus CD. Choose the utility and driver and selec

model name.

Del

Warning: Please avoid of using "Load

Turbo Defaults", unless you are sure

our system components (CPU, DRAM,

HDD, etc.) are good enough for turbo

settin

This motherboard comes with RealTek ALC201A chip, you can find the audio driver from

the Bonus Pack CD auto-run menu.

If you encounter any trouble to boot you system, follow the procedures

accordingly to resolve the problem.

Part Number and Serial Number

The Part Number and Serial number are printed on bar code label. You can find this

bar code label on the outside packing, on PCI slot or on component side of PCB. Fo

example:

Model name and BIOS version

AX4T II-533N R1.00 Mar. 01. 2002 AOpen Inc.

Award Plug and Play BIOS Extension v1.0A

Model name and BIOS version can be found on upper left corner of first boot screen

(POST screen). For example:

P/N: 91.88110.201 is part number, S/N: 91949378KN73 is serial number.

AX4T II-533N is the model name of motherboard; R1.00 is BIOS version

Make sure if the jumper settings for CPU and DRAMs are correct.

Clear CMOS.

Install the VGA card. Then connect your monitor and keyboard.

The problem was probably caused

by power supply or motherboard

failure. Please contact your reselle

or local distributor for repairing.

Perhaps your VGA card or monito

is defective.

Yes

It is very possible that your keyboard

is defective.

During system rebooting, press Del to enter BIOS Setup. Choose

“Load Setup Default".

The problem should be caused by the

IDE cables or HDD itself.

Re-install Windows 95, Windows 98 or Windows NT.

Yes

Turn off the power and unplug the AC power cable, then remove all

of the addon cards and cables, including VGA, IDE, FDD, COM1,

COM2 and Printer.

Turn on the power, and check if

the power supply and CPU fan

work properly.

Start

Check if there is display.

Press Ctrl, and Alt key at the

same time, hold them and then

press Del to see if the

stem reboots.

Turn off the system and

re-connect the IDE cable.

Check if the system can

reboot successfully.

End

Part No. Serial No.

Dear Customer,

Thanks for choosing AOpen products. To provide the best and fastest service to

our customer is our first priority. However, we receive numerous emails and

hone-calls worldwide everyday, it is very hard for us to serve everyone on time.

We recommend you follow the procedures below and seek help before contact

us. With your help, we can then continue to provide the best quality service to

more customers.

Thanks very much for your understanding!

Open Technical Supporting Team

Online Manual: Please read the manual carefully and make sure the

jumper settings and installation procedure are correct.

http://www.aopen.com/tech/download/manual/default.htm

Test Report: We recommend you to choose board/card/device from the

compatibility test reports for assembling your PC.

http://www.aopen.com/tech/report/default.htm

FAQ: The latest FAQ (Frequently Asked Questions) may contain a

solution to your problem.

http://www.aopen.com/tech/faq/default.htm

Download Software: Check out this table to get the latest updated

BIOS/utility and drivers.

http://www.aopen.com/tech/download/default.htm

News Group: News posted by computer experts, you are welcome to join

any discussion here.

http://www.aopen.com/tech/newsgrp/default.htm

Contact Distributors/Resellers: We sell our products through resellers

and integrators. They should know your system configuration very well and

be able to solve your problem more efficiently. After all, it is an important

reference for you if next time you want to buy something else from them.

before contacting us. The part number, serial number and BIOS version

are also very helpful.

Web Site: www.aopen.com

E-mail: Send us email by going through the contact form below.

English http://www.aopen.com/tech/contact/techusa.htm

Japanese http://www.aopen.co.jp/tech/contact/techjp.htm

Chinese http://www.aopen.com.tw/tech/contact/techtw.htm

German http://www.aopencom.de/tech/contact/techde.htm

Simplified Chinese http://www.aopen.com.cn/tech/contact/techcn.htm

Pacific Rim

AOpen Inc.

Tel: 886-2-3789-5888

Fax: 886-2-3789-5399

America

AOpen America Inc.

Tel: 1-408-922-2100

Fax: 1-408-922-2935

Europe

AOpen Computer b.v.

Tel: 31-73-645-9516

Fax: 31-73-645-9604

Germany

AOpen Computer GmbH.

Tel: 49-2102-157700

Fax: 49-2102-157799

China

艾尔鹏国际上海(股)有限公司

Tel: 86-21-6225-8622

Fax: 86-21-6225-7926

Japan

AOpen Japan Inc.

Tel: 81-048-290-1819

Fax: 81-048-290-1820

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali AOpen Scheda madre

AOpen

AOpen AX45H-8X Max Guida all'installazione

AOpen

AOpen AX4GER Scheda tecnica

AOpen

AOpen MX46LS-V Guida all'installazione

AOpen

AOpen DX34R-U Scheda tecnica

AOpen

AOpen AX4SP-G Guida all'installazione

AOpen

AOpen AX34 Pro II Guida all'installazione

AOpen

AOpen AX4SPE Max II Scheda tecnica

AOpen

AOpen i855GMEm-LFS Manuale utente

AOpen

AOpen AX4GE Max Guida all'installazione

AOpen

AOpen Fortress 7000 Manuale utente

AOpen

AOpen AX4B-G2 Scheda tecnica

AOpen

AOpen i945GTm-VHL Scheda tecnica

AOpen

AOpen MX36LE-N Guida all'installazione

AOpen

AOpen AX59PRO Manuale utente

AOpen

AOpen MX3W-V Manuale utente

AOpen

AOpen MX59 Pro Manuale utente

AOpen

AOpen MX46S Manuale utente

AOpen

AOpen AX6BC Pro Gold Guida all'installazione

AOpen

AOpen AX4LR Manuale utente

AOpen

AOpen AK89 MAX Manuale utente

AOpen

AOpen MX3W Pro Guida all'installazione

AOpen

AOpen MoDT i965GMt-LA Manuale di istruzioni

AOpen

AOpen AX34 Pro II Guida all'installazione

AOpen

AOpen AX3S Max Scheda tecnica

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
