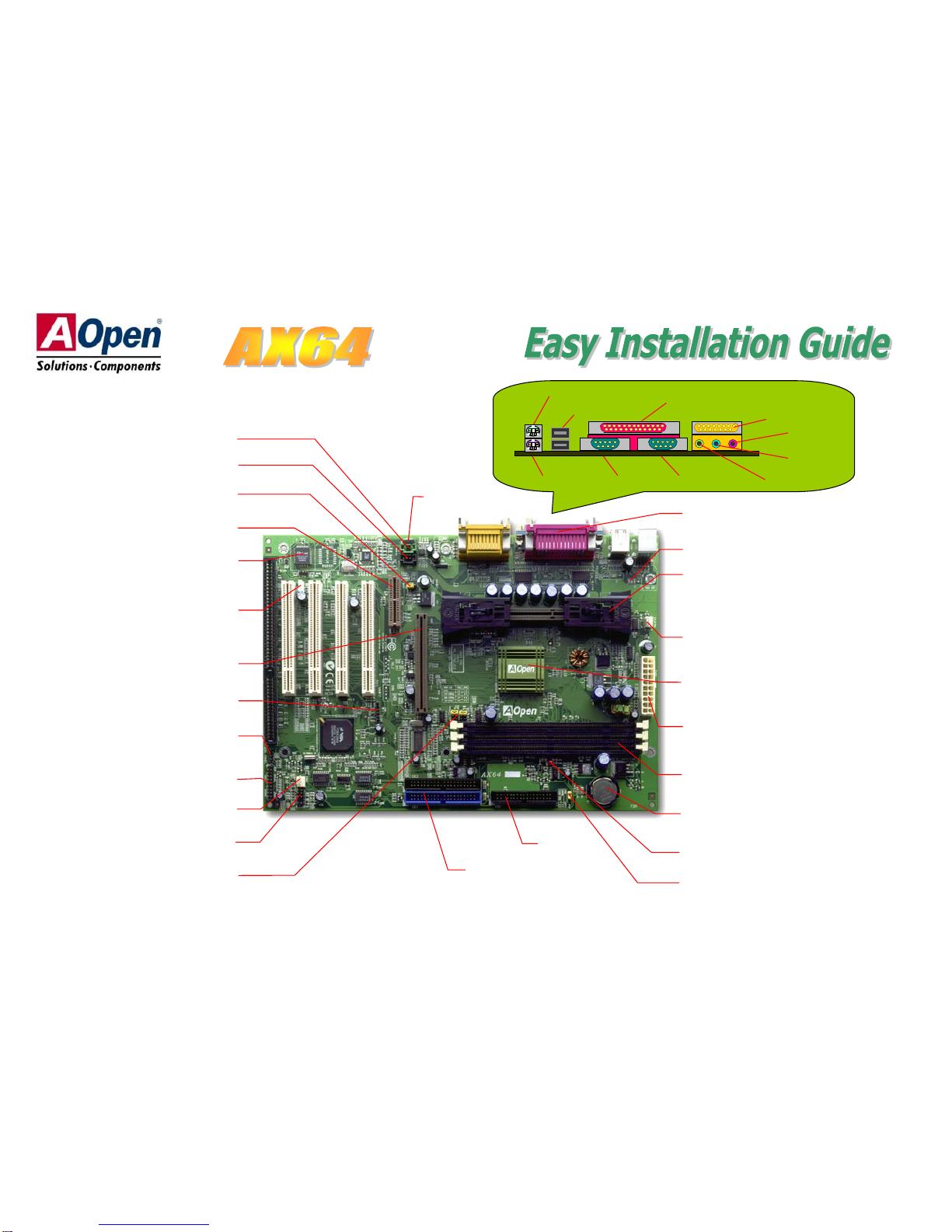

AOpen AX64 Manuale utente

PC99 Back Panel

Keyboard

PS/2 Mouse

COM1 COM2

Printe

USB Game Port

MIC

Speaker

Line-In

Battery-less

IrD

FDC

JP14 Clear CMOS

VIA 694X Chipset

133MHz FSB Clock

WOL

Wakeup on LAN

Resettable Fuse

PC99 Back Panel

Full-range Auto-Detect CPU Voltage

Jumper-less Design

Over-current Protection

Thermal Protection

CPU Fan Connecto

System Voltage & Fan Monitoring

TX Power Connecto

C Power Auto Recovery

JP23/29 FSB/PCI Clock Ratio

Housing Fan

WOM

Wakeup on Modem

Panel Connecto

PC133 DIMM

Suspend to RAM

TA/66 IDE

Suspend to HDD

RAM Power LED

Support 2nd USB Ports x 2

Wake on RTC Time

Multi-Language BIOS

100% Virus Protection

4X AGP

AMR

JP12 Onboard Audio

CD Audio

Video_Audio_IN

Modem Audio

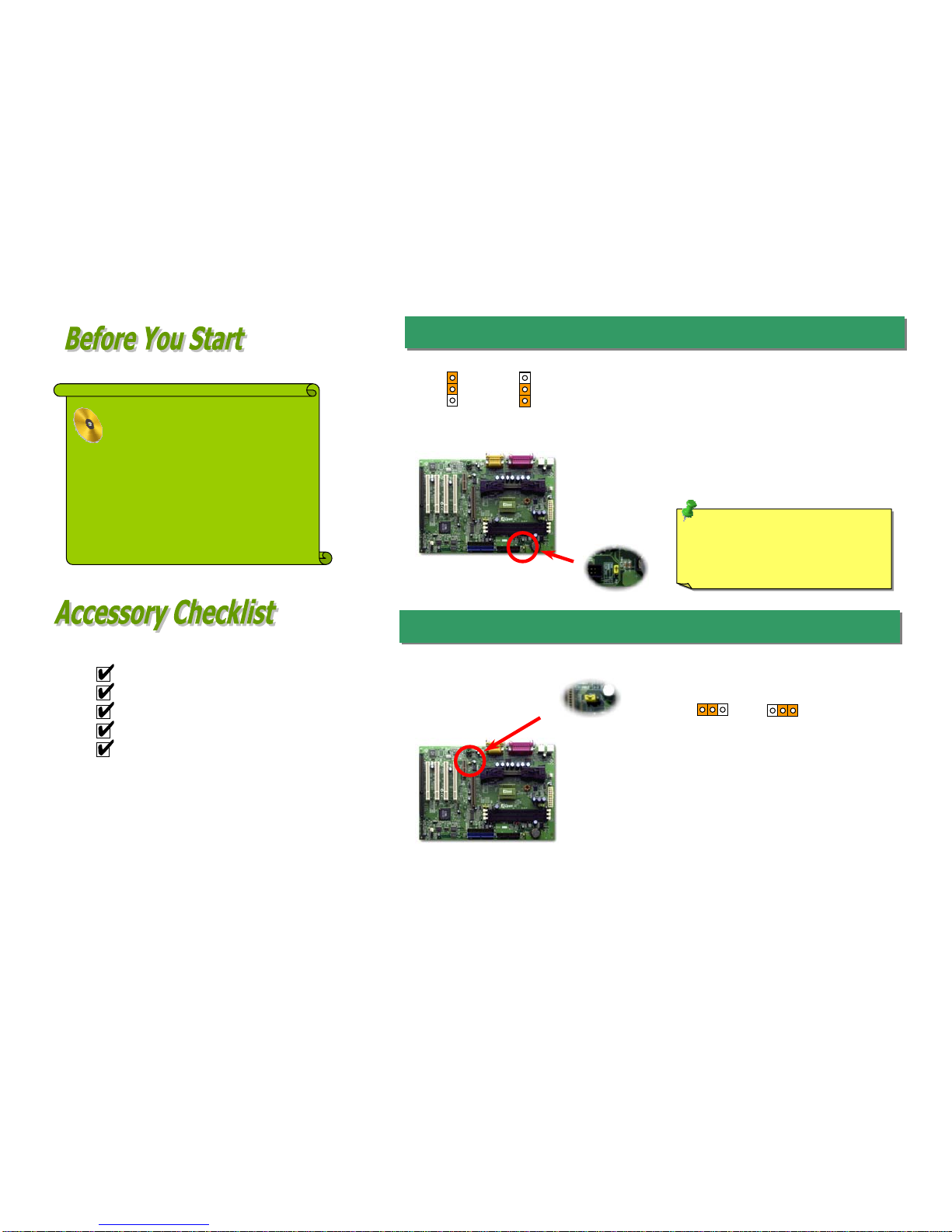

JP14 Clear CMOS

Normal Operation

(default) Clear CMOS

This motherboard has AC97 sound onboard. JP12 is used to

enable or disable onboard AD1881 CODEC chip. If you select

Disable, you can use your preferredAMR sound card.

JP12 Enable/Disable Onboard Audio

Everything you need to boot this

motherboard is included in this Easy

Installation Guide. For more

information, a complete Online User's

Manual can be found in the Bonus

Pack CD Disc. Thanks for the help of

saving our earth. Tip: When should I Clear CMOS?

1. Boot fail because of overclocking…

2. Forget password…

3. Troubleshooting…

You can clear CMOS to restore system default setting. To clear

the CMOS, follow the procedure below.

1. Turn off the system and unplug the AC power.

2. Remove ATX power cable from connector PWR2.

3. Locate JP14 and short pins 2-3 for a few seconds.

4. Return JP14 to its normal setting by shorting pins 1-2.

5. Connect ATX power cable back to connector PWR2.

PART NO.: 49.87703.001 DOC. NO. : AX64-EG-E0005C

DisableEnable

123 123

Hard Drive IDE Cable x 1

TA/66 IDE Cable x 1

Floppy Drive Cable x 1

Bonus Pack CD disc x 1

This Easy Installation Guide x 1

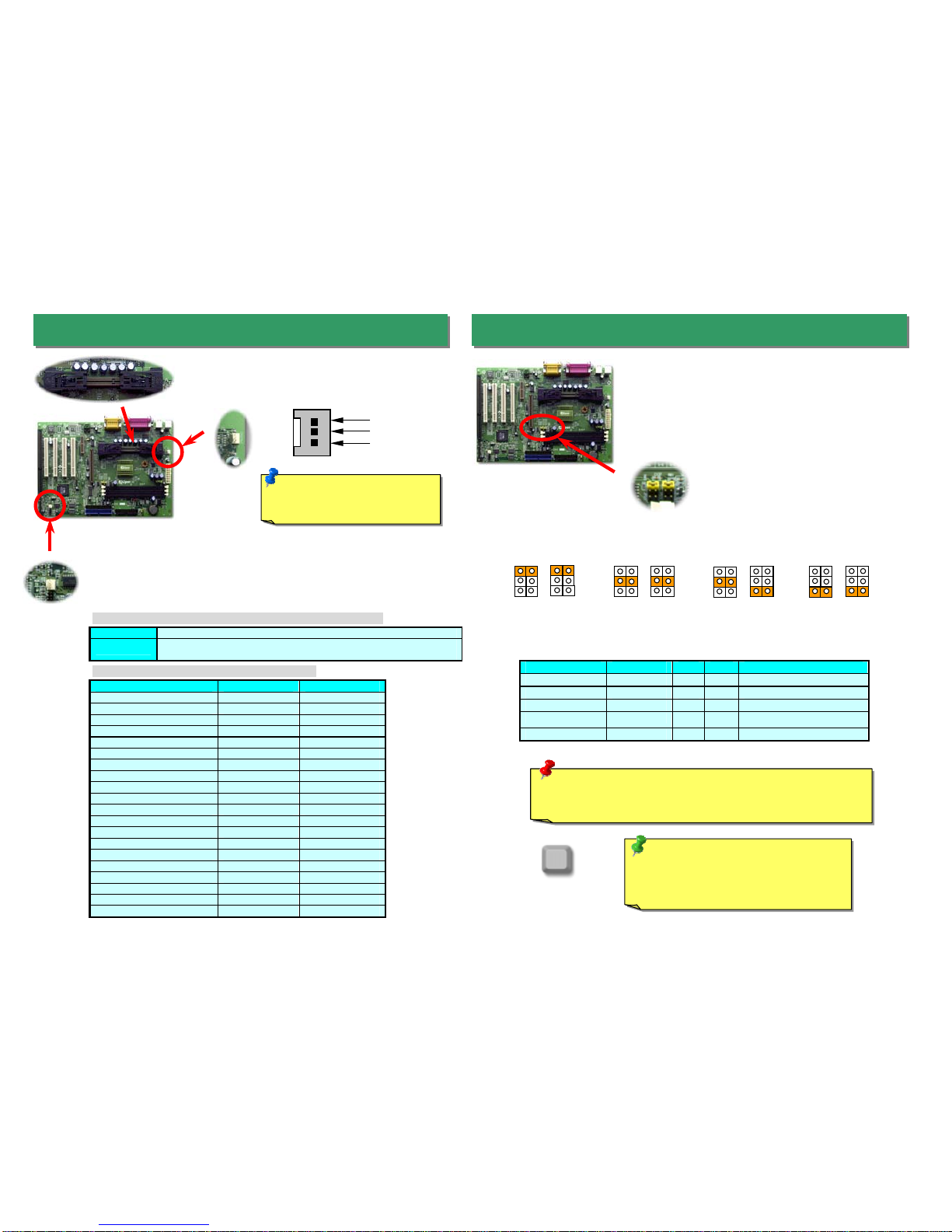

Installing CPU and Fan JP23/JP29 HOST/PCI Clock Ratio

Plug CPU to slot1 connector. Be careful of CPU

orientation. Plug in the fan cable to the 3-pin

CPUFAN or FAN connector.

GND

+12V

SENSOR

Auto-Detect CPU Core Voltage

This motherboard supports Pentium II / Pentium III CPU VID function. The CPU

core voltage will be automatically detected and the range is from 1.3V to 3.5V.

Setting CPU Frequency

The CPU frequency selection is set by going into:

BIOS Setup > Chipset Features Setup > CPU Voltage Setting

CPU Ratio 1.5x, 2x, 2.5x, 3x, 3.5x, 4x, 4.5x, 5x, 5.5x, 6x, 6.5x, 7x, 7.5x, and 8x

CPU FSB 66.8, 75, 83.3, 100, 103, 105, 110, 112, 115, 120, 124, 133, 140, and

150 MHz

Core Frequency = CPU FSB Clock * CPU Ratio

CPU Type FSB Clock Ratio

CELERON 300A 66MHZ 4.5x

CELERON 433 66MHZ 6.5x

Pentium II 350 100MHZ 3.5x

Pentium II 400 100MHZ 4x

Pentium II 450 100MHZ 4.5x

Pentium!!! 450 100MHZ 4.5x

Pentium!!! 500 100MHZ 5x

Pentium!!! 550 100MHZ 5.5x

Pentium!!! 600 100MHZ 6x

Pentium!!! 533 133MHZ 4x

Pentium!!! 600 133MHZ 4.5x

Pentium!!! 600E 100MHZ 6x

Pentium!!! 600EB 133MHZ 4.5x

Pentium!!! 650E 100MHZ 6.5x

Pentium!!! 667EB 133MHZ 5x

Pentium!!! 700E 100MHZ 7x

Pentium!!! 733EB 133MHZ 5.5x

Pentium!!! 750E 100MHZ 7.5x

Pentium!!! 800E 100MHZ 8x

Pentium!!! 800EB 133MHZ 6x

Note: Some CPU fans do not

have sensor pin, so that cannot

support fan monitoring.

Warning: VIA694x chipset supports maximum 133MHz FSB and

66MHz AGP clock, higher clock setting may cause serious system

damage.

Home

This jumper is used to specify the relationship of PCI and

host clock. Generally speaking, we suggest you do not

change the default setting. But for overclocking, changing

these jumper settings becomes necessary. For example,

you must set JP29 to “5-6” and JP23 to “3-4” if you want to

overclock a 66MHz FSB clock CPU to 100MHz or higher.

Tip: If your system hangs or fails to boot

because of overclocking, simply use

<Home> key to restore the default setting

(233MHz).

Clock Ratio CPU (Host) PCI AGP Memory

2X 66 33 66 PCI x2 or x3

3X 100 33 66 PCI x2 or x3 or x4

3X, overclocking 112 37.3 74.6 PCI x2 or x3 or x4

4X 133 33 66 PCI x3 or x4

4X, overclocking 150 37.5 75 PCI x3 or x4

1 2

Auto

(

default

)

JP23 JP29

1 2

5 6 5 6

JP23 JP29

(

133~150MHz

)

1 2

5 6

1 2

5 6

(

100~124MHz

)

JP23 JP29

1 2

5 6

1 2

5 6

(

66~83MHz

)

JP23 JP29

1 2

5 6

1 2

5 6

Tip: The driving capability of new generation

chipset is limited due to the lack of a memory

buffer (to improve performance). This makes

DRAM chip count an important factor to take

into consideration when you install DIMMs.

Unfortunately, there is no way that the BIOS

can identify the correct chip count, you need to

calculate the chip count by yourself. The

simple rule is: By visual inspection, use only

DIMMs which are less than 16 chips..

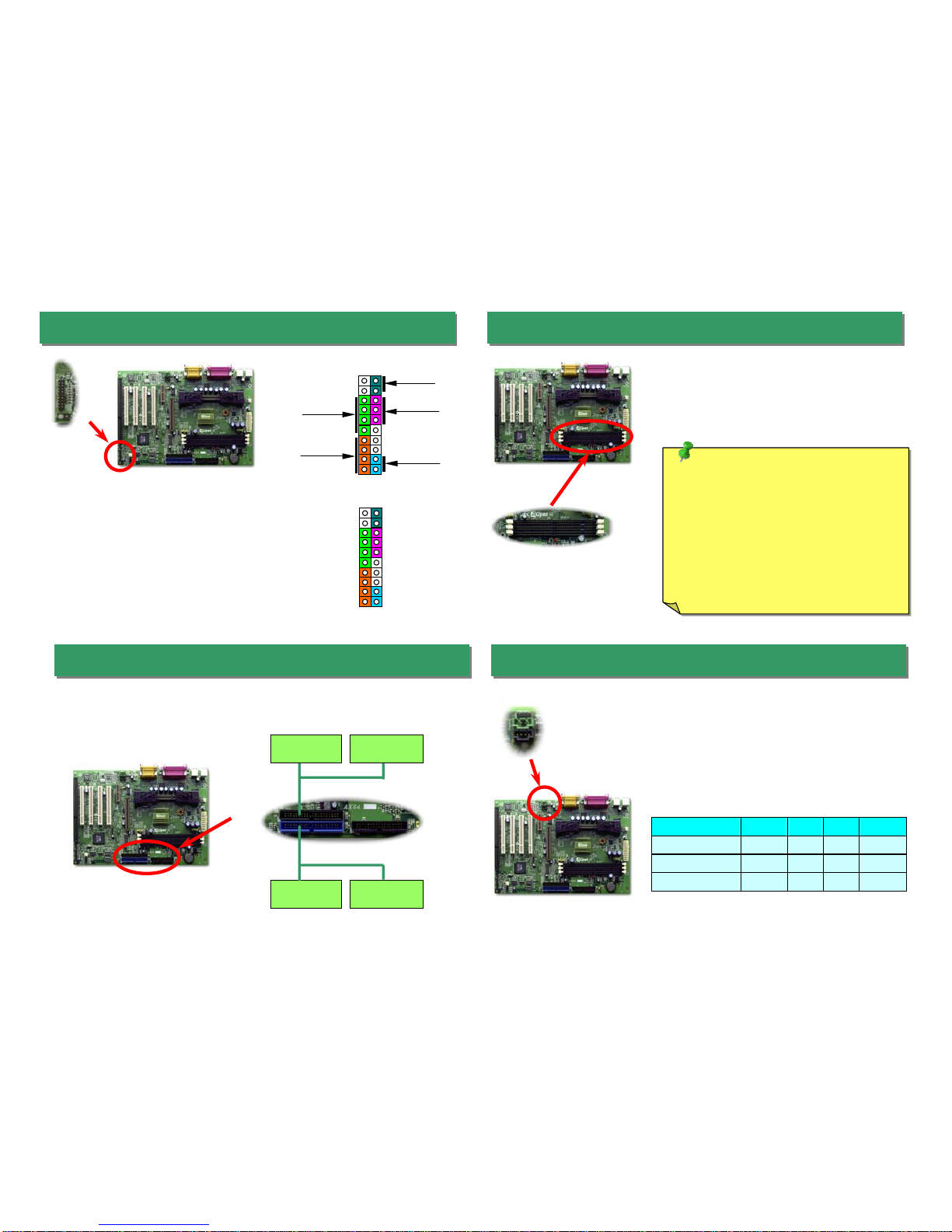

Connecting IDE and Floppy Cable

Connect 34-pin floppy cable and 40-pin IDE cable to floppy connector FDC and IDE

connector. The blue connector is IDE1 for clear identification. Be careful of the pin1

orientation. Wrong orientation may cause system damage.

ttach the power LED, speaker, and reset

switch connectors to the corresponding pins. I

you enable “Suspend Mode” item in BIOS

Setup, the ACPI & Power LED will keep

flashing while the system is in suspend mode.

Connecting Front Panel Cable

Locate the power switch cable from your AT

housing. It is 2-pin female connector from the

housing front panel. Plug this connector to the

soft-power switch connector marked SPWR.

Speaker

IDE LED

SPWR

+ACPI &

Power LED

Reset

SPWR

GND

ACPI & PWR LED

GND

+5V

GND

RESET

GND

IDE LED

GND

SPEAKE

Connecting CD/Modem/ Video_Audio_IN

Configuring System Memory

This motherboard has three 168pin DIMM sockets

that allow you to install system memory up to

1.5GB. SDRAM, VCM SDRAM, Registered

SDRAM are supported.

DIMM1

DIMM2

DIMM3

Pin 1

The Modem-CN connector is used to connect Mono In/

Mic Out cable from internal modem card to onboard

sound circuit.

The black connector is used to connect CD Audio cable

from CDROM or DVD drive to onboard sound.

This green connector is used to connect MPEG Audio

cable from MPEQ card to onboard sound.

Pin 1

Slave (4th)

Master (1st)Slave (2nd)

Master (3rd)

FDC

Pin 1

Connector Pin1 Pin2 Pin3 Pin4

Modem-CN Mono In GND GND Mic Out

CD-IN Left GND GND Right

Video_Audio_IN Left GND GND Right

Modem-CN

Video_Audio_IN

CD-IN

IDE2

IDE1

1. First, don’t install any add-on card except AGP card.

2. Install Windows 95 OSR2 v2.1, 1212 or 1214 version and later with USB

support. Otherwise, you need to install USBSUPP.EXE.

3. Install the VIA 4 in 1 driver, which includes VIAAGP Vxd driver, IRQ routing

driver, and VIA chipset function registry program.

4. Finally, Install other add-on cards and their drivers.

Installing Windows 95

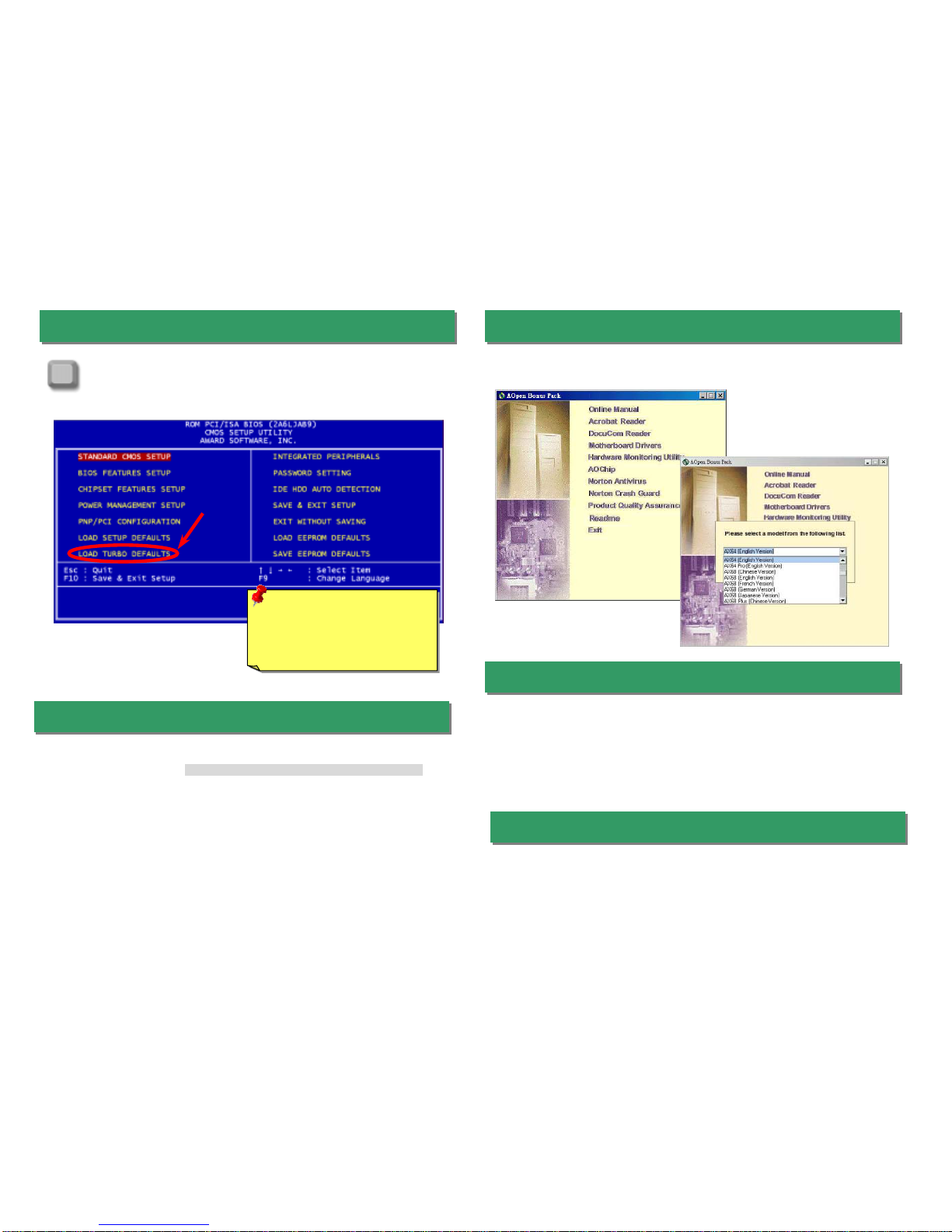

Power-on and Load BIOS Setup

fter you finish the setting of jumpers and connect co

rect cables. Power

on and enter the BIOS Setup, press <Del> during POST (Power-On

Self Test). Choose "Load Setup Defaults" for recommended optimal

performance.

Del

Autorun Menu from Bonus CD Disc

You can use the autorun menu of Bonus CD disc. Choose the utility and driver and

select model name.

Warning: Please avoid of using

"Load Turbo Defaults", unless you

are sure your system components

(CPU, DRAM, HDD, etc.) are good

enough for turbo setting.

Installing Windows NT

Installing Windows 98

It is not necessary to install VIA 4 in 1 driver, just follow the installation guide of NT

and your add-on cards

1. First, don’t install any add-on card except AGP card.

2. Enable USB Controller in BIOS Setup > Integrated Peripherals > OnChip USB,

to make BIOS fully capable of controlling IRQ assignment.

3. Install Window 98 into your system.

4. Install the VIA 4 in 1 driver, which includes VIAAGP Vxd driver, IRQ routing

driver, and VIA chipset function registry program.

5. Finally, Install other add-on cards and their drivers.

You can install the VIA 4 in 1 driver ( IDE Bus master, VIAAGP, IRQ Routing Driver,

VIA Registry ) from the Bonus Pack CD disc autorun menu.

Installing VIA 4 in 1 Driver

Installing Onboard Sound Driver

This motherboard comes with an AD1881 AC97 CODEC and the sound controller is

in VIA South Bridge chipset. You can find the audio driver from the Bonus Pack CD

disc autorun menu.

BIOS Upgrade

Open Easy Flash is more use

-friendly than traditional flash method. The BIOS binary

file and flash routine are combined together and you simply run a single file to complete

the flash process.

1. Get new BIOS upgrade program from AOpen's web site. For example,

AX64 109.EXE. It is recommended to save it to a bootable DOS floppy diskette for

error recovery.

2. Reboot the system to DOS mode without loading any memory handler (such as

EMM386) or device driver. It needs around 520K free memory space.

3. Execute A:> AX64 109

DO NOT turn off the power during FLASH PROCESS

4. Reboot system and press <Del> to enter BIOS setup, Choose "Load Setup Defaults",

then “Save & Exit Setup”. Done!

Warning: The upgrade of new BIOS will permanently replace your

original BIOS content after flashing. The original BIOS setting and

Win95/Win98 PnP information will be refreshed and you probably

need to re-configure your system.

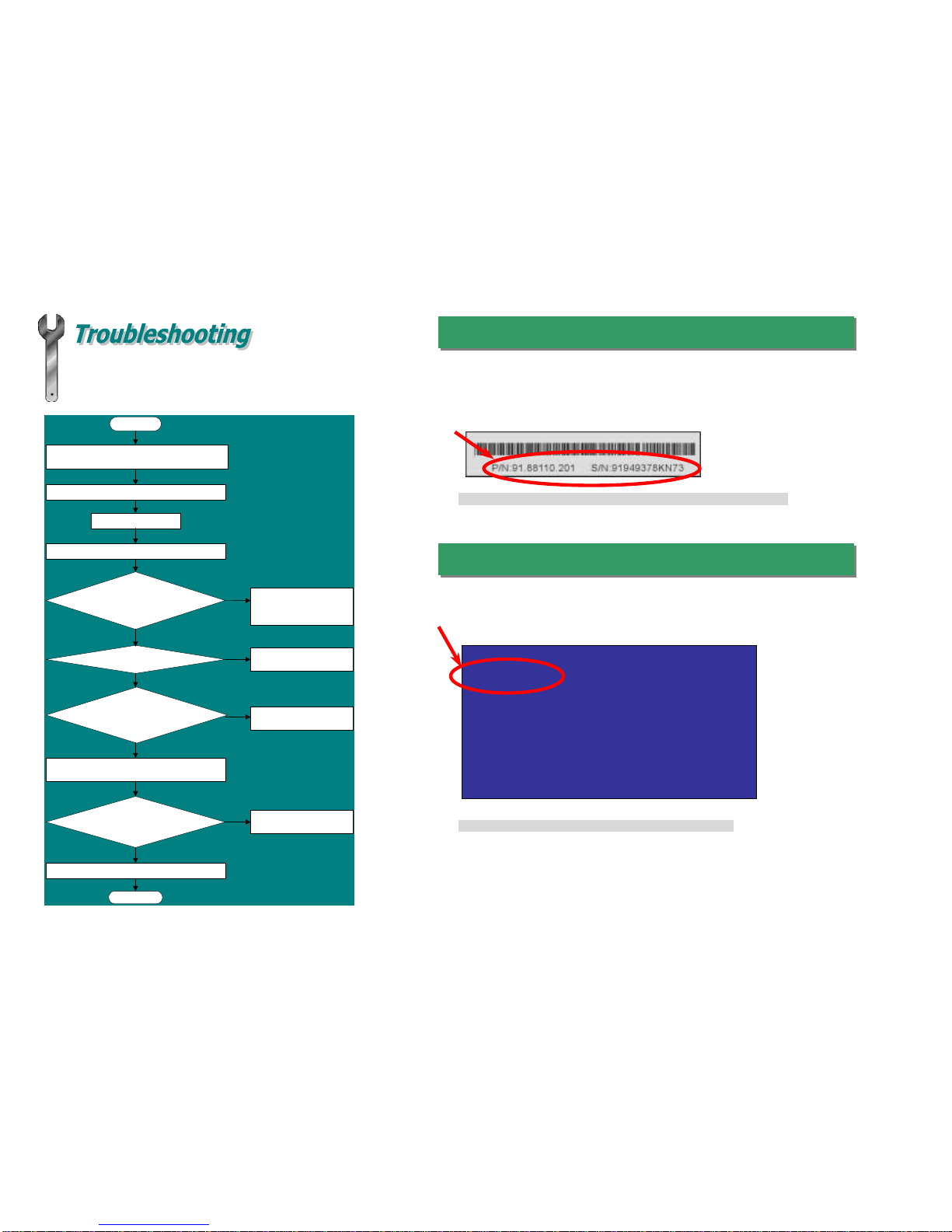

If you encounter any trouble to boot you system, follow the

procedures accordingly to resolve the problem.

Part Number and Serial Number

The Part Number and Serial number are printed on bar code label. You can find this

bar code label on the outside packing, on ISA/CPU slot or on component side of

PCB. For example:

Model name and BIOS version

AX64 R1.20 Jan.04.2000 AOpen Inc.

ward Plug and Play BIOS Extension v1.0A

Model name and BIOS version can be found on upper left corner of first boot screen

(POST screen). For example:

P/N: 91.88110.201 is part number, S/N: 91949378KN73 is serial number.

AX64 is model name of motherboard, R1.20 is BIOS version.

Make sure if the jumper settings for CPU and DRAMs are correct.

Clear CMOS.

Install the VGA card. Then connect your monitor and keyboard.

Turn on the power, and check if the power supply and

CPU fan work properly.

Start

The problem was probably caused by

power supply or motherboard failure.

Please contact your reseller or local

distributor for repairing.

Check if there is display. Perhaps your VGA card or monitor is

defective.

Yes

Press Ctrl, and Alt key at the same time, hold them and then

press Del to see if the system reboots. No It is very possible that your keyboard is

defective.

During system rebooting, press Del to enter BIOS Setup. Choose

“Load Setup Default".

Turn off the system and re-connect the IDE cable.

Check if the system can reboot successfully. The problem should be caused by the

IDE cables or HDD itself.

Re-install Windows 95, Windows 98 or Windows NT.

Yes

End

Turn off the power and unplug the AC power cable, then remove all of

the addon cards and cables, including VGA, IDE, FDD, COM1, COM

and Printer..

Dear Customer,

Thanks for choosing AOpen products. To provide the best and fastest service to

our customer is our first priority. However, we receive numerous emails and

hone-calls worldwide everyday, it is very hard for us to serve everyone on time.

We recommend you follow the procedures below and seek help before contact us.

With your help, we can then continue to provide the best quality service to more

customers.

Thanks very much for your understanding!

Open Technical Supporting Team

Online Manual: Please check the manual carefully and make sure the

jumper settings and installation procedure are correct.

http://www.aopen.com.tw/tech/download/manual/default.htm

Test Report: We recommend to choose board/card/device from the

compatibility test reports for assembling your PC.

http://www.aopen.com.tw/tech/report/default.htm

FAQ: The latest FAQ (FrequentlyAsked Questions) may contain a

solution to your problem.

http://www.aopen.com.tw/tech/faq/default.htm

Download Software: Check out this table to get the latest updated

BIOS/utility and drivers.

http://www.aopen.com.tw/tech/download/default.htm

News Group: Your problem probably had been answered by our support

engineer or professional users on the news group.

http://www.aopen.com.tw/tech/newsgrp/default.htm

Contact Distributors/Resellers: We sell our products through resellers

and integrators. They should know your system configuration very well

and should be able to solve your problem more efficiently than us. After

all, their attitude of service is an important reference for you if next time

you want to buy something else from them.

symptom before contacting us. The part number, serial number and

BIOS version are also very helpful.

Web : http://www.aopen.com

Email : Send us email by going through the contact form below.

English http://www.aopen.com.tw/tech/contact/techusa.htm

Japanese http://aojp.aopen.com.tw/tech/contact/techjp.htm

Chinese http://w3.aopen.com.tw/tech/contact/techtw.htm

German http://www.aopencom.de/tech/contact/techde.htm

Simplified Chinese http://www.aopen.com.cn/tech/contact/techcn.htm

TEL:

USA 650-827-9688

Netherlands +31 73-645-9516

China (86) 755-375-3013

Taiwan (886) 2-2696-1333

Germany +49 (0) 2102-157-700

Altri manuali per AX64

Indice

Altri manuali AOpen Scheda madre

AOpen

AOpen i915Gm-PL Scheda tecnica

AOpen

AOpen AK77-400N Guida all'installazione

AOpen

AOpen MK86-L Guida all'installazione

AOpen

AOpen i945GTm-VHL Scheda tecnica

AOpen

AOpen DXPS Manuale utente

AOpen

AOpen AK77 Pro(A)-133 Guida all'installazione

AOpen

AOpen MX46U2-GN Manuale utente

AOpen

AOpen DX34R-U Guida all'installazione

AOpen

AOpen AX3SP Pro-U Scheda tecnica

AOpen

AOpen AX37 PRO Guida all'installazione

AOpen

AOpen MX3S Scheda tecnica

AOpen

AOpen AX37 PRO Guida all'installazione

AOpen

AOpen MX4LS Manuale utente

AOpen

AOpen MK77-333 Manuale utente

AOpen

AOpen MX46S Manuale utente

AOpen

AOpen AX4C Max II Guida all'installazione

AOpen

AOpen AX45F-4D Guida all'installazione

AOpen

AOpen AK73 Series Guida all'installazione

AOpen

AOpen i945GTm-VHL Manuale utente

AOpen

AOpen MK73LE Guida all'installazione

AOpen

AOpen MX36LE-N Guida all'installazione

AOpen

AOpen DXPS Scheda tecnica

AOpen

AOpen AX4GEFM Manuale utente

AOpen

AOpen MX4BS Guida all'installazione

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
