AOpen D X37PU-EG-E0110A Scheda tecnica

AUX-IN Connector

WOL (Wake on LAN) Connector

FAN2 Connector

FAN3 Connector

CPU2 FAN Connector

4Mbit Flash BIOS

Front Panel Connector

FDD Connector

USB Connector

JP14 CMOS Clear Jumper

Dual Channel Ultra 160 SCSI

Connector

Dual CPU sockets

AGP Pro Power Connector

184-pin DIMM Socket x4 supports

PC-1600/2100 DDR SDRAM

maximum up to 2 GB

VIA Pro266T Chipset

1500μF Low ESR Capacitors

ATX 20-pin Power Connector

ATA/33/66/100 IDE Connector x2

CD-IN Connector

Game Port Connector

Intel 8255010/100 LAN

Controller

32 Bit PCI Slot x 5

Adaptec 7899W SCSI

Controller

FAN1 Connector

CPU1 FAN connector

AGP Pro Slot

Redundant SPS Connector

SCSI LED Connector

PS/2 Mouse

Connector

SPP/EPP/ECP Parallel Port

RJ45 10/100

LAN Jack

(Optional)

PS/2 Keyboard

Connector

USB Port COM 1 Port COM 2 Port

Speaker Out

MIC-InLine-In

CPU #2 CPU #1

Plug in the CPU fan cable to the 3-pin CPU1 FAN and CPU2 FAN connector. If you have chassis fan, you

can also plug it on System FAN(FAN2) or AUX FAN (FAN3) connector.

Hard Drive IDE Cable x 1

80-Wire IDE Cable x 1

Floppy Drive Cable x 1

Ultra 160 SCSI 68 pin Cable x 1

Bonus Pack CD disc x 1

User Manual x 1

This Easy Installation Guide x 1

I/O Bracket x 1

ASM Lite x 1

SCSI Utility Driver x 1

1. JP14 Clear CMOS

Everything you need to boot this

motherboard is included in this

Easy Installation Guide. For more

information, a complete Online

User's Manual can be found in the

Bonus Pack CD Disc. Thanks for

the help of saving our earth.

PART NO:90.53G30.002DOC. NO: DX37PU-EG-E0110A Note: Some CPU fans do not have

sensor pin sothey cannot support fan

monitoring.

CPU1 Fan Connector

GND

SENSOR

+12V

2. Installing CPU & System Fan

FAN1 Connector

FAN3 Connector

GND

+12V

SENSOR

FAN2

Connector

You can clear CMOS to restore system default setting. To

clear the CMOS, follow the procedure below.

1. Turn off the system and unplug the AC power.

2. Remove ATX power cable from connector PWR2.

3. Locate JP14 and short pins 2-3 for a few seconds.

4. Return JP14 to its normal setting by shorting pin 1 & pin 2.

5. Connect ATX power cable back to connector PWR2.

Normal

(default)

Clear CMOS

The DX37 Plus-U supports Intel®Socket 370 Pentium III series CPU. Including the code

name Tualatin 512K cache CPU for dual CPU configuration.

CPU CPU Core Frequency

FSB Clock

Ratio

Pentium III 600E 600MHz 100MHz 6x

Pentium III 650E 650MHz 100MHz 6.5x

Pentium III 700E 700MHz 100MHz 7x

Pentium III 750E 750MHz 100MHz 7.5

Pentium III 800E 800MHz 100MHz 8x

Pentium III 850E 850MHz 100MHz 8.5x

Pentium III 533EB 533MHz 133MHz 4x

Pentium III 600EB 600MHz 133MHz 4.5x

Pentium III 667EB 667MHz133MHz 5x

Pentium III 733EB 733MHz 133MHz 5.5

Pentium III 800EB 800MHz 133MHz 6x

Pentium III 866EB 866MHz 133MHz 6.5

Pentium III 933EB 933MHz 133MHz 7x

Pentium III 1G 1GHz 133MHz 7.5x

Pentium III 1.13G 1.13GHz 133MHz 8.5x

Pentium III 1.26G 1.26GHz 133MHz 9x

Processor Name CPU Package

Single Processor PentiumII

Pentium !!!

All

Dual Processor Pentium II

Pentium !!!

Pentium !!! 512K

All

Coppermine

Tualatin

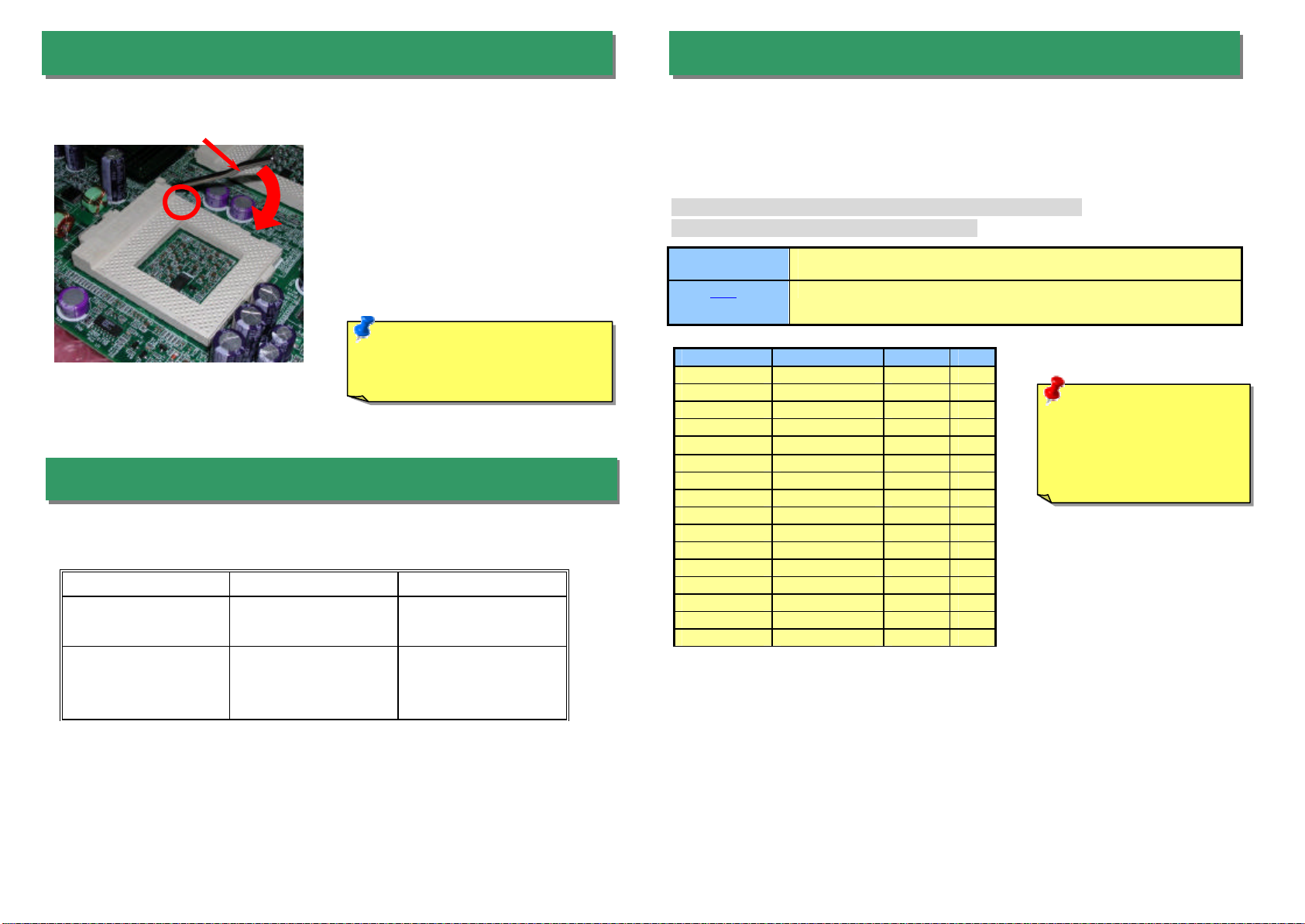

5. Setting CPU Voltage & Frequency3. Installing Processor

4. Supported CPU Type

Note: If you donot match the CPU

socket Pin 1 and CPU cut edge

well, it may damage the CPU.

CPU socket lever

CPU Pin 1 and cut edge

1. Pull up the CPU socket level and up to

90-degree angle.

2. Locate Pin 1 in the socket and look for a

(golden) cut edge on the CPU upper

interface. Match Pin 1 and cut edge.

Then insert the CPU into the socket.

3. Press down the CPU socket level and

finish CPU installation.

Setting CPU Core Voltage

This motherboard supports CPU VID function. The CPU core voltage will be automatically

detected and the range is from 1.05V to1.825V. It is not necessary to set CPU Core Voltage

Setting CPU Frequency

Thismotherboard is CPU jumper-less design, you can set CPU frequency through the BIOS

setup, no jumpers or switches are needed.

BIOS Setup > Frequency / Voltage Control > CPU Speed Setup

Core Frequency = CPU FSB Clock * CPU Ratio

CPU Ratio 3x, 3.5x, 4x, 4.5x, 5x, 5.5x, 6x, 6.5x, 7x, 7.5x, 8x, 8.5x, 9x, 9.5x, 10x, 10.5x, 11x, 11.5x,

12x, 12.5x, 13x, 13.5x, 14x, 14.5x, 15x, 15.5x and 16x

CPU FSB

(By BIOS Table)

100 and 133 MHz

Warning: We strongly

recommend you do not

overclocking your CPU

and system for get more

system reliability.

Pin 1

Secondary

Master (3rd)

Secondary

Slave (4th)

Primary

Slave (2nd)

Primary

Master (1st)

8. Connecting IDE and Floppy Cables

9. Connecting Front Panel Cable

7. Connecting ATX and AGP Pro Power Connector

Connect 34-pin floppy cable and 40-pin, 80-wire IDE cable to floppy connector FDC and

IDE connector. Be careful of the pin1 orientation. Wrong orientation may cause system

damage.

Pin 1

ATA 33/66/100

IDE Connector FDD Connector

IDE1 (Primary)

IDE 2 (Secondary)

6. Support Four USB Connectors

This motherboard provides four USB connectors to connect USB devices, such as

mouse, keyboard, modem, printer, etc. There are two connectors on the PC99 back

panel. You can use proper cable to connect other USB connectors to the back panel or

front panel of chassis.

Pin 1

KEY

GND

SBD2+

SBD2-

+5V

GND

SBD3+

SBD3-

+5V

USB2 Connector

Pin 1

The DX37Plus-Uuses standard ATX power connector. The 6-pin AGP Pro Power

connector provides extra +5V and +3.3V power for AGP Pro VGA card. Make sure you

plug in the right direction.

+5V

COM

-5V

COM

+5V

+3.3V

COM

PS-ON

-12V

COM

+3.3V

5VSB

+5V

COM

+12V

PW-OK

+5V

+3.3V

+3.3V GND

GND

Attaching such as power LED, speaker, reset switch, power switch connector, etc.… to

corresponding pins. The green cap on pin 19 & 20 is to disable Chassis Intrusion

Switch, you may just take it off to able this function.

1 2

Reset Switch

HDD LED

ATX Power

Switch

Power LED

Chassis Intrusion

Switch

21 22

GND

+5V

HDD LED

+5V

GND

INT S/W

RST S/W

+5V

GND

PWR LED

+5VSB

21 22

1 2

14 13 Fan 3 Fail

PS 3 Fail

PS ON

Present1

I2C CLK

Fan 1 Fail

PS1 Fail

+12V

Present 3

GND

5VSB

Present 2

Fan 2 Fail

PS 2 Fail

2 1

Connector Pin1

Pin2

Pin3

Pin4

AUX-IN Left GND

GND

Right

CD-IN Left GND

GND

Right

SW1(3)

Disable SCSI Ch A

Terminator

SW1(4)

Disable SCSI Ch B

Terminator

A Terminator

B Terminator

12. Connecting CD / AUX Connector10. Connecting 68-pin Ultra 160 SCSI Cable

)

Low ESR capacitor

The AUX-IN connector is used to connect MPEG

Audio cable from MPEG card to onboard sound.

The CD-IN connector is used to connect CD Audio

cable from CDROM or DVD drive to onboard sound.

AUX-IN (Green)

CD-IN (Black)

11. Connecting SCSICard LED Connector

The DX37Plus-Uprovides two 68-pin Ultra Wide/Ultra 2/3 SCSI connectors for 16-bit or

16-bit differential SCSI devices.

The 4-pin SCSI LED connector can be connected to a PCI SCSI control card activity

LED connector. Read or write activity by devices connected to the SCSI card willtransfer

a signal to Front Panel and thusmaking the LED lighting up.

SCSI Card

LED Connector

13. Redundant SPS Monitoring Connector

This motherboard implements Redundant SPS monitoring connector to provide hardware

monitoring signals.It is feasible to install an additional 337-watt power supply module

(optional with AOpen Server Housing) in a hot swappable configuration.If any SPS failed,

a signal will be sent to a hardwaremonitoringdevice.

15. Power-On and Load BIOS Setup

After you finish the setting of jumpers and connect correct cables. Power on and enter the

BIOS Setup, press <Del> during POST (Power On Self Test). Choose "Load Default

Setting" for recommended optimal performance.

Del

17. Installing Onboard Sound Driver

This motherboard comes with an AD 1885 AC97 CODEC,you can find the audio driver

from the Bonus Pack CD disc auto-runmenu.

16. Wake On LAN

14. Support 10/100 Mbps LAN onboard

The South Bridge V8233 of VIA Apollo Pro266T chipset includes a fast Ethernet controller on

chip. On the strength of Intel 82550 PHY on board, which is a highly-integrated Platform LAN

Connect device, it provides 10/100M bps Ethernet for office and home use, the Ethernet RJ45

connector is located onthe back panel. The green LED indicates the link mode, it lights when

linking to network and blinking when transferring data. The orange LED indicates the transfer

mode, and it lightswhen data is transferring in 100Mbps mode. To enable or disable this

function, you may simply adjust it through BIOS.

Green/ACT

Orange/Speed

To use Wake On LAN function, you must have a network card with chipset that supports this

feature, and connect a cable from LAN card to motherboard WOL connector. The system

identification information (probably IP address) is stored on network card and because there is

a lot of traffic on the Ethernet, you need to install a network management software, such as

ADM, for the checking of how to wake up the system. Note that, at least 600mA ATX standby

current is required to support the LAN card for this function.

+5VSB

GND

LID

If you encounter any trouble to boot you system, follow the procedures

accordingly to resolve the problem.

Part Number and Serial Number

The Part Number and Serial number are printed on bar code label. You can find this

bar code label on the outside packing, on ISA/CPU slot or on component side of PCB.

For example:

Make sure if the jumper settings for CPU and DRAMs are correct.

ClearCMOS.

Install the VGA card. Then connect your monitor and keyboard.

The problem was probably caused

by power supply or motherboard

failure. Please contact your reseller

or local distributor for repairing.

Perhaps your VGA card or monitor

is defective.

Yes

It is very possible that your keyboard

is defective.

During system rebooting, press Del to enter BIOS Setup. Choose

“Load Setup Default".

The problem should be

caused by the

IDE cables or HDD itself.

Re-install Windows 95, Windows 98 or Windows NT.

Yes

Turn off the power and unplug the A

C power cable, then remove all

of the addon cards and cables, including VGA, IDE, FDD, COM1,

COM2 and Printer.

Turn on the power, and check if

the power supply and CPU fan

work properly.

Start

Check if there is display.

Press Ctrl, and Alt key at the

same time, hold them and then

press Del to see if the

system reboots.

Turn off the system and

re-connect the IDE cable.

Check if the system can

rebootsuccessfully.

End

P/N: 91.88110.201 is part number, S/N: 91949378KN73 is serial number.

Part No.

Serial

No.

Part No. Serial No.

Dear Customer,

Thanks for choosing AOpen products. To provide the best and fastest service to

our customer is our first priority. However, we receive numerous emails and

phone-calls worldwide everyday, it is very hard for us to serve everyone on time.

We recommend you follow the procedures below and seek help before contact

us. With your help, we can then continue to provide the best quality service to

more customers.

Thanks very much for your understanding!

AOpen Technical Supporting Team

Online Manual: Please check the manual carefully and make sure the

jumpersettings and installation procedure are correct.

http://www.aopen.com.tw/tech/download/manual/default.htm

Test Report: We recommend to choose board/card/device from the

compatibility test reports for assembling your PC.

http://www.aopen.com.tw/tech/report/default.htm

FAQ: The latest FAQ (Frequently Asked Questions) may contain a

solution to your problem.

http://www.aopen.com.tw/tech/faq/default.htm

Download Software: Check out this table to get the latest updated

BIOS/utility and drivers.

http://www.aopen.com.tw/tech/download/default.htm

News Group:Your problem probably had been answered by our support

engineer or professional users on the news group.

http://www.aopen.com.tw/tech/newsgrp/default.htm

Contact Distributors/Resellers: We sell our products through resellers

and integrators. They should know your system configuration very well and

should be able to solve your problem more efficien n important referencefor

you if next time you want to buy something else from them.

before contacting us. The part number, serial number and BIOS version

are also very helpful.

Web Site: www.aopen.com

E-mail: Send us email by going through the contact form below.

English http://www.aopen.com.tw/tech/contact/techusa.htm

Japanese http://aojp.aopen.com.tw/tech/contact/techjp.htm

Chinese http://w3.aopen.com.tw/tech/contact/techtw.htm

German http://www.aopencom.de/tech/contact/techde.htm

French http://aofr.aopen.com.tw/tech/contact/techfr.htm

Simplified Chinese http://www.aopen.com.cn/tech/contact/techcn.htm

Pacific Rim

AOpen Inc.

Tel: 886-2-2696-1333

Fax: 886-2-8691-2233

America

AOpen America Inc.

Tel: 1-510-498-8928

Fax: 1-408-922-2935, 1-408-432-0496

Europe

AOpen Computer b.v.

Tel: 31-73-645-9516

Fax: 31-73-645-9604

Germany

AOpen Computer GmbH.

Tel: 49-2102-157700

Fax: 49-2102-157799

China

艾????上海(股)有限公司

Tel: 49-2102-157700

Fax: 49-2102-157799

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali AOpen Scheda madre

AOpen

AOpen AX45-533 Max Guida all'installazione

AOpen

AOpen DXPL-U Guida all'installazione

AOpen

AOpen AK79D-400 Max Guida all'installazione

AOpen

AOpen AK77-600GN Scheda tecnica

AOpen

AOpen MX4BS Guida all'installazione

AOpen

AOpen MX46U2-VN Scheda tecnica

AOpen

AOpen AX45S-533 Scheda tecnica

AOpen

AOpen AX4GE Tube-G Scheda tecnica

AOpen

AOpen MoDT i965GMt-LA Manuale di istruzioni

AOpen

AOpen AX6L Manuale utente

AOpen

AOpen AX34 Pro II Manuale utente

AOpen

AOpen AK77 PRO Scheda tecnica

AOpen

AOpen AX4GEFM Manuale utente

AOpen

AOpen AX4L Guida all'installazione

AOpen

AOpen MX46S Manuale utente

AOpen

AOpen s661FXm-7S Scheda tecnica

AOpen

AOpen AX4GE Tube-G Guida all'installazione

AOpen

AOpen MX4LR TV Guida all'installazione

AOpen

AOpen MK77-333 Scheda tecnica

AOpen

AOpen AX37D Plus Scheda tecnica

AOpen

AOpen AK75PRO Scheda tecnica

AOpen

AOpen AX4B-533 Plus Scheda tecnica

AOpen

AOpen MK79G-N Guida all'installazione

AOpen

AOpen MX36LE-U Scheda tecnica

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
