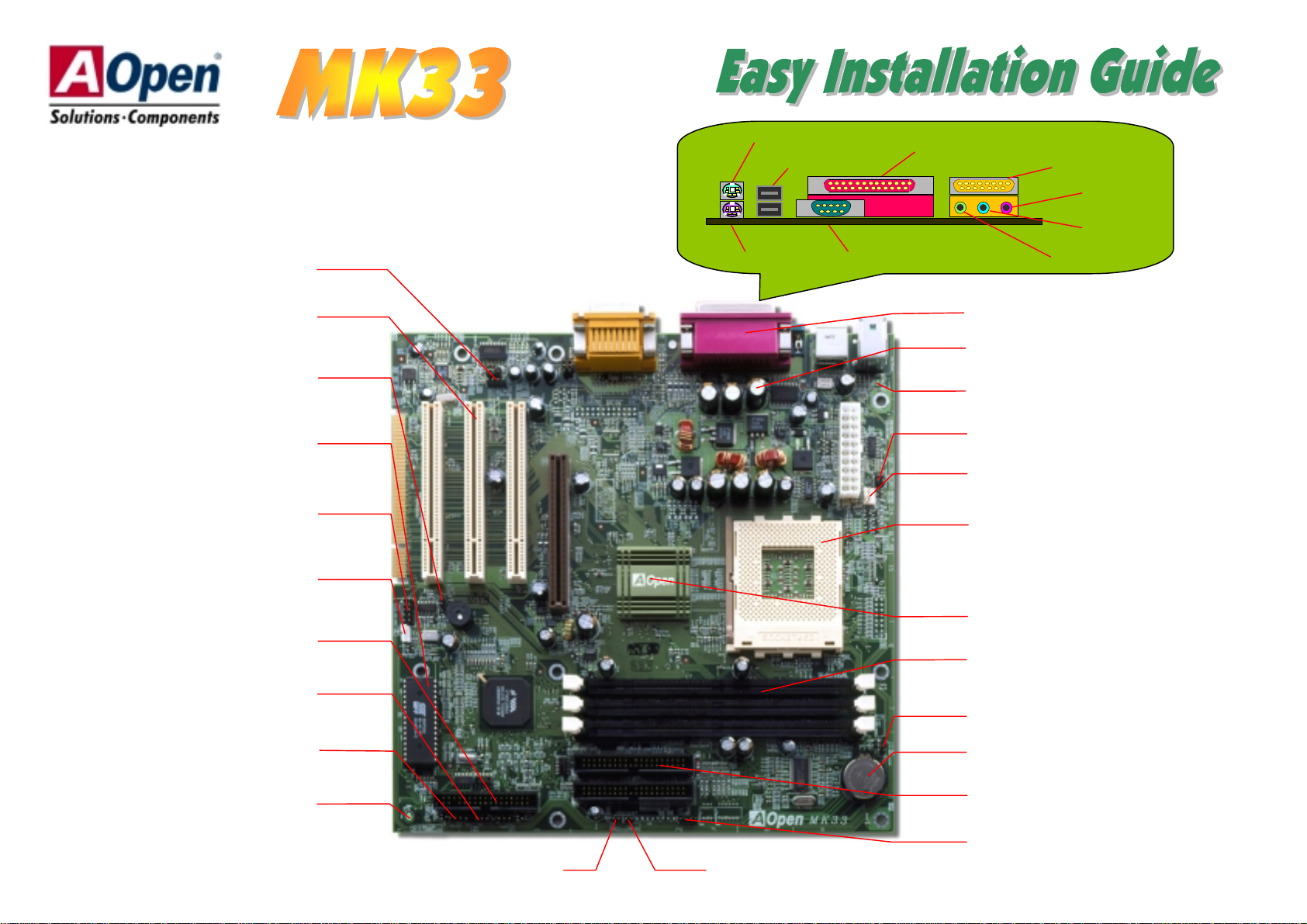

AOpen MK33 Manuale utente

PC99 Back Panel

Keyboard

PS/2 Mouse

COM1

Printe

USB Game Port

MIC

Speaker

Line-In

WOL

Wake On LAN

FDD Connecto

2Mbit Flash ROM

Full-time

Virus Protection

WakeOn RTC

Support 4 USB Por

PCI Slot x 3

CD-Audio Input

JP9 IrDA Connecto

JP12 Power LED Connecto

JP11 Case Open Sense

PC99 Back Panel

Apollo KT133 Chipset

200/266 MHz EV6 Bus

PC133 DIMM

Sus

end to RAM

JP14 Clear CMOS

ATA/66 IDE Bus

Suspend to HDD

Battery-less & Long-life Design

CPU Fan Connector

System Voltage & Fan Monitoring

CN6 IDE LED Connector

Full-range Auto-Detect CPU Core Voltage

Jumper-less Design

Over-current Protection

Thermal Protection

JP4 Reset Connecto

JP3 Power Button Connector

Resettable Fuse

1500uF Low ESR Capacitor

TX Power LED

JP6/JP7 Thermal Sense

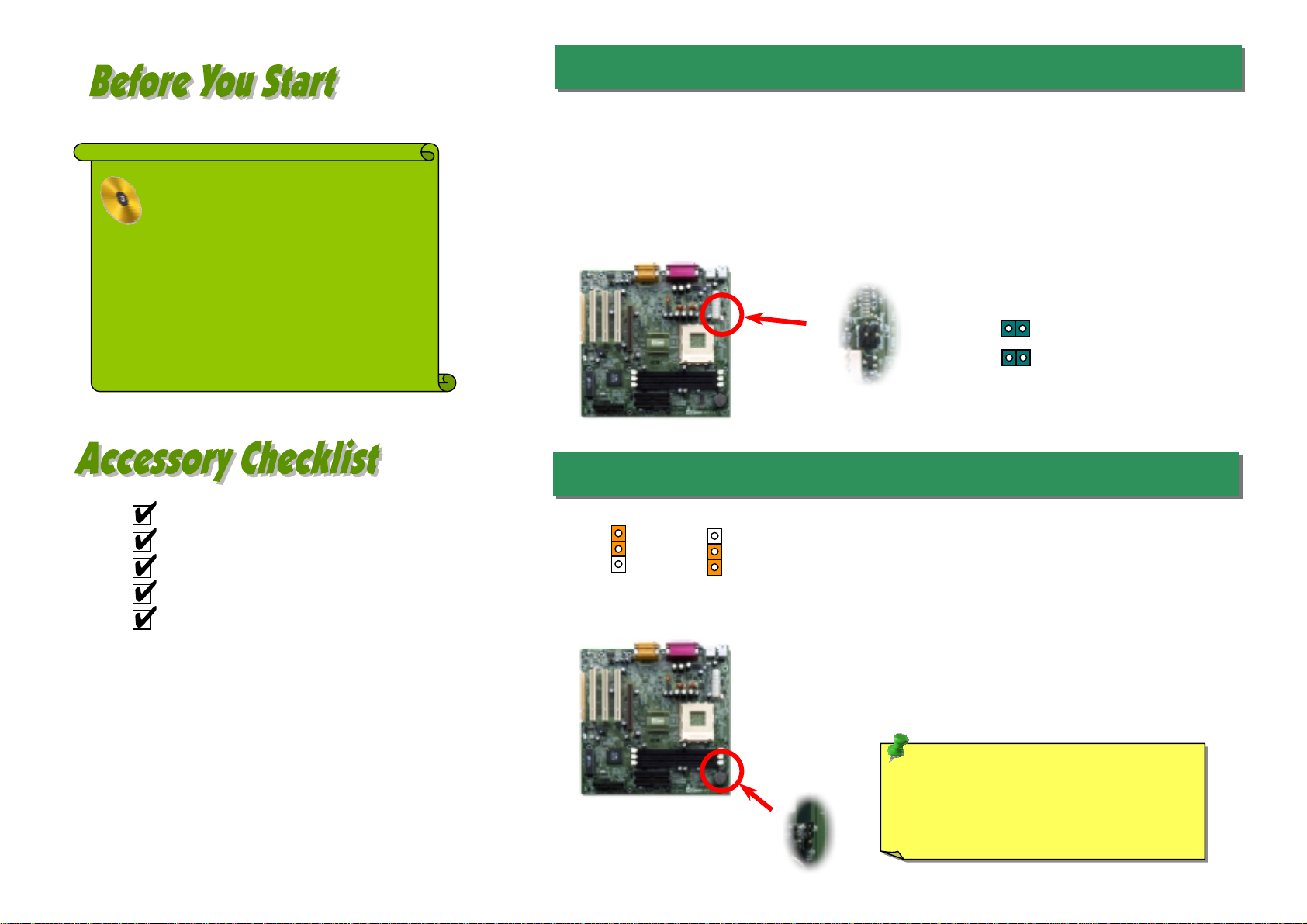

ATA/66 IDE Cable x 1

Hard Drive IDE cable x 1

Floppy Drive cable x 1

Bonus Pack CD disc x 1

This Easy Installation Guide x 1

Everything you need to boot this

motherboard is included in this Easy

Installation Guide. For more

information, a complete Online User's

Manual can be found in the Bonus

Pack CD Disc. Thanks for the help of

saving our earth.

JP6 / JP7 Thermal Sense

1 GND

2 SENSOR

With the increasing performance, the components nowadays always generate enormous heat in your

system, such as CPU, VGA card, HDD, and so on. In the meanwhile, they’re the most important

components that concern the stability of the system. The thermal sense provides you a convenient and

flexible way of an extensible sensor for users to detect the temperature of any component.

For example, you can just plug the sliced sensor into the narrow opening between CPU and heat sink

to monitor the more accurate temperature.

Normal Operation

(default) Clear CMOS

Tip: When should I Clear CMOS?

1. Boot fail because of overclocking…

2. Forget password…

3. Troubleshooting…

You can clear CMOS to restore system default setting.

To clear the CMOS, follow the procedure below.

1. Turn off the system and unplug the AC power.

2. RemoveATX power cable from connector CN5.

3. Locate JP14 and short pins 2-3 for a few seconds.

4. Return JP14 to its normal setting by shorting pins 1-2.

5. Connect ATX power cable back to connector CN5.

JP14 Clear CMOS

PART NO: 49.89501.001 DOC. NO: MK33-EG-E0006A

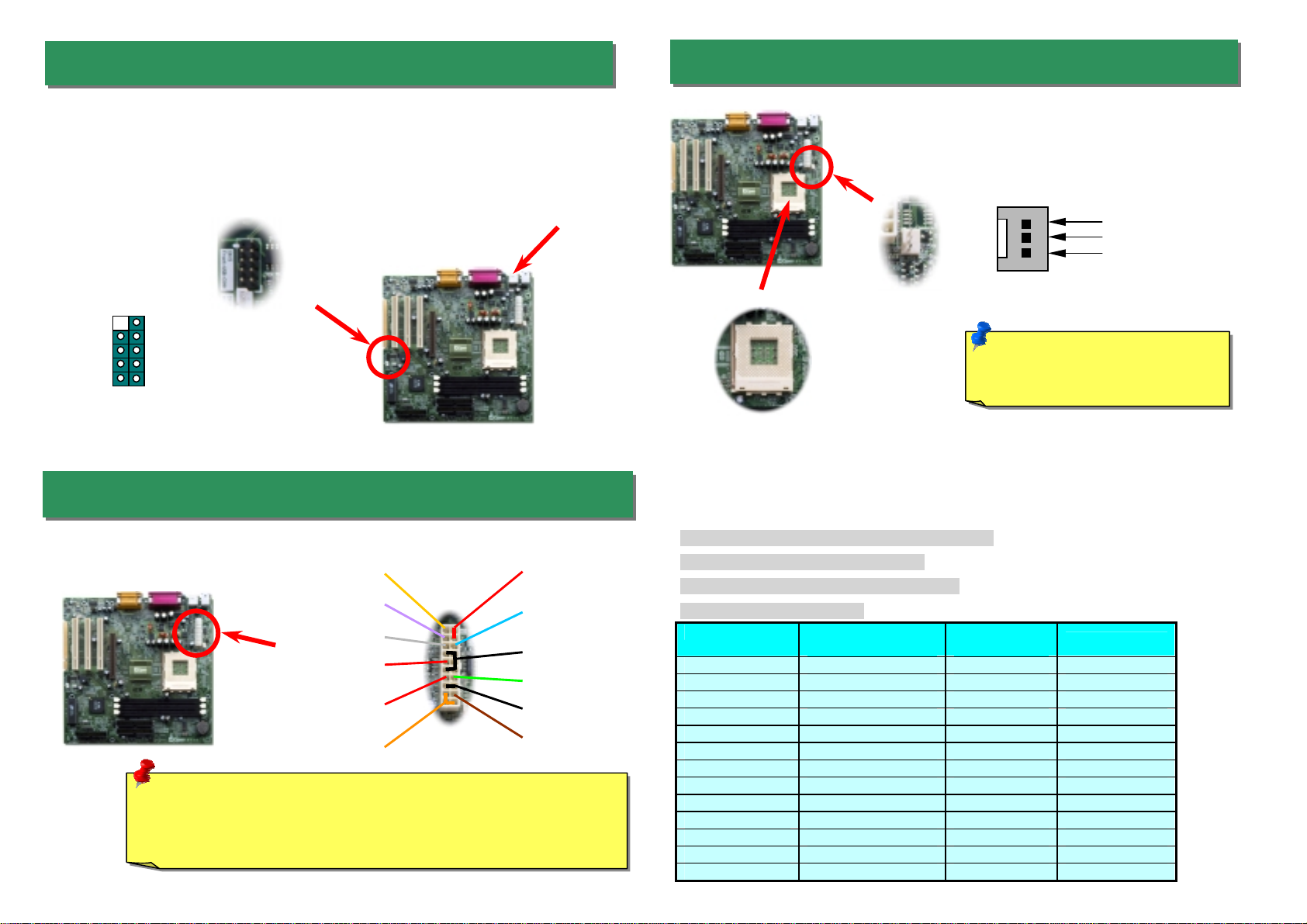

Installing CPU and Fan

Plug CPU to AMD Socket 462 connector. Be careful

of CPU orientation. Plug in the fan cable to the 3-pin

CPUFAN connector.

GND

+12V

SENSOR

Note: Some CPU fans do not have

sensor pin, so that cannot support

fan monitorin

Full-range Auto-Detect CPU Core Voltage

This motherboard supports CPU VID function. The CPU core voltage will be

automatically detected and the range is from 1.1V to 1.85V.

Supported CPU Frequency

Core Frequency = CPU Bus Clock * CPU Ratio

EV6 Bus Speed = CPU Bus Clock x 2

PCI Clock = CPU Bus Clock / Clock Ratio

AGP Clock = PCI Clock x 2

CPU CPU Core

Frequency EV6 Bus

Clock Ratio

Athlon 600 600 MHz 200 MHz 6x

Athlon 650 650 MHz 200 MHz 6.5x

Athlon 700 700 MHz 200 MHz 7x

Athlon 750 750 MHz 200 MHz 7.5x

Athlon 800 800 MHz 200 MHz 8x

Athlon 850 850 MHz 200 MHz 8.5x

Athlon 900 900 MHz 200 MHz 9x

Athlon 950 950 MHz 200 MHz 9.5x

Athlon 1000 1000 MHz 200 MHz 10x

Duron 600 600 MHz 200 MHz 6x

Duron 650 650 MHz 200 MHz 6.5x

Duron 700 700 MHz 200 MHz 7x

Duron 750 750 MHz 200 MHz 7.5x

ATX Power Connector

The ATX power supply uses 20-pin connector shown below. Make sure you plug in the

right direction.

Warning: For ATX system, there is always a standby current on the

motherboard. Please make sure that you have unplugged the ATX power

cable from the connector before you insert or pull out any CPU, DIMM,

PCI and AGP cards. Otherwise, a serious component damage may occur.

-12V

+5V

PWOK

-5V

GND

+12V

+5V

5VSB

+3.3V

+5V

PWOK

Support 4 USB Ports

2 1

GND

+2D

-2D

+5V

GND

+3D

-3D

10 9

This motherboard supports four USB ports. Two of them are on back panel connector,

the other two are on the left-bottom area of this motherboard. With proper cable, you

can connect them to front

anel.

Pin 1

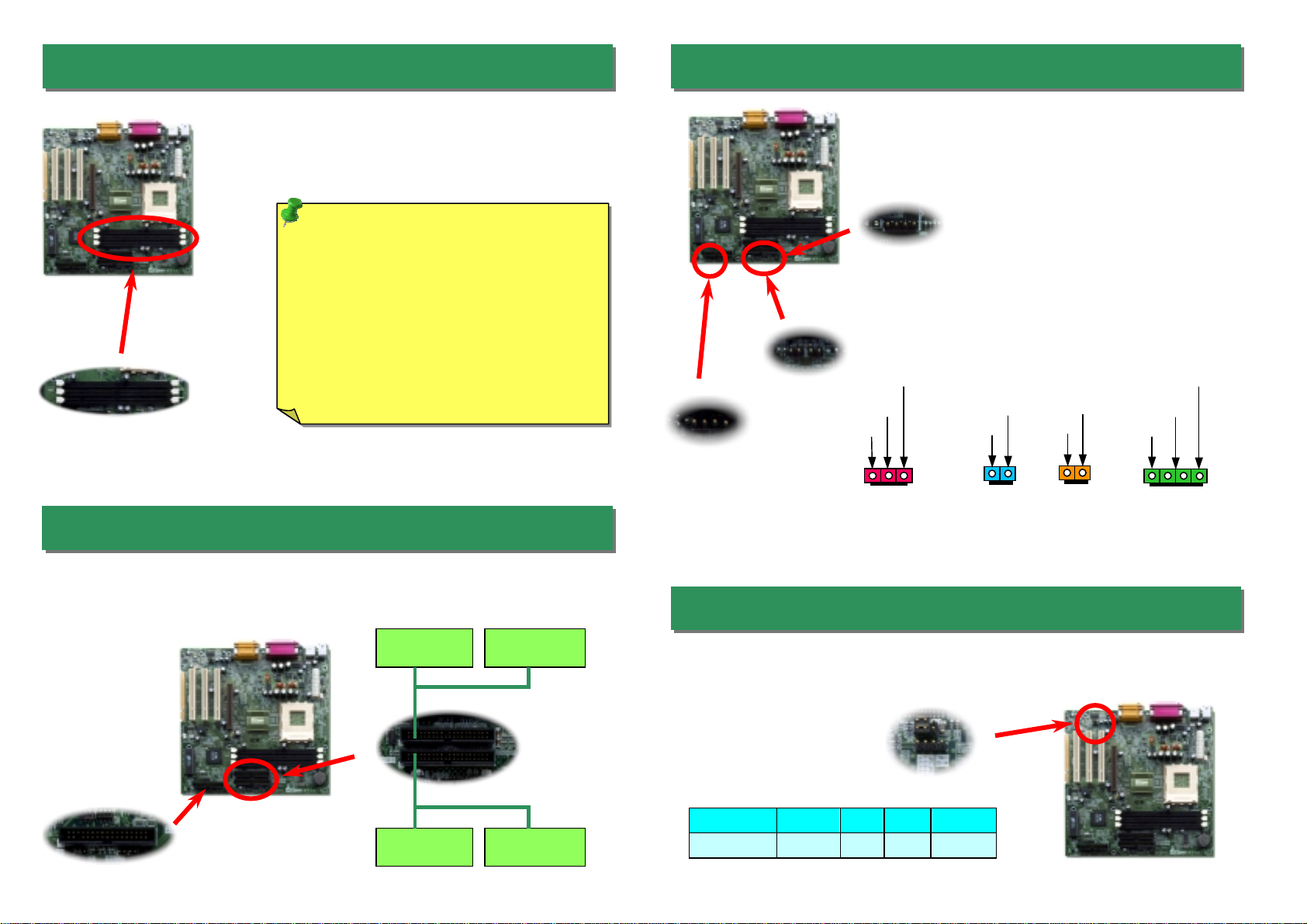

Tip: The driving capability of new generation

chipset is limited due to the lack of a memory

buffer (to improve performance). This makes

DRAM chip count an important factor to take

into consideration when you install DIMMs.

Unfortunately, there is no way that the BIOS

can identify the correct chip count, you need to

calculate the chip count by yourself. The

simple rule is: By visual inspection, use only

DIMMs which are less than 16 chips.

Connecting IDE and Floppy Cable

Connect 34-pin floppy cable and 40-pin IDE cable to floppy connector FDC and IDE

connector. Be careful of the pin1 orientation. Wrong orientation may cause system

damage.

Attach the power LED, speaker, and reset

switch connectors to the corresponding pins.

If you enable “Suspend Mode” item in BIOS

Setup, the ACPI & Power LED will keep

flashing while the system is in suspend

mode.

Connecting Front Panel Cable

Locate the power switch cable from your

ATX housing. It is 2-pin female connector

from the housing front panel. Plug this

connector to the soft-power switch

connector marked SPWR.

Connecting CD Audio

Configuring System Memory

This motherboard has three 168pin DIMM sockets that allo

you to install system memory up to 1.5GB. SDRAM and

VCM SDRAM are supported.

DIMM1

DIMM2

DIMM3

The connector is used to connect CD Audio cable from CDROM or DVD drive to

onboard sound.

Pin 1

Slave (2nd)

Master (3rd)Slave (4th)

Master (1st)

IDE1

IDE2

Pin 1

Connector Pin1 Pin2 Pin3 Pin4

CD-IN Right GND GND Left

FDC

Pin 1

IDE-LED

+ 5V

Reset

JP4

Reset JP3

PWR-BTN

GND PWR-BTN

GND

IDE-LED

JP12 PWR-LED

+ 5V

GND

PWR-LED

JP12

JP4,JP3

IDE-LED

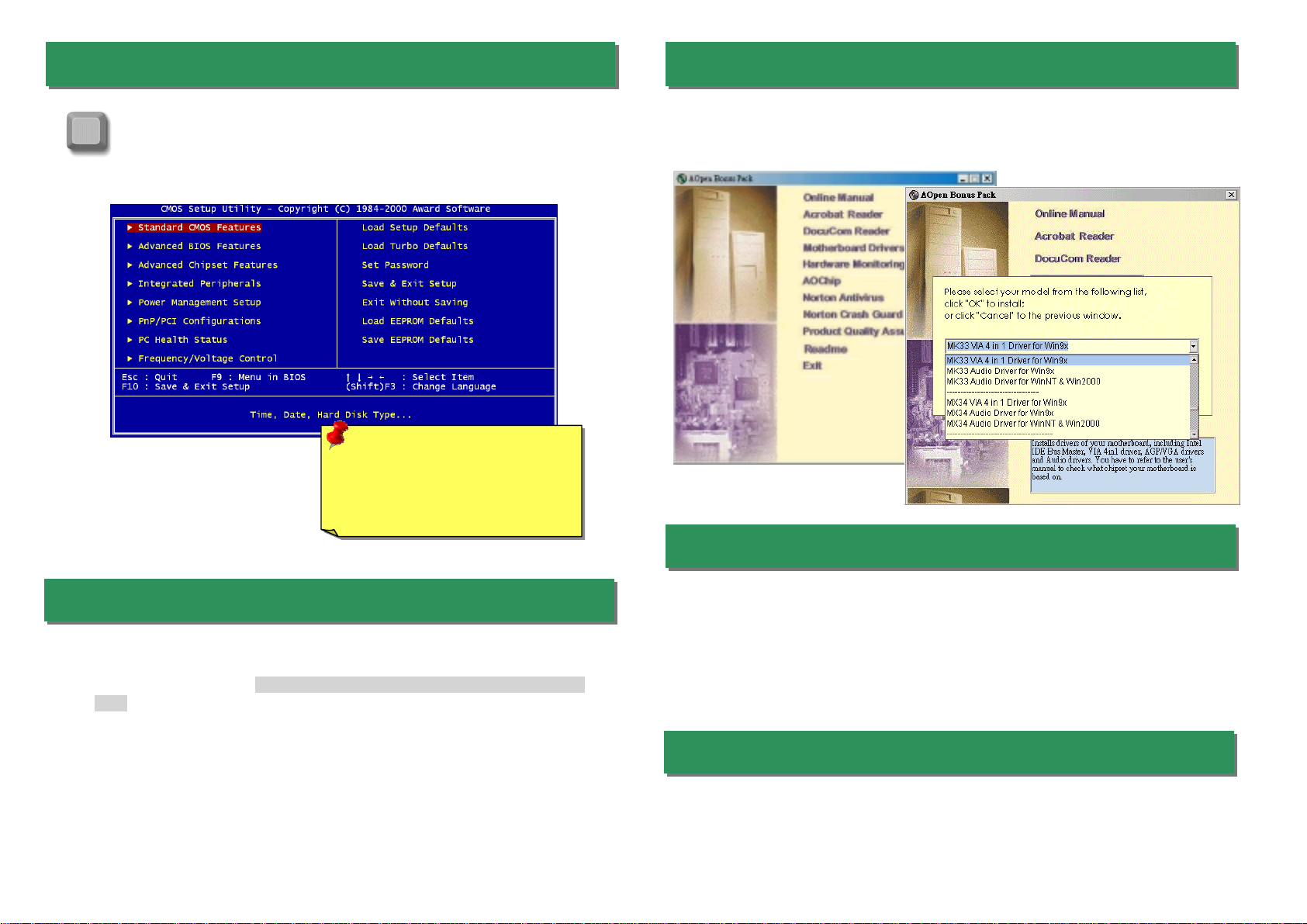

1. First, don’t install any add-on card exceptAGP card.

2. Install Windows 95 OSR2 v2.1, 1212 or 1214 version and later with USB

support. Otherwise, you need to install USBSUPP.EXE.

3. Install the VIA 4 in 1 driver, which includes VIAAGP Vxd driver, IRQ routing

driver, and VIA chipset function registry program.

4. Finally, Install other add-on cards and their drivers.

Installing Windows 95

Power-on and Load BIOS Setup

fter you finish the setting of jumpers and connect correct cables. Powe

on and enter the BIOS Setup, press <Del> during POST (Power-On

Self Test). Choose "Load Setup Defaults" for recommended optimal

performance.

Del

Autorun Menu from Bonus CD Disc

You can use the autorun menu of Bonus CD disc. Choose the utility and driver and

select model name.

Warning: Please avoid of using

"Load Turbo Defaults", unless you

are sure your system components

(CPU, DRAM, HDD, etc.) are good

enou

h for turbo settin

Installing Windows NT

Installing Windows 98

It is not necessary to install VIA4 in 1 driver, just follow the installation guide of NT

and your add-on cards.

1. First, don’t install any add-on card exceptAGP card.

2. Enable USB Controller in BIOS Setup > Advanced Chipset Features > OnChip

USB, to make BIOS fully capable of controlling IRQ assignment.

3. Install Window 98 into your system.

4. Install the VIA 4 in 1 driver, which includes VIAAGP Vxd driver, IRQ routing

driver, and VIA chipset function registry program.

5. Finally, Install other add-on cards and their drivers.

You can install the VIA 4 in 1 driver ( IDE Bus master, VIAAGP, IRQ Routing Driver,

VIA Registry ) from the Bonus Pack CD disc autorun menu.

Installing VIA 4 in 1 Driver

Installing Onboard Sound Driver

This motherboard comes with an AD 1885 AC97 CODEC and the sound controller

is in VIA South Bridge chipset. You can find the audio driver from the Bonus Pack

CD disc autorun menu.

BIOS Upgrade

AOpen Easy Flash is more user friendly than traditional flash method. The BIOS binary

file and flash routine are combined together and you simply run a single file to complete

the flash process.

1. Get new BIOS upgrade program from AOpen's web site. For example,

MK33P109.EXE. It is recommended to save it to a bootable DOS floppy diskette for

error recovery.

2. Reboot the system to DOS mode without loading any memory handler (such as

EMM386) or device driver. It needs around 520K free memory space.

3. Execute A:> MK33P109

DO NOT turn off the power during FLASH PROCESS!

4. Reboot system and press <Del> to enter BIOS setup, Choose "Load Setup Defaults",

then “Save & Exit Setup”. Done!

Warning: The upgrade of new BIOS will permanently replace

your original BIOS content after flashing. The original BIOS

setting and Win95/Win98 PnP information will be refreshed

and you probably need to re-configure your system.

Installing Windows 98 SE & Windows2000

If you are using Windows® 98 Second Edition or Windows2000, you do not need to

install the 4-in-1 driver as the IRQ Routing Driver and theACPI Registry are already

incorporated into the operating system. Users with Windows® 98 SE may update

the IDE Busmaster and AGP drivers by installing them individually.

Please refer to VIATechnologies Inc. for latest version of 4 in 1 driver:

http://www.via.com/

http://www.via.com/drivers/4in1420.exe

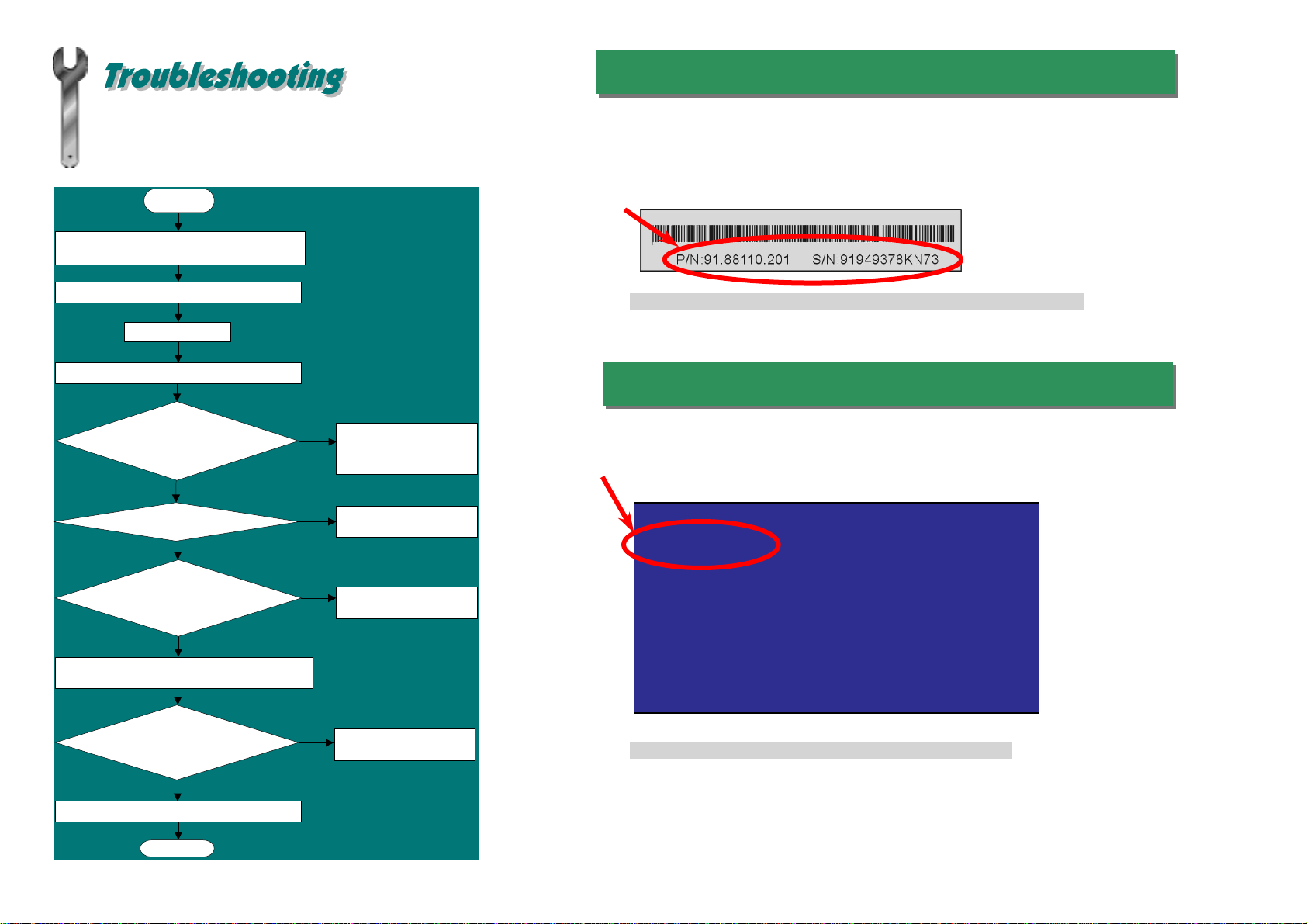

If you encounter any trouble to boot you system, follow the

procedures accordingly to resolve the problem.

Part Number and Serial Number

The Part Number and Serial number are printed on bar code label. You can find

this bar code label on the outside packing, on ISA/CPU slot or on component

side of PCB. For example:

Model name and BIOS version

MK33 R1.20 Jun.04.2000 AOpen Inc.

Award Plug and Play BIOS Extension v1.0A

Model name and BIOS version can be found on upper left corner of first boot

screen (POST screen). For example:

P/N: 91.88110.201 is part number, S/N: 91949378KN73 is serial number.

MK33 is model name of motherboard, R1.20 is BIOS version.

Make sure if the jumper settings for CPU and DRAMs are correct.

Clear CMOS.

Install the VGA card. Then connect your monitor and keyboard.

The problem was probably caused

by power supply or motherboard

failure. Please contact your reselle

or local distributor for repairing.

Perhaps your VGA card or monito

is defective.

Yes

It is very possible that your keyboard

is defective.

During system rebooting, press Del to enter BIOS Setup. Choose

“Load Setup Default".

The problem should be caused by the

IDE cables or HDD itself.

Re-install Windows 95, Windows 98 or Windows NT.

Yes

Turn off the power and unplug the AC power cable, then remove all

of the addon cards and cables, including VGA, IDE, FDD, COM1,

COM2 and Printer.

Turn on the power, and check if

the power supply and CPU fan

work properly.

Start

Check if there is display.

Press Ctrl, and Alt key at the

same time, hold them and then

press Del to see if the

stem reboots.

Turn off the system and

re-connect the IDE cable.

Check if the system can

reboot successfully.

End

Dear Customer,

Thanks for choosing AOpen products. To provide the best and fastest service to

our customer is our first priority. However, we receive numerous emails and

hone-calls worldwide everyday, it is very hard for us to serve everyone on time.

We recommend you follow the procedures below and seek help before contact us.

With your help, we can then continue to provide the best quality service to more

customers.

Thanks very much for your understanding!

Open Technical Supporting Team

Online Manual: Please check the manual carefully and make sure the

jumper settings and installation procedure are correct.

http://www.aopen.com.tw/tech/download/manual/default.htm

Test Report: We recommend to choose board/card/device from the

compatibility test reports for assembling your PC.

http://www.aopen.com.tw/tech/report/default.htm

FAQ: The latest FAQ (Frequently Asked Questions) may contain a

solution to your problem.

http://www.aopen.com.tw/tech/faq/default.htm

Download Software: Check out this table to get the latest updated

BIOS/utility and drivers.

http://www.aopen.com.tw/tech/download/default.htm

News Group: Your problem probably had been answered by our support

engineer or professional users on the news group.

http://www.aopen.com.tw/tech/newsgrp/default.htm

Contact Distributors/Resellers: We sell our products through

resellers and integrators. They should know your system

configuration very well and should be able to solve your problem

more efficiently than us.After all, their attitude of service is an

important reference for you if next time you want to buy something

else from them.

symptom before contacting us. The part number, serial number and BIOS

version are also very helpful.

Web : http://www.aopen.com

Email : Send us email by going through the contact form below.

English http://www.aopen.com.tw/tech/contact/techusa.htm

Japanese http://aojp.aopen.com.tw/tech/contact/techjp.htm

Chinese http://w3.aopen.com.tw/tech/contact/techtw.htm

German http://www.aopencom.de/tech/contact/techde.htm

Simplified Chinese http://www.aopen.com.cn/tech/contact/techcn.htm

TEL:

USA 650-827-9688

Netherlands +31 73-645-9516

China (86) 755-375-3013

Taiwan (886) 2-2696-1333

Germany +49 (0) 2102-157-700

Altri manuali per MK33

Indice

Altri manuali AOpen Scheda madre

AOpen

AOpen AP5V Manuale utente

AOpen

AOpen AX6BC Pro Gold Guida all'installazione

AOpen

AOpen AXPS-U Manuale utente

AOpen

AOpen AX4GER Scheda tecnica

AOpen

AOpen AX59PRO Manuale utente

AOpen

AOpen AX6BC PROII Manuale utente

AOpen

AOpen AX4T II Guida all'installazione

AOpen

AOpen AX45 PRO-533 Guida all'installazione

AOpen

AOpen AK77-400N Guida all'installazione

AOpen

AOpen AK77-600N Manuale utente

AOpen

AOpen MX46U2-VN Guida all'installazione

AOpen

AOpen AX64 Manuale utente

AOpen

AOpen MX4SG-4DL Guida all'installazione

AOpen

AOpen AK72 Guida all'installazione

AOpen

AOpen AK79D-400VN Scheda tecnica

AOpen

AOpen AXPS-U Manuale utente

AOpen

AOpen s661FXm-7S Manuale utente

AOpen

AOpen NMCP68ST Manuale utente

AOpen

AOpen AX45-4D MAX Guida all'installazione

AOpen

AOpen AK77-8XMAX Manuale utente

AOpen

AOpen MX4GR Guida all'installazione

AOpen

AOpen MX59 Pro Manuale utente

AOpen

AOpen I865Gm-7L/7N Manuale utente

AOpen

AOpen nCK804a-LFS Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente
