1.1 A Thank-you Note Before You Get Start

First of all, we would like to express our gratitude for purchasing AOpen products.

Once again, this motherboard is designed uniquely to meet all your personal

needs with our great industry-designing ability and our everlasting perseverance

to the quality of all our products.

This manual will introduce you how this motherboard is installed. Please keep it

well for your future reference. If you lost your printed manual, you may also go to

our website at http://www.aopen.com to download the updated file.

Now, we would like to invite you to personally experience this user-friendly

manual and all of the powerful functions this AOpen product offers.

The logos of Adobe and Acrobat are the registered trademarks of Adobe Systems

Incorporated.

The logos of AMD, Athlon, and Duron are the registered trademarks of Advanced Micro

Devices, Inc.

The logos of Intel, Intel Celeron, Pentium II, III and Pentium 4 are the registered

trademarks of Intel Corporation.

The logos of nVidia are the registered trademarks of nVidia Corporation.

The logos of Microsoft, Windows are the registered trademarks of Microsoft Corporation in

America and other countries.

All the titles of the products and the trademarks mentioned in this manual are for the

purpose of illustrative conveniences and are possessed by their respective firms.

We regret not informing about any changes in usage standards and other related

information. AOpen reserves the right of altering or modifying the content of this manual. In

case of any mistakes or incorrect descriptions, which include those on the products, AOpen

makes no guarantee or commitments.

This document is based on the copyright laws in order to protect our company and reserve

all rights.

Under no circumstances are any types of duplicating and loading this brochure in any

databases and media permitted except the permission signed on formal document by

AOpen Company.

1.2 Features of This Manual

To help you grab the useful information of this motherboard and aware of certain

conditions that you might need to know, you will see the icons below frequently:

1.3 Safety Information

This contains knowledge you should know in process

of assembling, or some helpful tips.

This tip tells you some useful information that will

make your installation smoothly.

Please be careful when you see this mark. It

highlights mistakes that occur often during

assembling, or something you need to pay attention

to.

Please wear a wrist strap and attach it to a metal part of the system unit

before handling a component. Alternatively, you can also touch an object

that is of ground connection or with metal surface.

Always unplug the power before you make any jumper setting.

Before you install or remove any components on the motherboard, please

make sure to disconnect the power first in case of damaging motherboard

or other components.

Note

Warning

Warning / Caution

Warning

Tip

Chapter 2 Introduction to This Motherboard

2.1 How does your motherboard look like?

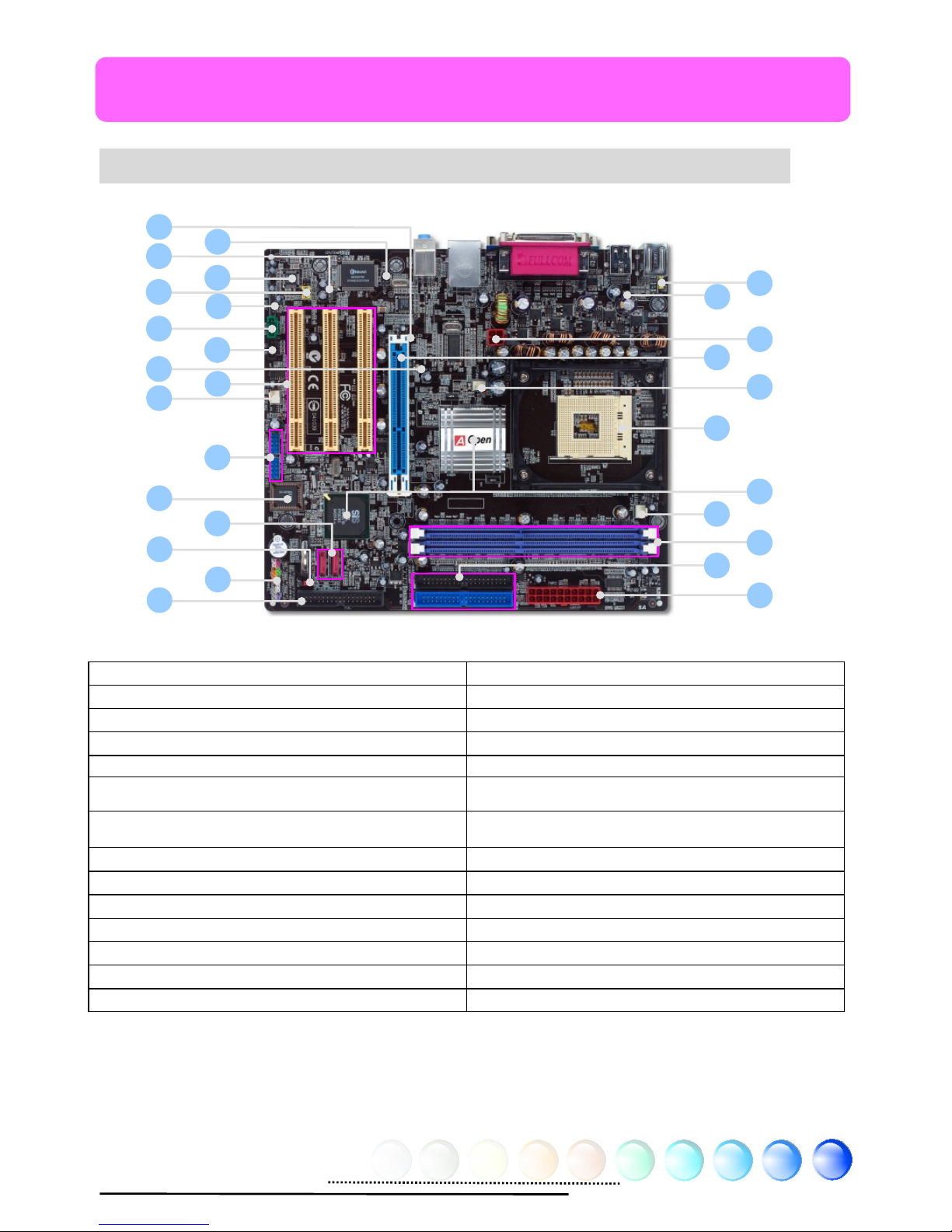

1. JP28 PS2 KB/Mouse Wakeup Jumper 15. Onboard AC’97 CODEC

2. Resetable Fuse 16. Front Audio Connector

3. 4-pin 12V ATX Power Connector 17. S/PDIF Connector

4. AGP 8X Expansion Slot 18. AUX_IN Connector

5. CPUFAN Connector 19. CD_IN Connector

6. 478-pin CPU socket supporting Intel P4

5. Northwood and Prescott CPU 20. AGP LED

7. SIS 661FX / 964 Chipsets (s661FXm-S)

7. SIS 661FX / 964L Chipsets (s661FXm) 21. 32-bit PCI Expansion Slots X 3

8. SYSFAN Connector 22. SYSFAN2 Connector

9. 184-pin DIMMs x 2 23. USB 2.0 Connectors x 2

10. IDE Connectors x 2 24. DieHard BIOS Lite

11. ATX Power Connector 25. Serial ATA Ports X 2

12. STBY LED 26. JP14 CMOS Data Clear Jumper

13. IRDA Connector 27. Front Panel Connector

14. Case Open Connector 28. FDD Connector

Chapter 2 Introduction to This Motherboard

2.2 Specification

Here is the main function of your motherboard.

Models s661FXm-S s661FXm

CPU

Intel Pentium 4 Northwood and Prescott

CPU

Socket 478

400/533/800MHz

Intel Pentium 4 CPU Northwood and

Prescott CPU

Socket 478

400/533/800MHz

Chipset SIS 661FX / 964 SIS 661FX / 964L

Main

Memory

DDR 266/333/400MHz

DDR DIMM x 2

DIMM Type : 64/128/256/512MB & 1GB

Max Memory : 2GB

Mode DDR 266/333/400MHz

DDR DIMM x 2

DIMM Type : 64/128/256/512MB & 1GB

Max Memory : 2GB

Graphics Integrated VGA Engine in chipset

8X AGP slot

Integrated VGA Engine in chipset

8X AGP slot

IDE

Integrated ATA133 and Serial ATA

Controller [support RAID0, 1]

Max Disk: 144,000,000GB [by 48 bits

LBA Spec.]

Integrated ATA133

Max Disk: 144,000,000GB [by 48 bits

LBA Spec.]

LAN SIS 10/100 Mbps LAN Controller

RealTek PHY

SIS 10/100 Mbps LAN Controller

RealTek PHY

Sound Realtek AC'97 CODEC onboard, support

5.1 Channel

Realtek AC'97 CODEC onboard, support

5.1 Channel

USB Integrated in chipset, USB 2.0 x 8 Integrated in chipset, USB 2.0 x 8

Slots AGP x 1

PCI x 3

AGP x 1

PCI x 3

Back Panel

I/O

PS/2 Keyboard x 1, PS/2 Mouse x 1

USB Port x 4, LAN Port x 1

VGA Port x 1, COM Port x 1

Printer Port x 1

Speaker_Out x 1, Line_In x 1

MIC_In x 1

PS/2 Keyboard x 1, PS/2 Mouse x 1

USB Port x 4, LAN Port x 1

VGA Port x 1, COM Port x 1

Printer Port x 1

Speaker_Out x 1, Line_In x 1

MIC_In x 1

On Board

Connector

Front Panel x 1

Front Audio x 1

CPU FAN x 1,System FAN x 1,Chassis

FAN x 1

Case Open Connector x 1

CD_IN x 1, AUX_IN x 1

IrDA x 1,S/PDIF x 1

USB Connector x 2

Front Panel x 1

Front Audio x 1

CPU FAN x 1,System FAN x 1,Chassis

FAN x 1

Case Open Connector x 1

CD_IN x 1, AUX_IN x 1

IrDA x 1,S/PDIF x 1

USB Connector x 2

BIOS Award PnP 4Mb Flash ROM BIOS Award PnP 4Mb Flash ROM BIOS

Board Size 244 mm x 220 mm 244 mm x 220 mm

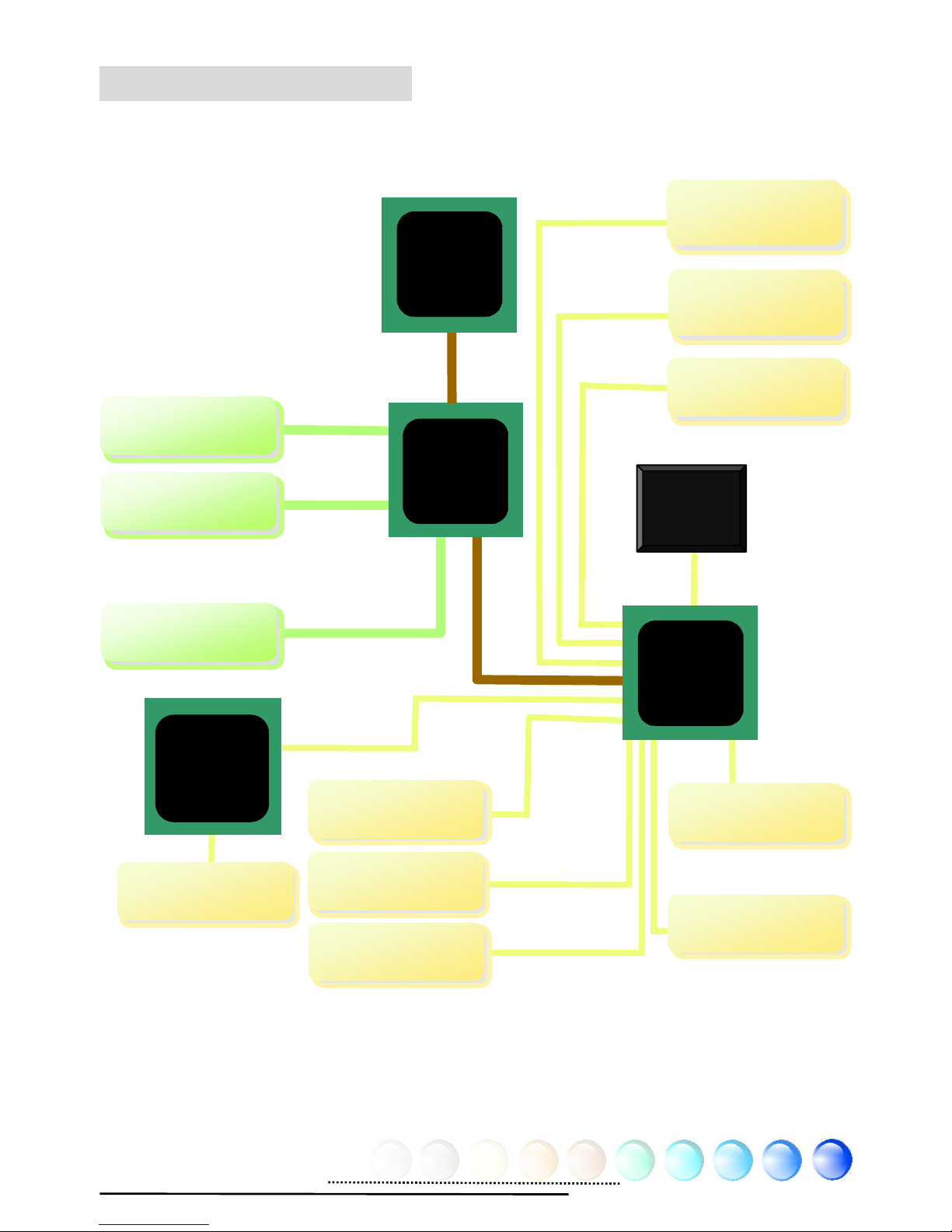

2.3 Block Diagram

SIS

661FX

chipset

DIMM Sockets x2 DDR400/333/266

RAM Up to 2GB

Socket 478

Intel

Pentium 4

CPU

400/533/800MHz

System Bus

AGP bus

AGP 8X Slot

VGA Onboard

964

(s661FXm-S)

964L

(s661FXm)

32-bit PCI Slot

PCI Bus

Serial ATA Ports

150MB/s

IDE Drives x 4

RealTek

AC97

CODEC

ATA

66/100/133

4Mbits Flash

EEPROM

Parallel Port

Serial Ports x1

USB Ports x8

Floppy Disk

Drive

AGP 8X

SIS

10/100

LAN

Controlle

LAN connect

Com

onent

for s661FXm-S

Chapter 3 Hardware Installation

3.1 Quick Installation Procedure

1. Installing CPU

2. Installing CPU

Fan & System Fan

3. Installing

Memory Module

4. Installing HD,

CD-ROM and

SATA Disk, etc

6. Connecting ATX

Power Cable

5. Connecting Front

Panel Cable

7. Installing AGP & PCI

Cards

8. Installing Other

Devices (USB, Front

Audio, etc)

9. Connecting

Back Panel Ports

(Keyboard,

Mouse, etc)

10. Loading

Default BIOS,

Setting CPU

Fre

uenc

11. Installing

Operating System

(such as, Windows

XP)

12. Installing Drivers &

Utilities

3.2 Installation You Have to Know

Installing CPU

This socket supports FC-PGA2 package CPU, which is the latest CPU package

developed by Intel. Other forms of CPU package are impossible to be fitted in.

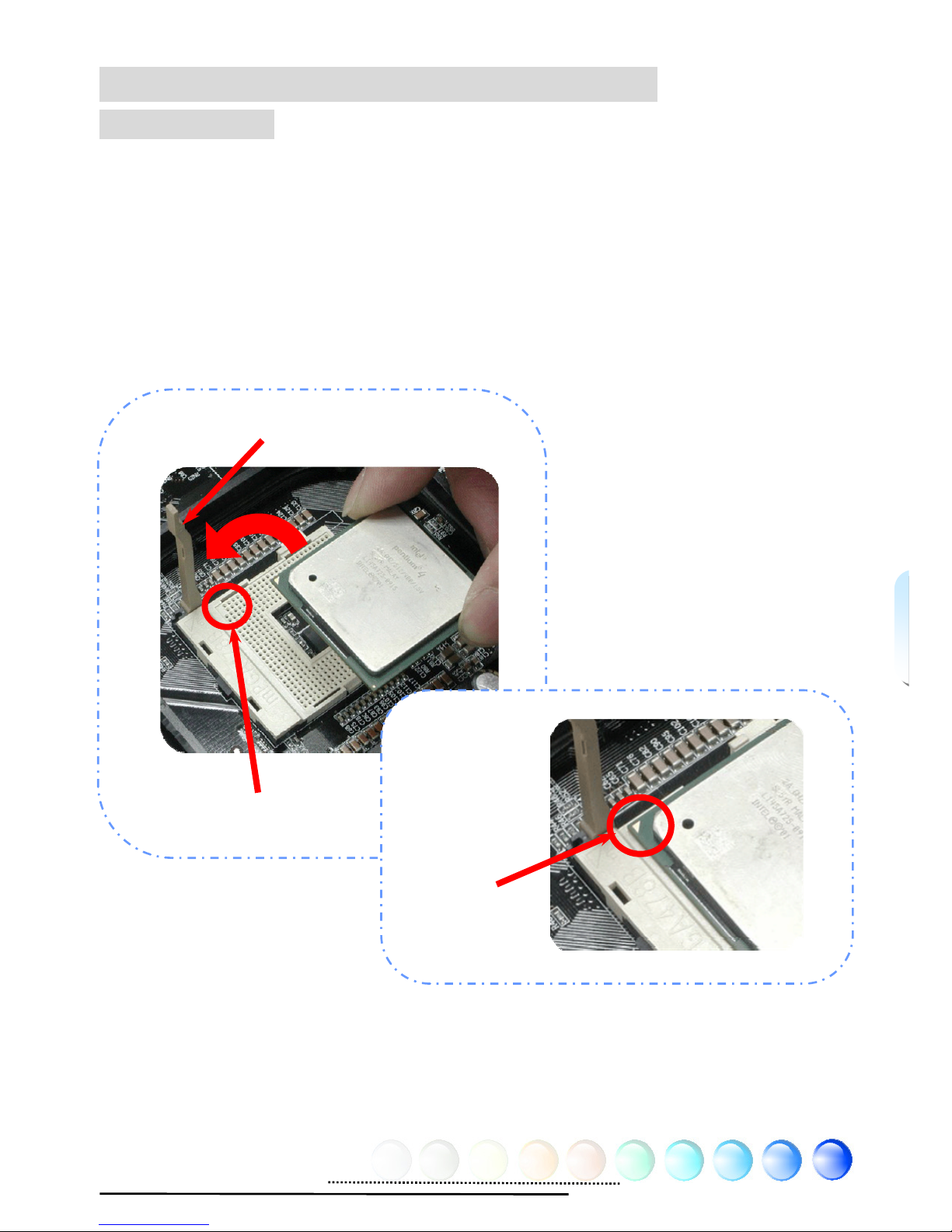

1. Pull up the CPU socket lever and up to 90-degree angle.

2. Locate Pin 1 in the socket and look for a golden arrow on the CPU upper

interface. Match Pin 1 and golden arrow. Then insert the CPU into the

socket.

3. Press down the CPU socket lever to finish CPU installation.

CPU socket lever

Socket Pin 1

Golden arrow

Installing CPU and System Fans

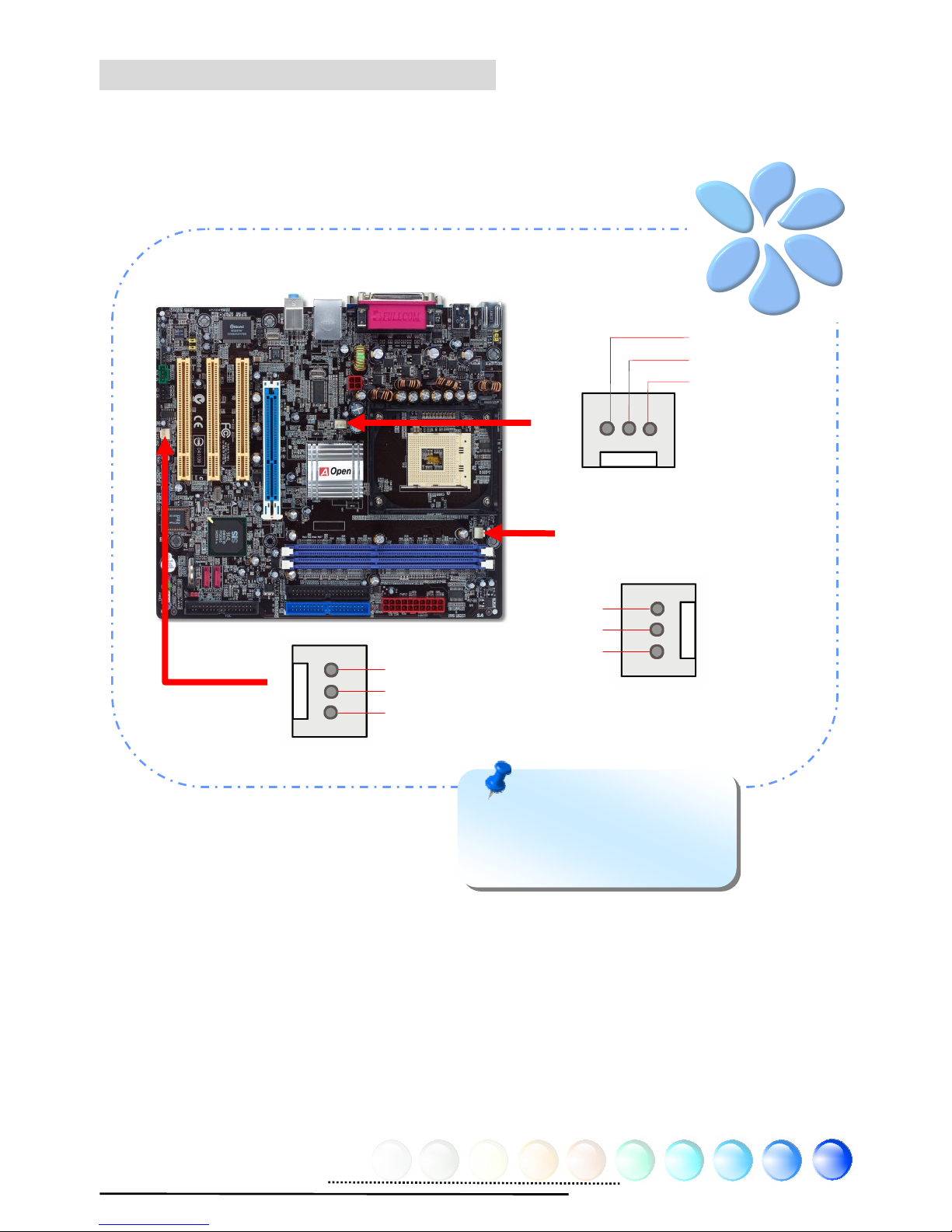

Plug the CPU fan cable to the 3-pin CPUFAN connector. If you have chassis fan,

you can also plug it in SYSFAN1 or SYSFAN2 connector.

SYSFAN1 Connector

CPUFAN Connector

SYSFAN2 Connector

GND

+12V

SENSOR

Note: Some CPU fans

do not have sensor pin so

that they cannot support fan

monitoring.

SENSO

+12V

GND

+12V

SENSOR

Altri manuali per s661FXm-S

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali AOpen Scheda madre

AOpen

AOpen AX45H-8X Max Scheda tecnica

AOpen

AOpen s760GXm-SL Manuale utente

AOpen

AOpen AX4C Max II Guida all'installazione

AOpen

AOpen Fortress 9500 Manuale utente

AOpen

AOpen MX36LE-UI Manuale utente

AOpen

AOpen i915Ga-EFRII Scheda tecnica

AOpen

AOpen MX46U2-GN Guida all'installazione

AOpen

AOpen MK79G Manuale utente

AOpen

AOpen AX45-533 Max Scheda tecnica

AOpen

AOpen AP43 Manuale utente

AOpen

AOpen MX4SGI-L Scheda tecnica

AOpen

AOpen MK77M-8XN Guida all'installazione

AOpen

AOpen AK33 M Scheda tecnica

AOpen

AOpen s661FXm-S Scheda tecnica

AOpen

AOpen AK79G TUBE Guida all'installazione

AOpen

AOpen AX37D Pro Guida all'installazione

AOpen

AOpen MT85 Manuale utente

AOpen

AOpen AX3S-1394 Guida all'installazione

AOpen

AOpen MX4B Guida all'installazione

AOpen

AOpen AX4BE Guida all'installazione

AOpen

AOpen MX34-U Guida all'installazione

AOpen

AOpen DX37PU-OL-E0112B Manuale utente

AOpen

AOpen MoDT i965GMt-LA Manuale utente

AOpen

AOpen S661FXm-FSN Manuale utente

Manuali Scheda madre popolari di altre marche

DFI

DFI SD170 Manuale utente

ASROCK

ASROCK ROMED8-2T Manuale utente

Asus

Asus P2L97A Manuale utente

Winmate

Winmate IC70 Manuale utente

Asus

Asus MES-B Manuale utente

Grantech

Grantech SYS8F377VGGA-3OMN Manuale utente

Telit Wireless Solutions

Telit Wireless Solutions SL869-3DR Manuale utente

Gigabyte

Gigabyte GA-9IVDT Manuale utente

Texas Instruments

Texas Instruments ADS8372EVM Manuale utente

Commell

Commell MS-C73 Manuale utente

IBT Technologies

IBT Technologies MB860 Manuale utente

Nvidia

Nvidia TEGRA DG-04927-001_V01 Manuale utente

Biostar

Biostar M7VIT Bravo Istruzioni per l'uso e l'installazione

Intel

Intel D33217CK Manuale utente

Asus

Asus F1A55-M LX PLUS R2.0 Manuale utente

EPC

EPC EPC9147C Manuale utente

Asus

Asus EX-B760M-V5 D4 Manuale utente

EPOX

EPOX MU-8KHA0010 Manuale utente

AOpen s661FXm-S Manuale utente

Manuali Scheda madre popolari di altre marche
