APART VINCI 5 Manuale utente

VINCI 5

Instruction manual

Installed Sound Solutions

Instruction manualVINCI 5

3

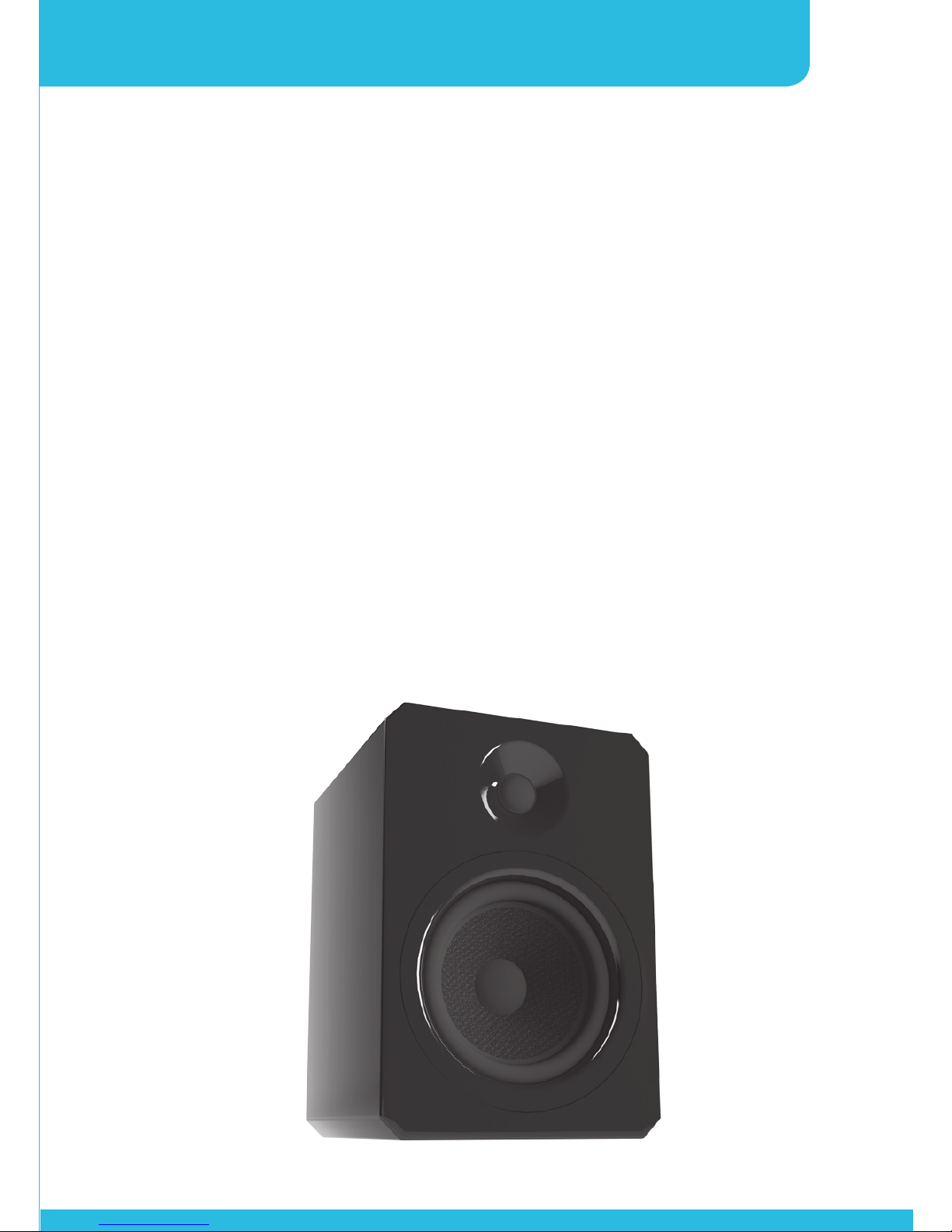

Thank you for purchasing the Apart VINCI 5, our 20th Anniversary

Limited Edition loudspeaker.

This story began 20 years ago. The result is here now. VINCI 5

sets new standards in affordable reference bookshelf speakers. By

keeping the design as simple as possible, we managed to create a

true high end speaker with the highest value for money. Of course,

this is a typical feature for all products of the Apart brand. Compact,

audiophile, neutral but captivating… Each component was carefully

ear-chosen and tested. The result is an ultra linear performer,

with great dynamics and stable stereo imaging. With the optional

speaker stand, the speakers are positioned at ideal listening height.

When properly installed, these speakers will provide you with many

years of listening pleasure. Just sit back, relax and enjoy.

Introduction

4

Limited edition high-end loudspeaker

Safety instructions

• Keep this manual for future reference.

• Take care of your speaker wires, they should be free of damage.

Damaged speaker wires may result in poor sound quality and

can damage ampliﬁers.

• No main power shall be connected to the loudspeakers, doing

so will damage the speaker.

• This speaker should only be serviced by qualiﬁed personnel. If

not, warranty might be void.

• Use cables of the right gauge, certainly for long runs.

• Use cables with clear color indication and maintain polarity

throughout the whole system.

• Avoid loud feedback from microphones, this can damage your

speaker.

• Please check the unit’s condition after unpacking. If the outside

of the carton box has been damaged, inform your shipper

immediately.

Please read this manual carefully before using the product. This

will give you the necessary product and installation instructions to

assure a seamless installation and non-compromised overall sound

quality.

Instruction manualVINCI 5

5

Connecting the speakers

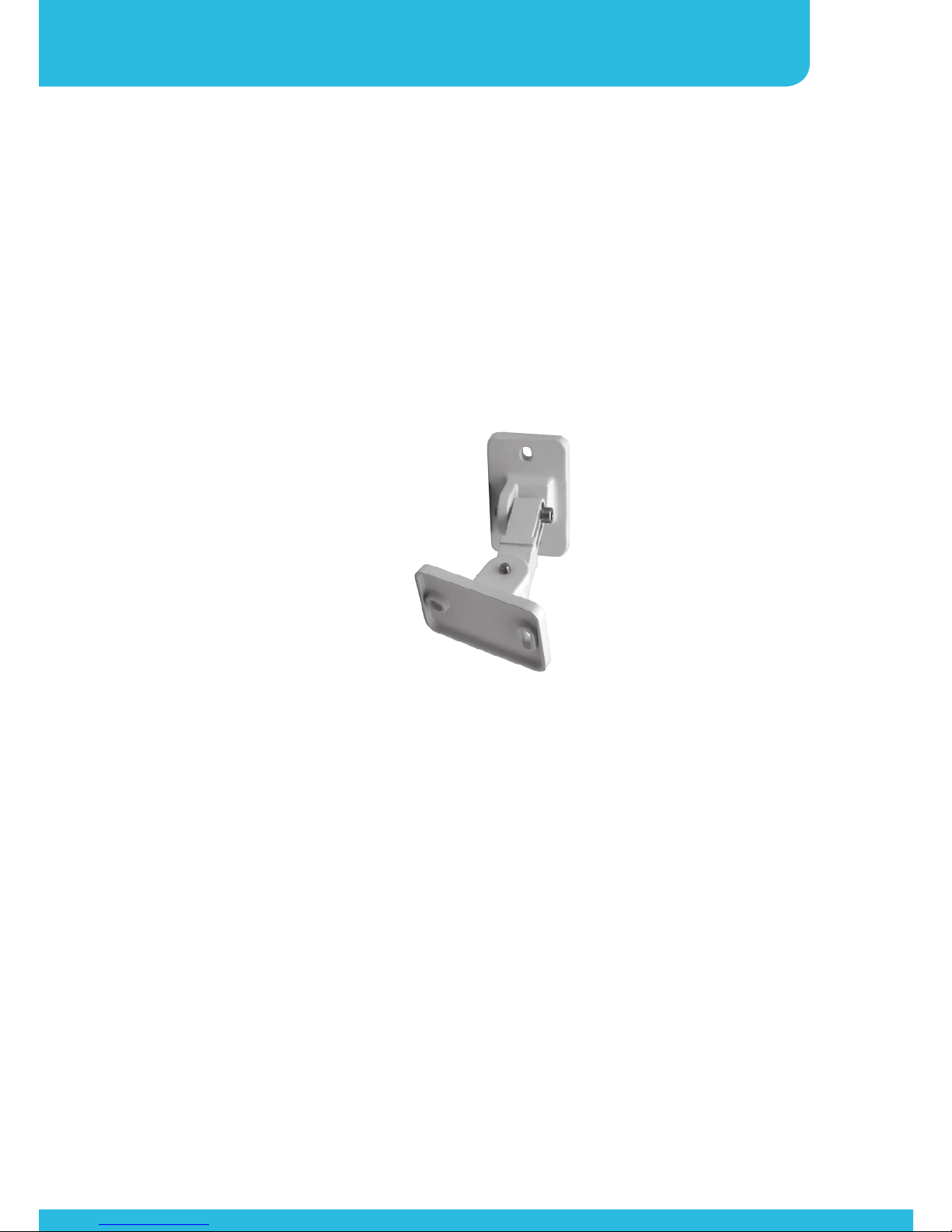

Ideally, you should position the speakers at ear level, but you can

also mount the speakers on the wall using our VINCI 5 bracket,

available in black and white. For more info about this bracket,

please check our website. VINCI 5 is also compatible with other

commercially available speaker brackets as well.

Speaker positioning

Mounting holes with suitable inserts are already present at the

back of the speaker. The mounting holes are spaced 58 mm apart,

located horizontally in the middle of the speaker. Screw thread is

M6, maximum thread length is 12 mm.

Connect the positive or plus output (red) from your ampliﬁer to the

red connector at the back of the speaker. Connect the negative

or minus output (black) to the black connector at the back of the

speaker. No need to mention: always use good quality speaker

cable. The speaker terminals accept speaker wire up to 2.5 mm² and

4 mm banana connectors.

6

Limited edition high-end loudspeaker

Recommended ampliﬁer 30 to 160 watts, no clipping

Nominal impedance 6 Ohm

Frequency response (+- 3 dB) 60 – 25000 Hz

Low frequency point 48 Hz

LF speaker 5 1/4 inch kevlar cone

HF speaker 3/4 inch silk dome

Cabinet Bass reﬂex

Dimensions HxWxD (mm) 254 x 176 x 198 (including grille),

254 x 176 x 184 (without grille)

Weight 3.5 kg

Cabinet material High gloss ﬁnish MDF

Colour Black or white

Speciﬁcations

developed

by

Audioprof nv

Industriepark Brechtsebaan 8 bus 1

2900 Schoten - Belgium

Company names, product names and trademarks are property of their

respective owners.

Apart-Audio speciﬁcations are subject to change without notice.
