Apera Instruments PC60 Manuale utente

PC60 Premium Multi-Parameter Tester

(pH/EC/TDS/Salinity/Temp.)

Instruction Manual

APERA INSTRUMENTS, LLC

www.aperainst.com

Thank you for purchasing Apera Instruments PC60 Premium Multi-Parameter Tester. Please

carefully read this instruction manual before using the product in order to have an accurate and

reliable test result, and avoid unnecessary damages to the meter or probe. Apera Instruments

reserves the rights to make any updates of this instruction manual without giving prior notices.

For video tutorials, please go to support.aperainst.com

Contents

Battery Installation .................................................................................................................................. 3

Keypad Functions .................................................................................................................................... 3

Complete Kit............................................................................................................................................ 4

Preparation Before Use ........................................................................................................................... 4

pH Calibration.......................................................................................................................................... 5

pH Measurement..................................................................................................................................... 6

Conductivity Calibration .......................................................................................................................... 6

Conductivity Measurement ..................................................................................................................... 7

Parameter Setting.................................................................................................................................... 8

Technical Specifications........................................................................................................................... 9

Tester Functions .................................................................................................................................... 10

Probe Replacement ............................................................................................................................... 10

Warranty ............................................................................................................................................... 11

1. Battery Installation

Please install batteries according to the following steps. *Please note direction of batteries: All

POSITIVE SIDES (“+”) FACING UP. (Wrong installation of batteries will cause damage to the

tester and potential hazards)

2. Keypad

Functions

■Short press------ < 2 seconds ,Long press------- > 2 seconds

1.Short press to turn on the tester and long press to

turn off the tester.

2.When turned off, long press to enter parameter

setting.

3. In measurement mode, short press to turn on

backlight.

1.In measurement mode, short press to switch

parameter pH→COND→TDS→SAL

2.In mode setting, short press to change parameter

(Unidirectional)

1. Long press to enter calibration mode.

2. In calibration mode, short press to confirm

calibration.

3.When measured value is locked, short press to

unlock;

① Pull the battery cap up

② Slide the battery cap along to the direction of arrow

③ Open the battery cap

④ Insert the batteries (ALL POSITIVE SIDES FACING UP) (see graph)

⑤ Close the battery cap

⑥ Slide and lock the battery cap along to the direction of arrow

⑦ Fit the tester’s cap while making sure to push all the way down. The tester’s

waterproof design may be compromised if the cap is not fitted correctly.

Battery

Cap

Buttons

Probe

Ring

Probe

Probe Cap

LCD

Display

pH Sensor

BPB Sensor

3.Complete Kit

4.Preparation Before Use

If it is first-time use or the tester hasn’t been used for over 30 days, pour a little 3M KCl storage

solution in the probe cap (about a fifth of the probe cap), and soak the probe for about 5 to 15

minutes. Do NOT let the storage solution come in contact with the BPB sensor (two black rods),

since it could cause potential damage to the sensor. The black fill line on the cap does NOT

indicate how much the KCL soaking solution should be poured in. The volume of KCL solution

poured in should be less than that. The black fill line indicates the minimum volume for sample

testing in the probe cap. To achieve maximum accuracy for pH testing, we recommend soaking the

probe for one night (12 hours) to activate the glass membrane thoroughly.

When not in use, we recommend store the pH probe in the storage solution (do not let the solution

contact BPB sensor). But even if stored dry, it won’t do any damage to the sensor. Users just need

to restore the sensor’s sensitivity by soaking it again.

Diagram - 2

5.pH Calibration

5.1 Rinse the probe in pure water and dry it.

5.2 Pour certain amount (about half volume of the calibration bottle) of pH 7.00 and

pH 4.00 buffer solution in separate calibration bottles;

5.3 Long press to enter calibration mode; Short press to exit.

5.4 Dip the probe in pH7.00 buffer solution, stir gently, and allow it to stand still in

the buffer solution until a stable reading is reached. When stable icon is

displayed on the LCD screen (as shown in Diagram 3), short press to

complete 1-point calibration and the tester returns to measurement mode.

Indication Icon will appear at the bottom left of the LCD screen.

5.5 Rinse the probe in distilled water and dry it. Long press to enter calibration mode.

Dip the probe in pH 4.00 buffer solution, stir gently, and allow it to stand still in the buffer

solution. When stable icon is displayed on the LCD screen, short press to complete

2-point calibration and the tester returns to measurement mode. Indication icon will

appear at the bottom left of the LCD screen.

5.6 If necessary, rinse the probe in distilled water and dry it, and dip the probe in 10.01 buffer

solution (sold separately) to complete 3rd point of calibration according to the steps in 5.1 to 5.4

will appear at the bottom left of the LCD.

■Notes

a) Tester will automatically recognize pH buffer solution. Users can perform one-point, two-point,

or three-point calibration. But for the 1st point calibration, only 7.00 pH solution can be used.

Then use other buffer solutions to conduct 2nd or 3rd point calibration. Tester will

automatically recognize 5 kinds of pH buffer solutions. Refer to the table below:

Calibratio

USA Series

NIST Series

Calibration

Indication Icon

Recommended

Accuracy and

Range

1-point

7.00 pH

6.86 pH

Accuracy ≥ 0.1

2-point

7.00 pH,

4.00 pH or 1.68 pH

6.86 pH,

4.01 pH or

1.68 pH

Measurement

Range＜7.00

7.00 pH,

10.01 pH or 12.45 pH

6.86 pH,

9.18 pH or

12.45 pH

Measurement

Range＞7.00pH

3-point

7.00 pH, 4.00 or 1.68

pH,

10.01 or 12.45 pH

6.86pH, 4.01

or 1.68pH,

9.18 pH or

12.45 pH

Wide

Measurement

Range

Diagram - 3

b) For pH Calibration buffer solutions, we recommend that users replace new buffer solution

after 10 to 15 times of use to keep the standard buffer’s accuracy. Do NOT pour the used

calibration solutions back into the solution bottles in case of contamination.

c) pH probes will NOT give accurate and stable readings in distilled or deionized water. This

is because distilled and deionized water do not have enough ions present for the electrode

to function properly. Do NOT store pH probe in distilled water to prevent damage.

d) For the self-diagnosis information, please refer to the table below:

Symbol

Self-Diagnosis information

Checking and methods to fix

Wrong calibration solution or the range of

calibration solution exceeds standard.

a) Check if calibration solution is correct (1st point

of pH calibration must be pH 7.00)

b) Check if electrode isdamaged.

c) Start over calibration with pH7.00 first, then

pH 4.00 or 10.01

Is pushed before measurement is stable

( comes up)

Wait forthe smile icon to come up and then press

6.pH Measurement

Short press to turn on the tester. Rinse the probe in distilled water and dry it. Dip the probe in

sample solution, stir gently, and allow it to stand still in the solution. Get readings after

comes up and stays.

7.Conductivity Calibration

7.1 Press key to switch to conductivity measurement mode. Rinse the probe in distilled water

and dry it.

7.2 Pour certain amount (about half volume of the calibration bottle) of 1413μS and 12.88mS

conductivity calibration solution into accordant calibration bottles.

7.3 Long press key to enter calibration mode, short press to exit.

7.4 Dip the probe in 1413 μS conductivity calibration solution, stir gently and

allow it to stand still in the solution until a stable reading is reached. When stable

icon appears on the LCD screen, short press key to complete one-point

calibration, the tester returns to measurement mode and indication icon will

appear at the bottom left of the LCD screen.

7.5 After calibration, dip the probe in 12.88 mS conductivity calibration

solution. If the value is accurate, it is not necessary to conduct 2nd point

calibration. If it is inaccurate, follow the steps in 7.1 to 7.4 to complete the 2nd point of calibration

using 12.88 mS buffer solution.

8.Conductivity Measurement

Press key to turn on the tester. Rinse the probe in distilled water and dry it.

Dip the probe in sample solution, stir gently, and allow it to stand still in the solution until a stable

reading is reached. Get readings after comes up and stays. Press to switch from

Conductivity to TDS/SAL/pH.

■Notes

a) The tester uses 84μS, 1413 μS and 12.88 mS conductivity calibration solution. User

can conduct 1 to 3 points calibration. Refer to the table below. Usually calibrating the

tester with 1413 μS conductivity buffer solution alone shall meet the testing

requirement.

Calibration Indication Icon

Calibration Standards

Measuring Range

84 μS/cm

0 - 200 μS/cm

1413 μS/cm

200 - 2000 μS/cm

12.88 mS/cm

2 - 20 mS/cm

b) The tester has been calibrated in factory. Generally, users can use the tester directly or users

can test conductivity buffer solutions first. If the error is large, then calibration is needed.

c) For conductivity calibration solutions, we recommend that users replace new solutions after 5 to

10 times of use to keep the standard solution’s accuracy. Do NOT pour the used calibration

solutions back into the solution bottles in case of contamination.

d) Temperature compensation factor: The default setting of the temp. compensation factor is

2.0%/℃. User can adjust the factor based on test solution and experimental data in parameter

setting P4.

Solution

Temperature

compensation

coefficient

Solution

Temperature

compensation

coefficient

NaCl

2.12%/˚C

10% Hydrochloric acid

1.32%/˚C

5% NaOH

1.72%/˚C

5% Sulfuric acid

0.96%/˚C

Dilute ammonia

1.88%/˚C

e) TDS and conductivity is linear related, and its conversion factor is 0.40-1.00. Adjust the factor

in parameter setting P5. The factory default setting is 0.71. Salinity and conductivity is linear

related, and its conversion factor is 0.5. The tester only needs to be calibrated in Conductivity

mode, then after calibration of conductivity, the meter can switch from conductivity to TDS or

salinity.

f) For the self-diagnosis information, please refer to the table below:

Symbol

Self-Diagnosis information

How to fix

Wrong conductivity buffer solution, which

exceeds the recognizable range of the

meter.

1. Check if buffer solution is correct

2. Check if electrode isdamaged.

Is pushed before measurement is stable

( comes up and stays)

Wait forthe smile icon tocomeup and then press

9.Parameter Setting

9.1 Setting Chart

9.2 Parameter Setting

When turned off, long press to enter parameter setting →short press

to switch P1-P2… →P8. Short Press , parameter flashes →short press

to choose parameter, → short press to confirm →Long press

to turn off.

Symbol

Parameter Setting Contents

Code

Factory

Default

Select pH buffer standards

USA –NIST

USA

Select automatic lock

Off –On

Off

Select backlight

Off - 1- On

Temperature compensation factor

0.00 - 4.00%

2.00%

TDS factor

0.40 - 1.00

0.71

Salinity unit

ppt - mg/L

ppt

Select temperature unit

℃-℉

℃

Back to factory default

No –Yes

9.3 Parameter Setting Instruction

a) Select standard pH buffer solution (P1): There are two options of standard buffer solutions:

USA series and NIST series. Refer to following chart:

Icons

pH Standard Buffer Solution Series

USA series

NIST series

Three-point

calibration

1.68 pH and 4.00 pH

1.68 pH and 4.01 pH

7.00 pH

6.86 pH

10.01 pH and 12.45 pH

9.18 pH and 12.45 pH

b) Automatic lock (P2):

Select “On”to activate auto lock function. When reading is stable for more than 10

seconds, the tester will lock the value automatically, and HOLD icon

will display on LCD. Press key to cancel auto hold.

c) Backlight (P3)

“Off”-turn off backlight, “On”-turn on backlight, 1- backlight will last for 1 minute.

d) Factory default setting(P7)

Select “Yes”to recover instrument calibration to theoretical value (pH value in zero

potential is 7.00, slope is 100%), parameter setting return to initial value. This function can

be used when instrument does not work well in calibration or measurement. Calibrate and

measure again after recover the instrument to factory default status.

10.Technical Specifications

Range

-2.00 to 16.00 pH

Resolution

0.01 pH

Accuracy

±0.01 pH

Calibration Points

1 to 3 points

Automatic Temperature Compensation

0 - 50℃

Cond.

Range

0 to 200.0 μS, 0 to 2000 μS,

0 to 20.00 mS

Resolution

0.1/1 μS, 0.01 mS

Accuracy

±1% F.S

Calibration Points

1 to 3 points

TDS

Range

0.1 ppm to 10.00 ppt

TDS Factor

0.40 to 1.00

Salinity

Range

0 to 10.00 ppt

Temp.

Range

0 to 50 ℃

Resolution

0.1 ℃

Accuracy

±0.5 ℃

11.Tester Functions

①Calibration points indication:

②Stable Measurement:

③Reading value Auto. Lock: HOLD

④Self-Diagnostic Information: Er1, Er2

⑤Low-Voltage warning: flashes, reminder of battery replacement

⑥Three-Color backlight:

Blue—Measurement Mode; Green—Calibration Mode; Red—Alarm;

⑦Auto. Power off in 8 minutes if no operation.

12.Probe Replacement

Screw off the probe ring, unplug the probe, plug in the new replacement probe (pay attention to the

probe’s position), and screw on the probe ring. The model numbers of replacement probes that are

compatible with PC60 are:

PC60-E

PH60-E (Regular pH glass bulb probe)

PH60S-E (Spear pH probe for solids/semi-solids pH testing)

PH60F-E (Flat pH probe for surface pH testing)

EC60-E (Conductivity probe)

Altri manuali per PC60

Indice

Altri manuali Apera Instruments Apparecchiature di prova

Apera Instruments

Apera Instruments ZenTest PC60-Z Manuale utente

Apera Instruments

Apera Instruments LabSen 241-6 Manuale utente

Apera Instruments

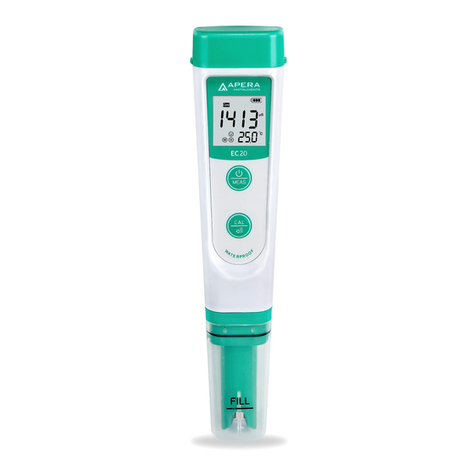

Apera Instruments EC20 Manuale utente

Apera Instruments

Apera Instruments LabSen843 Manuale utente

Apera Instruments

Apera Instruments LabSen 753 Manuale utente

Apera Instruments

Apera Instruments EC20 Manuale utente

Apera Instruments

Apera Instruments PH60F-Z Manuale utente

Apera Instruments

Apera Instruments SX630 Manuale utente

Apera Instruments

Apera Instruments EC60 Manuale utente

Apera Instruments

Apera Instruments GroStar GS2 Manuale utente

Apera Instruments

Apera Instruments GroStar GS3 Premium Manuale utente

Apera Instruments

Apera Instruments LabSen 553 Manuale utente

Apera Instruments

Apera Instruments Premium Series Manuale utente

Apera Instruments

Apera Instruments SX620 Manuale utente

Apera Instruments

Apera Instruments ZenTest PC60-Z Manuale utente

Apera Instruments

Apera Instruments GroStar GS4 Manuale utente

Apera Instruments

Apera Instruments GroStar GS4 Manuale utente

Apera Instruments

Apera Instruments Premium Series Manuale utente

Apera Instruments

Apera Instruments EC20 Manuale utente

Apera Instruments

Apera Instruments LabSen 231 Manuale utente

Apera Instruments

Apera Instruments 2301-C Manuale utente

Apera Instruments

Apera Instruments EC60 Manuale utente

Apera Instruments

Apera Instruments COND5 Manuale utente

Apera Instruments

Apera Instruments PH20 Manuale utente

Manuali Apparecchiature di prova popolari di altre marche

SMART

SMART KANAAD SBT XTREME 3G Series Manuale utente

Agilent Technologies

Agilent Technologies BERT Serial Manuale utente

Agilent Technologies

Agilent Technologies N3280A Manuale utente

Vernier

Vernier Go Direct Voltage Manuale utente

Lifeloc

Lifeloc R.A.D.A.R. Manuale utente

Fluke

Fluke T5-600 Istruzioni per l'uso e l'installazione

Mercury

Mercury TSL01 Manuale utente

MAHA

MAHA MBT Series Manuale utente

Fuji Electric

Fuji Electric P-61 Manuale utente

ETC

ETC SealerAtor Manuale utente

Skyfine

Skyfine ETHYWAY V2 Manuale utente

Appion

Appion G5 Twin Manuale utente

PCB Piezotronics

PCB Piezotronics 8159-0112A Manuale utente

BW Technologies

BW Technologies MicroDock II Manuale utente

Sun Nuclear

Sun Nuclear 1027 Manuale utente

Biomark

Biomark HPR LITE READER Manuale utente

Hioki

Hioki 3169-20 Manuale utente

Ashcroft

Ashcroft ATE-100 Manuale utente
