Aplex ADP- 11x6 Manuale utente
ADP-11x6 User Manual 1
ADP- 11x6 Display Monitor
User Manual
ReleaseDate Revision
Apr 2010 V1.0
®2010 Aplex Technology, Inc. All Rights Reserved. Published in Taiwan
Aplex Technology, Inc.
15, No. 186, Jian Yi Road, Chung Ho City, Taipei County, Taiwan
ADP-11x6 User Manual 2
Warning!___________________________________
This equipment generates, uses and can radiate radio frequency energy and if not installed and
used in accordance with the instructions manual. It may cause interference to radio communications.
It has been tested and found to comply with the limits for a Class A computing device pursuant to
FCC Rules, which are designed to provide reasonable protection against such interference when
operated in a commercial environment. Operation of this equipment in a residential area is likely
to cause interference in which case the user at his own expense will be required to take whatever
measures may be required to correct the interference.
Disclaimer
This information in this document is subject to change without notice. In no event shall Aplex Technology
Inc. be liable for damages of any kind, whether incidental or consequential, arising from either the use or
misuse of information in this document or in any related materials.
Electric Shock Hazard – Do not operate the machine with its back cover removed. There are
dangerous high voltages inside.
ADP-11x6 User Manual 3
Table of Contents______________________
Warning!…………………………………………………………………………….……..….2
Disclaimer………………………………………………………………….…………………2
Chapter1 GettingStarted
1.1 Features………………………………………………………….…..…..…4
1.2 Specifications…………………………………………....……………...….4
1.3 Dimensions…………………………………...………………………….…6
1.4 Brief Description...................................................................................10
1.5 Display Mode………………………………………………………………11
Chapter2 OSD
2.1 Front Panel Controls………….………………………………….…..…….12
2.2 OSD Controls………………………………………………………………..12
2.3 Main Menu…..……………………………………………………………..13
2.4 AD Board OSD Functions…………..…………………………………15
Figures
Figure 1.1: Dimensions of ADP-1126.………..…………..……..………..6
Figure 1.2: Dimensions of ADP-1156………..…………..…...…………..7
Figure 1.3: Dimensions of ADP-1176.………..………..…..……………..8
Figure 1.4: Dimensions of ADP-1196.………..……..……..……………..9
Figure 1.5: Front View…..….………………………………………………….10
Figure 1.6: Rear View…………………..……………………………………...10
Figure 1.7: VESA mounting of the ADP11x6…………………………...16
ADP-11x6 User Manual 4
Chapter 1_____________________________
1.1 Features
●Stainless Steel Display
●Five edges panel NEMA 4/IP 65 rated
●Resistive touch screen (optional)
●VESA mount
●VGA Input, with optional DVI, Video or S-Video input
●Supports wide-ranging resolutions from 640x480 to up to 1600x1200 with auto phase and auto
position
1.2 Specifications
Display
Environment
Operating Temperature: 0~50˚C (32˚~122˚F)
Storage Temperature: -20~60˚C (-4˚~140˚F)
Relative Humidity: 10~90% @40˚C non-condensing, without touch screen
Vibration: 1g peak, 5~500Hz (at random)
Shock: 15G peak acceleration (11msec. duration)/operation
Ratings: Five edges panel NEMA 4/IP 65 rated
Certifications: Meet CE/FCC Class A
Model No. ADP-1126 ADP-1156 ADP-1176 ADP-1196
Construction Stainless Steel chassis
Model No. ADP-1126 ADP-1156 ADP-1176 ADP-1196
Display 12.1” 15” 17” 19”
Luminance 350 cd/m² 400 cd/m² 380 cd/m² 450 cd/m²
Viewing Angle 140(H)x110(V) 140(H)x125(V) 170(H)x160(V) 170(H)x160(V)
Resolution 800x600,
RGB Vertical Stripe
1024x768,
16.2M colors
1280x1024,
16.7M colors
1280x1024,
16.7M colors
Backlight
Lifetime
LED backlight
40,000hrs
CCFL tube x 4
50,000hrs
CCFL tube x 4
50,000hrs
CCFL tube x 4
50,000hrs
Touch Screen Resistive antiglare Resistive antiglare Resistive antiglare Resistive antiglare
OSD
Controls/Indicators
A
utomatic screen, setup (OSD), brightness, contrast, horizontal/vertical position, image
lock, color balance, video information, power on and sync detected
OS Compatibility Win 95/98, XP, 2000, NT 4.0, QNX, Linux
Power Input DC 12V, Optional 11~32V/DC
ADP-11x6 User Manual 5
Dimensions 330x50x260
(Wx Dx H / mm)
398x53x316mm
(Wx Dx H / mm)
432x57.4x358
(Wx Dx H / mm)
470x60x388.6
(Wx Dx H / mm)
Mounting VESA Mount 75x75 VESA Mount
100x100
ADP-11x6 User Manual 6
1.3 Dimensions
Figure 1.1: Dimensions of the ADP-1126
ADP-11x6 User Manual 7

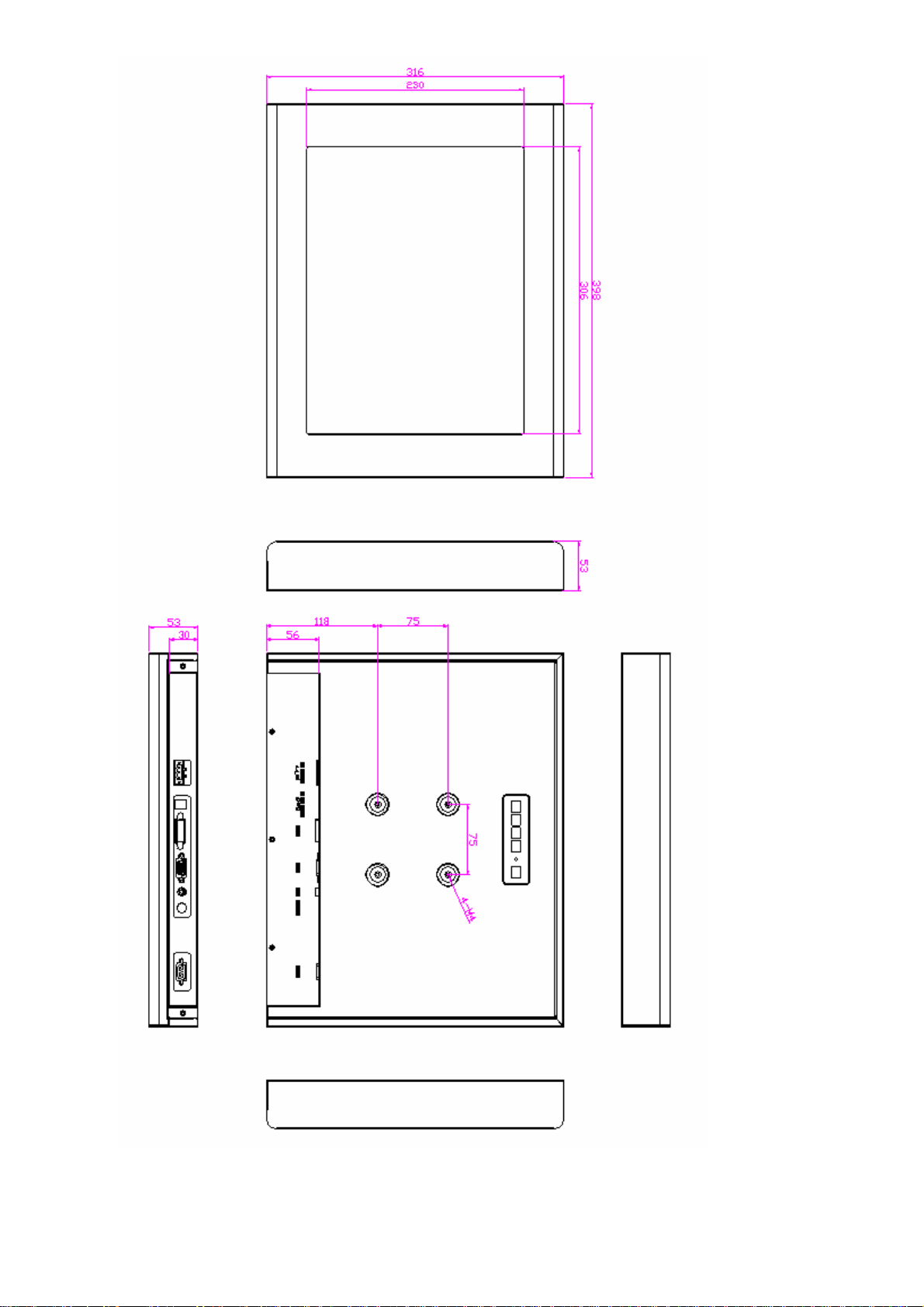

Figure 1.2 Dimensions of the ADP-1156
ADP-11x6 User Manual 8
Figure 1.3: Dimensions of the ADP-1176
ADP-11x6 User Manual 9
Figure 1.4: Dimensions of the ADP-1196
ADP-11x6 User Manual 10
1.4 Brief Description
The ADP-11x6 features an excellent viewing ability for monitoring and control applications. It is
available with resistive touch screen that is easy to use and maintain.
The front panel of the display monitor is sealed with gasket for NEMA 4/IP 65 rating when it is
panel-mounted in a NEMA rated cabinet or enclosure.

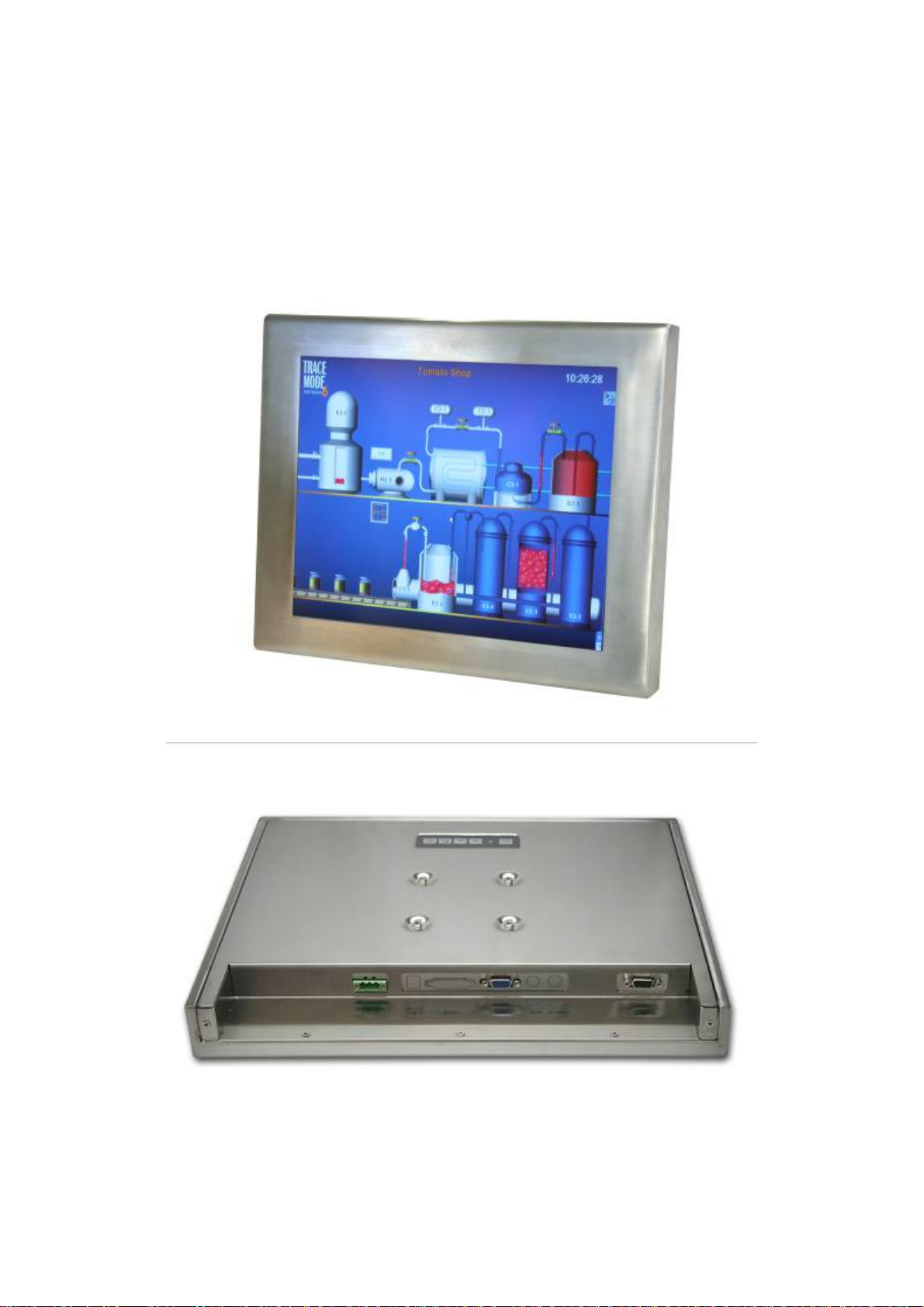

Figure 1.5: Front View of the ADP-11x6
Figure 1.6: Rear View of the ADP-11x6
