Arecont Vision MicroDome AV1455DN-S Manuale utente

INSTALLATION MANUAL

AV1455DN-S

AV2455DN-S

AV2456DN-S

AV3455DN-S

AV3456DN-S

AV5455DN-S

Arecont Vision MicroDome™ Installation Manual

Page | 2 support@arecontvision.com

MicroDome™Surface Mount Installation

Contents

Package Contents....................................................................................................................................................... 3

Warranty Information................................................................................................................................................ 3

Installation Overview ................................................................................................................................................. 4

Installation ................................................................................................................................................................. 5

Focusing the Camera.................................................................................................................................................. 6

Changing the Lens...................................................................................................................................................... 7

Focusing Alternate Lenses ......................................................................................................................................... 7

Digital Input and Output ............................................................................................................................................ 8

LED Indicators ............................................................................................................................................................ 9

Support .................................................................................................................................................................... 10

Installation Best Practice.......................................................................................................................................... 11

Camera Discovery, Setup, and Configuration .......................................................................................................... 12

Wall Mount Accessory (MCD-WMT)........................................................................................................................ 13

Pendant Mount Accessory (MCD-CMT)................................................................................................................... 14

Mount Template: MicroDome Camera.................................................................................................................... 15

Mount Template: MicroDome Wall Mount............................................................................................................. 16

Mount Template: MicroDome Pendant Mount....................................................................................................... 17

Arecont Vision MicroDome™ Installation Manual

Page | 3 support@arecontvision.com

Package Contents

Item

Description

MegaPixel Camera

MicroDome™

Mounting Kit

Ceiling template

6x Mounting Screws (#6x1” for wood or sheet

metal)

6x Mounting Anchors

3/8” NPT Male to 1/2” NPT Female Adapter

Network Patch Cable

3x Security Torx Dome Cover Fasteners

Arecont Vision CD

Manual, Warranty, Installation Software

Warranty Information

3 Year Limited Warranty

ARECONT VISION warrants to Purchaser (and only Purchaser) (the “Limited Warranty”), that: (a) each Product shall be free

from material defects in material and workmanship for a period of thirty-six (36) months from the date of shipment (the

“Warranty Period”); (b) during the Warranty Period, the Products will materially conform with the specification in the applicable

documentation; (c) all licensed programs accompanying the Product (the “Licensed Programs”) will materially conform with

applicable specifications. Notwithstanding the preceding provisions, ARECONT VISION shall have no obligation or

responsibility with respect to any Product that (i) has been modified or altered without ARECONT VISION’s written

authorization; (ii) has not been used in accordance with applicable documentation; (iii) has been subjected to unusual stress,

neglect, misuse, abuse, improper storage, testing or connection; or unauthorized repair; or (iv) is no longer covered under the

Warranty Period. ARECONT VISION MAKE NO WARRANTIES OR CONDITIONS, EXPRESS, IMPLIED, STATUTORY OR

OTHERWISE, OTHER THAN THE EXPRESS LIMITED WARRANTIES MADE BY ARECONT VISION ABOVE, AND

ARECONT VISION HEREBY SPECIFICALLY DISCLAIMS ALL OTHER EXPRESS, STATUTORY AND IMPLIED

WARRANTIES AND CONDITIONS, INCLUDING THE IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A

PARTICULAR PURPOSE, NON-INFRINGEMENT AND THE IMPLIED CONDITION OF SATISFACTORY QUALITY. ALL

LICENSED PROGRAMS ARE LICENSED ON AN “AS IS” BASIS WITHOUT WARRANTY. ARECONT VISION DOES NOT

WARRANT THAT (I) THE OPERATION OF THE PRODUCTS OR PARTS WILL BE UNINTERRUPTED OR ERROR FREE;

(II) THE PRODUCTS OR PARTS AND DOCUMENTATION WILL MEET THE END USERS’ REQUIREMENTS; (III) THE

PRODUCTS OR PARTS WILL OPERATE IN COMBINATIONS AND CONFIGURATIONS SELECTED BY THE END USER;

OTHER THAN COMBINATIONS AND CONFIGURATIONS WITH PARTS OR OTHER PRODUCTS AUTHORIZED BY

ARECONT VISION OR (IV) THAT ALL LICENSED PROGRAM ERRORS WILL BE CORRECTED.

For RMA and Advance Replacement information visit ArecontVision.com

Arecont Vision MicroDome™ Installation Manual

Page | 4 support@arecontvision.com

Installation Overview

Ceiling

Gasket

Dome Cover

Captive Fasteners

(Hand Tighten Only)

Camera Housing

Mounting Screws

NPT Port

(

Gasket

Arecont Vision MicroDome™ Installation Manual

Page | 5 support@arecontvision.com

Installation

1. Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and with all

local codes and authorities having jurisdiction. Wiring should be UL Listed and/or Recognized wire

suitable for the application.

2. Operating Temperature -40°C (-40°F) to +50°C (122°F)

3. Always use hardware e.g. screws, anchors, bolts, locking nuts etc. which are compatible with mounting

surface and of sufficient length and construction to insure a secure mount

4. Visit http://www.arecontvision.com/ and check to ensure your camera has the most current firmware.

5. For installations in harsh environments it is recommended to use all six mounting screws supplied with

your camera to create the best seal possible between your camera and the mounting surface using the

supplied gasket.

6. If using the NPT port always use Teflon tape around threads to ensure proper sealing.

7. After plugging in the network cable check that the indicator LED’s are indicating the desired conditions

(see LED Indicator table).

8. Use Arecont Vision software AV100 or AV200 located on the CD or available for download at our

website (www.arecontvision.com) for camera discovery and setup (see Instruction Manual located on

CD or available on our website).

9. Adjust the pan and tilt to obtain the desired field of view (see Focusing Instructions).

10. Lens may be further secured by tightening

the lens lock screw using Phillips head

screwdriver.

11. Install the Dome Cover by aligning the

captive fasteners with the mating

threaded holes on the camera housing.

12. When mounting the Dome Cover to the Camera

Housing ensure that the gasket is properly seating and not folded. Failure to

do so may result in water and dust ingress.

13. When mounting the Dome Cover to the Camera Housing do not over torque

the three captive fasteners as this will cause the threads to strip. Only hand

tighten these screws.

Best Practice Tips

When mounting to vertical surface it is best to use the Wall Mount Accessory

(MCD-WMT) which includes a junction box.

For outdoor use it is always best to properly seal the product using caulk

around the edges to prevent water ingress from mounting to porous or

uneven surfaces.

Use Teflon tape on threaded interfaces.

Use all 6 supplied mounting screws for best seal when mounting outdoors.

Tech

Tip

Arecont Vision MicroDome™ Installation Manual

Page | 6 support@arecontvision.com

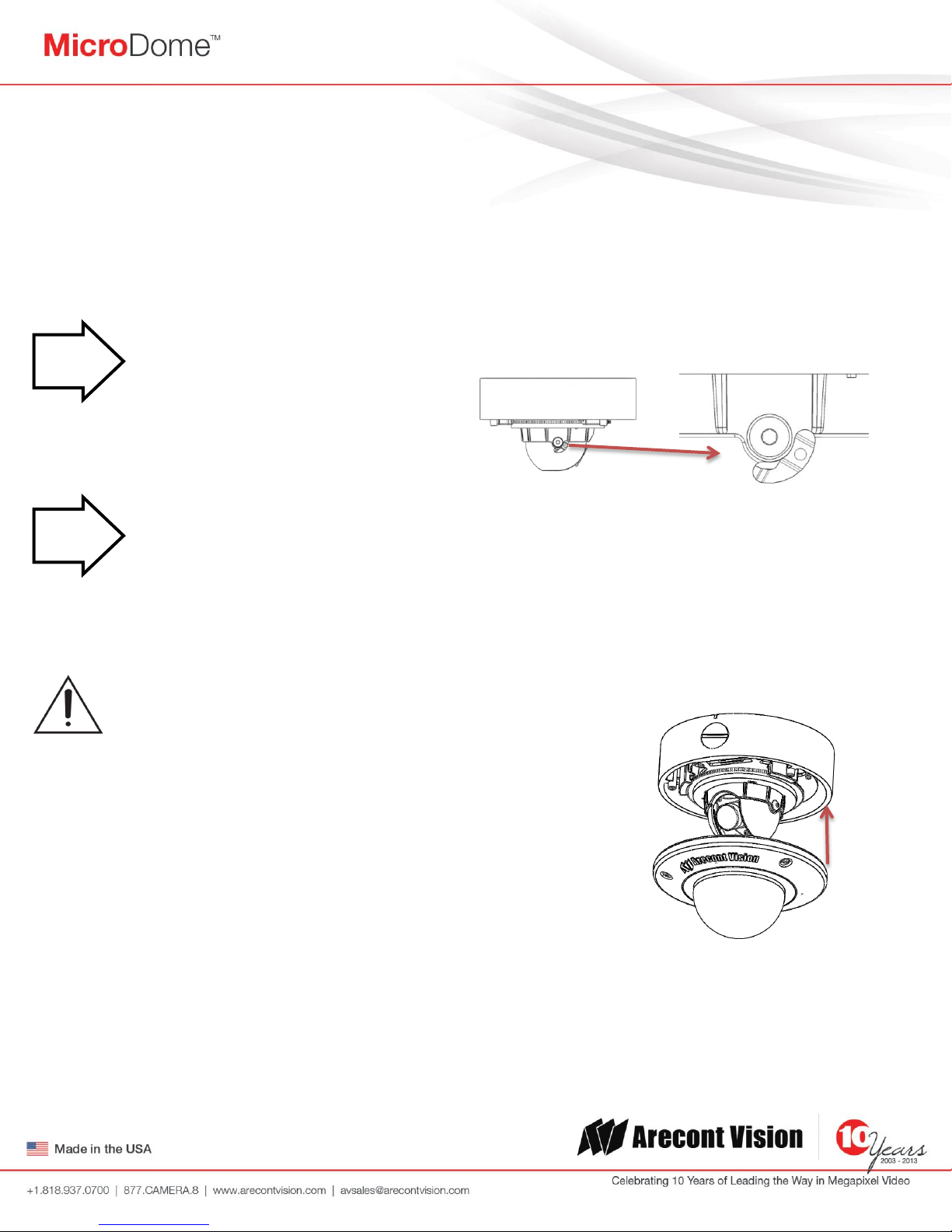

Focusing the Camera

1. Open a live view of the camera from your web browser or the AV Software provided (AV100 or AV200).

2. Loosen the lens lock screw using a phillips head screwdriver (if necessary). Only do so if lens seems very

tight when turning. Lock screw should

be tightened enough to provide some

friction against the lens to avoid

focusing problems.

3. Manually rotate the lens to adjust the

focus until the desired image is

obtained.

4. For some lenses a focus shift will occur once the bubble is in place. Hold the bubble up to the lens when

focusing to account for the focus shift or see the “Focusing Alternate Lenses” section below for further

instruction.

5. Retighten the lock screw if necessary.

6. Install the Dome Cover by aligning the captive fasteners with the mating threaded holes on the camera

housing.

7. When mounting the Dome Cover to the Camera Housing ensure that the gasket is properly seating and

not folded. Failure to do so may result in water and dust

ingress.

8. When mounting the Dome Cover to the Camera Housing do

not over torque the three captive fasteners as this will cause

the threads to strip. Only hand tighten these screws.

Tech

Tip

Tech

Tip

Arecont Vision MicroDome™ Installation Manual

Page | 7 support@arecontvision.com

Changing the Lens

1. Remove the Dome Cover by loosening the captive fasteners.

2. Loosen the lens lock screw using a phillips head screwdriver (if necessary). Only do so if lens seems very

tight when turning.

3. Manually unscrew the lens, this may take

several seconds.

4. Replace lens.

5. Retighten the lock screw if necessary.

6. Reinstall Dome Cover per instructions

outlined above.

Focusing Alternate Lenses

When focusing the 6mm, 8mm, 12mm or 16mm lens options you will encounter a focus shift when using the

bubble. To account for this follow these steps:

1. Focus the camera without the bubble.

2. Rotate the lens per the chart below. The rotation will account for most of the focus shift.

3. Put cover with bubble on. You should be close to being focused.

4. Remove cover and rotate a couple degrees at a time in either direction until you gain the desired image.

Example: Using a 16mm lens you will focus the lens without the bubble until you get the desired image. Rotate

the lens almost ¾ of a turn (250°). Put the bubble on and view the image. It should be almost in focus. Remove

the bubble and rotate a degree or two in one direction and view the image with the bubble on. Depending on

the image you may need to adjust in the opposite direction or continue in the same direction until the desired

image is obtained.

Lens

Rotation

MPM16.0

16mm

<3/4 CCW

250°

MPM12.0

12mm

1/4 CCW

90°

MPM8.0

8mm

>1/8 CCW

60°

MPM6.0

6mm

1/8 CCW

45°

Tech

Tip

Arecont Vision MicroDome™ Installation Manual

Page | 8 support@arecontvision.com

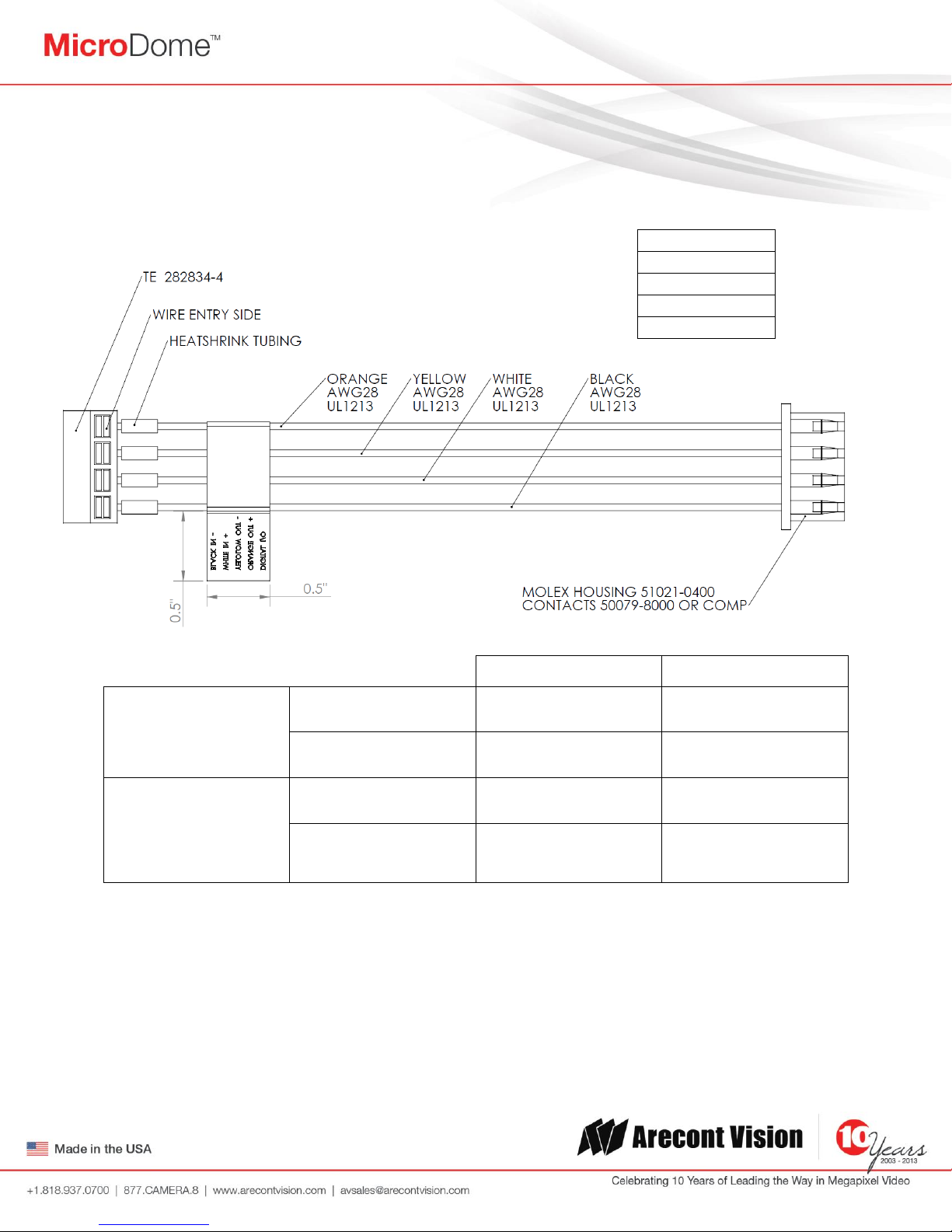

Digital Input and Output

Use 4 position connector inside camera housing to interface with Digital I/O.

DIGITAL I/O

BLACK IN -

WHITE IN +

YELLOW OUT -

ORANGE OUT +

Electrical Characteristics

MIN

MAX

Input Voltage (V)

(Measured between +

and –terminals)

2.9

6.3

OFF

1.3

Output Current (mA)

(Measured between +

and –terminals)

Applied Voltage Range :

0-80V

OFF

0.1

NOTE: Both the input and the output are electrically isolated from the rest of the camera’s electrical

circuitry via general-purpose photo couplers. The input is additionally protected with a serial 250 Ohm

resistor and a debouncing circuit. Duration of any input signal should be at least 5ms to comply with the

requirements of the debouncing circuit.

Arecont Vision MicroDome™ Installation Manual

Page | 9 support@arecontvision.com

LED Indicators

LED

Status

Description

Yellow

Flashing

Link has been

established.

Solid

Normal Operation.

None

No connection.

Green

Flashing

Camera has been

accessed. Normal

operation.

Solid

N/A

None

No Connection.

Arecont Vision MicroDome™ Installation Manual

Page | 10 support@arecontvision.com

Support

1. Arecont Vision FAQ Page Located at ArecontVision.com

2. Check the following before you call:

Restore camera to factory default with AV100, AV200 or the camera

webpage.

Upgrade to the latest firmware by visiting ArecontVision.com.

Isolate the camera on a dedicated network and test with AV100 or AV200.

Swap the “troubled” camera with a known good camera to see if the

problem follows the camera or stays at the location.

3. Contact Arecont Vision Technical Support one of three ways:

1. Online Portal : Support.ArecontVision.com

2. Phone : 1.818.937.0700 (option #1)

3. Email : support@arecontvision.com

Altri manuali per MicroDome AV1455DN-S

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Arecont Vision Telecamera IP

Arecont Vision

Arecont Vision Surround Video AV8360 Manuale utente

Arecont Vision

Arecont Vision MegaVideo AV5110 Manuale utente

Arecont Vision

Arecont Vision AV10005DN Manuale utente

Arecont Vision

Arecont Vision AV12186DN SurroundVideo Manuale utente

Arecont Vision

Arecont Vision MegaVideo AV1300 Manuale utente

Arecont Vision

Arecont Vision MegaDome AV5155 Manuale utente

Arecont Vision

Arecont Vision AV3110 Manuale utente

Arecont Vision

Arecont Vision Surround Video AV8365 Manuale utente

Arecont Vision

Arecont Vision Surround Video AV8180 Manuale utente

Arecont Vision

Arecont Vision AV3125IRv1 Manuale utente

Arecont Vision

Arecont Vision MegaDome AV3155 Manuale utente

Arecont Vision

Arecont Vision MegaDome AV2155 Manuale utente

Arecont Vision

Arecont Vision AV20185DN Manuale utente

Arecont Vision

Arecont Vision MegaVideo AV3100-AI Manuale utente

Arecont Vision

Arecont Vision AV3236DN Manuale utente

Arecont Vision

Arecont Vision MegaVideo AV2100-AI Manuale utente

Arecont Vision

Arecont Vision MegaVideo AV3130 Manuale utente

Arecont Vision

Arecont Vision MegaVideo AV5100-AI Manuale utente

Arecont Vision

Arecont Vision Surround Video AV8185 Manuale utente

Arecont Vision

Arecont Vision MegaVideo AV5105 Manuale utente

Arecont Vision

Arecont Vision MegaVideo AV3105 Manuale utente

Arecont Vision

Arecont Vision MegaDome 2 AV1255AM Manuale utente

Arecont Vision

Arecont Vision MegaBall AV3146DN-3310-D-LG Manuale utente

Arecont Vision

Arecont Vision AV12186DN SurroundVideo Manuale utente

Manuali Telecamera IP popolari di altre marche

FLIR

FLIR Exx series Manuale utente

Avigilon

Avigilon H4A-BO1-IR Manuale utente

Digital Watchdog

Digital Watchdog DWCA-C128-64 Manuale utente

ShareTech

ShareTech AV1 Manuale utente

Ezviz

Ezviz C6C Manuale utente

Melchioni

Melchioni UCAM 2015 Manuale utente

Geutebruck

Geutebruck G-Cam/ESD-4630 Manuale utente

Mitel

Mitel 6800i Series Manuale di servizio

Vitek

Vitek VTC-IR403-212NP Manuale utente

THOMSON

THOMSON DSC - 323W Manuale utente

AVer

AVer FB2027 Manuale utente

ENFORCER

ENFORCER EV-T5105-N2SQ Manuale utente

Wansview

Wansview NC543 Manuale utente

Eneo

Eneo MCB-64A0003M0A Manuale utente

deView electronics

deView electronics CBDNI36F Manuale utente

Swann

Swann SwannEye Manuale utente

LevelOne

LevelOne IP CamSecure Manuale utente

Digitus

Digitus DN-16085-1 Manuale utente
