Arecont Vision AV12ZMV-301 Manuale utente

MegaVideo® UltraHD

Installation Manual

Models:

12 Megapixel

•AV12ZMV-301

Page | 2 support@arecontvision.com

+1.818.937.0700 877.CAMERA.8 www.arecontvision.com avsales@arecontvision.com

Contents

Package Contents...................................................................................................................................................3

Camera Overview....................................................................................................................................................5

Installing the Lens...................................................................................................................................................6

Auxiliary I/O Functions............................................................................................................................................7

Mounting the Camera...........................................................................................................................................11

Camera Power Up.................................................................................................................................................11

SD Card Set-up.....................................................................................................................................................13

SD Card Tab..........................................................................................................................................................16

System Requirements..........................................................................................................................................17

Camera Discovery, Setup, and Configuration ..................................................................................................17

Network Protocols.................................................................................................................................................17

General Remote Focus........................................................................................................................................18

Refined Remote Focus.........................................................................................................................................19

AV IP Utility Focus Tab ........................................................................................................................................21

Support ...................................................................................................................................................................22

Page | 3 support@arecontvision.com

+1.818.937.0700 877.CAMERA.8 www.arecontvision.com avsales@arecontvision.com

CAUTION!

1. Do not attempt to service a damaged unit yourself. Refer all servicing to qualified service

personnel.

2. Wiring methods shall be in accordance with the National Electrical Code/NFPA 70/ANSI, and

with all local codes and authorities having jurisdiction. Wiring should be UL Listed and/or

Recognized wire suitable for the application.

3. Always use hardware e.g. screws, anchors, bolts, locking nuts etc. which are compatible with

mounting surface and of sufficient length and construction to insure a secure mount.

Package Contents

This equipment should be unpacked and handled with care. The original packaging is the safest

container in which to transport the unit and can be used if returning the unit for service. The packaging

contains:

•One (1) Arecont Vision MegaVideo Ultra Camera

•One (1) Rubber gasket (preinstalled on the camera)

•One (1) CD containing software and user manual

•One (1) C to CS lens adapter (lens sold separately)

•One (1) 0.5mm lens spacer ring

•One (1) 7-position external power & IO plug

•One (1) 0.05 hex L-Key

Page | 4 support@arecontvision.com

+1.818.937.0700 877.CAMERA.8 www.arecontvision.com avsales@arecontvision.com

Warranty Information

Global (3 Year) Limited Warranty

ARECONT VISION warrants to Purchaser (and only Purchaser) (the “Limited Warranty”), that: (a) each

Product shall be free from material defects in material and workmanship for a period of thirty-six (36)

months from the date of shipment (the “Warranty Period”); (b) during the Warranty Period, the

Products will materially conform with the specification in the applicable documentation; (c) all licensed

programs accompanying the Product (the “Licensed Programs”) will materially conform with applicable

specifications. Notwithstanding the preceding provisions, ARECONT VISION shall have no obligation or

responsibility with respect to any Product that (i) has been modified or altered without ARECONT

VISION’s written authorization; (ii) has not been used in accordance with applicable documentation; (iii)

has been subjected to unusual stress, neglect, misuse, abuse, improper storage, testing or connection;

or unauthorized repair; or (iv) is no longer covered under the Warranty Period. ARECONT VISION

MAKE NO WARRANTIES OR CONDITIONS, EXPRESS, IMPLIED, STATUTORY OR OTHERWISE,

OTHER THAN THE EXPRESS LIMITED WARRANTIES MADE BY ARECONT VISION ABOVE, AND

ARECONT VISION HEREBY SPECIFICALLY DISCLAIMS ALL OTHER EXPRESS, STATUTORY AND

IMPLIED WARRANTIES AND CONDITIONS, INCLUDING THE IMPLIED WARRANTIES OF

MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, NON-INFRINGEMENT AND THE

IMPLIED CONDITION OF SATISFACTORY QUALITY. ALL LICENSED PROGRAMS ARE LICENSED

ON AN “AS IS” BASIS WITHOUT WARRANTY. ARECONT VISION DOES NOT WARRANT THAT (I)

THE OPERATION OF THE PRODUCTS OR PARTS WILL BE UNINTERRUPTED OR ERROR FREE;

(II) THE PRODUCTS OR PARTS AND DOCUMENTATION WILL MEET THE END USERS’

REQUIREMENTS; (III) THE PRODUCTS OR PARTS WILL OPERATE IN COMBINATIONS AND

CONFIGURATIONS SELECTED BY THE END USER; OTHER THAN COMBINATIONS AND

CONFIGURATIONS WITH PARTS OR OTHER PRODUCTS AUTHORIZED BY ARECONT VISION

OR (IV) THAT ALL LICENSED PROGRAM ERRORS WILL BE CORRECTED.

For RMA and Advance Replacement information visit http://www.arecontvision.com

Page | 5 support@arecontvision.com

+1.818.937.0700 877.CAMERA.8 www.arecontvision.com avsales@arecontvision.com

Camera Overview

The 12-megapixel (MP)/8.3MP/1080p MegaVideo®UltraHD “tri-mode” network camera is the new

generation of Arecont Vision’s MegaVideo cameras. This fully compliant implementation of H.264

(MPEG-4, Part 10) provides full 3968 x 2922 megapixel resolution at video frame rates of 20 frames

per second (fps) at 12MP, 30fps while in 4K (8.3MP), and 60fps while in 1080p (2.1MP).

The series combines a day/night mechanical IR cut filter with a choice of three ultra high definition P-

iris lenses for precise, optimal image quality. MegaVideo UltraHD performs exceptionally well in very

low-light thanks to NightView™, making it capable of covering areas where very little light is present.

Features include SNAPstream™ (Smart Noise Adaptation and Processing) to reduce bandwidth

without impacting image quality, scaling, privacy masking, extended motion detection, flexible

cropping, and Power over Ethernet (PoE - IEEE 802.3af). Built with Arecont Vision massively-

parallel processing technology, MegaVideo UltraHD offers more than 27-times the resolution of

standard resolution IP cameras. It offers the ability to output full real-time frame rates and deliver

high-quality megapixel imaging for both indoor and outdoor* applications.

The SDHC card slot supports up to 32GB of storage capacity for convenient onboard storage. The

motorized remote focus/zoom lenses with P-iris control make set-up and maintenance easy. The

camera’s power can be supplied via a Power-over-Ethernet compliant network cable connection or

with power from a 12–24V DC/24V AC power supply. The camera's interface allows for an intuitive,

fast, and easy configuration.

* Applicable for outdoor use in HSSG2 or HSG3 housing

Page | 6 support@arecontvision.com

+1.818.937.0700 877.CAMERA.8 www.arecontvision.com avsales@arecontvision.com

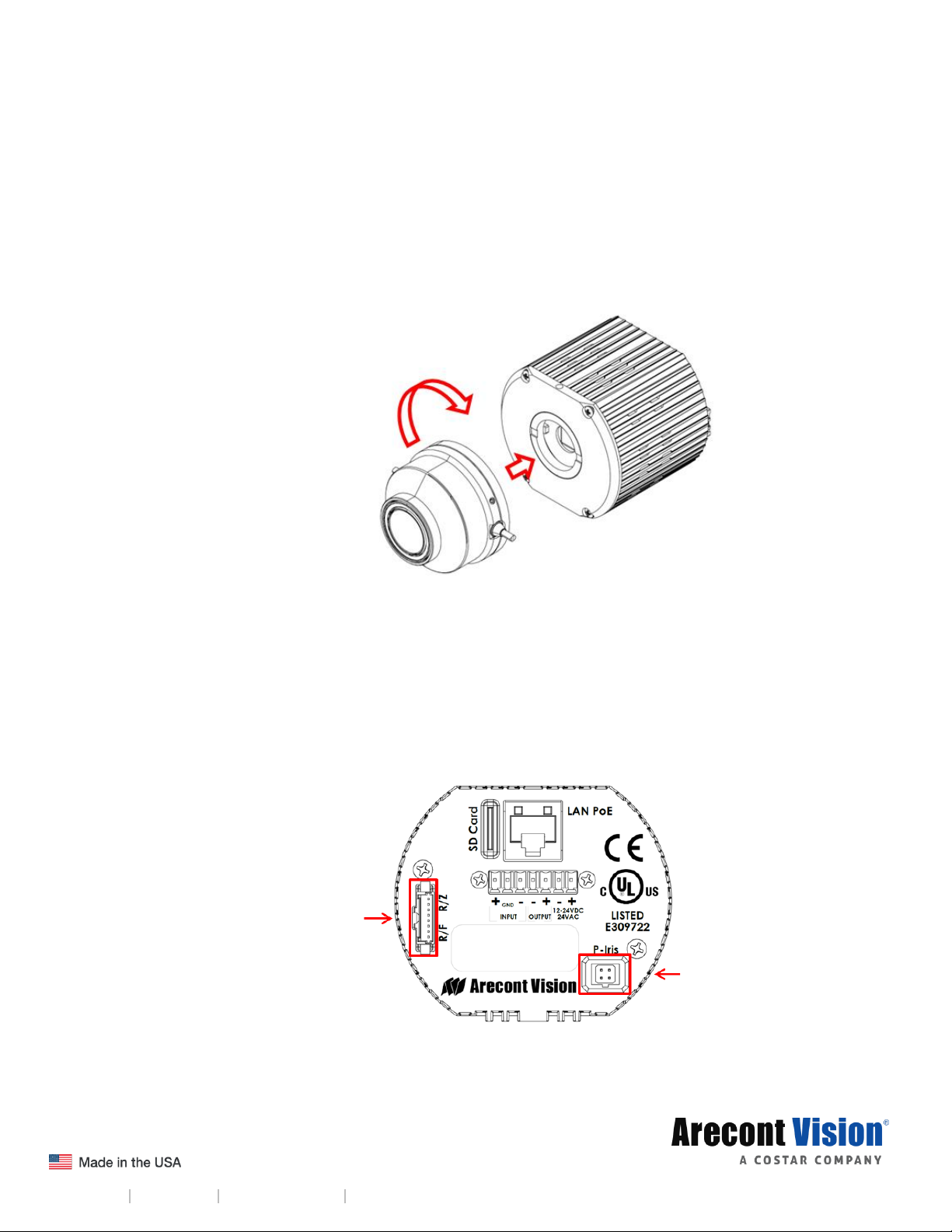

Installing the Lens

1. Remove the sensor protection cap from the camera (if present).

2. Screw the lens onto the camera in a clockwise rotation as shown in Image 1.

NOTE: UHD30-120MPI is a C mount lens, and will require a supplied C to CS mount adapter

ring.

Image 1

3. Connect the Remote Focus/Remote Zoom connecter and P-Iris connecter from the lens into the

corresponding ports on the back of the camera as shown in Image 2.

Image 2

Page | 7 support@arecontvision.com

+1.818.937.0700 877.CAMERA.8 www.arecontvision.com avsales@arecontvision.com

NOTE: Compatible Remote Focus / Remote Zoom Lenses

Lens

Description

UHD4.4-10MPI

4.4-10mm, 1/1.7", F/1.2, P-Iris, IR corrected, CS-mount, Motorized Zoom

and Focus, H-FOV = 45o-999o

UHD12-50MPI

12-50mm, 1/1.7", F/1.8, P-Iris, IR corrected, CS-mount, Motorized Zoom and

Focus, H-FOV = 9o-38o

UHD30-120MPI

30-120mm, 1/1.7", F/2.2, P-Iris, IR corrected, C-mount, Motorized Zoom and

Focus, H-FOV = 3.5o-13.5o

Auxiliary I/O Functions

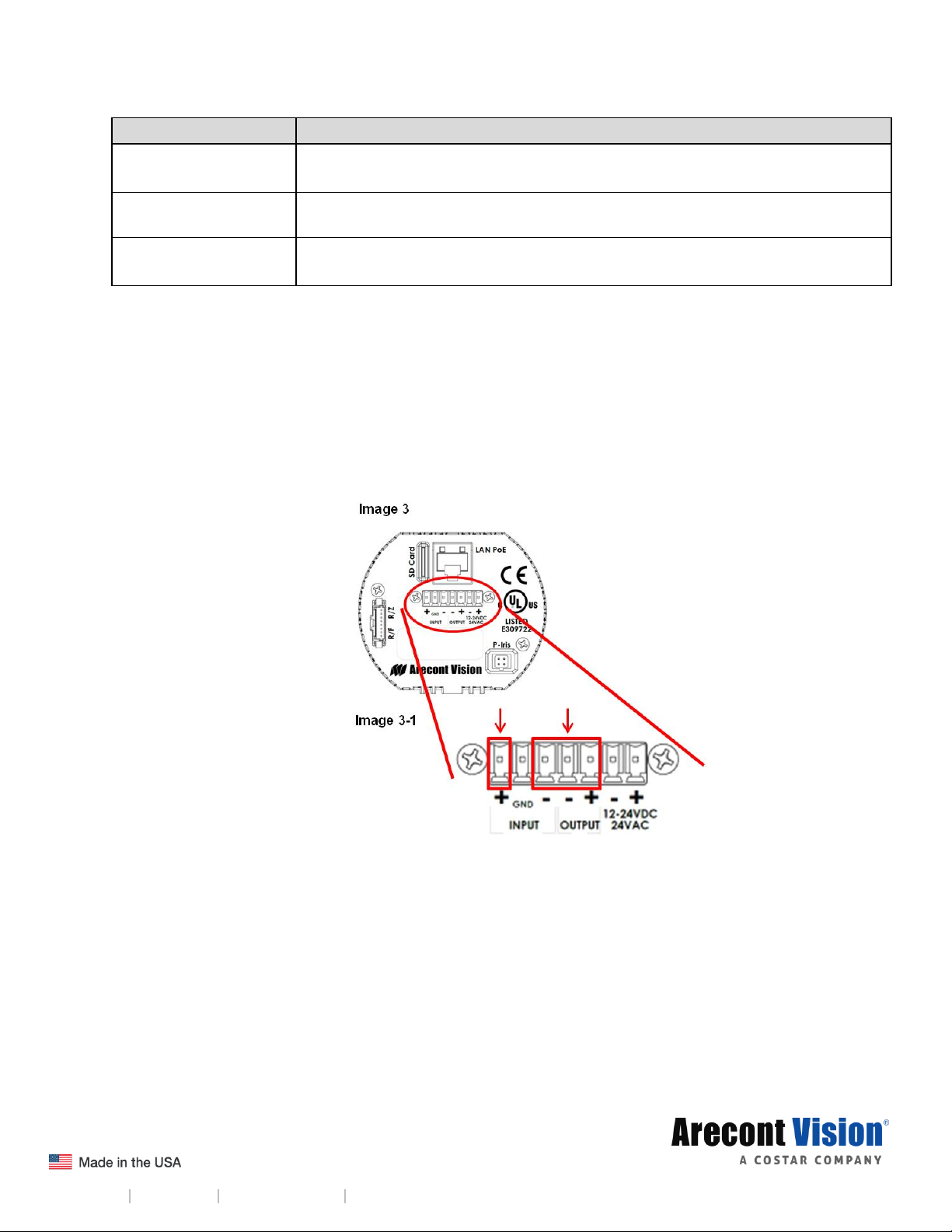

1. To use digital I/O, connect digital I/O with pigtail cable connector as shown in Image 3.

NOTE: There are seven connector ports that look identical, be sure to use the correct I/O ports

as shown in Image 3-1.

The output consists of an optically coupled solid state relay (SSR) and the input has an

optocoupler. Both the SSR and optocoupler have an isolation voltage of 1500 VRMS between

the external terminals and internal camera circuitry. The input is further protected with a serial

250Ω resistor and a debouncing circuit.

Page | 8 support@arecontvision.com

+1.818.937.0700 877.CAMERA.8 www.arecontvision.com avsales@arecontvision.com

OUTPUT Relay Control and Function

The camera has an output for activating an external device. The camera supports both transient and

continuous relay operation. You can operate the relay during an active connection using the API

command set. Typical applications include turning on lights or activating doors and locks.

Image 5 Relay wiring with power source to the camera

Camera output can be turned on|off with the following command:

http://camera_ip/set?auxout=(“on”|“off”)

The following table shows the output control and electrical characteristics:

Output Control

Terminals

External

Status

Camera

Status

Max

Voltage

Max

Current

OUT+ &

OUT-

OPEN

OFF

120V

CLOSED

100mA

Page | 9 support@arecontvision.com

+1.818.937.0700 877.CAMERA.8 www.arecontvision.com avsales@arecontvision.com

INPUT Alarm Control and Detection

The input optocoupler supports two ways to connect external unsupervised alarms to Arecont Vision

camera. Only one of the following two schemes should be used at any given time.

OPTION-1: UNSUPERVISED ALARM DETECTION

In this scheme the IN+ & IN- terminals can be used for external signaling devices, such as door

contacts or motion detectors. Both normally open and normally closed devices are supported as shown

in Image 6:

Image 6

Image 7 illustrates the unsupervised alarm conditions:

IN+ IN- IN+ IN-

IN+ IN-

Normally Open Normally Closed

Image 7

The following table shows how camera detects unsupervised alarms:

Input Unsupervised Alarms

Terminals

External

Status

Camera

Status

IN+ & IN-

OPEN

OFF

Camera status can be read with the following command:

http://camera_ip/get?auxin

Page | 10 support@arecontvision.com

+1.818.937.0700 877.CAMERA.8 www.arecontvision.com avsales@arecontvision.com

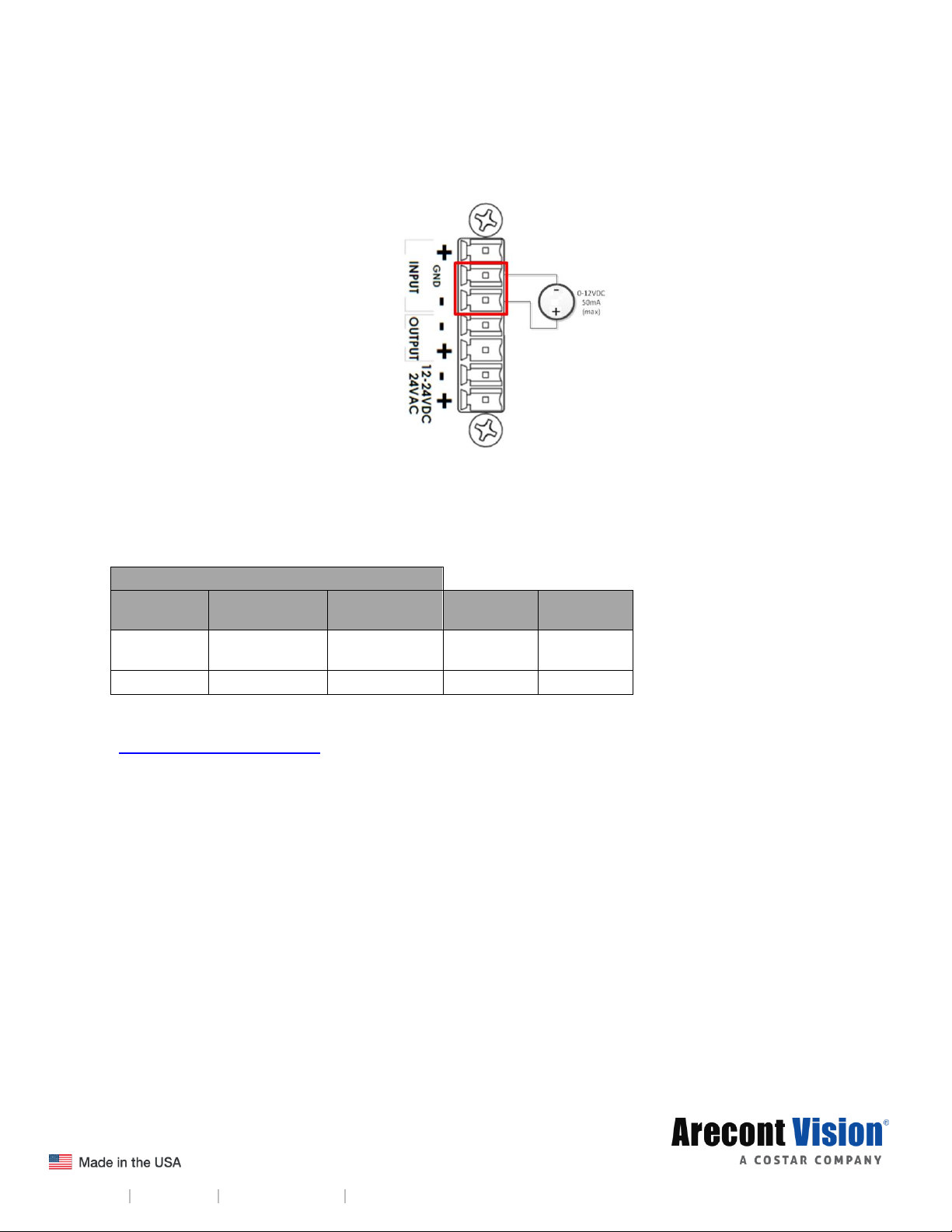

OPTION-2: INPUT VOLTAGE DETECTION

In this scheme the IN- & GND terminals can be tied to an external power source. The camera can

detect a range of voltage to trigger an internal alarm on|off condition as shown in Image 8.

Image 8

The following table shows the input voltage range and electrical characteristics:

Input Voltage Detection

Terminals

External

Status

Camera

Status

Voltage

Range

Current

Range

IN- &

GND

OFF

0-1V

0-2mA

2-12V

10-50mA

The status of the camera can be read with the following command:

http://camera_ip/get?auxin
