GALLIUM DISC 339A / 339B: ASSEMBLY GUIDE
Valid for MY2021 Gallium Disc 339A
Revision 1.0 - 11.30.2020
GALLIUM DISC 339A / 339B: ASSEMBLY GUIDE
Valid for MY2021 Gallium Disc 339B
Revision 1.0 - 11.30.2020
3
1. Tools Needed and First Aid Kit ............................3
2. Frameset Inspection .....................................4
3. Frameset Parts, SKUs and descriptions ..................5-6
4. Assembly instructions ................................7-21
4.1. Headset Installation .................................7
4.2. Seat Post Collar Assembly............................8
4.3. Seat Post Assembly ...............................9-10
4.4. Rear Derailleur Hanger Adjustment..................11
4.5.Mechanicalgroupsetspecication .............. 12-14
4.6.Electronic(Di2)groupsetspecication........... 15-18
4.7.Electronic(Wireless)groupsetspecication...... 19-21
5.Troubleshooting/Tips/Specication....................22
6. Min/Max Seat Post Insertion .............................23
GALLIUM DISC 339A / 339B: Table of Contents
For the warranty to be valid, the bicycle must be fully assembled by an authorized Argon 18 dealer. High-end components,
particularly carbon parts, need extra care when assembled. These components must be installed using a calibrated torque
wrench to make sure every bolt is at the right torque setting to prevent damage.
My Gallium Disc
Date of purchase:
Retailer:
Size:
Serial Number:
4
Tools needed for assembly
1: Bearing Cup Press (Park Tool HHP-2)
2: Allen Key Set
3: Grease
4: Utility Pick Set (Park Tool Item #UP-SET)
5: Clean Rags
6: Derailleur Hanger Alignment Gauge (Park Tool Item #DAG-2 or #DAG-2.2)
7: Cables and Housing Cutter
8: Carbon Paste
9: Loctite #242
10: Torque Wrench
First Aid Kit: Essential parts to always have on hand
IN CASE OF EMERGENCY…THIS MIGHT SAVE YOUR RIDE!

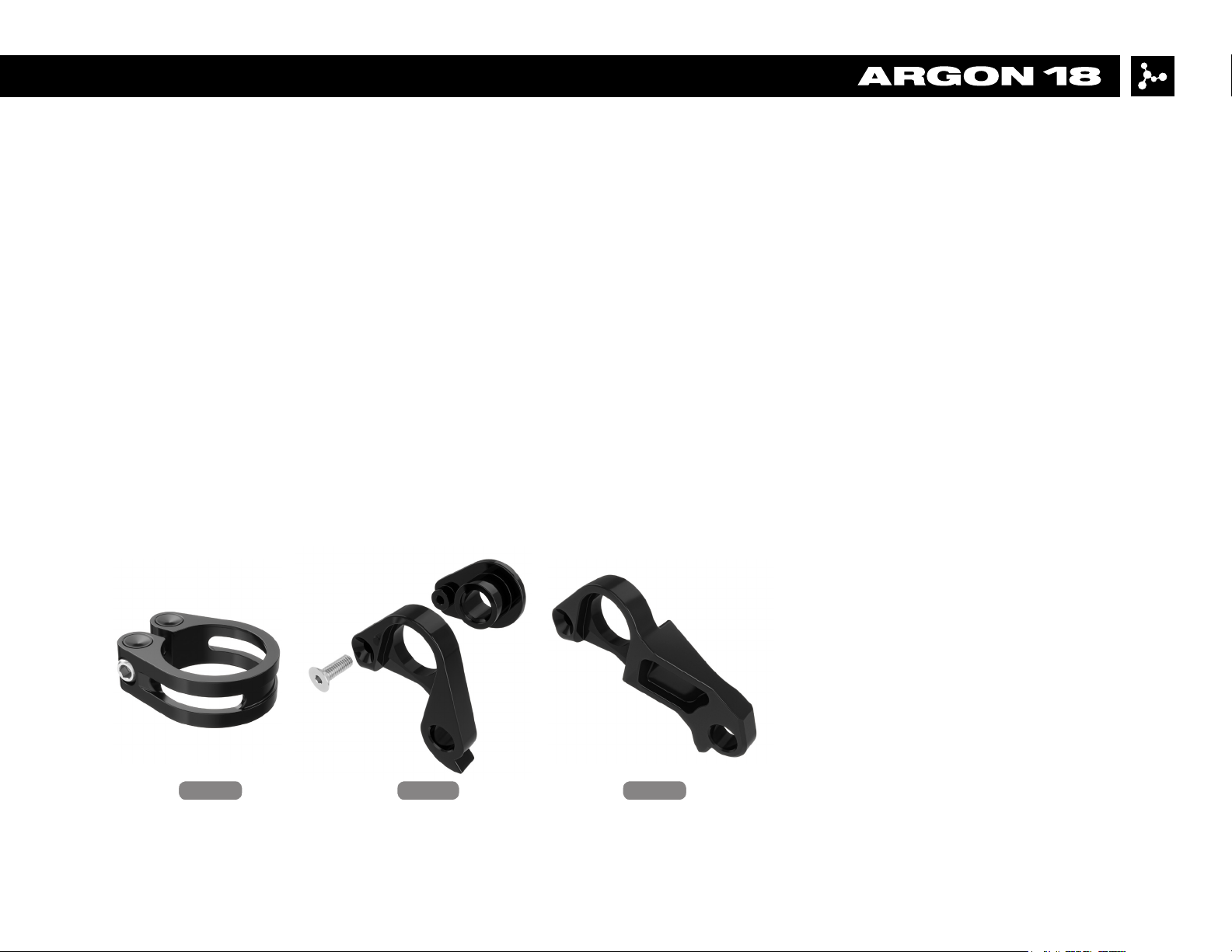

1: Spare rear derailleur hanger assembly
2: Seat post collar
GALLIUM DISC 339A / 339B: 1. Tools Needed and First Aid Kit
80546 80802 80832
(Direct mount option if utilized)
5
GALLIUM DISC 339A / 339B: 2. Frameset Inspection
Parts installed on the frame Description Screw Torque Detail
type Nm
Water bottle cage screws Screw (4x) 5 mm 3 Nm Grease
Chain stay cable guide Screw (2x) 3 mm 1.5 Nm Grease
Seat post collar M5 Screw (1x) Socket head 4Nm Grease
Seat post head M5 Screws (2x) Socket head 4.5Nm Grease
Rear derailleur hanger M4 Screw (1x) Flat head 2Nm Loctite
BEFORE ASSEMBLING YOUR NEW GALLIUM DISC, MAKE SURE THAT YOU HAVE ALL THE FOLLOWING:
1. Frameset parts (see p.5)
2. Inspect the frame for cosmetic aspect (scratches, bumps, cracks, paint defect, etc.)
3. For reference, check serial number and write it on p.2
4. All the necessary bolts (refer to Frameset Parts, p.5)
5. For optimal shifting performance, use a derailleur hanger alignment gauge to make sure that the derailleur hanger is straight (p.11)
IMPORTANT:
The following parts are assembled on the frame. When assembling the bike, you will need to adjust these parts according to their
torque specications.
66
GALLIUM DISC 339A / 339B: 3. Frameset Parts
80554
80802 80546
80555
80553
38879
80551
38884
80548
80547
80550
81453
80552
SP.GAPD.338A
6
80549
38446
80812
80813 80832
FK.GAD.XXS-S.339A
FK.GAD.M-XL.339A
FK.GAD.XXS-S.339B
FK.GAD.M-XL.339B
80805 80804 80811
7
*Except for the frame itself, which is not sold as a spare part, all parts can be ordered by referring to their respective SKU number.

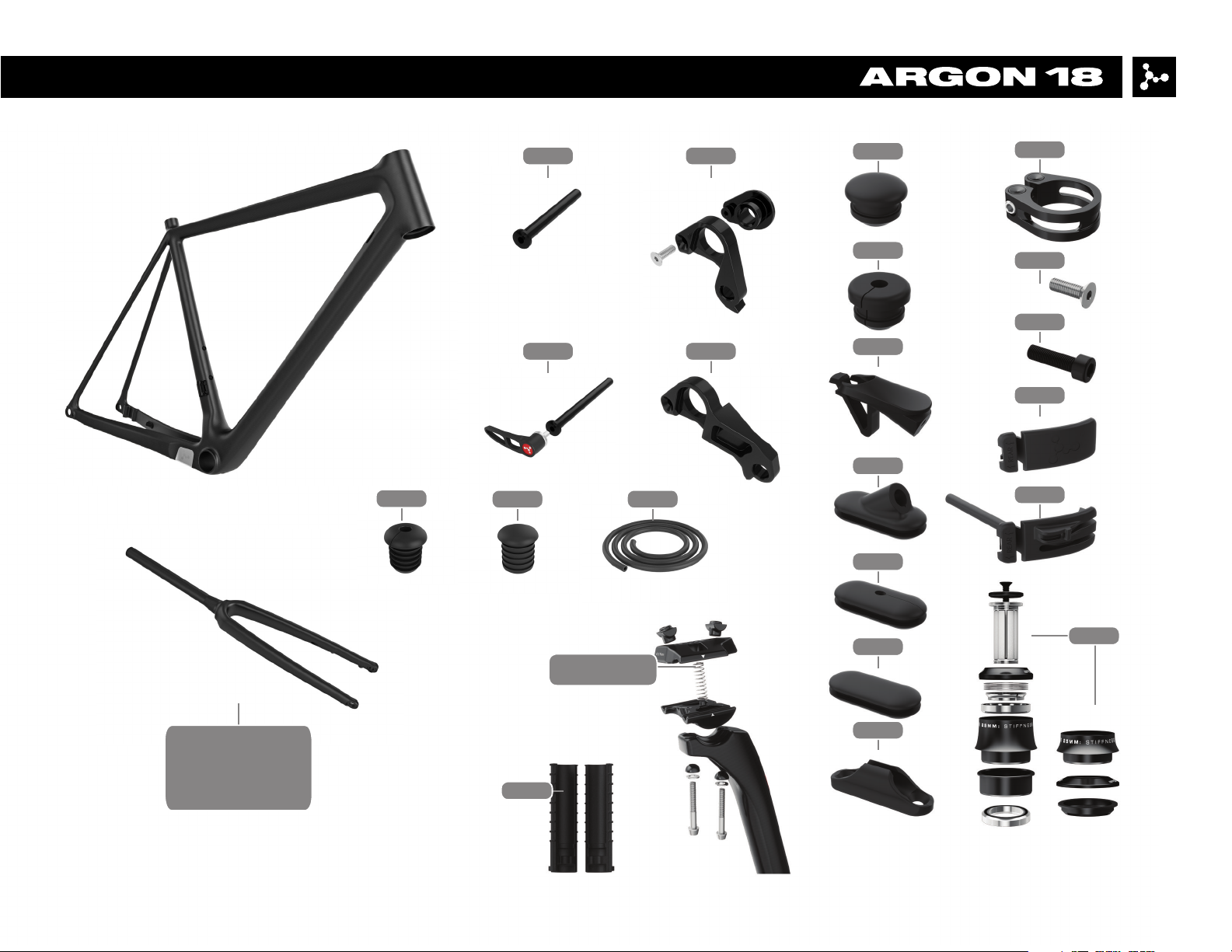

GALLIUM DISC 339A / 339B: 4. Parts’ SKUs and Descriptions*
No. Name Assembled on A18 SKU# Qty
Parts already assembled
Parts
- Gallium Disc Fork (XXS/XS/S), 254mm steerer - FK.GAD.XXS-S.339A
-OR- FK.GAD.XXS-S.339B
Gallium Disc Fork (M/L/XL), 302mm steerer FK.GAD.M-XL.339A
- - FK.GAD.M-XL.339B 1
- DT Swiss RWS Thru-axle FRONT 12 x 119mm Fork 80812 1
- DT Swiss RWS Thru-axle REAR 12 x 161mm
with removable handle Frame 80813
1
2 Seat Post Collar Frame
80546 1
3 Gallium Seat Post Assembly - SP.GPD.338A 1
4 Oblong Cable Guide Frame
80551 2
7 Round Plug Frame
80554 3
9 Headset No.37 + 3D Assembly, with compressor TH-881-1 Fork 81453 1
10 Oblong Plug Frame 80549 2
11 Oblong Grommet Frame 80550 1
12 Bottom Bracket Cover, Electronic Frame 80548 1
13 Round Grommet Frame 80553 2
14 Internal Di2 Battery Support Seat Post 38446 1 Set
15 Direct Mount Rear Derailleur Hanger Frame 80832 1
- Flat Head Socket Cap Screw - M3 x 0.5 x 10mm LG Frame 80555 2
- Round Cap Screw - M5 x 16mm LG Frame 38884
4
1 Rear Derailleur Hanger Assembly (incl. Hanger, Dropout, screw) Frame 80802 1
5 Cable Stopper Frame 38879
2
6 Bottom Bracket Cable Guide Frame 80547 1
8 Removable Cable Stopper Frame 80552 1
8
GALLIUM DISC 339A / 339B: 4.1. Headset Installation

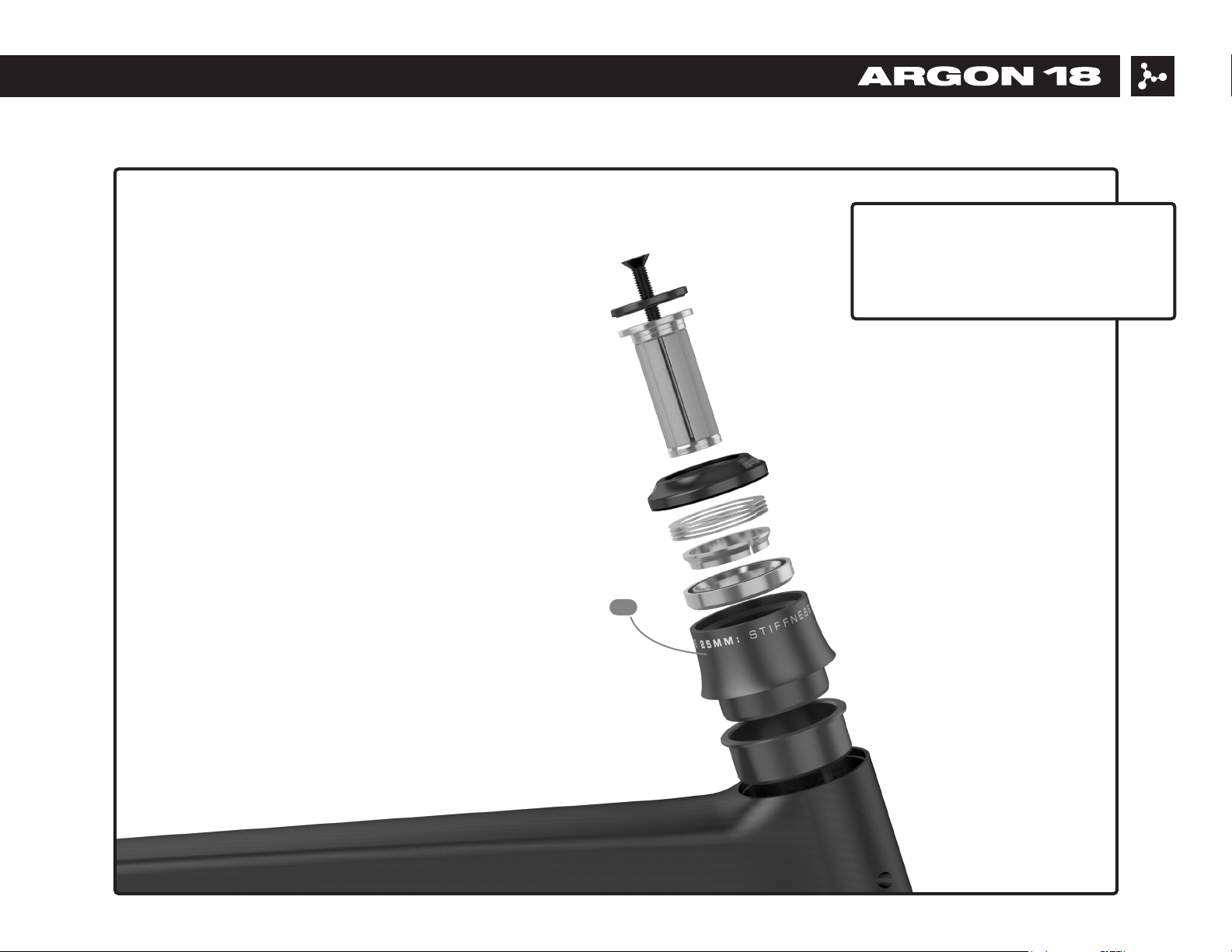

Install the 3D headset (9) according to
thepresstassemblyguide.Youcan
choosefrom3dierentheights:25mm,
15mm or 0mm.
9
IMPORTANT:
No more than 30mm of spacers can be placed between the
stem and the top cap of the 3D system.
The steerer must be trimmed no more than 5mm above the
stem. The use of more than 5mm of spacers above the stem
could void the eciency of the compressor.
These practices will automatically cancel any warranty
claim against the manufacturer.
9
GALLIUM DISC 339A / 339B: 4.2. Seat Post Collar Assembly

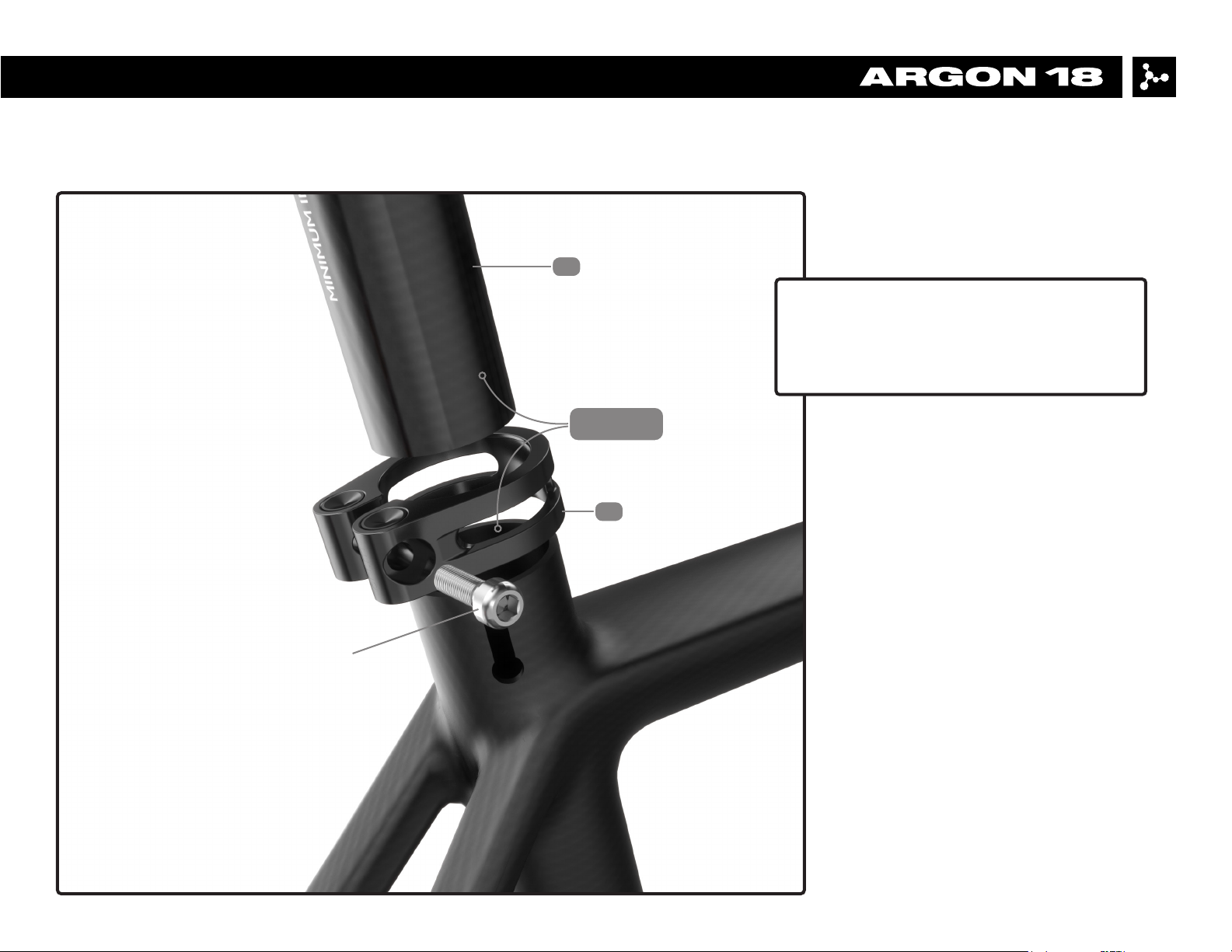

Assemble the seat post collar (2) with the seat
post (3). Apply carbon paste inside the frame’s
seat tube and on the seat post where it inserts
inside the frame. Tighten the bolt at 4 Nm.
4Nm
2
CARBON
PASTE
3
10
GALLIUM DISC 339A / 339B: 4.3. Seat Post Assembly

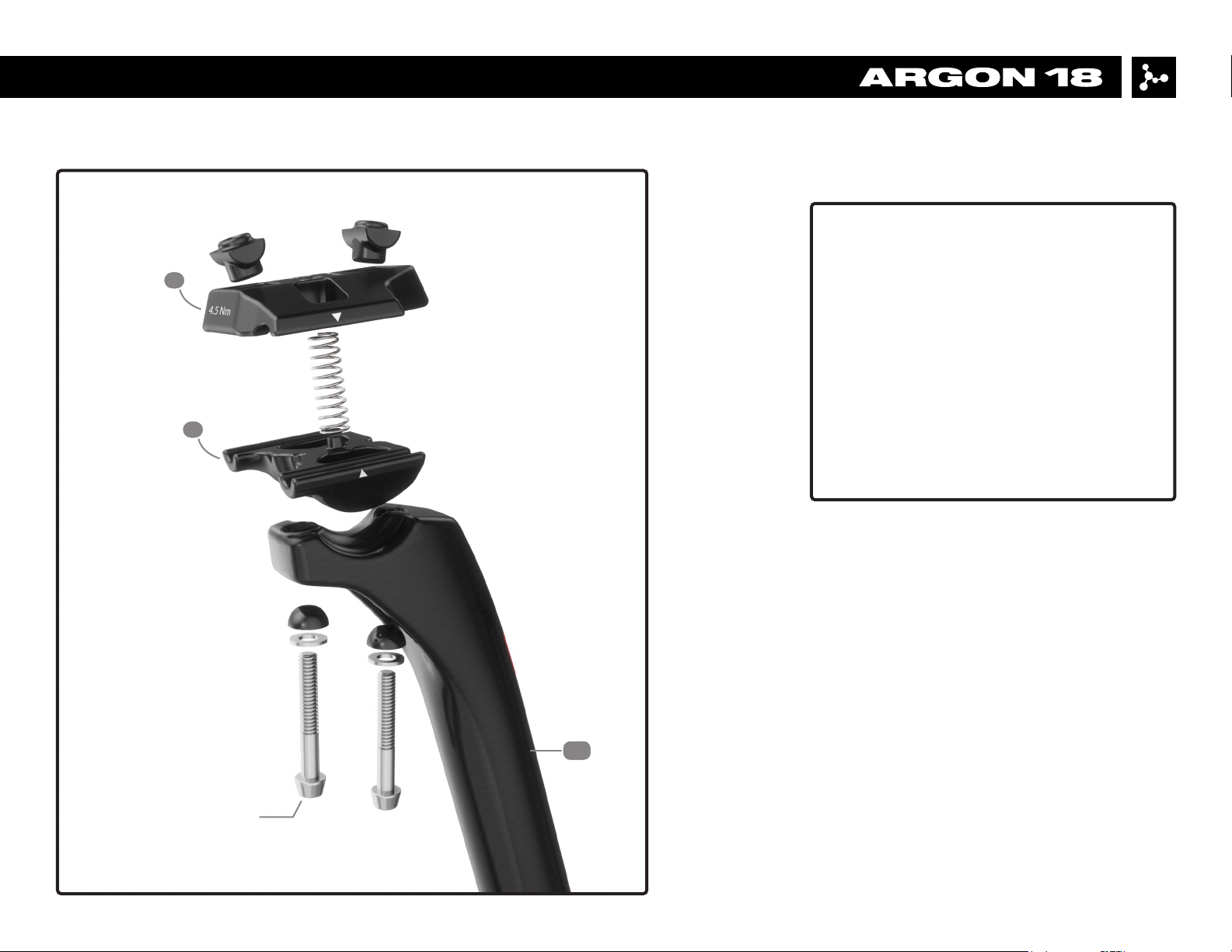

The seat post (3) is supplied fully
assembled. It’s equipped with a spring-
loaded head for easy installation of the
saddle.
1. Unscrew both bolts slightly until the top
clamp (a) and the cradle (b) are separated
enough to insert the saddle rail. Do not
unscrew the bolts completely.
2. Screw both bolts in order to adjust the
angle of the saddle and clamp the rail.
3. Tighten bolts at 4.5Nm.
a
b
4,5 Nm
3
