GALLIUM PRO DISC: ASSEMBLY GUIDE

Revision 1.0 - 2016-10-04 - Valid for MY2017 Gallium Pro Disc

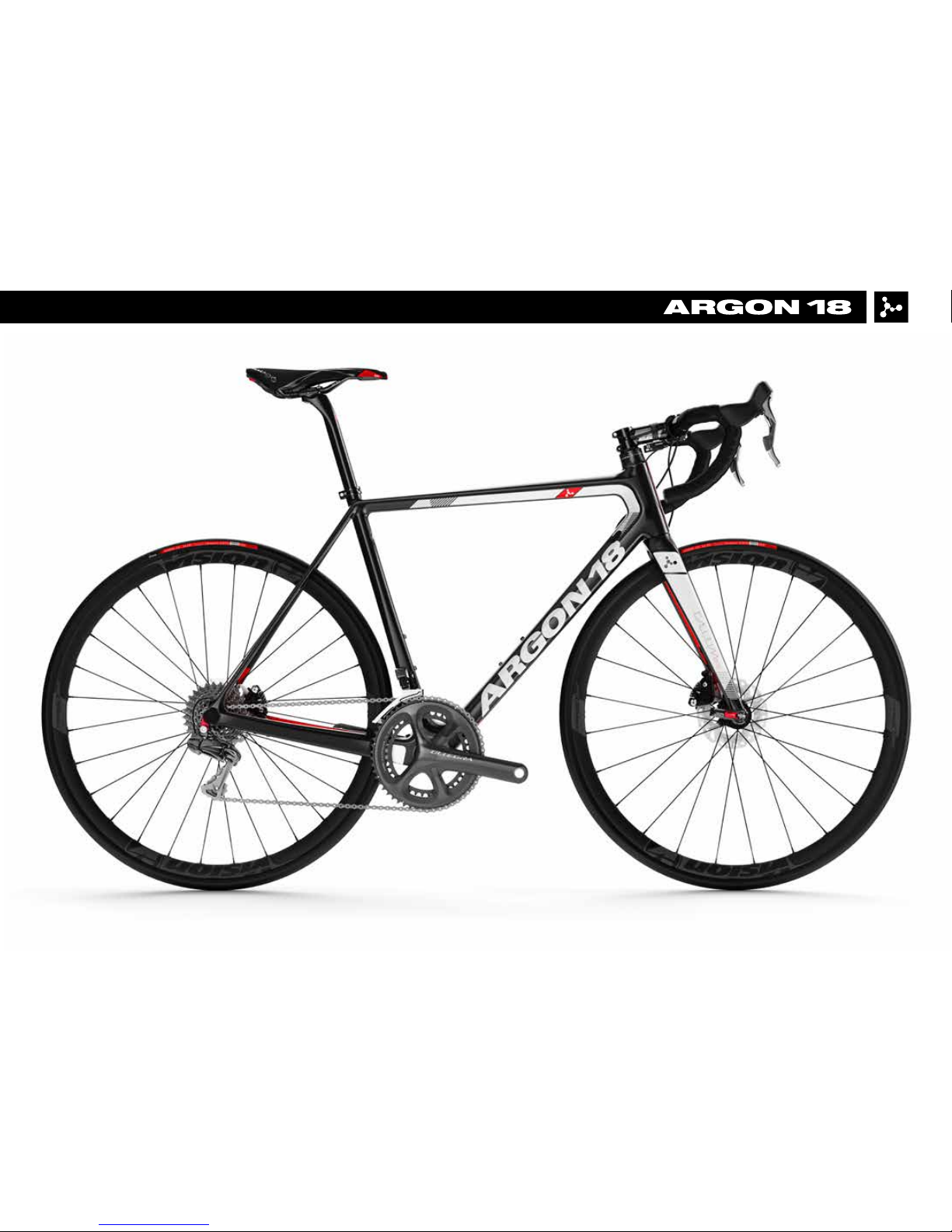

Gallium Pro Disc Gloss shown above. The Gallium Pro Disc is also available in Black Matte.

1. Tools Needed and First Aid Kit ........................................ 3

2. Sizing Chart.......................................................... 4

3. Trouble-shooting / Tips............................................... 5

4. Seat Post Collar Assembly ............................................ 6

5. Seat Post Assembly .................................................. 8

6. Frameset Inspection ................................................. 9

7. Frameset Parts ......................................................10

8. Rear Derailleur Hanger Adjustment ..................................11

9. Derailleurs and Brake Cables Installation.............................12

10. Frameset Parts Checklist ...........................................22

11. Appendix - Naild Axles Installation .................................29

GALLIUM PRO DISC: Table of Contents

For the warranty to be valid, the bicycle must be fully assembled by an authorized Argon 18 dealer. High-end components, particularly carbon

parts, need extra care when assembled. These components must be installed using a calibered torque wrench to make sure every bolt is at

the right torque setting to prevent damage.

My Gallium Pro Disc

Date of purchase:

Retailer:

Size:

Serial Number:

Tools needed for assembly

1: Bearing Cup Press (Park Tool HHP-2)

2: Allen Key Set

3: Grease

4: Utility Pick Set (Park Tool Item #UP-SET)

5: Clean Rags

6: Derailleur Hanger Alignment Gauge (Park Tool Item #DAG-2 or #DAG-2.2)

7: Cables and Housing Cutter

8: Carbon Paste

9: Loctite #242

10: Torque Wrench

First Aid Kit: Essential parts to always have on hand

IN CASE OF EMERGENCY…THIS MIGHT SAVE YOUR RIDE!

1: Spare rear derailleur hanger (SKU: 80649)

2: Seat clamp (SKU: 80546)

GALLIUM PRO DISC: 1. Tools Needed and First Aid Kit

SKU: 80649 SKU: 80546

This chart indicates recommended values. Max and min drop values are calculated according to Canadian

specication. Please consult one of our authorized dealers for further informations on your bike t.

Saddle

Height

Sizing Chart: Gallium Pro Disc

Saddle

Height

Suggested

Size

XXS

XXS / XS

XS / S

S / M

M / L

L / XL

Seat tube

angle

75.5

75.5 / 74.5

74.5

74.5 / 74

74 / 73.5

73.5

73.5 / 73

73 / 72.5

72.5

Top tube

length

499

499 / 519

519

519 / 539

539

539 / 559

559

559 / 577

577

577 / 596

596

Stack

474

474 / 492

492

492 / 523

523

523 / 552

552

552 / 575

575

575 / 596

596

Reach

374

374 / 382

382

382 / 389

389

389 / 395

395

395 / 401

401

401 / 408

408

3D Spacer = 0

Stack

488

488 / 506

506

506 / 537

537

537 / 566

566

566 / 590

590

590 / 610

610

Reach

369

369 / 377

377

377 / 384

384

384 / 391

391

391 / 396

396

396 / 404

404

3D Spacer = 15

Stack

498

498 / 516

516

516 / 547

547

547 / 575

575

575 / 599

599

599 / 620

620

Reach

366

366 / 374

374

374 / 381

381

381 / 388

388

388 / 394

394

394 / 401

401

3D Spacer = 25

Drop

Minimum

-4

-14

-23

-33

-43 / -23

-52 / -33

-42

-52

-62 / -28

-71 / -37

-47

-56

-66 / -34

-76 / -43

-53

-62

-72 / -44

-82 / -54

-63

-73

-83 / -59

-92 / -68

-78

-87

-97

Drop

Maximum

-53

-63

-73

-82

-92 / -73

-102 / -82

-92

-101

-111 / -77

-121 / -87

-96

-106

-115 / -83

-125 / -93

-102

-112

-122 / -94

-131 / -103

-113

-123

-132 / -108

-142 / -118

-128

-137

-147

GALLIUM PRO DISC: 2. Sizing Chart

GALLIUM PRO DISC: 3. Trouble-shooting / Tips

SPECIFICATIONS

Brakes

Use only at mount hydraulic disc brakes. The frame and fork are compatible with either 140mm or 160mm disc rotors.

Adapters might be required, consult brake manufacturer.

• Rear mount thickness: 30mm

• Rear at mount xing bolt length (for 140mm rotor): 43mm

• Rear converter xing bolt length (for 160mm rotor): 36.8mm

Axles

Naild 12-3-9 quick release thru axles with integrated rear derailleur hanger. Axles are included with frameset.

Tire Clearance

Up to 28mm tire clearance.

Seat Post

27.2mm (Argon 18 ASP-6600 Carbon Seat Post Included)

Seat Post Clamp

30.7mm

Bottom Bracket

BB86 (Press-t)

Headset

FSA No 37 + 3D Press-t (Bearing 1 1/8” , 36°x45° top and 1 1/2” , 36°x45° bottom + FSA TH-881-1 Compressor included)

GALLIUM PRO DISC: 4. Seat Post Collar Assembly

Assemble the seat post collar with the seat post.

Apply carbon paste on the seat post where it

inserts inside the frame. Tighten the bolt at 4 Nm.

CARBON

PASTE

4Nm

GALLIUM PRO DISC: 5. Seat Post Assembly

The seat post is supplied fully assembled.

It’s equipped with a spring-loaded head

for easy installation of the saddle.

1. Unscrew both bolts slightly until the top

clamp (a) and the cradle (b) are separated

enough to insert the saddle rail. Do not

unscrew the bolts completely.

2. Screw both bolts in order to adjust the

angle of the saddle and clamp the rail.

3. Tighten bolts at 4.5Nm.

4.5 Nm

a (80643)

b (80642)

GALLIUM PRO DISC: 5. Seat Post Assembly

The top clamp (a) and the cradle (b)

can be ipped to change the saddle

oset between 15 or 25mm.

25mm oset 15mm oset

a (80643)

b (80642)

a (80643)

b (80642)

GALLIUM PRO DISC: 6. Frameset Inspection

Parts installed on the frame Description Screw Torque Detail

type Nm

1 Bottle cage Screw (4) 5 mm 3 Nm Grease

2 Chain stay cable guide Screw (2) 3 mm 1.5 Nm Grease

BEFORE ASSEMBLING YOUR NEW GALLIUM PRO DISC, MAKE SURE THAT YOU HAVE ALL THE FOLLOWING:

1. Frameset parts (see p.9)

2. Inspect the frame for cosmetic aspect (scratches, bumps, cracks, paint defect, etc.)

3. For reference, check serial number and write it on p.2

4. All the necessary bolts (refer to Frameset Parts, p.9)

5. For optimal shifting performance, use a derailleur hanger alignment gauge to make sure that the derailleur hanger is straight (p.10)

IMPORTANT:

The following parts are assembled on the frame. When assembling the bike, you will need to adjust these parts according to their

torque specications.

1010

GALLIUM PRO DISC: 7. Frameset Parts

SKU: 80554Included in SKU: 80403

Included in SKU: 80404

SKU: 80546

SKU: 80555

SKU: 80553

SKU: 38879

SKU: 80551

SKU: 38884

SKU: 80548

SKU: 80547

SKU: 80550

SKU: 38661

SKU: 80552

SKU: 80404

SKU: 80403

SKU:

SP.GALLPRO_D.246A

SP.GALLPRO_D.246B

SKU:

FK.GALLPRO_D.246A

FK.GALLPRO_D.246B

SKU: 80549

SKU: 38446
