ARIESAUTOMOTIVE.COM •NEED ASSISTANCE? •8 7 7. 2 8 7. 8 6 3 4 •203039-INS-RB •PAGE 1

INSTALLATION MANUAL 203039

Parts List

1Driver / left side bar

1Passenger / right side bar

1Driver / left side front bracket

1Driver / left side rear bracket

1Passenger / rear side front bracket

1Passenger / rear side rear bracket

8Hex bolt, M8

8Flat washer, M8

8Lock washer, M8

8Clip nut, M10

16 Hex bolt, M10

16 Flat washer M10 - large

8Flat washer M10 - small

16 Lock washer, M10

8Hex nut, M10

Torque Speciﬁcations

Metric

M6 bolt 3 ft-lbs.

M8 bolt 7 ft-lbs.

M10 bolt 16 ft-lbs.

M12 bolt 28 ft-lbs.

SAE

1/4" bolt 3 ft-lbs.

5/16" bolt 7 ft-lbs.

3/8" bolt 16 ft-lbs.

7/16" bolt 20 ft-lbs.

1/2" bolt 28 ft-lbs.

Use above torque setting unless otherwise noted

Tools Required

Ratchet Socket set

Torque wrench Wrench set

Level --

Level of Difﬁculty

Easy

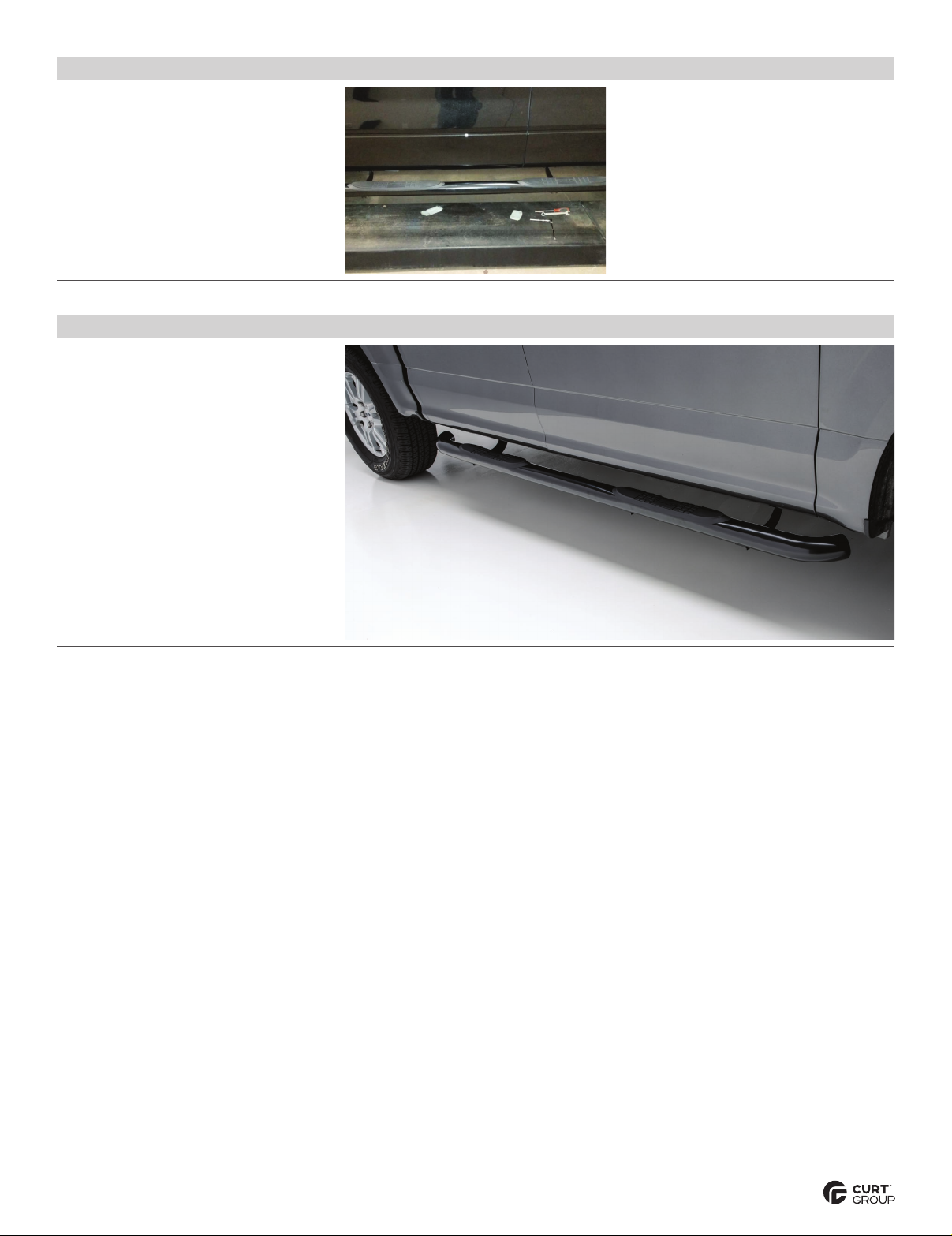

Product Photo

Front

Rear

Notes and Maintenance

Before you begin installation, read all instructions thoroughly.

Proper tools will improve the quality of installation and reduce the time required.

To protect the product, wax after installing. Regular waxing is recommended

to add a protective layer over the finish. Do not use any type of polish or wax

that may contain abrasives that could damage the finish.

For polished, gloss and other smooth finishes,

polish may be used to clear small scratches and scuffs on the finish.

Mild automotive detergent may be used to clean the product. Do not use dish detergent, abrasive

cleaners, abrasive pads, wire brushes or other similar products that may damage the ﬁnish.

Refer to the last page of this manual for troubleshooting,

warranty and product registration information.

Refer to the table to the left when securing hardware during the

installation process to help prevent damage to the product or vehicle.

Product Registration

CURT Group stands behind our products with industry leading warranties.

You can help us continue to improve our product line and help us understand

your needs by registering your purchase by visiting:

warranty.curtgroup.com/surveys

At CURT Group, customer is king. We value your feedback and we use that information to make

improvements on our products. Please, take a minute and let us know how we are doing.

ARIESAUTOMOTIVE.COM •NEED ASSISTANCE? •8 7 7. 2 8 7. 8 6 3 4 •203039-INS-RB •PAGE 2

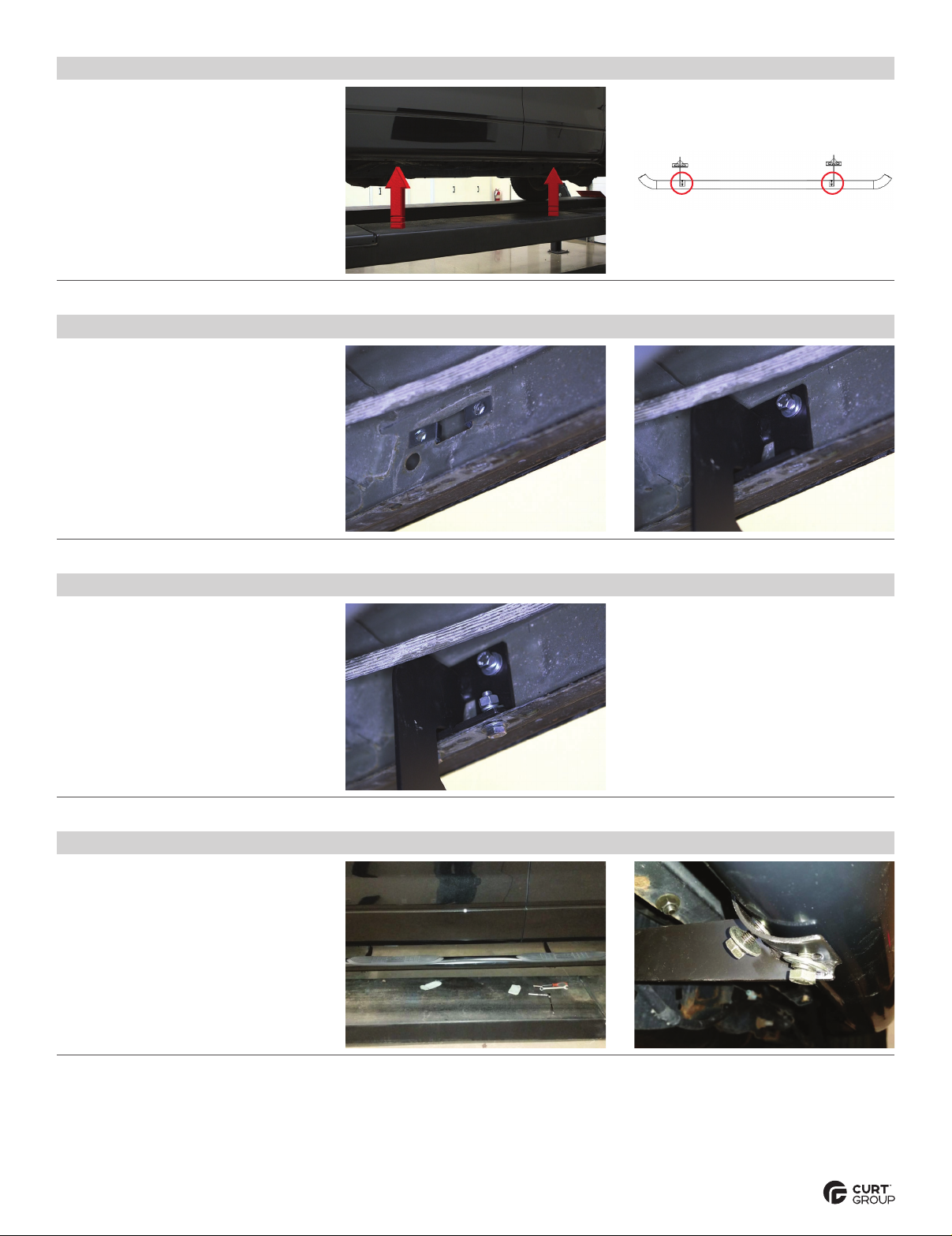

Step 1

Starting on the driver side, locate

the two mounting locations along

the bottom edge of the vehicle.

Make sure to use one bracket with

one cradle facing left and one facing

right for each side of the vehicle. The

cradles will face inward.

Note: The front brackets are

shorter than the rear brackets.

Step 4

Place the driver-side side bar onto the

brackets and secure with four M8 bolts,

lock washers and flat washers.

Snug the hardware,

but do not fully tighten.

Note: The mounting holes in the board

that are closest to the end of the board

should face the front of the vehicle

Step 2

Starting at the front driver-side mounting

location, remove tape and insert two M10 clip

nuts into the rectangular hole. Align them over

the adjacent round holes.

Place a bracket onto the vehicle and secure

the top portion with two M10 hex bolts, lock

washers and flat washers.

Snug the hardware,

but do not fully tighten.

Step 3

Secure the front mounting bracket to the

vehicle by inserting two M10 hex bolts and

flat washers from the bottom side of the

bracket and two M10 lock washers, small

flat washers and hex nuts on the top side.

Snug the hardware,

but do not fully tighten.

Repeat steps two and three

to install the rear bracket.

ARIESAUTOMOTIVE.COM •NEED ASSISTANCE? •8 7 7. 2 8 7. 8 6 3 4 •203039-INS-RB •PAGE 3

Step 5

At this time, adjust the

side bar to the desired location.

With the side bar in position, it is recommended

to tighten all brackets to the vehicle first,

followed by the side bar connections.

For recommended torque specifications,

refer to the table on page one.

Repeat steps one through five

on the passenger side of the vehicle.

Step 6

Congratulations on the installation

of your new ARIES 3" round side bars.

With the side bars installed,

periodic inspections should be

performed to ensure all mounting

hardware remains tight.

To protect your investment, see the

'Notes and Maintenance' section on the

second page of this instruction manual.
