ARIESAUTOMOTIVE.COM •NEED ASSISTANCE? •877.287.8 634 •3020000-INS-RB •PAGE 1
INSTALLATION MANUAL 3020000
Parts List
2T-wiring harness
2Push button extension harness
2Push button switch
4Spade terminals
Torque Specifications
Metric
M6 bolt 3 ft-lbs.
M8 bolt 7 ft-lbs.
M10 bolt 16 ft-lbs.
M12 bolt 28 ft-lbs.
SAE
1/4" bolt 3 ft-lbs.
5/16" bolt 7 ft-lbs.
3/8" bolt 16 ft-lbs.
7/16" bolt 20 ft-lbs.
1/2" bolt 28 ft-lbs.
Use above torque setting unless otherwise noted
Tools Required
Drill Wire crimper
Drill bit, 7/8"
Level of Difficulty
Easy
Notes and Maintenance
Before you begin installation, read all instructions thoroughly.
Proper tools will improve the quality of installation and reduce the time required.
Periodic inspection of all wires and connections should be
performed to ensure there is no visible damage or loose connections.
Refer to the table to the left when securing hardware during the
installation process to help prevent damage to the product or vehicle.
Product Photo
WARNING
Improper electrical installation may result in personal injury. Unless
you are familiar with the installation and handling of electrical systems,
have this step performed by someone who has that familiarity.
Product Registration
CURT Group stands behind our products with industry leading warranties.
You can help us continue to improve our product line and help us understand
your needs by registering your purchase by visiting:
warranty.curtgroup.com/surveys
At CURT Group, customer is king. We value your feedback and we use that information to make
improvements on our products. Please, take a minute and let us know how we are doing.
Spade terminals
Push button switches
T-wiring
harnesses
Push button
extension harnesses
ARIESAUTOMOTIVE.COM •NEED ASSISTANCE? •877.287.8 634 •3020000-INS-RB •PAGE 2

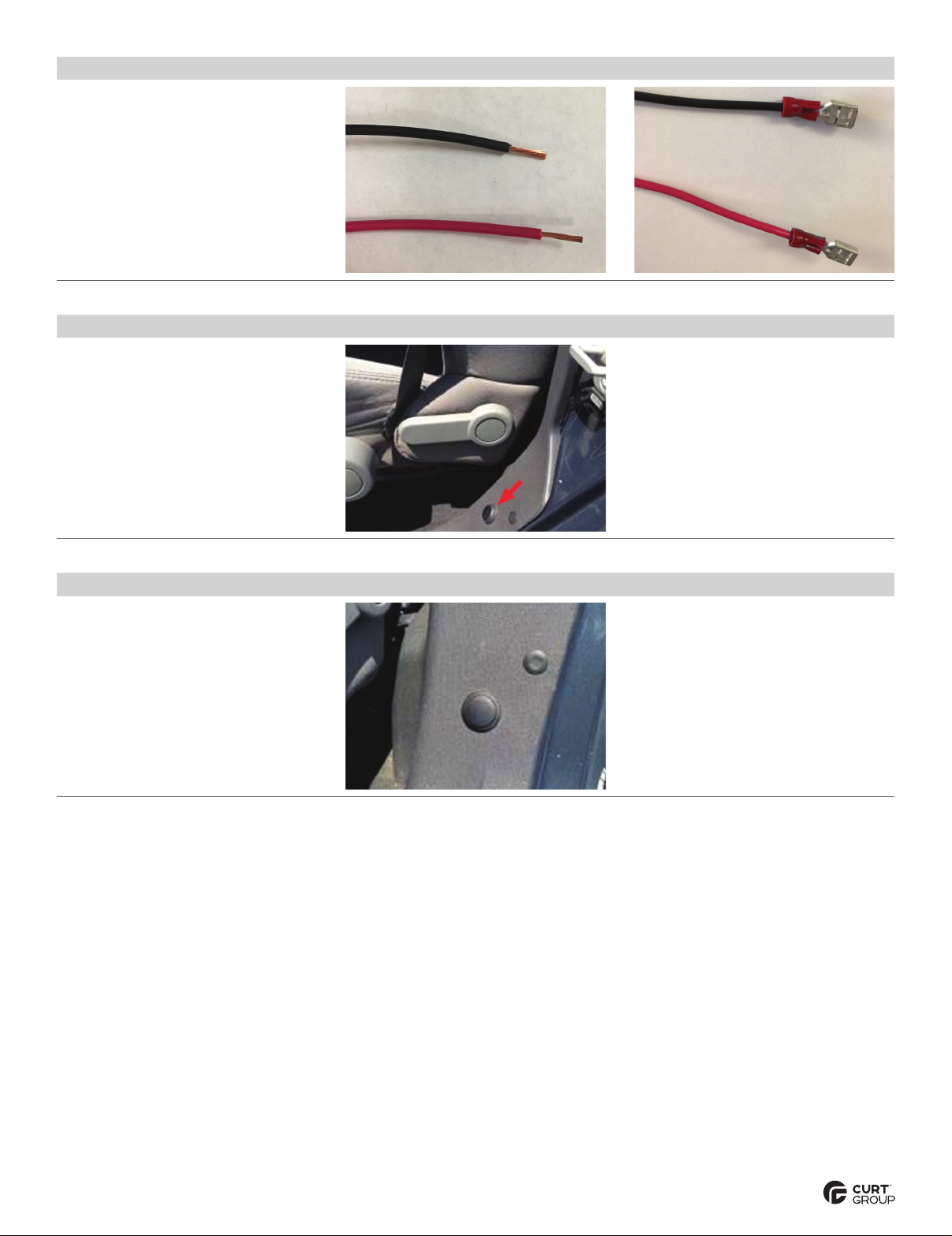

Step 1
Turn power to the running board system off
by turning off the cut-off switch.
Strip the insulation from the ends of both wires
on each push button extension harness. Insert
the bare wires into the spade terminals and
crimp the narrow end over the bare wires.
Step 2
Choose a location for the push button switch.
We recommend the plastic trim piece on the
door pillar.
If this is the location you choose, remove
the plastic trim piece to install the switch.
Step 3
Drill a hole for the switch in the trim piece. We
recommend using a step-up drill bit to get the
tightest fit. If a step-up bit is not available, use
a 7/8" drill bit.
Drill the hole until the switch will push in with
slight resistance. Push the switch into the hole
from the top down. The switch will secure itself.
ARIESAUTOMOTIVE.COM •NEED ASSISTANCE? •877.287.8 634 •3020000-INS-RB •PAGE 3
Step 4
Unplug the door sensor from the running board
wiring harness. Install the T-wiring harness
in-line between the door sensor and the
running board wiring harness.
With the T-wiring harness in-line, connect
the push button extension harness.
Step 5
Connect the push button switch from step 3
to the extension harness, as shown.
Note: Polarity is not important. The wire may
be connected to either terminal of the switch.
Reinstall the plastic trim, making sure all
the wires are secured out of the way.
Repeat this entire process for additional doors.
Note: If a manual button is only being installed
for the front doors but the rear doors are
also removed, the rear sensors must be
disconnected for the system to operate.
Turn the running board system back on. With
the doors open, the door delete-switch should
deploy and retract the steps when pushed.
When the doors are back on the vehicle, the
switch must be in the correct position to allow
the door sensors to work. If nothing happens
when you open or close the door, push the
button and try again.
Plug into the main running
board wiring harness Plug into the door delete
switch harness
Plug sensor here
