PAGE 1 • 2074150-INS-RA • 800.798.0813 • NEED ASSISTANCE? • ARIESAUTOMOTIVE.COM

Product Image

Notes and Maintenance

Before you begin installation, read all instructions thoroughly.

Proper tools will improve the quality of installation and reduce the time required.

For black ﬁnishes, mild soap may be used to clean the product.

Refer to the table to the left when securing hardware during the

installation process to help prevent damage to the product or vehicle.

Level of Difﬁculty

Easy

Parts List

1Driver / left side rocker step

1Passenger / right side

rocker step

12 Flat washer, M8

12 Lock washer, M8

12 Hex bolt, M8 - 1.25 x 30mm

Tools Required

Ratchet Extension

Socket, 12mm Torque wrench

Socket, 13mm Level

Scan

for helpful

install tips

Front

Rear

INSTALLATION MANUAL 2074150

Torque Speciﬁcations

METRIC

M6 bolt 3 ft.-lbs.

M8 bolt 7 ft.-lbs.

M10 bolt 16 ft.-lbs.

M12 bolt 28 ft.-lbs.

SAE

1/4" bolt 3 ft.-lbs.

5/16" bolt 7 ft.-lbs.

3/8" bolt 16 ft.-lbs.

7/16" bolt 20 ft.-lbs.

1/2" bolt 28 ft.-lbs.

ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 800.798.0813 • 2074150-INS-RA • PAGE 2

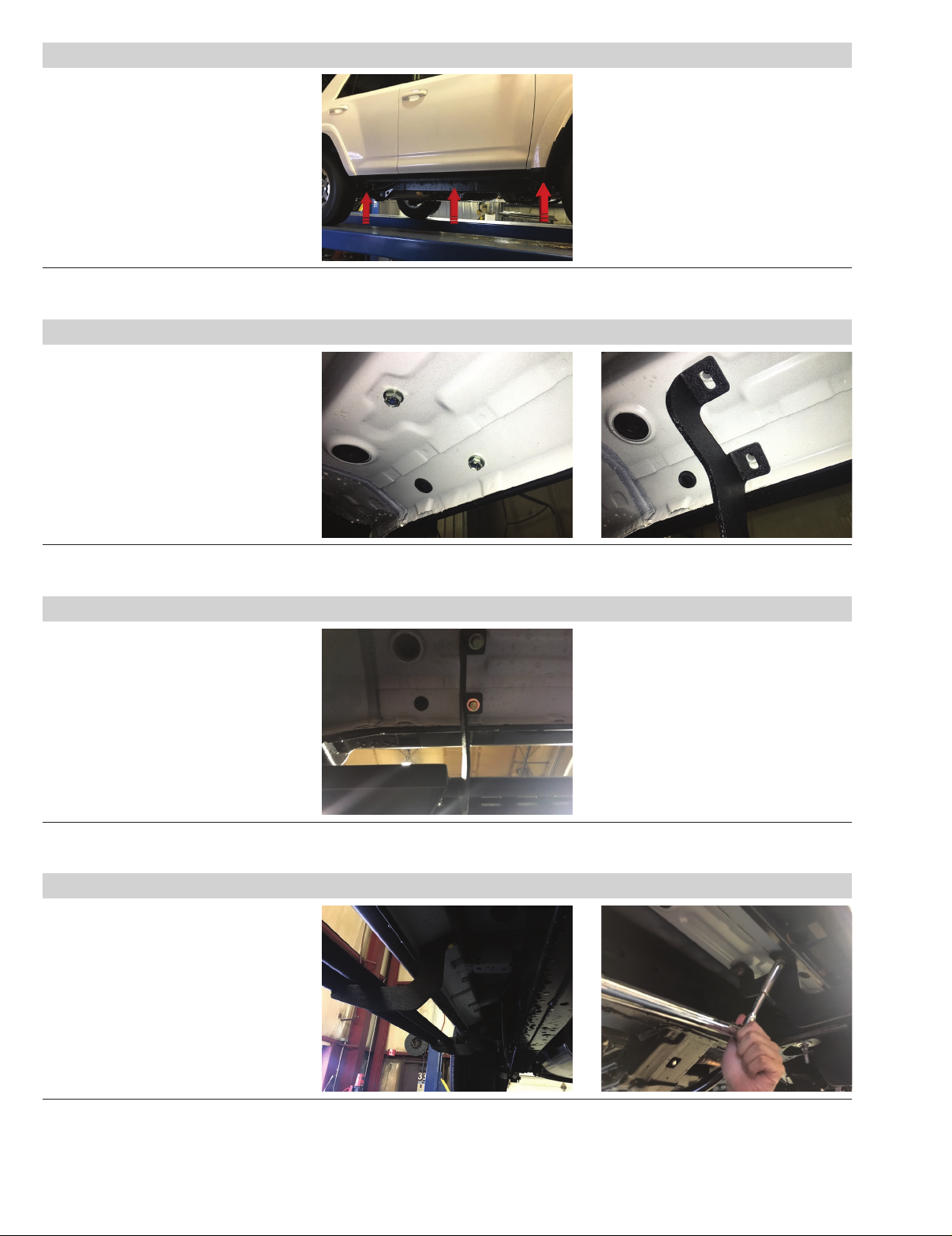

Step 1

Starting on the passenger side, locate

the three mounting locations underneath

the vehicle.

Step 2

Remove the two hex bolt plugs.

With help, lift the rocker step up to

the vehicle and align the mounting

holes on rocker step with the mounting

points on the vehicle.

Step 3

Secure the rocker step to the vehicle

using two M8 hex bolts, two M8 lock

washers and two M8 ﬂat washers.

Snug the hardware. Do not fully tighten.

Step 4

Repeat steps 2 and 3 to secure the

middle and rear mounting points.

With the rocker step in position, tighten

all hardware to the recommended torque

speciﬁcations on page one.

PAGE 3 • 2074150-INS-RA • 800.798.0813 • NEED ASSISTANCE? • ARIESAUTOMOTIVE.COM

Step 5

Repeat steps 1 through 4 on the

passenger side of the vehicle.

Congratulations on the installation

of your new ARIES rocker steps.

With the rocker steps installed,

periodic inspections should be

performed to ensure all mounting

hardware remains tight.
