PAGE 1 • 204001-INS-RA • 800.798.0813 • NEED ASSISTANCE? • ARIESAUTOMOTIVE.COM

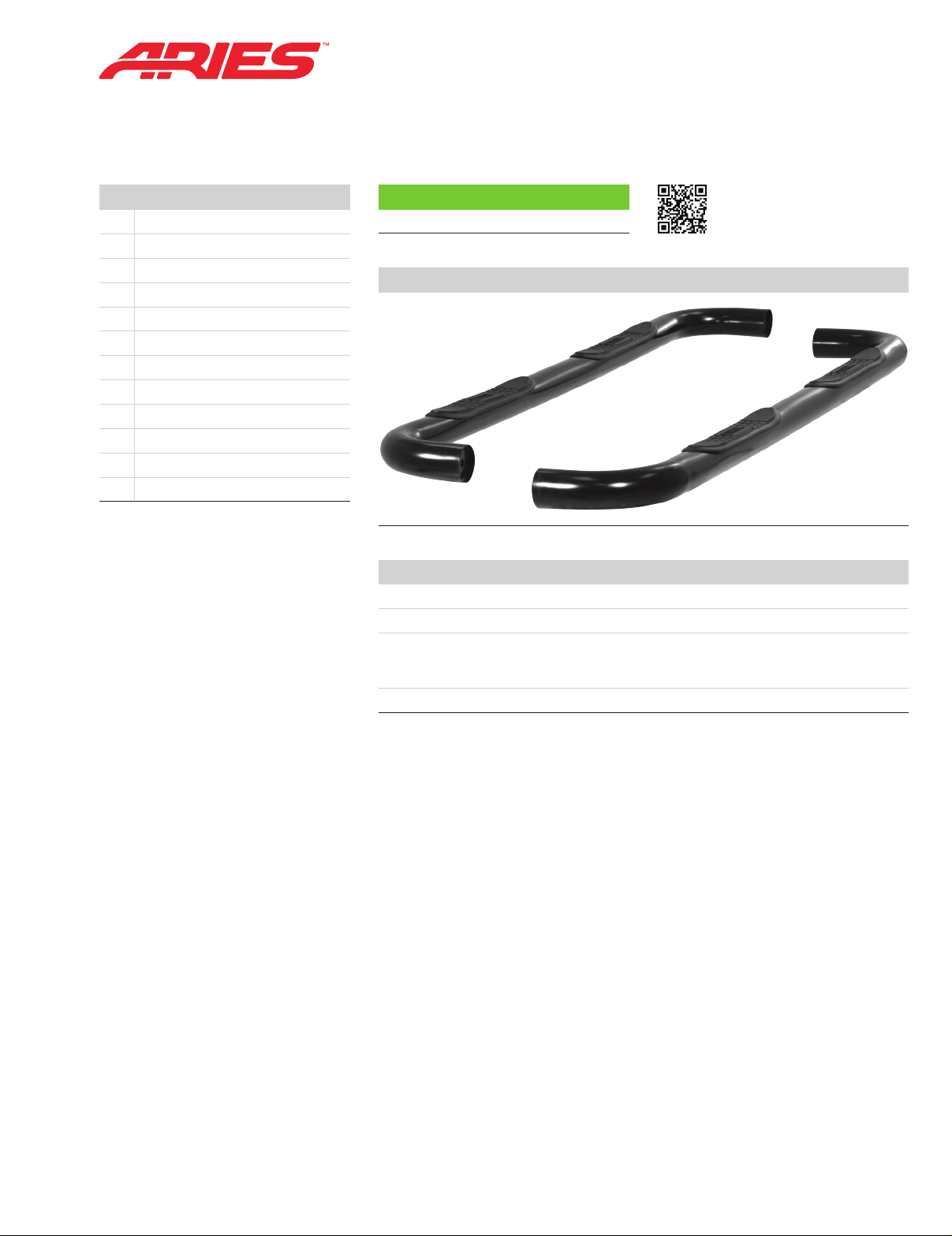

Product Image

Notes and Maintenance

Before you begin installation, read all instructions thoroughly.

Proper tools will improve the quality of installation and reduce the time required.

To protect the product, wax after installing. Regular waxing is recommended to

add a protective layer over the ﬁnish. Do not use any type of polish or wax that may

contain abrasives that could damage the ﬁnish.

For gloss black ﬁnishes, mild soap may be used to clean the product.

Level of Difﬁculty

Easy

Parts List

1Driver side / left side bar

1Passenger side / right side bar

2Mounting bracket, front

2Mounting bracket, rear

2Mounting brace

4Hex bolt, M10 x 25mm

8Flat washer, M10

4Hex lock nut, M10

4Hex bolt, M12 - 1.75 x 120mm

4Hex bolt, M12 x 50mm

8Flat washer, M12

8Lock washer, M12

Scan

for helpful

install tips

Front

Rear

INSTALLATION MANUAL 204001

ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 800.798.0813 • 204001-INS-RA • PAGE 2

1. Begin installation by working on the driver-side

of the vehicle, see ﬁgures 1 through 3.

2. From underneath truck, loosen and remove body mount

bolts that run upward through mounts into ﬂoorboard.

Attach and secure front mount bracket to underside of the

vehicles front body mount with one M12 - 1.75 x 120mm

bolt, one M12 split lock washer and one M12 ﬂat washer.

See ﬁgure 2. Snug the hardware, but do not fully tighten.

3. Repeat step 2 to secure the

rear mounting bracket to the vehicle.

4. Fasten the mount brace to the rear mounting bracket and

vehicle rear body mount using one M10 x 25mm bolt, two

M10 ﬂat washers and one M10 lock nut, for each side of

mount brace, see ﬁgure 3. Snug the hardware, but do not

fully tighten.

5. Attach the side bar to the front and rear brackets using

one M12 x 50mm bolt, one M12 lock washer and one

M12 ﬂat washer for each bracket. Hand tighten.

Adjust the side bar so that it is level and centered, and

tighten all bolts to complete the driver-side assembly.

6. Repeat this process for the passenger-side of the vehicle.

7. Congratulations on the installation of your new

ARIES 3" round side bars. With the side bars installed,

periodic inspections should be performed to ensure all

mounting hardware remains tight.

To protect your investment, see the 'Notes and Maintenance'

section on the ﬁrst page of this instruction manual.

Procedure

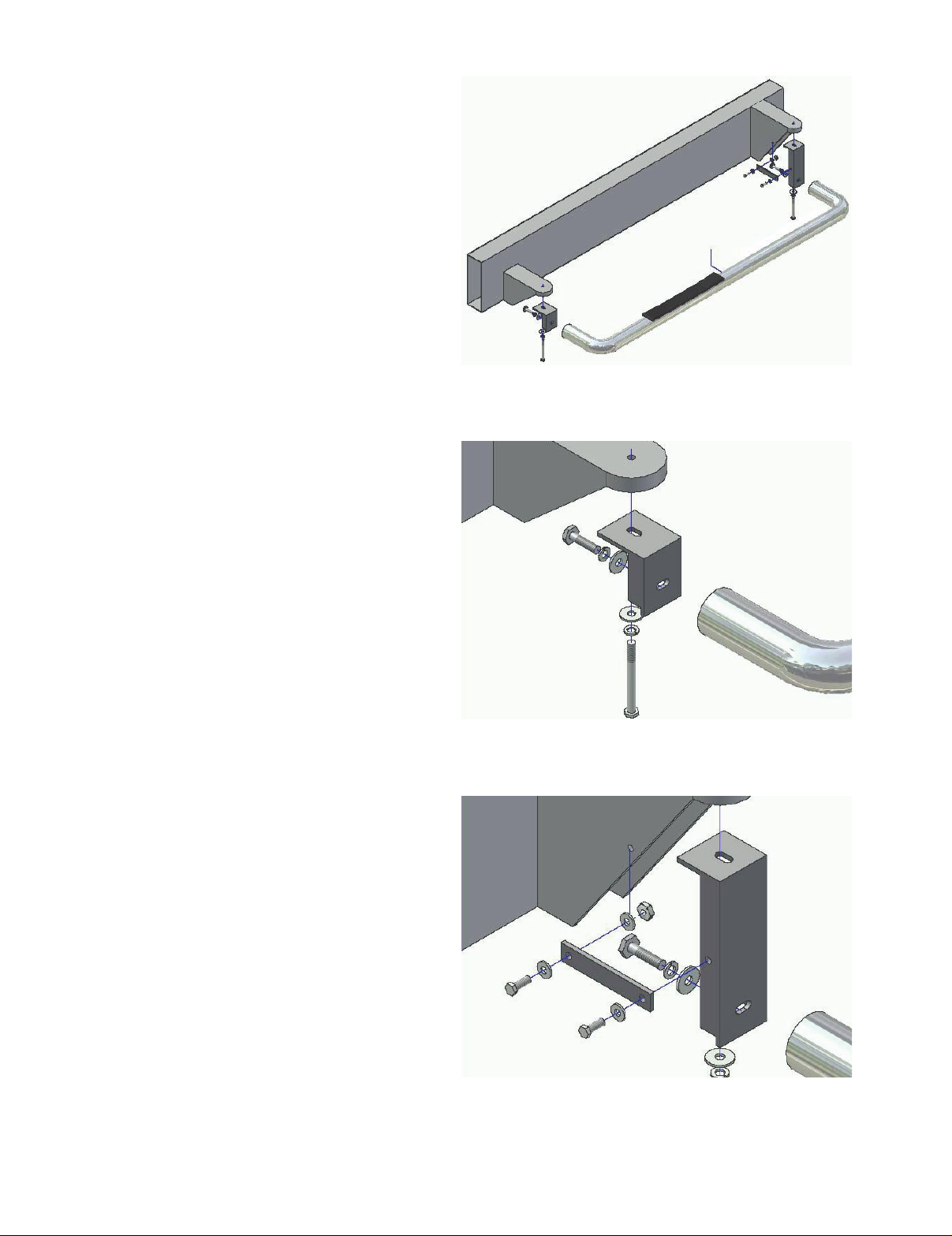

Figure 1 - Full assembly view

Figure 2 - Front bracket

Figure 3 - Rear bracket
