Aries 25201 Manuale utente

PAGE 1 • 25201-INS-RA • 800.798.0813 • NEED ASSISTANCE? • ARIESAUTOMOTIVE.COM

Product Image

Level of Difﬁculty

Easy

Parts List

1Rear bumper

2Mounting bracket, universal

8Hex bolt, M10 x 40mm

16 Flat washer, M10

8Lock washer, M10

8Hex nut, M10

4Hex bolt, M12

8Flat washer, M12

4Lock washer, M12

4Hex nut, M12

Tools Required

Ratchet Level

Torque wrench Extension

Wrench, 16mm Torx bit, T27

Wrench, 18mm Drill

Socket, 16mm Drill bit, 3/16"

Socket, 18mm Drill bit, 1/2"

Paint marker

Scan

for helpful

install tips

INSTALLATION MANUAL 25201

Torque Speciﬁcations

METRIC

M6 bolt 3 ft.-lbs.

M8 bolt 7 ft.-lbs.

M10 bolt 16 ft.-lbs.

M12 bolt 28 ft.-lbs.

SAE

1/4" bolt 3 ft.-lbs.

5/16" bolt 7 ft.-lbs.

3/8" bolt 16 ft.-lbs.

7/16" bolt 20 ft.-lbs.

1/2" bolt 28 ft.-lbs.

Notes and Maintenance

Before you begin installation, read all instructions thoroughly.

Proper tools will improve the quality of installation and reduce the time required.

To protect the product, wax after installing. Regular waxing is recommended to

add a protective layer over the ﬁnish. Do not use any type of polish or wax that may

contain abrasives that could damage the ﬁnish.

For gloss black ﬁnishes, mild soap may be used to clean the product.

Refer to the table to the left when securing hardware during the

installation process to help prevent damage to the product or vehicle.

ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 800.798.0813 • 25201-INS-RA • PAGE 2

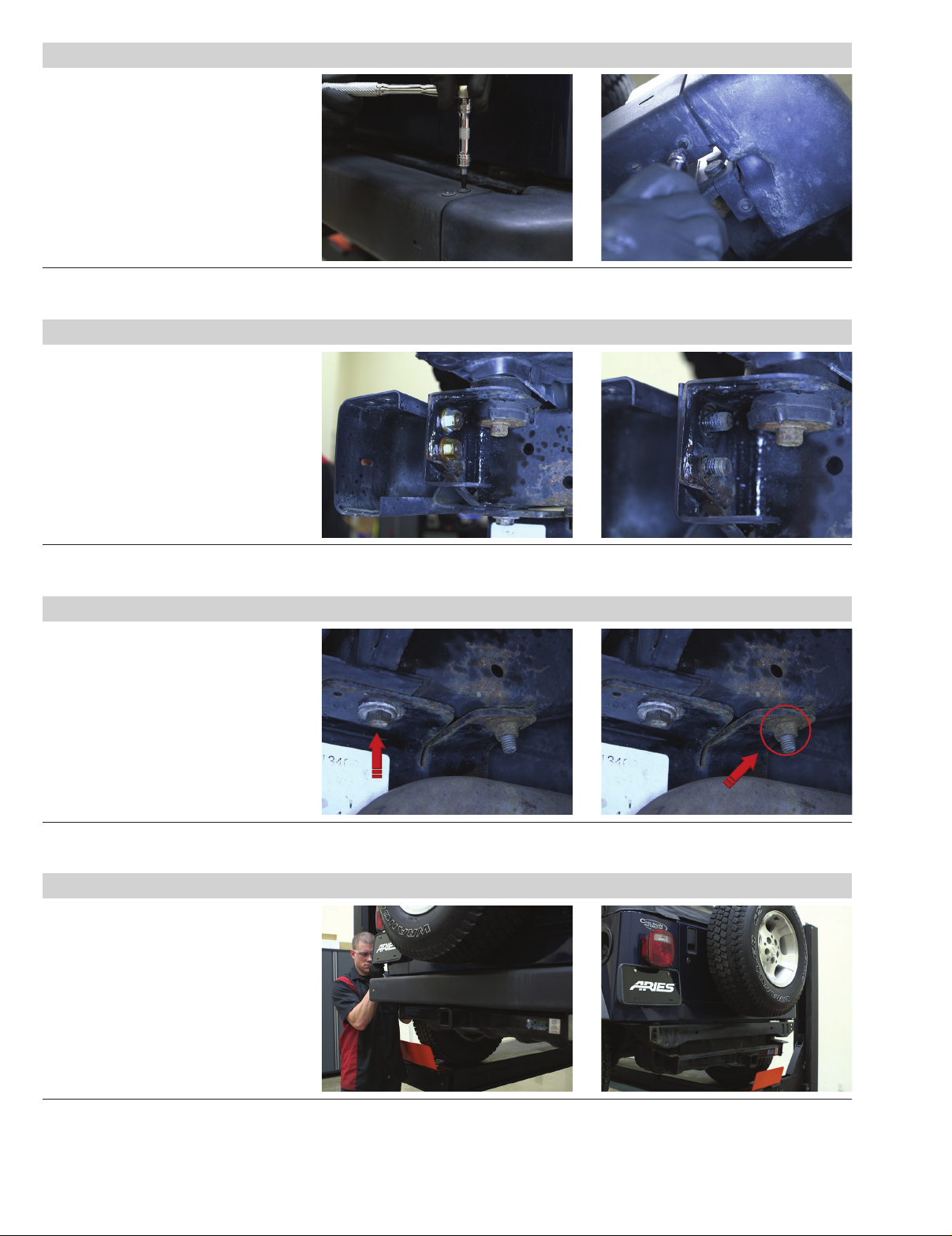

Step 1

Starting on the passenger side, using

a T27 Torx, remove the Torx head bolts

holding the corners of the bumper on.

Step 2

Remove the two hex nuts holding

the bumper to the frame of the vehicle.

Step 3

Remove the rear most hex bolt from

the frame of the vehicle.

Note: If there is a hitch present, loosen

the but do not fully remove the hex nut.

Step 4

Repeat steps 1 through 3

on the driver side. Remove

the factory rear bumper.

PAGE 3 • 25201-INS-RA • 800.798.0813 • NEED ASSISTANCE? • ARIESAUTOMOTIVE.COM

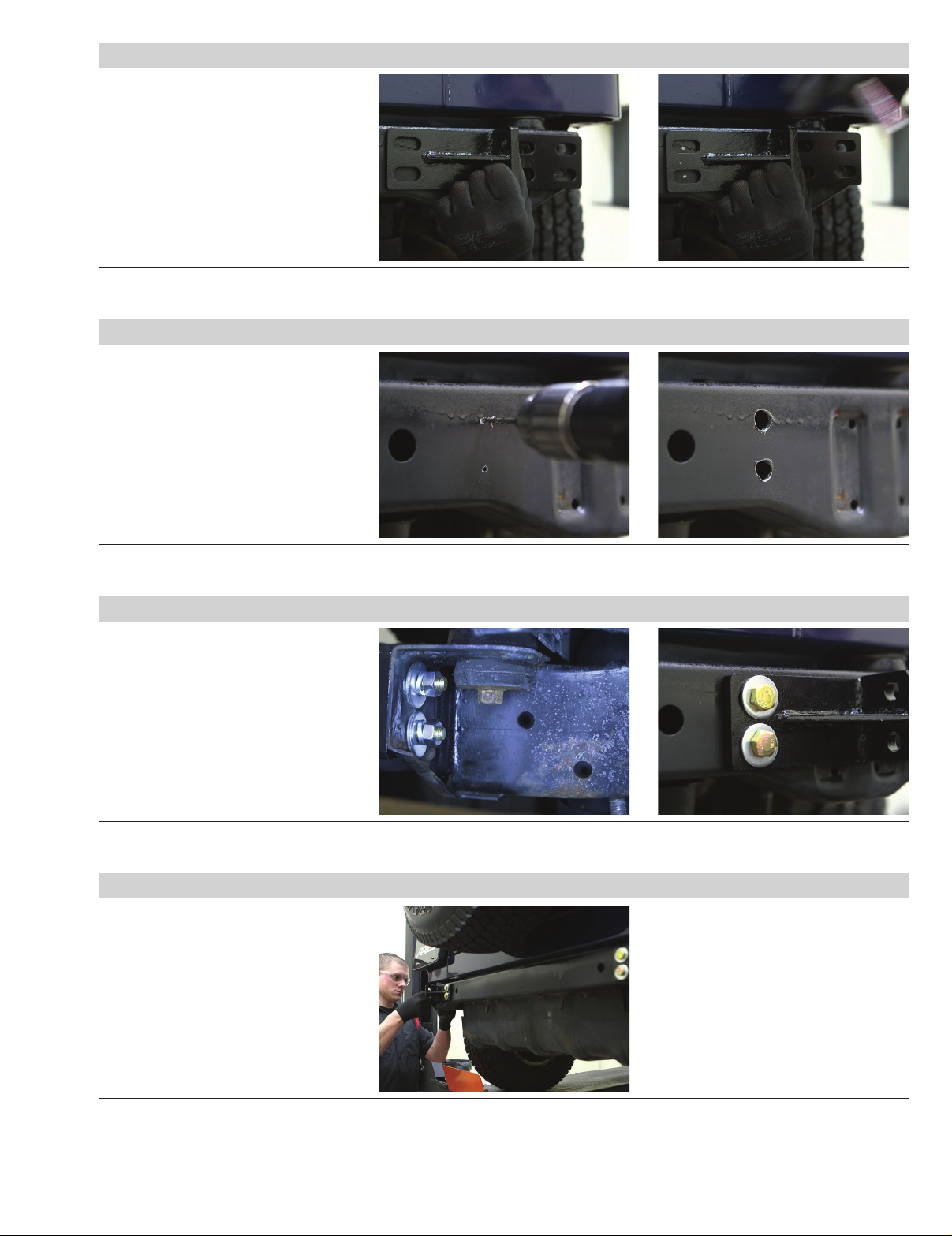

Step 5

Place the passenger side mounting

bracket up to the frame of the vehicle.

Note: On 76 - 95 Wranglers / CJ's the

holes in the frame will line up. On 96 - 06

Wranglers the outer holes will be located

in the bumper mount frame, the inner

holes will need to be drilled.

Using a paint marker,

mark the two drill points.

Step 6

Using a 3/16" drill bit, drill a pilot hole

in the marked areas.

Using a 1/2" drill bit, drill into

the pilot holes on the frame of the vehicle.

WARNING: Drill very carefully through

the bumper mount frame as the fuel tank

is located directly behind the bumper

mount frame.

Step 7

Place the passenger side mounting

bracket up to the frame, aligning the

mounting points.

Secure the mounting bracket using four

M10 hex bolts, eight M10 ﬂat washers,

four lock washers and four M10 hex nuts.

Step 8

Repeat steps 5 through 7

on the driver side.

ARIESAUTOMOTIVE.COM • NEED ASSISTANCE? • 800.798.0813 • 25201-INS-RA • PAGE 4

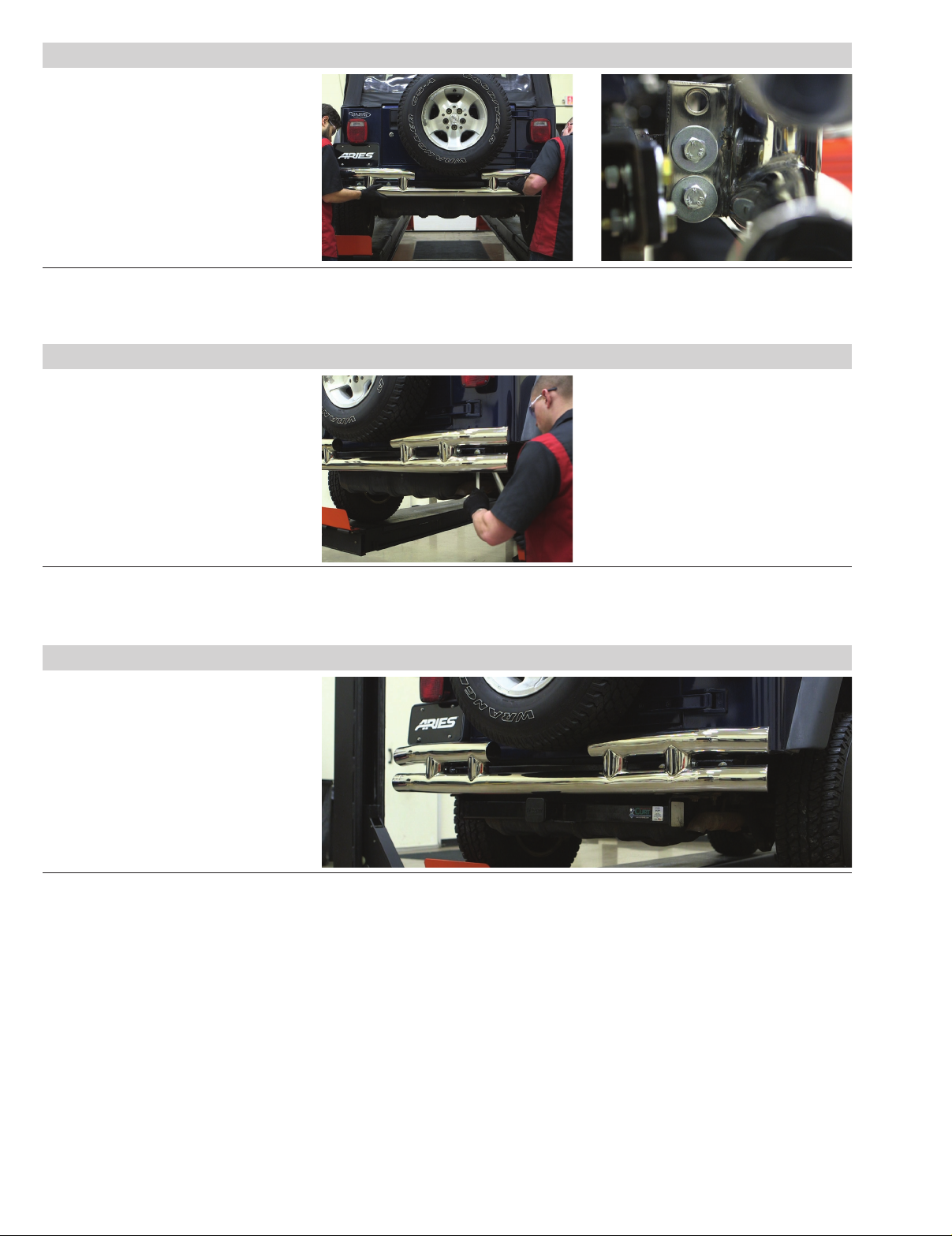

Step 9

With help, lift the rear bumper

up to the mounting brackets.

Secure the bumper to the mounting

brackets using two M12 hex bolts,

four ﬂat washers, two lock washers,

two M12 hex nuts.

Repeat process to ﬁnish securing

the bumper to the mounting brackets.

Step 10

Adjust and level the bumper.

With the bumper in position, tighten all

hardware to the recommended torque

speciﬁcations listed in the table on the

ﬁrst page.

Step 11

Congratulations on the installation

of your ARIES rear tubular bumper.

With the rear tubular bumper installed,

periodic inspections should be

performed to ensure all mounting

hardware remains tight.

To protect your investment, see the

'Notes and Maintenance' section on

the ﬁrst page of this instruction manual.
