Arista C-230E Manuale utente

Quick Start Guide

C-230E Access Point

Arista Networks

www.arista.com

DOC-04355-03

ii Quick Start Guide: Access Point

and the Arista logo are trademarks of Arista Networks, Inc in the United States and other countries. Other product or service

names may be trademarks or service marks of others.

Headquarters

5453 Great America Parkway

Santa Clara, CA 95054

USA

408 547-5500

www.arista.com

Support

408547-5502

866 476-0000

support-wifi@arista.com

Sales

408 547-5501

866 497-0000

[email protected]

Contents

1 About This Guide................................................................................ 1

2 Package Content..................................................................................2

3 Access Point Overview.......................................................................4

3.1 Front Panel............................................................................................................................. 4

3.2 Rear Panel..............................................................................................................................5

3.3 Side Panel.............................................................................................................................. 6

4 Install the Access Point......................................................................8

4.1 Ceiling Mount the Access Point............................................................................................. 8

4.2 Wall Mount the Access Point................................................................................................. 9

4.3 Connect External Antennas to C-230E................................................................................ 12

4.4 Connect the Access Point to the Network............................................................................13

4.4.1 Connect the Access Point using PoE.....................................................................14

4.5 Power the Access Point On..................................................................................................14

4.5.1 Using the C-230E with Power Adapter................................................................... 14

5 Access Point Troubleshooting.........................................................15

6 Appendix A: AP-Server Mutual Authentication...............................16

iii

1 About This Guide

This installation guide explains how to deploy the C-230 access point (AP).

Important: Please read the EULA before installing the access point (AP). You can download

and read the EULA from https://www.arista.com/en/support/product-documentation.

Installing the AP constitutes your acceptance of the terms and conditions of the EULA

mentioned above.

Intended Audience

This guide can be referred by anyone who wants to install and configure the access point.

Document Overview

This guide contains the following chapters:

•Package Content

•Access Point Overview

•Install the Access Point

•Access Point Troubleshooting

Note: All instances of the term 'server' in this document refer to the Wireless Manager, unless

the server name or type is explicitly stated.

Product and Documentation Updates

To receive important news on product updates, please visit our website at https://www.arista.com/

en/support/product-documentation. We continuously enhance our product documentation based on

customer feedback

This equipment conforms to the requirements of the NCC.

2 Package Content

The access point (AP) package must contain the components shown in the following figure.

Figure 1: Package Components

2 Package Content

Table 1: Labels: Package Components

Label Description

1 C-230E Access Point

2 15/16" (24 mm) Mounting Bracket (MNT-AP-24MM)

Important: The MAC address of the AP is printed on a label at the bottom of the product and

the packaging box. Note down the MAC address before mounting the AP on the ceiling or at a

location that is difficult to access.

If the package is not complete, please contact the Arista Networks Technical Support Team at support-

[email protected] or return the package to the vendor or dealer where you purchased the product.

3 Access Point Overview

C-230E is a tri-radio 802.11ax access point.

This chapter provides an overview of the C-230E access point (AP) and describes:

•Front Panel

•Rear Panel

•Side Panel

3.1 Front Panel

The front panel of the C-230E has 6 LEDs that indicate the status of various device functions.

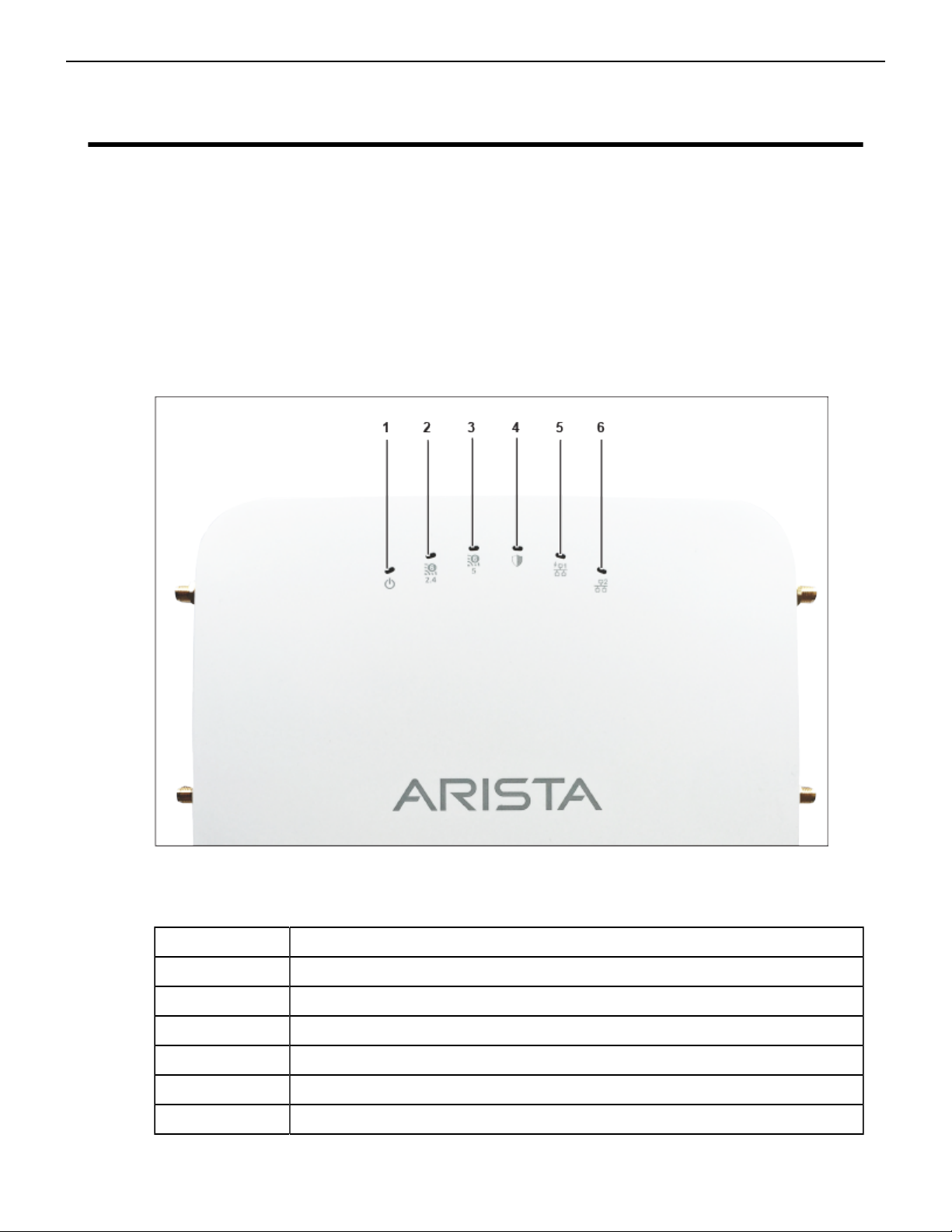

Figure 2: Front Panel LEDs

Table 2: Labels: Front Panel LEDs

Label Description

1 Power

2 2.4 GHz Radio

3 5 GHz Radio

4 Third Radio

5 LAN1

6 LAN2

3 Access Point Overview

Power LED: The following table describes the Power LED states.

Table 3: Power LED States Description

Green Orange

Solid Running at full capability Running at reduced capability

Blinking Received IP address, but not connected to the

server

Did not receive an IP address

Reduced capability indicates that the AP is getting lower than the required maximum power from the

PoE switch, i.e., 802.3af instead of 802.3at.

LAN1 LED: ON when the corresponding interface is up.

LAN2 LED: ON when the corresponding interface is up and either wired guest or link aggregation is

configured.

Radio LEDs: ON when the corresponding radio is operational.

3.2 Rear Panel

The rear panel of the AP has its DC power port and 802.3at compliant PoE LAN ports to power the

device and connect it to a wired LAN.

Figure 3: Rear Panel

Table 4: Labels: Rear Panel

Label Description

1 LAN2

2 LAN1

3 Power

Table 5: C-230E Port Details

Port Description Connector Type Speed/Protocol

Power 12V DC 5.5 mm overall

diameter / 2.1 mm

center pinhole

N/A

LAN 1 5 Gigabit Ethernet with

802.3at compliant PoE

RJ-45 100/1000 Mbps / 2.5/5

Gbps Ethernet

LAN 2 1 Gigabit Ethernet with

802.3at compliant PoE

RJ-45 100/1000 Mbps

Ethernet

3.3 Side Panel

The side panel of the C-230E has a reset pin, USB, and console port.

Figure 4: Side Panel

Table 6: Labels: Side Panel

Label Description

1 Reset

2 USB

3 Console

Port Description Connector Type Speed/Protocol

Console Establish ‘config shell’

terminal session via

serial connection

RJ-45 • RS 232 Serial

(115200 bits per

second)

• Data bits:8; Stop

bits: 1

• Parity: None

• Flow Control: None

USB USB 2.0 port USB Future Use

3 Access Point Overview

Reset Reset to factory default

settings port. Hold

down and power cycle

the device to reset.

Pinhole push button N/A

When you reset the AP, the following settings are reset:

• Config shell password is reset to config.

• Server discovery value is erased and changed to the default, redirector.online.spectraguard.net

(primary) and wifi-security-server (secondary).

• All the VLAN configurations are lost.

• If a static IP is configured on the AP, the IP address is erased and DHCP mode is set. The factory

default IP address of the AP is 169.254.11.74.
