Asante IntraCore 65120 Series Manuale utente

IntraCore™65120 Series

Gigabit Ethernet Switches

User’s Manual

Quick Start Guide

Follow these steps to install the IntraCore 65120:

1. Open the box and check the contents. SeeChapter2.1PackageContents for a complete list of the

items included with your IntraCore 65120.

2. Install the IntraCore 65120 switch in an equipment or wall rack, or prepare it for desktop placement.

3. Connect the power cord to the switch.

4. Connect network devices to the IntraCore 65120.

Refer to Chapters 3 and 4 to configure the IntraCore 65120 for management capabilities.

For more information on installing the IntraCore 65120, please refer to Chapter 2.2 Installation.

IntraCore™65120 Series

Gigabit Ethernet Switches

User’s Manual

Asanté Technologies, Inc.

821 Fox Lane

San Jose, CA 95131

USA

SALES

800-662-9686 Home/Office Solutions

800-303-9121 Enterprise Solutions

408-435-8388

TECHNICAL SUPPORT

801-566-8991 Worldwide

801-303-3787 FAX

www.asante.com

[email protected]

artwork, product design, or design concept may be copied or reproduced in whole or in part by any means

without the express written consent of Asanté Technologies, Inc. Asanté is a registered trademark and the

Asanté logo and IntraCore are trademarks of Asanté Technologies, Inc. All other brand names or product

names are trademarks or registered trademarks of their respective holders. All features and specifications

are subject to change without prior notice.

57-10027-00 Rev. A

Table of Contents

Quick Start Guide 2

Chapter 1 Introduction 6

1.1 Front Panel Descriptions 6

1.2 LED Definitions 7

1.3 Management 8

Chapter 2 Installation and Setup 10

2.1 Package Contents 10

2.2 Installation Overview 10

2.3 Setup 12

2.4 Password Protection 13

2.5 IP Assignment 14

2.6 SNMP Host Access 15

Chapter 3 Web-Based Management 16

3.1 Web Pages 16

3.2Introduction 17

3.3 System Manager 17

3.4 Port Manager 20

3.5 Address Manager 20

3.6 Spanning Tree 21

3.7 VLAN Setup 22

3.8 Port Trunking 23

3.9 Port Mirroring 24

3.10 SNMP (Simple Network Management Protocol) Management 24

3.11 IGMP (Internet Group Management Protocol) Management 26

3.12Statistics 26

Chapter 4 Console Interface 28

4.1 User Interface 28

4.2 Characteristics 28

4.3 Main Menu 28

4.4 System Manager 29

4.5 Port Manager 31

4.6 Address Manager 31

4.7 Spanning Tree 32

4.8 VLAN Setup 33

4.9 Port Trunking 33

4.10 Port Mirroring 34

4.11 Simple Network Management Protocol (SNMP) Management 34

4.12 Internet Group Management Protocol (IGMP) Management 35

4.13Statistics 35

Chapter 5 Firmware Update Procedure 36

Chapter 6 Switching Concepts 37

6.1 Spanning Tree Protocol 37

6.2 Full Duplex, Flow Control and Auto-negotiation 38

Appendix A: Troubleshooting 40

Appendix B: VLAN Description and Examples 41

Appendix C: Features, Defaults and Specifications 44

Appendix D: FCC Compliance and Safety Statements 46

Appendix E: Online Warranty Registration 47

Chapter 1 Introduction

Thank you for purchasing the Asanté IntraCore 65120 Series Gigabit Ethernet switch. In addition to the

traditional console and telnet interface, this switch can also be configured and managed through a user-

friendly web browser interface. With an on-board HTTP server, users can access the box with the use of

popular browsers such as Netscape Navigator and Microsoft I.E (Netscape Navigator 4.0 and IE 4.01 or

higher required). The IntraCore 65120 also supports firmware updates using the TFTP protocol.

This manual is designed for System Administrators, Information Technologies Professionals, and other

users who are familiar with the setup and operation of managed networks. This chapter describes the

functional overview of the Gigabit Ethernet switch:

•Front/Rear Panel Description

•LED Definitions

•Management

1.1 Front Panel Descriptions

The front panel contains all the Ethernet ports, Console port, and LEDs. There is one System LED, four

LEDs for each copper port (model 65120-2G only), and one LED for each GBIC port. Detailed definitions

can be found Table 1-1.

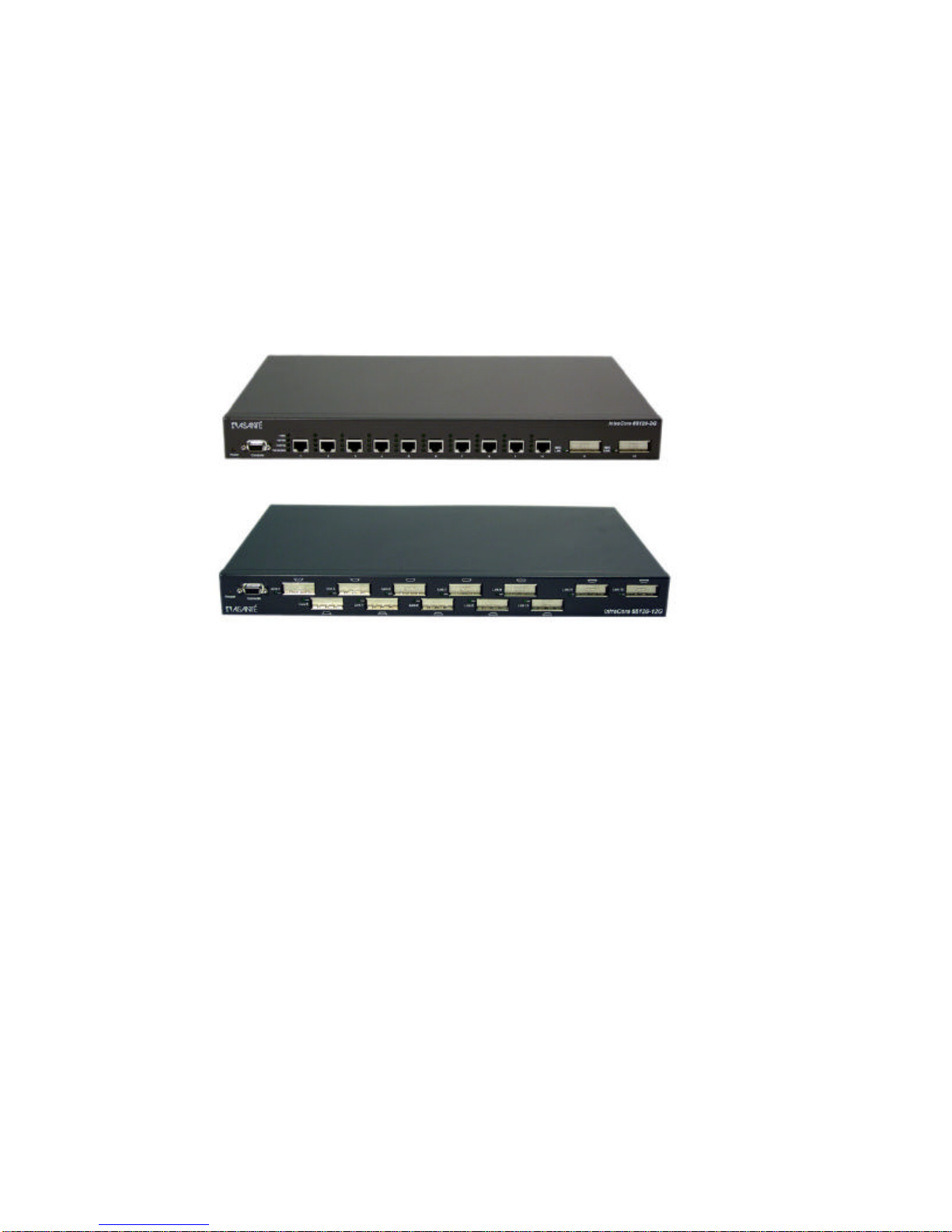

Figure 1-1: 65120-2G

Figure 1-2: 65120-12G

1.2 LED Definitions

The following Table describes the LEDs, which allows monitoring of the status of your switch:

Port LED Color ON OFF

N/A Power/System

Green

Amber

Red

Power is up

Booting

Failure

Power is off or system is

initializing

10/100/1000 1G Link Green A valid 1000 Mbps link has

been established No 1000 Mbps link has been

established

10/100/1000 10/100 Link Green A valid 10/100 link has been

established No 10/100 Mbps link has been

established

10/100/1000 Activity Blinking Green Traffic detected No traffic detected

10/100/1000 FDX/HDX Solid Green

Blinking Green

Full Duplex

Collisions occurring in half-

duplex

No Full Duplex link has been

established, or no collisions are

occurring in half-duplex

GBIC Link Green A valid link has been

established No GBIC link has been

established

Table 1-1 LEDs

1.3 Management

There are three different methods by which a user can manage the switch: web, console/telnet, or SNMP.

1.3.1 Web-Based Interface

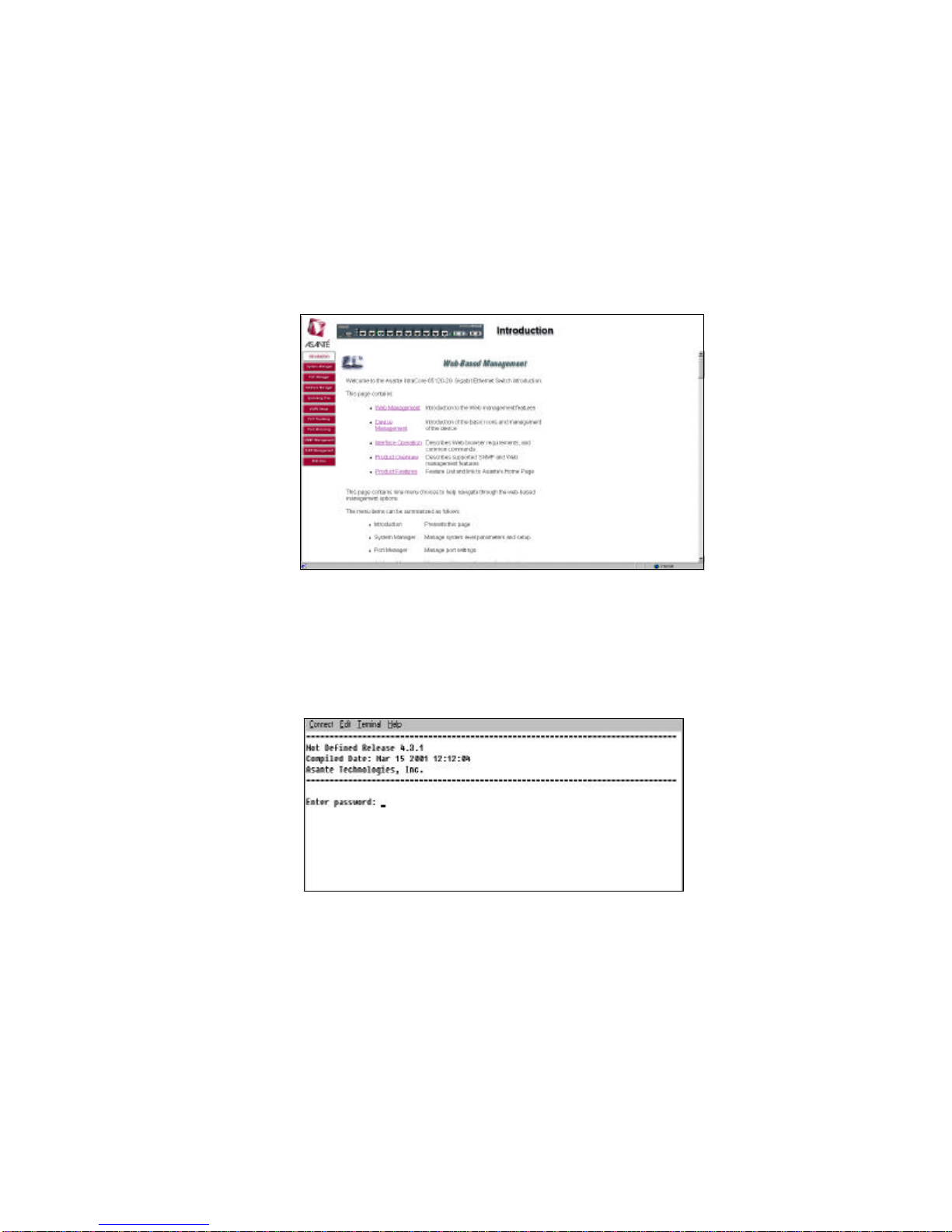

Users can configure the switch, monitor the LED panel, and display statistics graphically with Netscape

Navigator browser version 4.0 or higher and Microsoft IE version 4.01 or higher. With Internet access, users

can link directly to the local switch’s home page. Detailed description is found in Chapter 3 Web-Based

Management.

1.3.2 Console Interface

Users can also access the switch in a more traditional way by connecting a PC or terminal to the console

port or by telnet across the network. The menus are organized in a manner similar to the web-based

interface. A detailed description is in Chapter 4 Console Interface.

1.3.3 SNMP Interface

Since the switch supports SNMP, users can manage the switch with an SNMP-compatible management

station running platforms such as HP OpenView. It also supports a comprehensive set of MIB extensions

along with MIB II, Ethernet MIB, the 802.1d bridge MIB, and the 4 groups of RMON.

SNMP v.1 is implemented. The SNMP agent decodes the incoming SNMP messages and responds tothese

requests with MIB objects that are stored in the database. For the statistics and counters of MIB Objects, the

SNMP agent periodically (every 5 seconds) updates the MIB Objects.

1.3.4 Management Information Bases (MIBs)

The system supports the following MIBs:

1. MIB II (RFC 1213)

2. Ethernet Interface MIB (RFC 1643)

3. Bridge MIB (RFC 1493)

4. 4 groups of RMON (RFC 1457)

•The Ethernet Statistics Group

•The Ethernet History Group

•The Alarm Group

•The Event Group

5. Enterprise MIB

•CommGroup: Allows users to configure the community database

•HostGroup: Allows users to configure the hosts

•MiscGroup: Allows users to configure miscellaneous items

•SpanGroup: Allows users to configure the Spanning Tree

•ConfigGroup: Allows users to configure the system

Chapter 2 Installation and Setup

This chapter provides the following information:

•Package Contents

•Installation

•Setup

•Password Protection

•IP Assignment

•SNMP Host Access

2.1 Package Contents

The IntraCore 65120 package contains the following:

•IntraCore 65120 Series Gigabit Ethernet switch

•Getting Started Guide (printed)

•Power Cord

•Self-adhesive rubber feet for desktop placement

•Rack mount kit for rack installation

•IntraCore 65120 CD-ROM with user’s manual, utilities and product information

If any of these items are missing, contact your dealer immediately.

2.2 Installation Overview

The switch may be installed into an equipment or wall rack, or it may be placed on a level and stable

desktop surface.

The following guidelines will help you prepare to install the switch in such a way that it has the proper power

supply and environment.

2.2.1 Safety Overview

The following information provides safety guidelines to ensure your safety and to protect the switch

from damage.

Note: Be aware, however, that this information is intended as a guideline, and may not include every

possible hazard to which you may be exposed. Use caution when installing this switch.

•Only trained and qualified personnel should be allowed to install or replace this equipment.

•Always use caution when lifting heavy equipment

•Keep the unit clean

•Keep tools and components off the floor and away from foot traffic

•Avoid wearing rings or chains (or other jewelry) that could get caught in the switch. Metal objects

can heat up and cause serious injury to persons and damage to the equipment. Avoid wearing

loose clothing (i.e. ties or loose sleeves)

When working with electricity, follow these guidelines:

•Before accessing the interior of the switch, locate the emergency power-offswitchfortheroomyou

are in

•Disconnect all external cables before installing or removing the cover

•Do not work alone when working with electricity

•Always check that the power has been disconnected from the circuit

•Do not tamper with the equipment
