7211
6273, qty 2
ball end
7210, qty 2
front block carrier,
30° caster 6272, qty 4
dust cover
7220, qty 2
front steering
block
6951, qty 2
4-40 set screw
6299, qty 2
E-clip

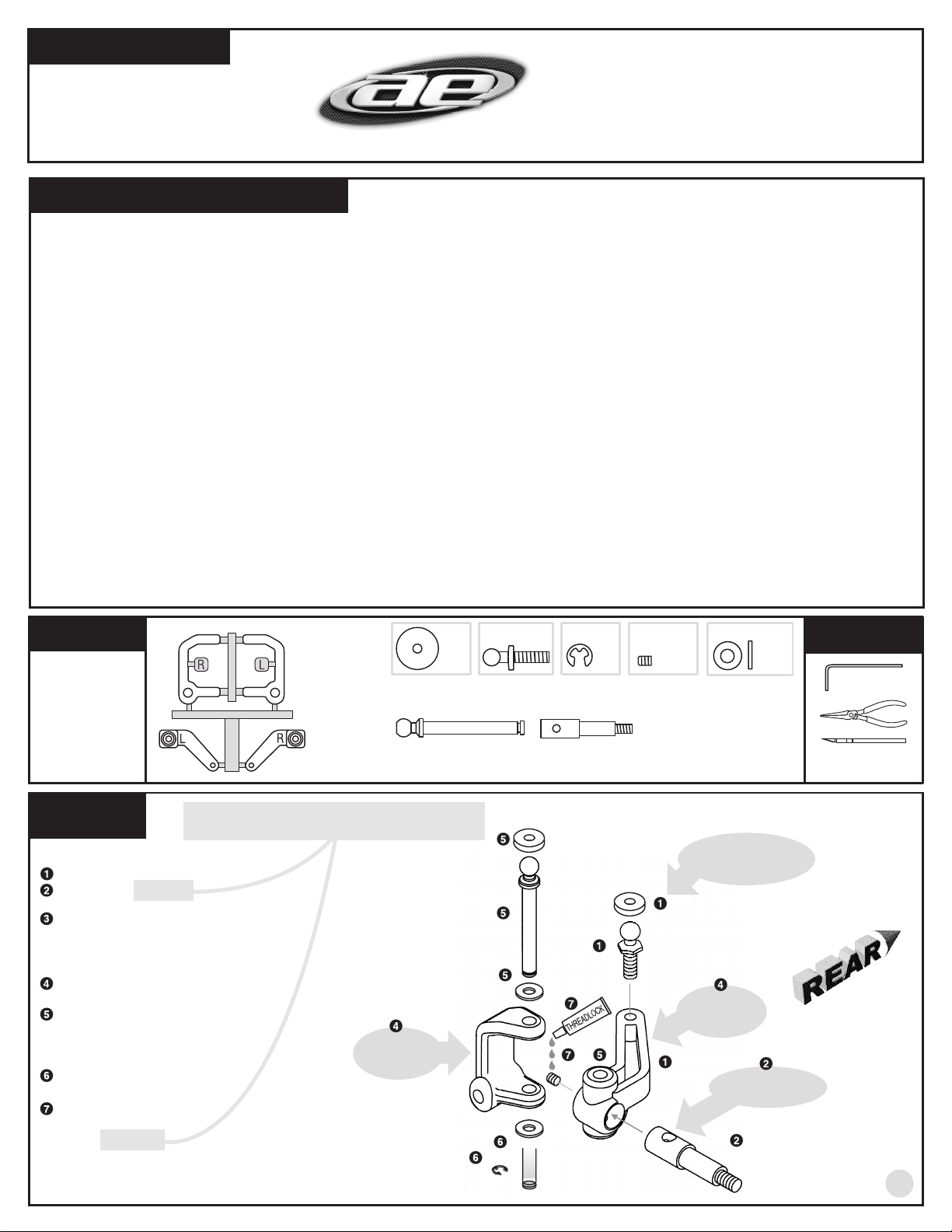

step 1
ASSEMBLE STEERING BLOCKS
Assemble parts #7220, 6273 and 6272.
Push #7221 (7221B*) axle into the #7220 steering
block, lining up holes.
Push the #7211 kingpin through both to clear any
burrs. Then remove the kingpin.
ASSEMBLE BLOCK CARRIERS
Note location of L and R on #7210 block carriers and
#7220 steering blocks.
Align holes of #7220 (L) inside #7210 (L). Add
one #4187 spacer to #7211 kingpin and insert
#7211 through block and axle. Add a #6272
dust cover to the ball end as shown.
Insert one #4187 spacer and then one #6299
E-clip to the bottom of #7211 kingpin.
Add screw locking compound such as Loctite® (not
included in kit) to #6951 set screw and tighten into
#7221 (7221B*).
Now assemble right side.
LEFT S ID E
7210
6273
6299
"L" = left side
"R" = right side
BAG A
REMOVE THESE
PARTS FOR:
Step 1
.050
1:1
1:1
1:1 1:1
7221, 7221B*
6272
(foam)
3
TOOLS USED
Match this number
to the text to find
your way faster
Align this hole
with hole in #7220
7220
6951
6272
(foam)
4187
4187
"L" = left side
"R" = right side
7221
, 7221B*
, qty 2
front axle
7211, qty 2
kingpin ball end
4187, qty 4
1/32" thin plastic
washer
1:1

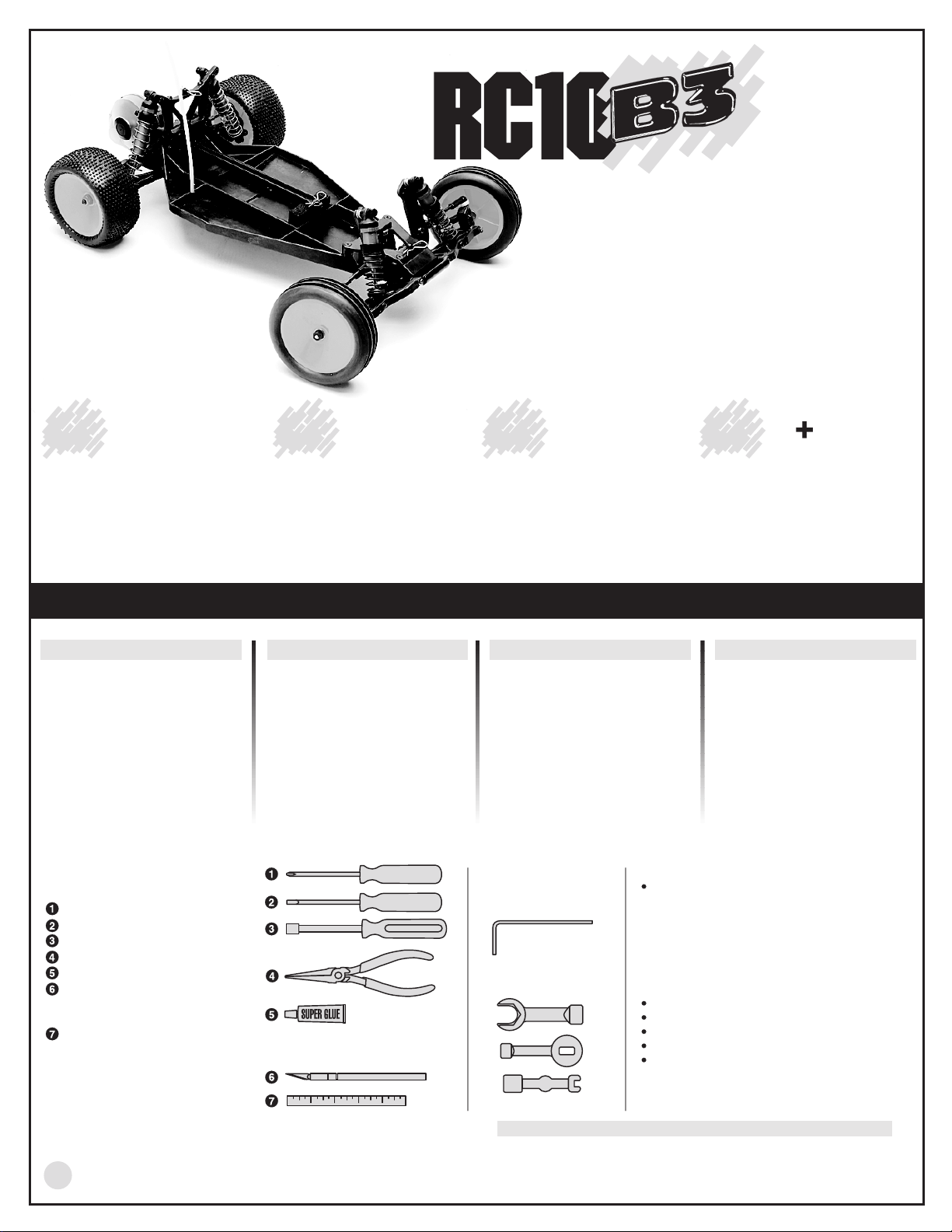

REACHING US
ASSOCIATED ELECTRICS, INC.
3585 Cadillac Ave.
Costa Mesa, CA 92626-1401
USA
http://www.rc10.com
CUSTOMER SUPPORT
(714) 850-9342
Fax (714) 850-1744
http://www.rc10.com/help
http://www.rc10.com/kits
READ THIS BEFOREBUILDING
READ THE MANUAL!
This manual is for four different B3 kits and will help you
assemble and set up each one. Read the manual before
starting your kit and before contacting us for help.
"Hello,
Associated, I need some help." "Did you read the manual?"
OPEN THE BAGS IN ORDER
The assembly is arranged so that you will open and finish that
bag before you go on to the next bag. Sometimes you will
have parts remaining at the end of a bag. These will
become part of the next bag. Some bags may have a large
amount of small parts. To make it easier to find the parts, we
recommend using a partitioned paper plate for spreading out
the parts so they will be easier to find.
SUPPLEMENTAL SHEETS
We are constantly updating parts to improve our kits. These
changes, if any, will be noted in supplementary sheets located
in a parts bag or inside the kit box. Check the kit box before
you start and each bag as it is opened. When a supplement is
found, attach it to the appropriate section of the manual.
MANUAL FORMAT
The following explains the format of these instructions.
The beginning of each section indicates:
1Which bag to open ("BAG A") and which steps you'll be using
those parts for ("FOR STEPS 1-3").
2Which parts you will use for those steps. Remove only the
parts shown. "1:1" indicates an actual size drawing; place your
part on top and compare it so it does not get confused with a
similar part.
3Which tools you should have handy for that section.
4An asterix ( * ) next to a part number indicates the part used in
the Factory Team B3 kit. (You can use those numbers to
upgrade your B3 kits to Factory Team specs.)
5 The instructions in each step are ordered in the order you
complete them, so read the words AND follow the pictures. The
numbers in circles are also in the drawing to help you locate
them faster.
6When we refer to left and right sides of the buggy, we are
referring to the driver's point of view inside the car.
8
Asterix ( * ) denotes Factory Team part number.
Use this number if you have the Factory Team kit.
©2000 Associated Electrics, Inc.
