Asus USB-N10 Manuale utente

User Manual

EZ N Network Adapter

USB-N10

(For 802.11b/g/n Networks)

No part of this manual, including the products and software described in it, may be reproduced,

transmitted, transcribed, stored in a retrieval system, or translated into any language in any

form or by any means, except documentation kept by the purchaser for backup purposes,

without the express written permission of ASUSTeK COMPUTER INC. (“ASUS”).

Product warranty or service will not be extended if: (1) the product is repaired, modied or

altered, unless such repair, modication of alteration is authorized in writing by ASUS; or (2)

the serial number of the product is defaced or missing.

ASUS PROVIDES THIS MANUAL “AS IS” WITHOUT WARRANTY OF ANY KIND, EITHER

EXPRESS OR IMPLIED, INCLUDING BUT NOT LIMITED TO THE IMPLIED WARRANTIES

OR CONDITIONS OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

IN NO EVENT SHALL ASUS, ITS DIRECTORS, OFFICERS, EMPLOYEES OR AGENTS BE

LIABLE FOR ANY INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAMAGES

(INCLUDING DAMAGES FOR LOSS OF PROFITS, LOSS OF BUSINESS, LOSS OF USE

OR DATA, INTERRUPTION OF BUSINESS AND THE LIKE), EVEN IF ASUS HAS BEEN

ADVISED OF THE POSSIBILITY OF SUCH DAMAGES ARISING FROM ANY DEFECT OR

ERROR IN THIS MANUAL OR PRODUCT.

SPECIFICATIONS AND INFORMATION CONTAINED IN THIS MANUAL ARE FURNISHED

FOR INFORMATIONAL USE ONLY, AND ARE SUBJECT TO CHANGE AT ANY TIME

WITHOUT NOTICE, AND SHOULD NOT BE CONSTRUED AS A COMMITMENT BY

ASUS. ASUS ASSUMES NO RESPONSIBILITY OR LIABILITY FOR ANY ERRORS OR

INACCURACIES THAT MAY APPEAR IN THIS MANUAL, INCLUDING THE PRODUCTS AND

SOFTWARE DESCRIBED IN IT.

Products and corporate names appearing in this manual may or may not be registered

trademarks or copyrights of their respective companies, and are used only for identication or

explanation and to the owners’ benet, without intent to infringe.

E4952

First Edition

October 2009

Table of Contents

Chapter 1: Knowing your network adapter

Package contents .................................................................................. 5

Features.................................................................................................. 5

System Requirements ........................................................................... 5

LED status indicators............................................................................ 6

Chapter 2: Installing the utilities and driver

Installing in Windows®OS .................................................................... 7

Installing in Windows®XP/Vista/7 OS ............................................... 7

Installing in MAC OS ............................................................................. 8

Installing in Linux OS...........................................................................11

Chapter 3: Connecting to the wireless network

Using the WPS Wizard ........................................................................ 12

Launching the WPS Wizard ............................................................ 12

Connecting via the WPS button ...................................................... 13

Connecting via the PIN code........................................................... 14

Conguring with the WLAN utility (Infrastructure) ........................... 19

Conguring with the WLAN utility (Ad Hoc)..................................... 20

Chapter 4: Using the ASUS WLAN Control Center

Launching the ASUS WLAN Control Center ..................................... 22

Wireless Status Icons (on the taskbar) ........................................... 22

Using the Wireless Settings right-click menu................................... 23

Using the Wireless Settings left-click menu ..................................... 24

Using the ASUS WLAN Card Settings utilities.................................. 24

Launching the ASUS WLAN Card Settings screen ......................... 24

Status - Status................................................................................. 24

Status - Connection......................................................................... 26

Status - IP Cong............................................................................ 27

Status - Ping.................................................................................... 27

Cong - Basic.................................................................................. 28

Cong - Encryption.......................................................................... 29

Cong - Advanced........................................................................... 32

Proles ......................................................................................... 33

About - Version Info......................................................................... 34

Link State ........................................................................................ 34

Exit Wireless Settings ..................................................................... 35

Windows®XP wireless options........................................................ 35

Windows®7 wireless options .......................................................... 37

Setting up the XLink Mode.............................................................. 38

Chapter 5: Troubleshooting

Troubleshooting................................................................................... 41

Chapter 6: Appendices

Notices.................................................................................................. 43

Contact Information............................................................................. 45

ASUS USB-N10 5

Package contents

Check the following items in your ASUS EZ N Network Adapter package.

1 x ASUS USB-N10

1 x Support CD

1 x Quick Start Guide

1 x Warranty card

Features

• High speed networking (11n Draft) for fast download, le transfer, and media

streaming

• Use the WPS function for easy wireless network setup

• Multiple OS support: Windows, Linux, and MAC

System Requirements

Before using your ASUS network adapter, your system must meet the following

minimum requirements:

• Windows® 2000/ XP (x86/x64) / Vista (x86/x64) / 7 (x86/x64), Linux (driver

source code available), Mac 10.4/10.5 OS

• USB 2.0 port on your computer

• 128MB system memory or larger

• 750MHz processor or higher

Note: If any of the items is damaged or missing, contact your retailer.

Important: Install the utilities and driver from the support CD before using the ASUS network

adapter.

Chapter 1

Knowing your network adapter

6ASUS USB-N10 Chapter 1: Introduction

LED status indicators

The LED indicator on the ASUS network adapter indicates the status of the network

adapter.

Status indicators

LED Indication

ON The ASUS network adapter is connected to a wireless

device.

Blinking Transmitting data via the ASUS network adapter. The blinking

speed indicates the link speed.

OFF The ASUS network adapter is not connected to a wireless

device.

LED status indicator

ASUS USB-N10 7

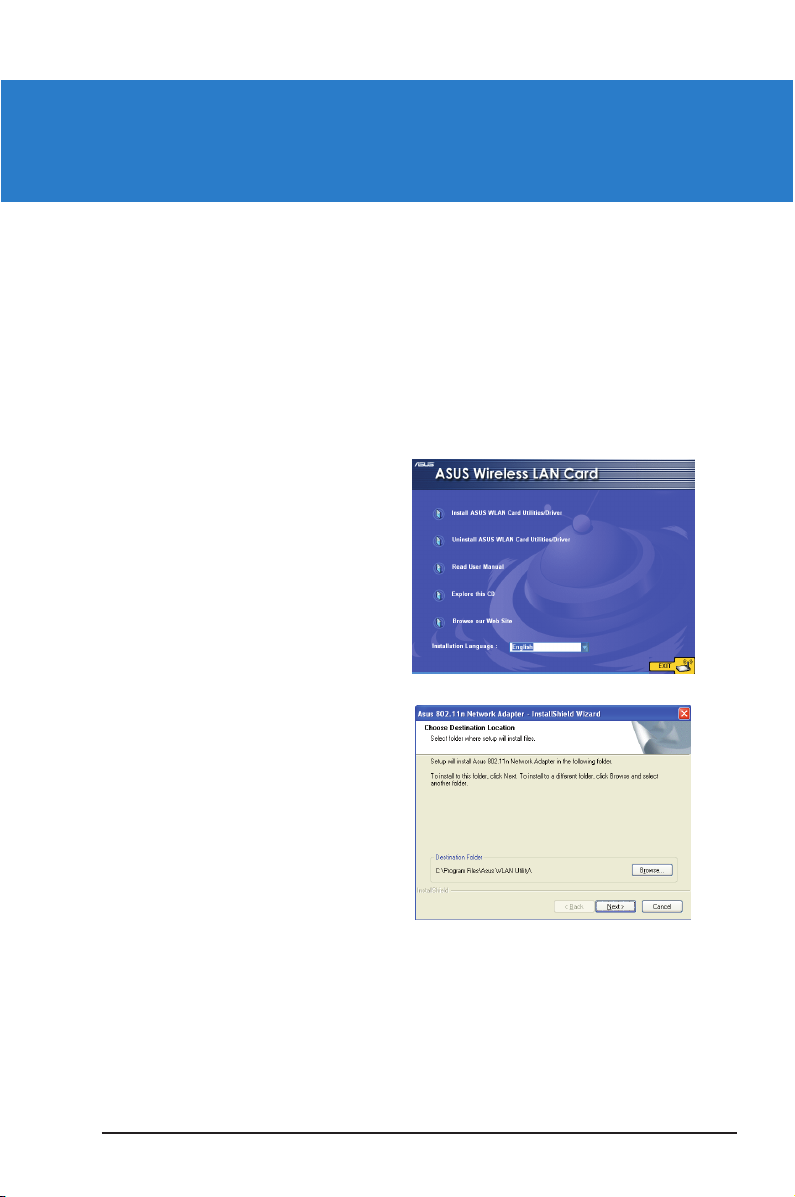

2. Select your language and click

Install ASUS WLAN Card Utilities/

Driver.

Installing in Windows®OS

Installing in Windows®XP/Vista/7 OS

To install in Windows®XP/Vista/7 OS:

1. Insert the support CD into the optical drive. If Autorun is disabled, run

setup.exe from the root directory of the support CD.

3. Click Next to accept the default

destination folder or click Browse to

specify another path.

Chapter 2

Installing the utilities and driver

8ASUS USB-N10 Chapter 2: Installing the utilities

5. When Setup is completed, click

Finish to exit the installation wizard

and launch the WPS Wizard.

4. The installation process takes

several seconds. When prompted,

insert the network adapter into your

computer’s USB port.

Installing in MAC OS

To install in MAC OS:

1. Double click the installation icon

and then click Continue.

ASUS USB-N10 Chapter 2: Installing the utilities 9

4. Click Agree to continue with the

installation. Click Continue.

2. Carefully read the Important

Information. When done, click

Continue.

3 . S e l e c t t h e l a n g u a g e f r o m t h e

dropdown list. Click Continue.

5. Select the destination for the driver.

Click Continue.

10 ASUS USB-N10 Chapter 2: Installing the utilities

6. Click Install.

7. When prompted, key in your

password.

8. Click Continue Installation on the

conrmation message.

8. Click Restart to complete the

installation process.
