English

Power

(DC-IN) port

Power

switch

USB

2.0 port

Reset

button

WAN

port

LAN

port 1-4

WPS

button

Plug the adapter into the DCIN port, and press the power button.

The Power, 2.4GHz/5GHz LEDs will light up when your hardware is ready.

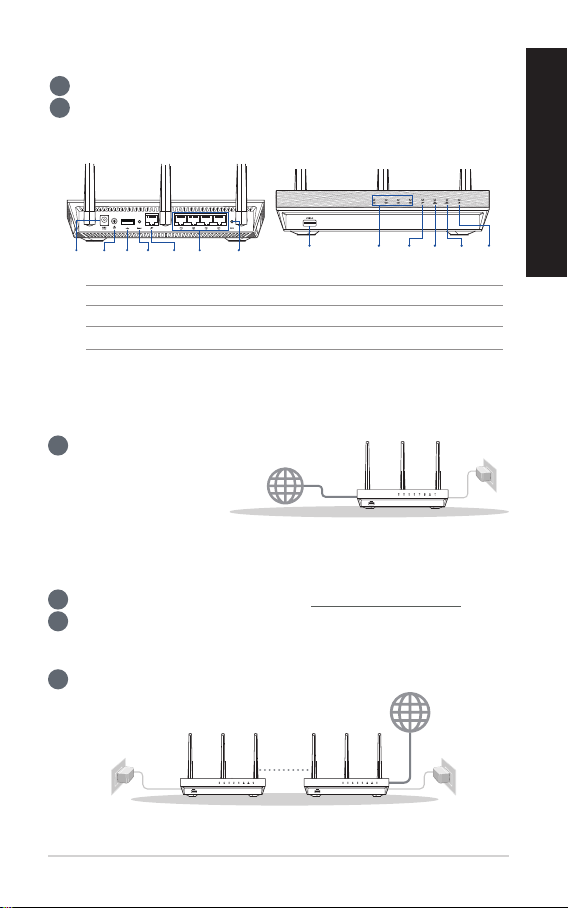

Hardware Explanations

USB3.0 port LAN 1-4 WAN 5GHz 2.4GHz Power

Button Explanations LED Explanations

RESET BUTTON: Reset the system to its factory defaults.

WAN PORT: Connect your modem to this port with a network cable.

LAN PORT 1-4: Connect your PC to a LAN port with a network cable.

BEFORE SETTING

Preparing to setup a standalone router

Go to ONE ROUTER SETUP STEPS.

ONE ROUTER SETUP

Preparing to setup an AiMesh Wi-Fi system

Two (2) ASUS routers (models supporting AiMesh https://www.asus.com/AiMesh/).

Assign one as AiMesh router, and another one as AiMesh node.

** If you have multiple AiMesh routers, we recommend using the router with the highest

specications as your AiMesh router and the others as AiMesh nodes.

Go to AiMesh SETUP STEPS.

AiMesh node AiMesh router

AiMesh SETUP STEPS

English

ONE ROUTER SETUP STEPS

Modem back

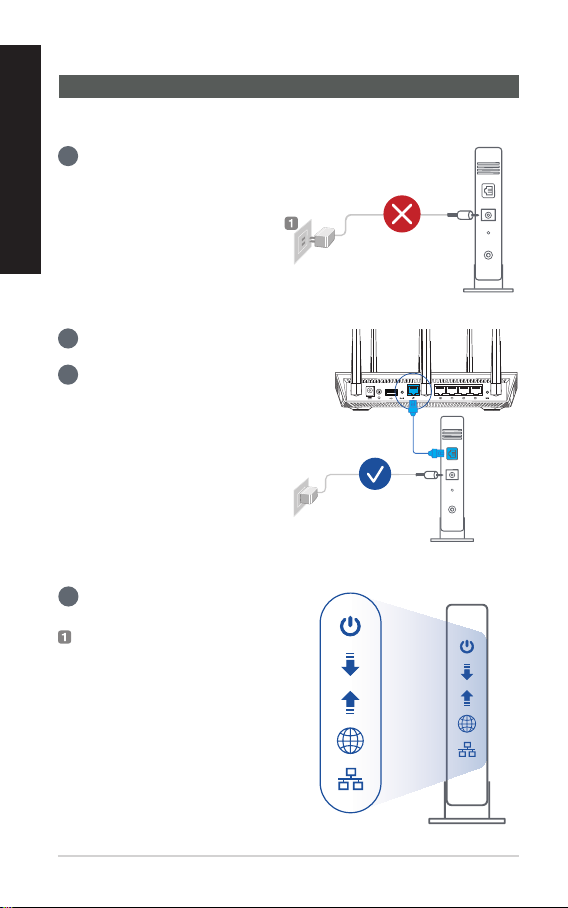

Preparing your Modem

Unplug the power of cable / DSL modem.

If it has a battery backup, remove the

battery.

Connect your modem to the router with

the network cable provided.

Power on the modem. Plug modem to

the power outlet and power on.

Modem back

WE SUGGEST...

Check the modem LED lights to ensure

the connection is active.

Modem front

If you are using DSL for internet, you will

need your username / password from

your Internet service provider (ISP) to

properly congure your router.

English

Connect your Device

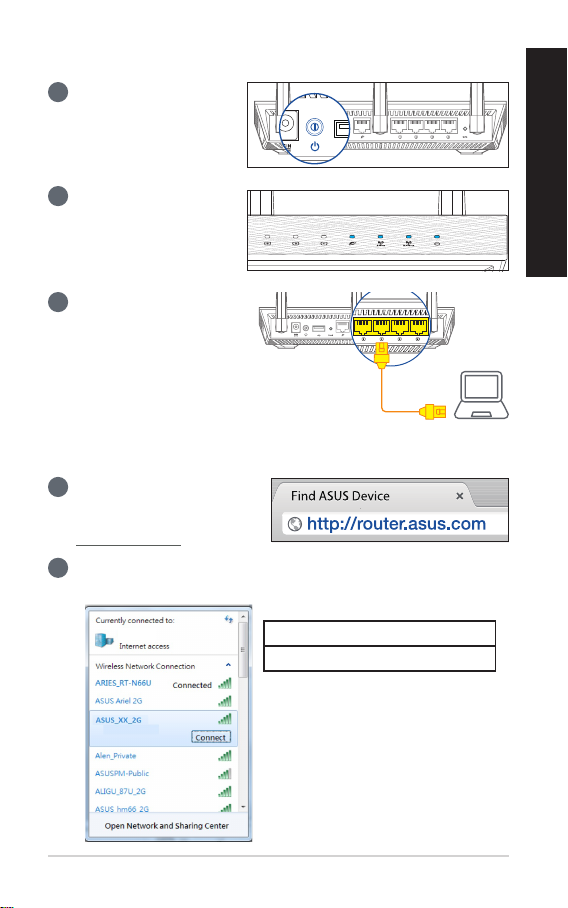

Power on the router. Plug in and

press the power button at the

back of your router.

Check the WAN and 2.4GHz/5GHz

LED lights to ensure the hardware

connection is ready.

Connect your PC to the router

using an additional network

cable.

Open a web browser.

You will be redirected to the ASUS

Setup Wizard. If not, navigate to

http://router.asus.com.

Connect to the network name (SSID) shown on the product label on the back side of the

router. For better network security, change to a unique SSID and assign a password.

ASUS router

2.4G WiFi Name (SSID): ASUS_XX_2G

5G WiFi Name (SSID): ASUS_XX_5G

* XX refers to the last two digits of 2.4GHz MAC

address. You can nd it on the label on the

back of your router.

English

AiMesh SETUP STEPS

within

1-3 meter

AiMesh node AiMesh router

Prepare

Place your AiMesh router and node within 1-3 meters of each other during the setup

process.

Refer to ONE ROUTER SETUP STEPS to

connect your AiMesh router to your PC

and modem, and then log in into the

web GUI.

AiMesh node

Factory default status. Keep pow-

er on and standby for AiMesh

system settings.

AiMesh router

Modem AiMesh router AiMesh node

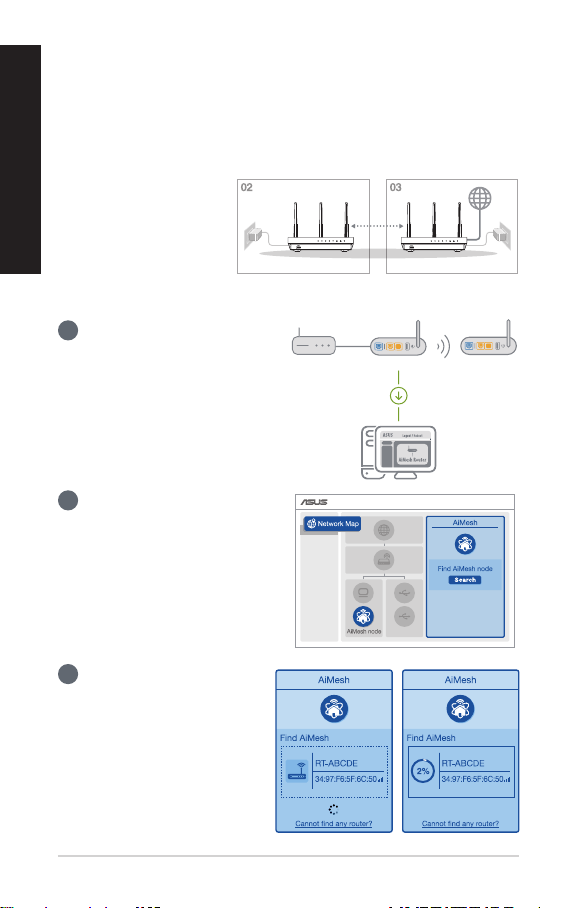

Go to Network Map page, click AiMesh

icon and then Search for your extending

AiMesh node.

** If you cannot nd the AiMesh icon

here, click on rmware version and

update the rmware.

Click Search, it will automatically

search for your AiMesh node.

When the AiMesh node shows on

this page, click it to add it into the

AiMesh system.

** If you cannot nd any AiMesh

node, please go to TROUBLE

SHOOTING.

English

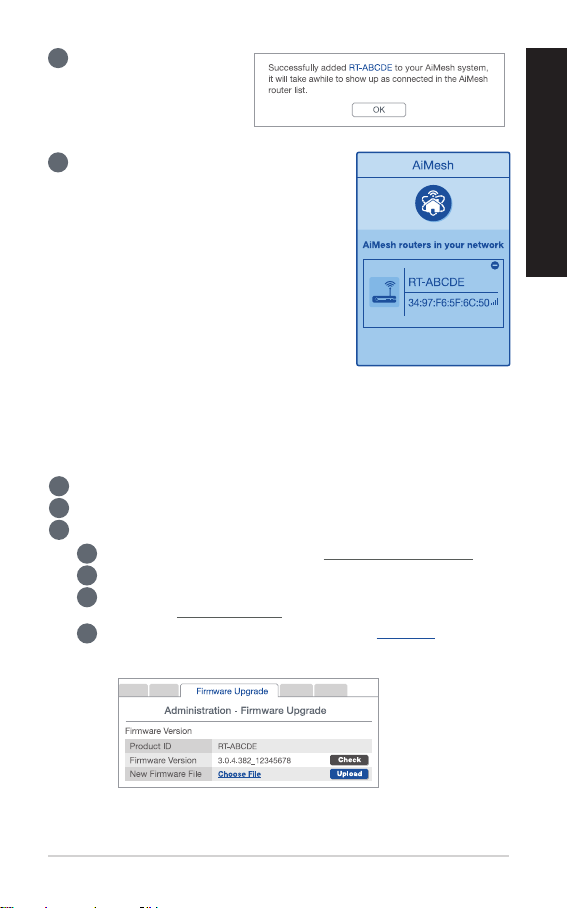

A message is displayed when

synchronization is completed.

Congratulations! You will nd the pages below show

up when an AiMesh node has been successfully added

to the AiMesh network.

TROUBLESHOOTING

If your AiMesh router cannot ﬁnd any AiMesh node nearby or synchronization

fails, please check followings and try again.

Move your AiMesh node closer to the AiMesh router ideally. Ensure it is within 1-3 meters.

Your AiMesh node is powered on.

Your AiMesh node is upgraded to AiMesh supported rmware.

Download AiMesh - supported reware at: https://www.asus.com/AiMesh/

Power on your AiMesh node and connect it to your PC via a network cable.

iii

Launch a web GUI. You will be redirected to the ASUS Setup Wizard. If not,

navigate to http://router.asus.com

Go to Administration > Firmware Upgrade. Click on Choose File, and upload

the AiMesh-supported rmware.

English

After rmware uploaded,

please go to Network Map

page to conrm whether

AiMesh icon showed up.

Press the reset button on

your AiMesh node for at

least 5 seconds. Release

the reset button when the

power LED is ashing slowly.

Reset

NOTES: Use only the adapter that came with your package. Using other adapters may

damage the device.

Specications:

DC Power adapter DC Output: +19V with max 1.75A current

Operating Temperature 0~40oC Storage 0~70oC

Operating Humidity 50~90% Storage 20~90%

English

RELOCATION

Locate AiMesh router and node at best place.

THE BEST PERFORMANCE

NOTES: To minimize interference, keep the routers away from devices like cordless

phones, Bluetooth devices and microwave ovens.

We recommend that you place the routers in an open or spacious location.

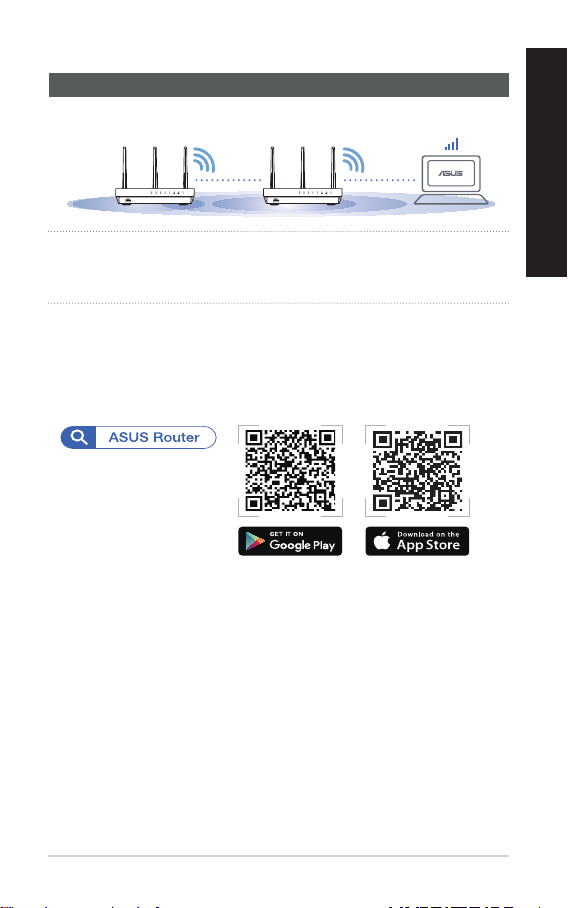

ASUS ROUTER APP

Download free ASUS Router APP to setup and manage your router(s).

English

FAQ FREQUENTLY ASKED QUESTIONS

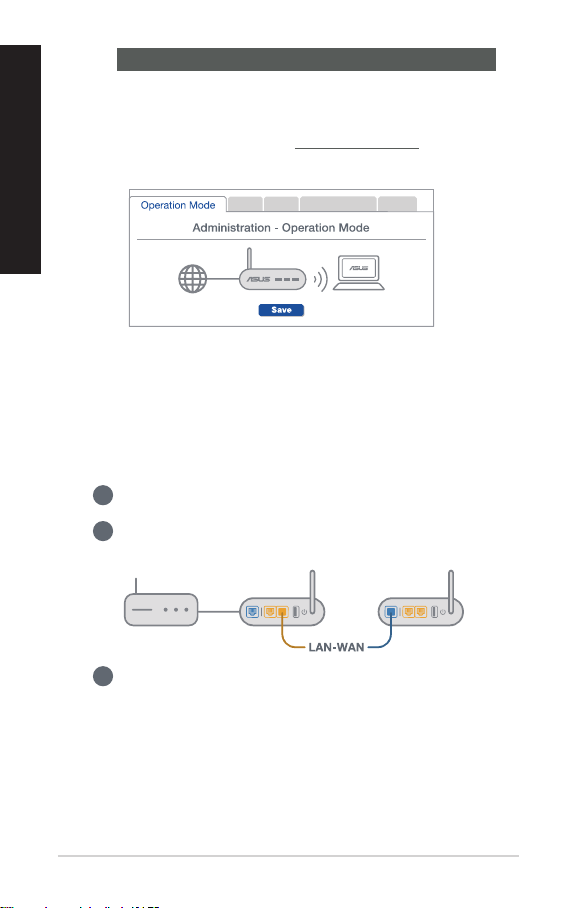

Does the AiMesh router support Access Point mode?

A:Yes. You can choose to set the AiMesh router as router mode or access

point mode. Please go to web GUI (http://router.asus.com), and go to the

page Administration > Operation Mode.

Could I setup wired connection between AiMesh routers (Ethernet

backhaul)?

A:Yes. AiMesh system supports both wireless and wired connection

between AiMesh router and node to maximize throughput and stability.

AiMesh analyzes the wireless signal strength for each frequency band

available, and then determines automatically whether a wireless or wired

connection is best to serve as the inter-router connection backbone.

Follow the setup steps to establish a connection between the AiMesh router and

node via Wi-Fi rst.

Place the node in the ideal locations for best coverage. Run an Ethernet cable from

the LAN port of the AiMesh router to the WAN port of AiMesh node.

AiMesh system will auto-select the best path for data transmission, whether wired

or wireless.
