1 Getting to know your wireless1 Getting to know your wireless

routerrouter

1.1 Welcome!

Thank you for purchasing an ASUS ZenWiFi XD4 PLUS Wireless

Router!

The strikingly designed black chassis with gaming-inspired red

accents, ZenWiFi XD4 PLUS features a 2.4GHz and 5GHz dual

bands for an unmatched concurrent wireless HD streaming;

SMB server, UPnP AV server, and FTP server for 24/7 le sharing;

a capability to handle 300,000 sessions; and the ASUS Green

Network Technology, which provides up to 70% power-saving

solution.

1.2 Package contents

ZenWiFi XD4 PLUS Wireless

Router

RJ45 Ethernet Cable

Power adapter Quick Start Guide

Warranty card

NOTES:

• If any of the items are damaged or missing, contact ASUS for

technical inquiries and support. Refer to the ASUS Support Hotline

list at the back of this user manual.

• Keep the original packaging material in case you would need future

warranty services such as repair or replacement.

1.3 Your wireless router

WAN/LAN port

DCIN port

LAN port

WAN/LAN port

Connect your modem to this port with a network cable.

LAN port

Connect your PC to a LAN port with a network cable.

NOTES:

• Use only the adapter that came with your package. Using other

adapters may damage the device.

• Specications:

DC Power adapter DC Output: +12V with 1.5A current

Operating Temperature 0~40oC Storage 0~70oC

Operating Humidity 50~90% Storage 20~90%

1.4 Positioning your wireless router

For optimal wireless transmission between the wireless router and

connected wireless devices, ensure that you:

• Place the wireless router in a centralized area for a maximum

wireless coverage for the network devices.

• Keep the wireless router away from metal obstructions and

away from direct sunlight.

• Keep the wireless router away from 802.11g or 20MHz only

Wi-Fi devices, 2.4GHz computer peripherals, Bluetooth devices,

cordless phones, transformers, heavy-duty motors, uorescent

lights, microwave ovens, refrigerators, and other industrial

equipment to prevent signal interference or loss.

• Always update to the latest rmware. Visit the ASUS website at

http://www.asus.com to get the latest rmware updates.

• Orient the antennas as shown in the drawing below.

1.5 Setup Requirements

To set up your wireless network, you need a computer that meets

the following system requirements:

• Ethernet RJ-45 (LAN) port (10Base-T/100Base-

TX/1000BaseTX)

• IEEE 802.11a/b/g/n/ac/ax wireless capability

• An installed TCP/IP service

• Web browser such as Internet Explorer, Firefox, Safari, or

Google Chrome

NOTES:

• If your computer does not have built-in wireless capabilities, you may

install an IEEE 802.11a/b/g/n/ac/ax WLAN adapter to your computer

to connect to the network.

• With its dual band technology, your wireless router supports 2.4GHz

and 5GHz wireless signals simultaneously. This allows you to do

Internet-related activities such as Internet surng or reading/writing

e-mail messages using the 2.4GHz band while simultaneously

streaming high-denition audio/video les such as movies or music

using the 5GHz band.

• Some IEEE 802.11n devices that you want to connect to your network

may or may not support 5GHz band. Refer to the device's manual for

specications.

• The Ethernet RJ-45 cables that will be used to connect the network

devices should not exceed 100 meters.

IMPORTANT!

• Some wireless adapters might have connectivity issues to 802.11ax

WiFi APs.

• If you’re experiencing such issue, please ensure you update the driver

to the latest version. Check your manufacturer's ocial support site

where software drivers, updates, and other related information can

be obtained.

• Realtek: https://www.realtek.com/en/downloads

• Mediatek:https://www.mediatek.com/products/connectivity-

and-networking/broadband-wi

• Intel: https://downloadcenter.intel.com/

2 Getting started2 Getting started

2.1 Router Setup

IMPORTANT!

• Use a wired connection when setting up your wireless router to

avoid possible setup problems.

• Before setting up your ASUS wireless router, do the following:

• If you are replacing an existing router, disconnect it from your

network.

• Disconnect the cables/wires from your existing modem setup. If

your modem has a backup battery, remove it as well.

• Reboot your cable modem and computer (recommended).

A. Wired connection

NOTE: You can use either a straight-through cable or a crossover cable

for wired connection.

To set up your wireless router via wired connection:

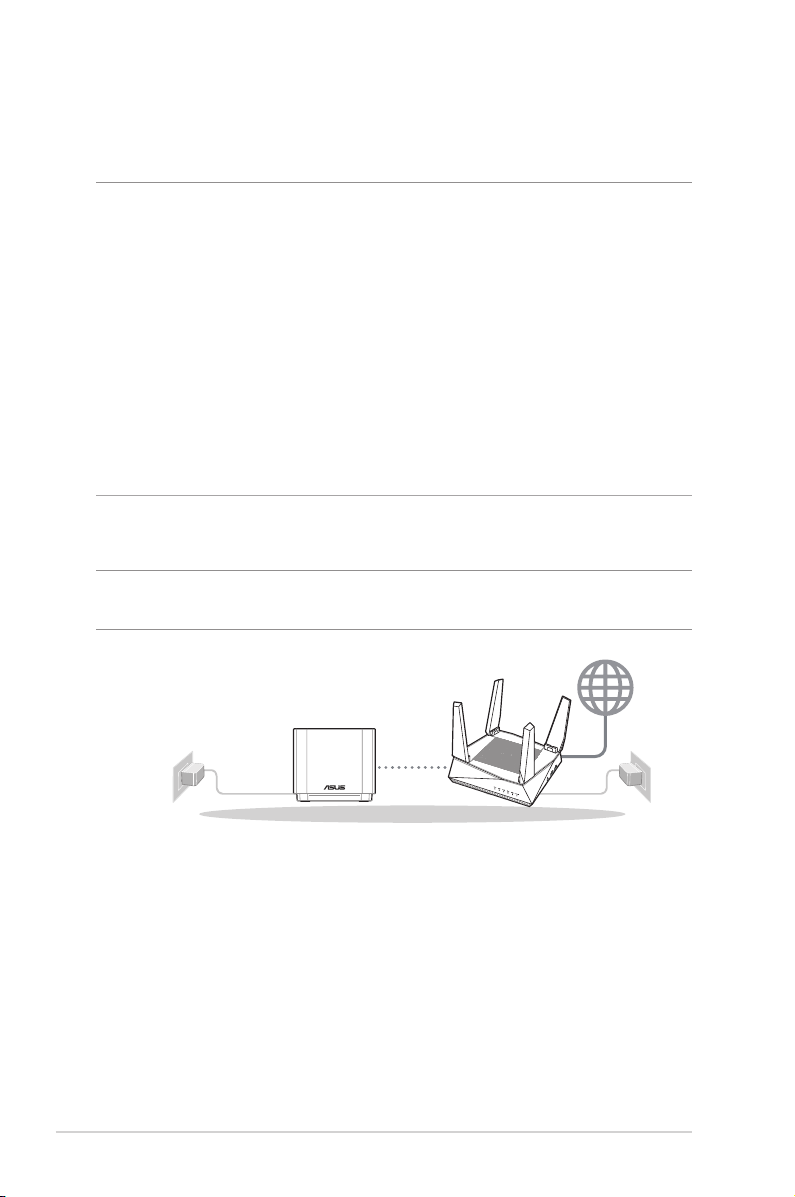

1. Insert your wireless router’s AC adapter to the DCIN port and

plug it to a power outlet.

2. Using the bundled network cable, connect your computer to

your wireless router’s LAN port.

3 Using another network cable, connect your modem to your

wireless router’s WAN port.

4. Insert your modem’s AC adapter to the DCIN port and plug it to

a power outlet.

AiMesh routerAiMesh node

Altri manuali per ZenWiFi XD4 Plus

Indice

Altri manuali Asus Router di rete

Asus

Asus 90IG06K0-MU9R10 Manuale utente

Asus

Asus RX3141 Manuale utente

Asus

Asus RT-AC66U B1 Manuale utente

Asus

Asus GX-D1051 Manuale utente

Asus

Asus 90IG02W1-BU9G10 Manuale utente

Asus

Asus RT-AX86U Manuale utente

Asus

Asus ZenWiFi Pro AX11000 Manuale utente

Asus

Asus RT-N66U Dark Knight Manuale utente

Asus

Asus RT-AC1200GE Manuale utente

Asus

Asus RT-AC66U Manuale utente

Asus

Asus RT-AC85U Manuale utente

Asus

Asus BRT-AC828 Manuale utente

Asus

Asus DSL-N16 Manuale utente

Asus

Asus RT-N66U Dark Knight Manuale utente

Asus

Asus Lyra mini Manuale utente

Asus

Asus RT-N56U Manuale utente

Asus

Asus WL-AM604 Manuale utente

Asus

Asus RT-N10U Istruzioni operative e di manutenzione

Asus

Asus ZenWiFi Pro ET12 Manuale utente

Asus

Asus DSL-AC68VG Manuale utente

Asus

Asus Aaeon FWS-2260 Manuale utente

Asus

Asus BLUE CAVE Manuale utente

Asus

Asus RT-AC66U Manuale utente

Asus

Asus RT-AC68U Manuale utente

Manuali Router di rete popolari di altre marche

Allnet

Allnet ALL0333AU Manuale utente

HomeSeer

HomeSeer HT-SEL Manuale utente

Sercomm

Sercomm Genesis OC3505D Manuale utente

Billion

Billion BIPAC 5102 Series Manuale utente

TP-Link

TP-Link TD-8817 Manuale utente

Motorola

Motorola MR1900 Manuale utente

Digi

Digi IX14 Manuale utente

Cisco

Cisco NCS 540 Manuale

XAVi

XAVi X8821e Manuale utente

BEC

BEC 6200WZL Manuale utente

MikroTik

MikroTik hAP ac3 Series Manuale utente

Korenix

Korenix JetNet 5428G Series Manuale utente

NETGEAR

NETGEAR FS526T - Switch Manuale utente

Korenix

Korenix JetNet 5710G Series Manuale utente

Automated Logic

Automated Logic ZN551 Manuale del proprietario

Cisco

Cisco ASR 1000 Series Manuale dell'operatore

EnGenius

EnGenius ESR-9710 Manuale utente

Cisco

Cisco 805 Series Istruzioni operative e di sicurezza
