Asus RT-N56U Manuale utente

Quick Start Guide

RT-N56U

Extreme Performance in Style

Dual-band Wireless-N Gigabit Router

A6485 / First Edition / May 2011

English.................................................................................................................................................3

繁體中文

...........................................................................................................................................9

簡體中文 ............................................................................................................................................15

Bahasa Indonesia.............................................................................................................................21

Bahasa Malaysia...............................................................................................................................27

ไทย

......................................................................................................................................................33

Türkçe ..................................................................................................................................................39

Networks Global Hotline Information......................................................................................45

NOTE: For more details, refer to the user manual included in

the support CD.

A quick look

1) USB LED 5) 2.4GHz LED 9) LAN 1 ~ 4 ports*

2) LAN LED 6) Power LED 10) WAN (Internet) port*

3) WAN LED 7) USB 2.0 ports 11) Power (DC-In) port

4) 5GHz LED 8) Reset button 12) WPS button

NOTE: *There are two LEDs in the WAN and LAN ports. Yellow LED means Gigabit

connection. Green LED means 10/100Mb connection.

Package contents

RT-N56U Network cable Support CD (User Manual/utilities)

AC adapter Quick Start Guide Warranty card

NOTES:

• If any of the items is damaged or missing, contact your retailer.

• For more details, refer to the user manual included in the support CD.

English

Modem

Getting started

1. Unplug and disconnect the wires/cables from your existing modem setup.

WARNING! Ensure that your cable/ADSL modem has been turned o for at least two

minutes.

a: Unplug the AC adapter from the power outlet and disconnect it from your cable/ADSL

modem.

b: Disconnect the network cable from your cable/ADSL modem.

2. Set up your wireless environment.

Modem

English

a: Insert your wireless router’s AC adapter to the DC-In port and plug it to a power outlet.

b: Using the network cable, connect your computer to your wireless router’s LAN port.

IMPORTANT! Ensure that the WAN and LAN LEDs are blinking.

c: Using another network cable, connect your modem to your wireless router’s WAN

port.

d: Insert your modem’s AC adapter to the DC-In port and plug it to a power outlet.

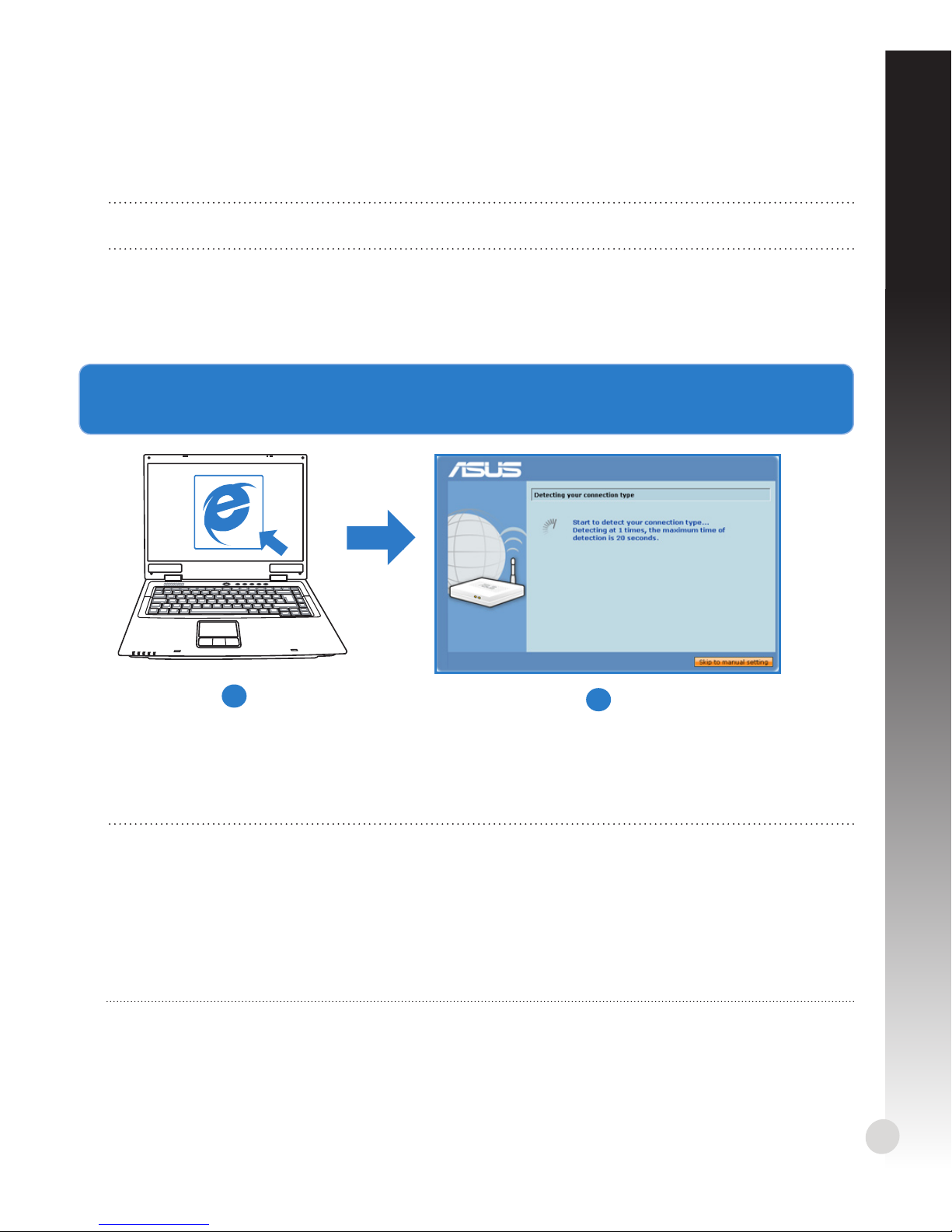

3. Launch the web browser and follow the web graphics user interface (web GUI)

instructions.

a: Launch your web browser such as Internet Explorer, Google Chrome, or Firefox.

b: Follow the Quick Internet Setup (QIS) steps.

NOTES:

• If your wireless router’s web GUI does not launch, key in http://192.168.1.1 in your

web browser, and log in using the default username: admin and password: admin.

• Disable the proxy settings, dial-up connection, and set your TCP/IP settings to

automatically obtain an IP address. For more details, refer to the

Troubleshooting

section or use the Setup Wizard in the support CD for auto-diagnosis.

English

Troubleshooting

I cannot access the web GUI to congure the wireless router settings.

• Close all running web browsers and launch again.

• Follow the steps below to congure your computer settings based on its operating

system.

Windows 7

A. Disable the proxy server, if enabled.

1. Click Start > Internet Explorer to launch the web

browser.

2. Click Tools > Internet options > Connections tab > LAN

settings.

3. From the Local Area Network (LAN) Settings screen,

untick Use a proxy server for your LAN.

4. Click OK when done.

B. Set the TCP/IP settings to automatically obtain an IP

address.

1. Click Start > Control Panel > Network and Internet >

Network and Sharing Center > Manage network con-

nections.

2. Select Internet Protocol Version 4 (TCP/IPv4), then

click Properties.

3. Tick Obtain an IP address automatically.

4. Click OK when done.

English

C. Disable the dial-up connection, if enabled.

1. Click Start > Internet Explorer to launch the browser.

2. Click Tools > Internet options > Connections tab.

3. Tick Never dial a connection.

4. Click OK when done.

Mac 10.5.8

A. Disable the proxy server, if enabled.

1. From the menu bar, click Safari > Preferenc-

es... > Advanced tab.

2. Click Change Settings... in the Proxies eld.

3. From the list of protocols, deselect FTP Proxy

and Web Proxy (HTTP).

4. Click OK when done.

B. Set the TCP/IP settings to automatically

obtain an IP address.

1. Click the Apple icon > System Preferences

> Network.

2. Select Ethernet and select Using DHCP in the

Congure eld.

3. Click Apply when done.

NOTE: Refer to your operating system’s help and support feature for details on con-

guring your computer’s TCP/IP settings and disabling the proxy server settings or the

dial-up connection.

English

Q2: My wireless connection speed is only 145 Mbps.

• Check if your network card or your computer’s built-in wireless feature has a 300 Mbps

connection capability.

• By default, Wi-Fi certied n products are congured to operate using 20 MHz chan-

nels. To change the channel bandwidth from 20 MHz to 20/40 MHz and maximize the

wireless throughput, go to Advanced Setting > Wireless > General in your wireless

router’s web GUI.

Q3: Network name or security keys are forgotten.

• Try setting up the wired connection and congure the the encryption settings again.

• Press the Reset button for more than ve seconds to reset or restore the system to its

factory default settings.

• Factory default settings:

User name / Password:

admin / admin IP address:

192.168.1.1 SSID: ASUS

Q4: Where can I nd more information about the wireless router?

• User Manual in the support CD

• Online FAQ site: http://support.asus.com/faq

English

IMPORTANT! Write down the information for your wireless settings and keep this in a

secure location.

2.4GHz Wireless Settings

Network Name (SSID):

Security Key:

5GHz Wireless Settings

Network Name (SSID):

Security Key:

Router Settings

Username:

Password:

繁體中文

認識裝置

1) USB 指示燈 5) 2.4GHz 指示燈 9) LAN 1 ~ 4 連接埠*

2) LAN 指示燈 6) 電源指示燈 10) WAN (Internet) 連接

埠*

3) WAN 指示燈 7) USB 2.0 連接埠 11) 電源 (DC-In) 連接埠

4) 5GHz 指示燈 8) 重置按鈕 12) WPS 按鈕

注意： * 在 WAN 與 LAN 連接埠上有二個指示燈。黃色指示燈表示正在進行

Gigabit 連線。綠色指示燈表示正在進行 10/100Mb 連線。

包裝內容物

RT-N56U 網路線驅動程式與公用程式光碟（使用手冊/公

用程式）

AC 變壓器快速使用指南保固卡

注意：若以上列出的任一項目有損壞或短缺的情形，請盡速與您的經銷商

Modem

開始使用

1. 移除目前數據機設定的纜線。

警告！確認您的 cable/ADSL 數據機已關閉至少兩分鐘。

a: 將 AC 變壓器從電源插座與 cable/ADSL 數據機上移除。

b: 將網路線從 cable/ADSL 數據機上移除。

2. 設定您的無線環境。

Modem

繁體中文
