AT-610PQuick Start Guide
ATCOM TECHNOLOGY CO., LIMITED
AT-610P Quick Start Guide
ISSUE 1.0
2009-9-11
AT-610PQuick Start Guide
ATCOM TECHNOLOGY CO., LIMITED
1、Installation and access.................................................................................................................3
2、Configure AT-610P to make VoIP calls.......................................................................................4
A、WAN Config ..............................................................................................................................4
B、SIP Config..................................................................................................................................5
AT-610P Quick Start Guide
ATCOM TECHNOLOGY CO., LIMITED
1、Installation and access

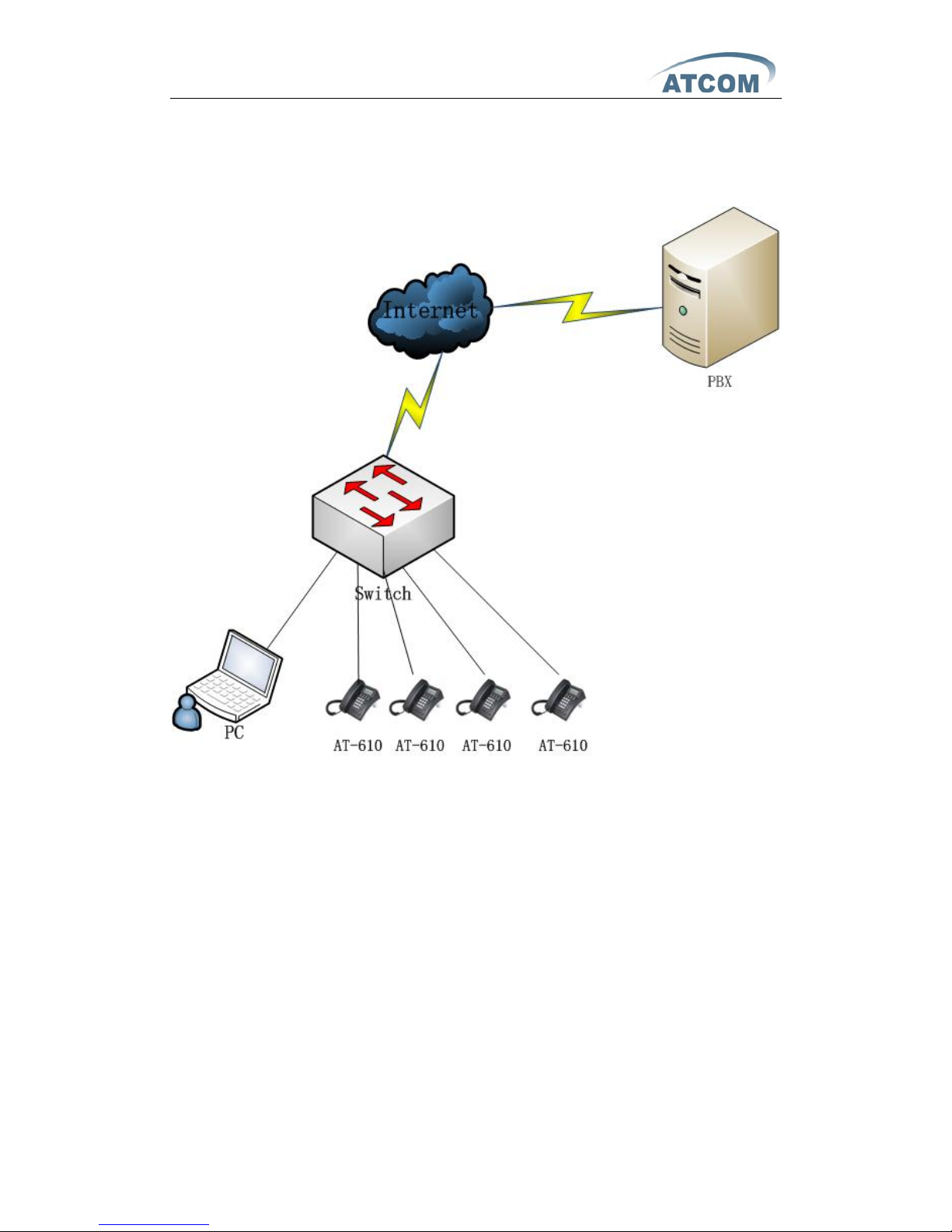

Installation:
Set up AT-610P as below:
If AT-610P is connect to your network. Press Info key to get the WAN IP address.
Modify your computer’s IP address to the same network as AT-610P
Key in AT-610P’s IP address in the web browser and press enter, then you
can access AT-610P’s web manage interface. Remember the account is
admin/admin for administrator and guest/guest for user.
AT-610P Quick Start Guide
ATCOM TECHNOLOGY CO., LIMITED
2、Configure AT-610P to make VoIP calls
A、WAN Config

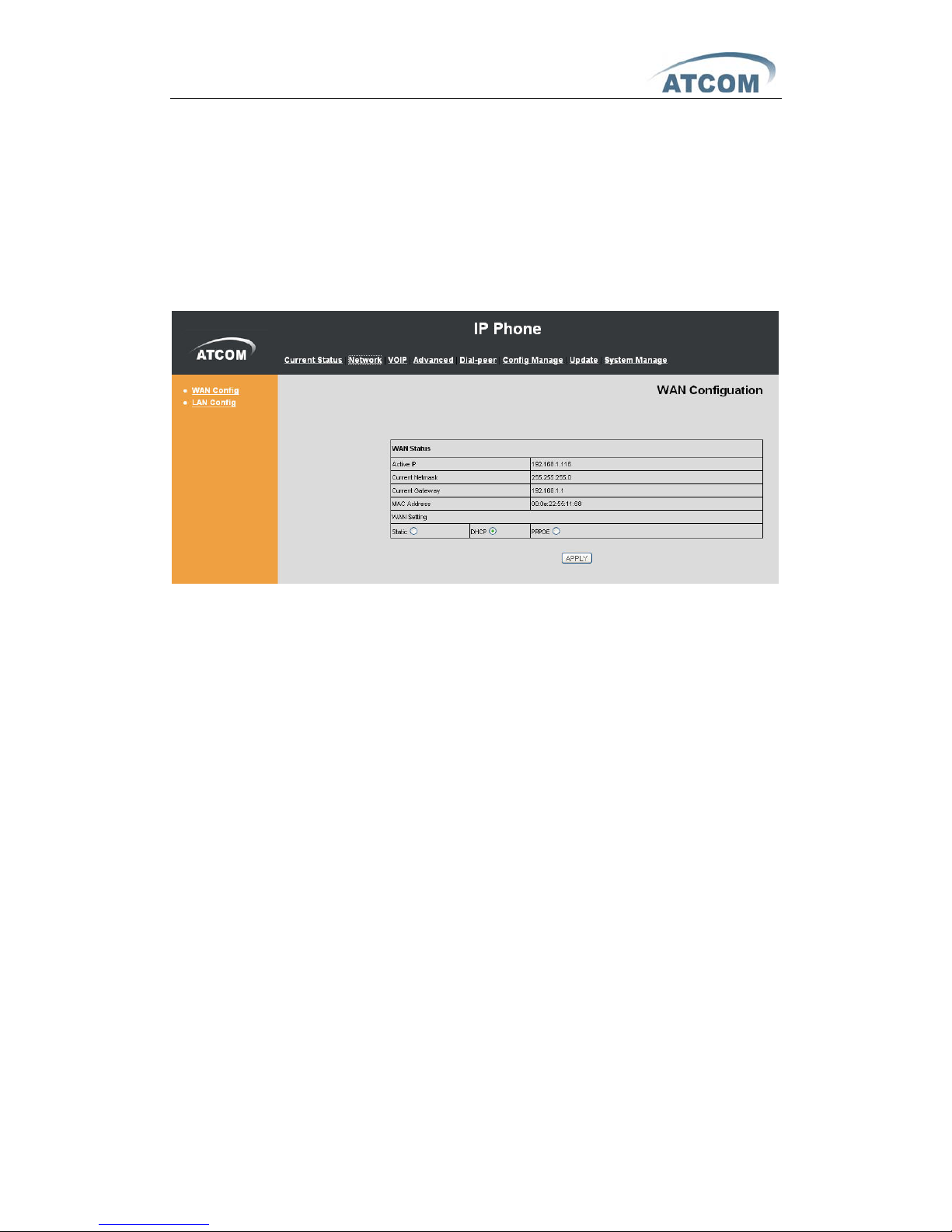

Enter Network
Æ
WAN Config to set the WAN setting:
AT-610P supports three different IP types: Static IP, Dynamic obtain IP (DHCP)
and PPPoE. You can use either of these IP types to connect the internet.
Use Static IP:
----Select “Static”;
----Enter the AT-610P’s IP address in the “IP address” field.
----Set the “Net mask”, default 255.255.255.0
----Enter the AT-610P’s upper gateway IP address (for example: Router) in the
“Gateway” field
----Key in the DNS information in the “Primary DNS” and “Alter DNS” fields.
Use DHCP:
----Select DHCP
If you have a DHCP server in your network, AT-610P will automatically obtain
the network information from your DHCP server.
Use PPPoE:
----Select PPPoE
----Type your PPPoE dialup information in the PPPoE setting fields: PPPoE server
(option), Username and password.
Then the AT-610P will connect to the internet through PPPoE, and automatically
obtain the IP address, Net mask, Gateway, Primary DNS and Alter DNS
information.
AT-610P Quick Start Guide
ATCOM TECHNOLOGY CO., LIMITED
B、SIP Config

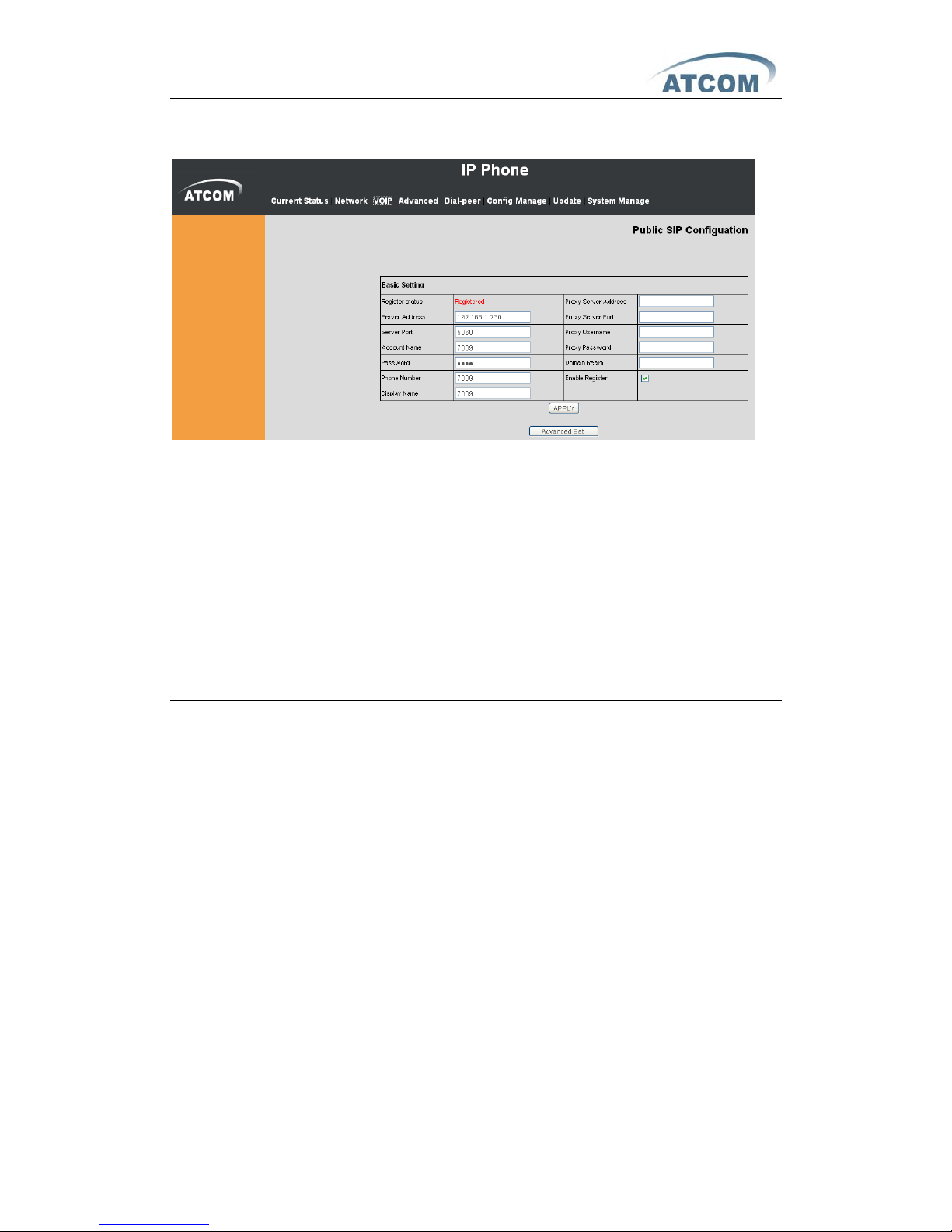

Enter VoIP setting page and set the sip information
----Register ServerAddr: sip server address;
----Register Server Port : sip server register port;
----Register Username : username of your sip account;
----Register Password : password of your sip account;
----Register Number : Phone number of your sip account; the same as username
if none
----check Enable Register；
Then you can make VoIP calls if the WAN and SIP config is correct.
Notice: Please go to the “Config Manage” and save the config, otherwise you will lose the setting
after device reboot.
