ATCOM AT800 Series Manuale utente

AT800

AT800 Quick

Quick

Quick Start

Start

Start Guide

Guide

ATCOM TECHNOLOGY CO. , LIMITED

AT800

AT800 Quick

Quick

Quick Start

Start

Start Guide

Guide

Version 1.0

20 1 3 - 01-15

AT800

AT800 Quick

Quick

Quick Start

Start

Start Guide

Guide

ATCOM TECHNOLOGY CO. , LIMITED

Catalog

1、Installation and access

.........................................................................................................

1.1 Power on

........................................................................................................................

1.2 Connect to network

........................................................................................................

2、Configure AT800 to make VoIP calls

....................................................................................

2.1 LAN Config

......................................................................................................................

2.2 SIP Config

........................................................................................................................

3、Login indicator

......................................................................................................................

AT800

AT800 Quick

Quick

Quick Start

Start

Start Guide

Guide

ATCOM TECHNOLOGY CO. , LIMITED

1、Installation

Installation

Installation and

and

and access

access

Installation:

Using AT800 as below scene:

Internet

Switch

SIP Server

800

1.1

1.1 Power

Power

Power on

1. Plug in network cable at LAN port.

2. Plug in the power jack with DC 12V/ 500m A.

3. All Leds will be lighted once and then turn off.

4. After a absolute boot up, login led will be lighted in red and AT800 comes

into stand by mode.

1.2

1.2 Connect

Connect

Connect to

to network

network

1. Connect your PC to PC port using DHCP mode.

2. Your PC should obtain an IP address in default net settings, mostly like

192.168.10.20.

AT800

AT800 Quick

Quick

Quick Start

Start

Start Guide

Guide

ATCOM TECHNOLOGY CO. , LIMITED

3. Inputting http://192.168.10.1 in your browser and press enter key to

access webpage of AT800 in user level.

4. Y ou can click “ admin ” button at the right side of webpage(under the logo)

to change to admin level .

2、Configure

Configure

Configure AT800

AT800

AT800 to

to make

make

make VoIP

VoIP

VoIP calls

calls

2.1

2.1 LAN

LAN

LAN Config

Config

E nter

Network

Network �

�

�LAN

LAN

LAN Port

Port

to set the L AN setting :

AT800 supports three different IP types: Static IP, Dynamic obtain IP (DHCP)

and PPPoE. Y ou can use either of these IP types to connect the internet.

Use

Use DHCP:

DHCP:

---- Select DHCP

If you have a DHCP server in your network , AT800 will automatically obtain

the network information from your DHCP server.

AT800

AT800 Quick

Quick

Quick Start

Start

Start Guide

Guide

ATCOM TECHNOLOGY CO. , LIMITED

Use

Use Static

Static

Static IP:

IP:

---- Select “ S tatic ” ;

---- Enter the AT800 ’ s IP address in the “ IP address ” field.

---- Set the “ Subnet Mask ” , default 255.255.255.0

---- Enter the AT800 ’ s upper gateway IP address ( for example: Router ) in

the “ Default Gateway ” field

---- Key in the DNS information in the “ Primary DNS ” and “ Secondary DNS ”

fields.

Use

Use PPPoE:

PPPoE:

---- Select PPPoE

---- Type your PPPoE dialup information in the PPPoE setting fields: PPPoE

server ( option), Username and password.

T hen connect AT800 to the Ethernet port of the modem, it will connect to the

internet through PPPoE, and automatically obtain the IP address, Subnet

M ask , Default Gateway, Primary DNS and Secondary DNS information.

Click <Submit> button on webpage to save the change and make a auto

reboot.

2.2

2.2 SIP

SIP

SIP Config

Config

2.2.1

2.2.1 SIP

SIP

SIP server

server

server config

config

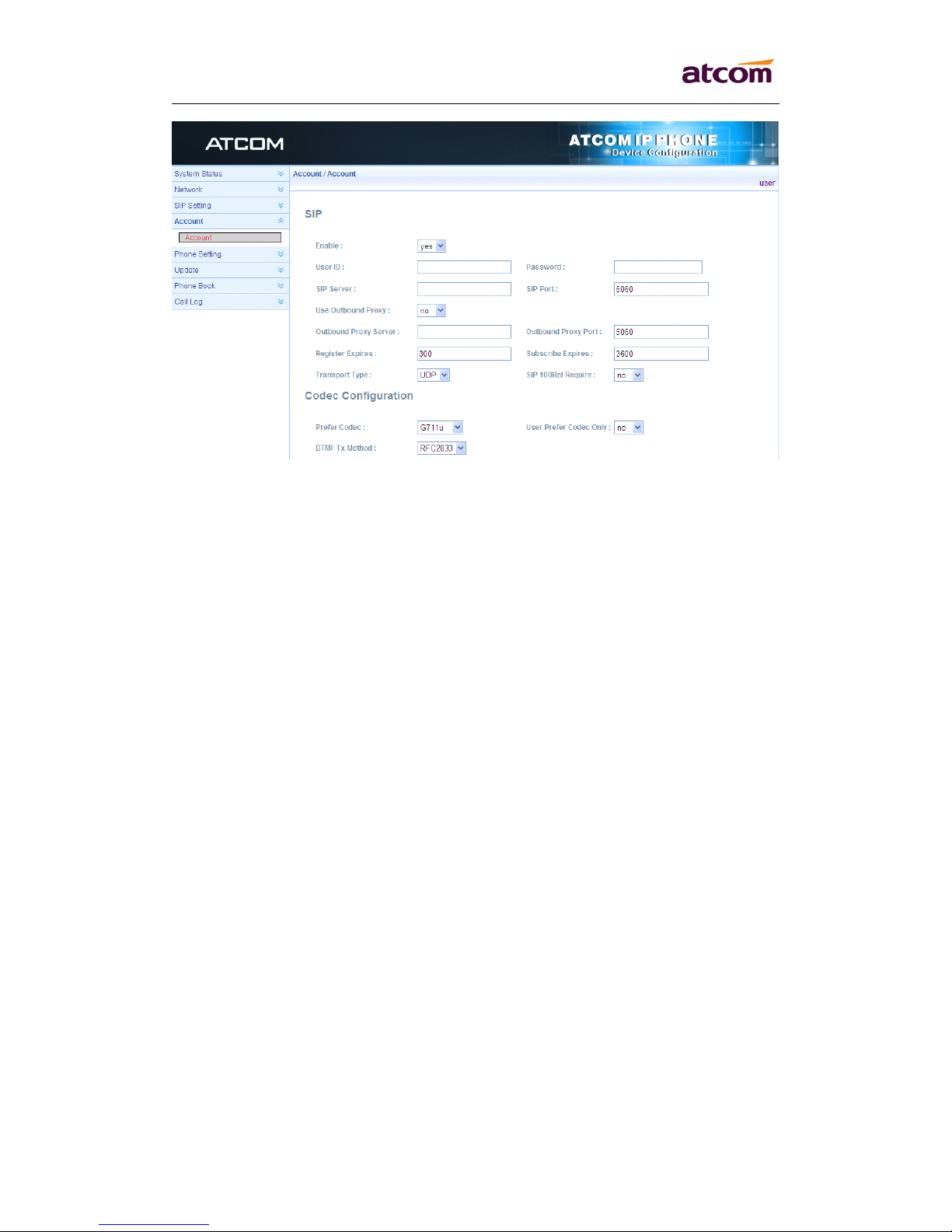

E nter

Account

Account �

�

�Account

Account

setting page and set the sip information

AT800

AT800 Quick

Quick

Quick Start

Start

Start Guide

Guide

ATCOM TECHNOLOGY CO. , LIMITED

----

---

--- Enable:

Enable:

Enable: choose yes ;

---

User

User ID:

ID:

sip account number;

---

Password:

sip password;

----

---- SIP

SIP

SIP Server

Server

Server :sip server address;

----

---- SIP

SIP

SIP Port

Port

Port :sip se rver register port;

Click <Submit> button on webpage and it will display <please wait,

restating … > on LCD.

Outbound proxy server, Register Expires, SIP 100Rel Enable, Transport Type are optional

parameters set as you need. If there is no particular requirement on these

parameters, please leave them as default settings.

2.2.2

2.2.2 Manual

Manual

Manual Login

SIP

SIP account

account

1. If [Remember account] is set to no, user needs a manual login on LCD

every time the phone restarts.

2. After the restart, it will enter idle stat e and login led will be lighted in red.

AT800

AT800 Quick

Quick

Quick Start

Start

Start Guide

Guide

ATCOM TECHNOLOGY CO. , LIMITED

2. Press <Login> button, input phone number a nd password as:

*number*password#. For example, if your number is 1234, password is

5678, then input *1234*5678# after pressing login key.

3. When registration is successful, l ogin indicator will turn off .

4. If registration is failed, login indicator will still be lighted in red. Please

check you sip server settings on webpage and press login key to input

*number*password# again to start registration.

3、Login

indicator

indicator AT800

AT800

AT800 status

status

Red/flashing LAN d isconnected

Red/stable SIP unregister

O ff SIP register ok

T hen you can make calls when the L AN and SIP config are both correct.

AT800 just supports headset calls.
