ATEN Console Extender CE- 110 Manuale utente

CE- 110 (For PC/AT)

CE- 120 (For PS/2)

User’s Manual

Packing Checklist

Console Extender: CE-110 or CE-120 xl

Power Adapter: AC 9V

500mA(min)

User’s Manual Xl

Please read thismanual thoroughly

and

follow the

installation

procedures

prevent

any

damage to the

CE-110/CE-120

and/or

the

connecting

devices.

OCo pyright

1996 ATEN International Co., Ltd.

Manual Part

No.PAPE-1086-100

Printed in Taiwan

06/96

All brand names

and

trademarks are the registered property of their respectively owners

INTRODUCTION

Console Extender enables a user to operate his computer

from distance. Installation is as easy as connecting a

Console Extender between the computer and the keyboard,

the mouse, and the monitor. Similarly, the CE-120 is

applicable for

PS/2

computers.

FEATURES:

Suitable for SVGA, VGA and Multisync monitors.

Automatic power-save mode turns off consoles when

computer is off.

Transmission distance:

262ft.(80m)

CE- 110 for PC/AT computers.

CE- 120 for

PS/2

computers.

CE-110 (for PC/AT)

Computer

Remote

Ports Devices

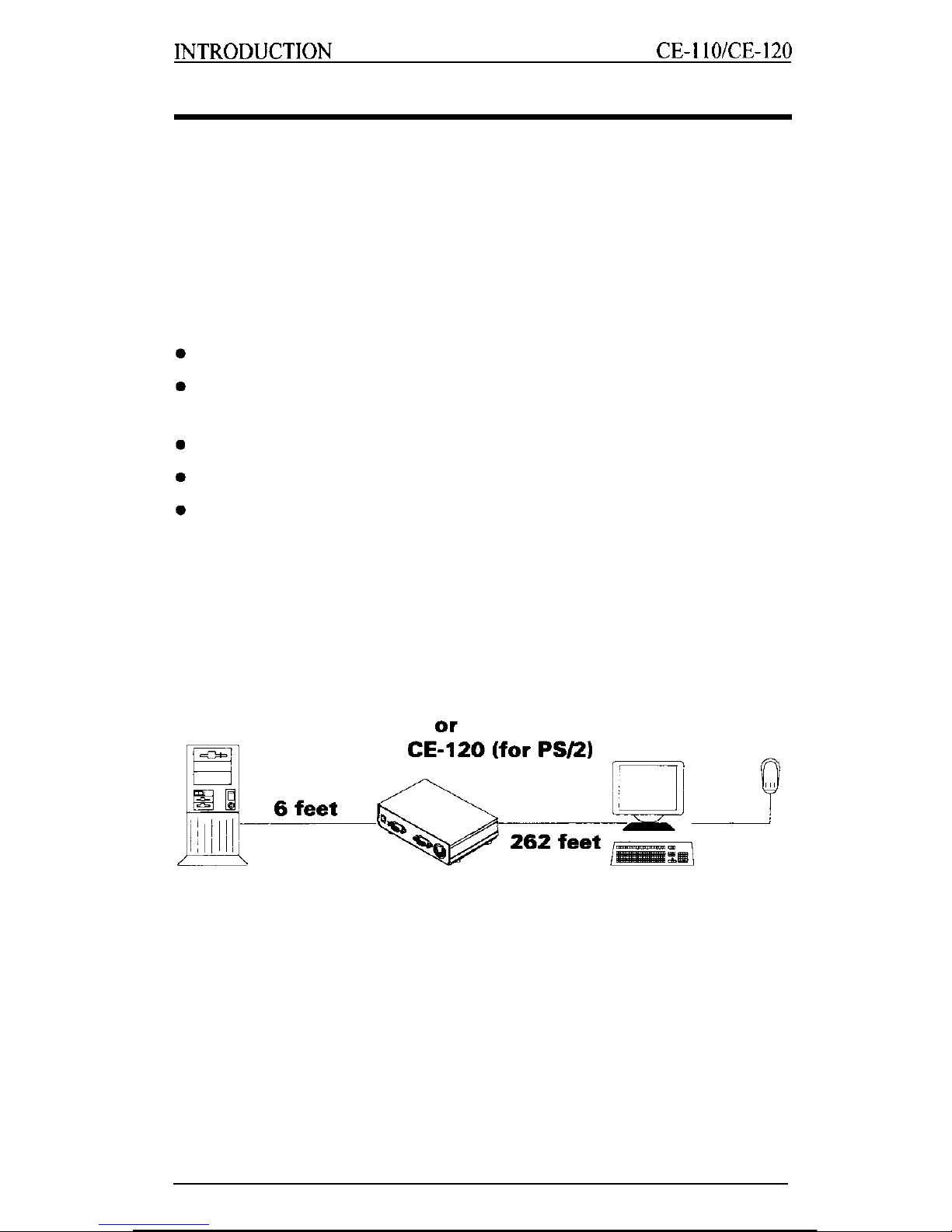

Fig. 1 Connection Diagram

-l-

INTRODUCTION

CE-I

10/CE-120

INTRODUCTION

Fig. 2 Front

view

of CE-110. These ports should be connected to a

monitor, PC/AT mouse

keyboard.

Fig. 3 Rear view of CE-100. These ports are to be connected to

corresponding ports of a PC/AT.

Fig. 4 Front view of CE-120. These ports should be connected to a

monitor,

PS/2

mouse

keyboard.

c’r”“‘“~;y(

;

Fig. 5 Rear view of CE-120. These ports are to be connected to

corresponding ports of a

PS/2.

-2-

SPECIFICATIONS

CE-ll0/CE-120

SPECIFICATIONS

Optional Combo-Cables

Combo-cable is a

3-in-1

cable for monitor, mouse and

keyboard. Video portion of the combo-cable is UL-2919

rated, mouse and keyboard portions are shielded for the

best signal integrity.

Combo-cable

part

number for CE-110 :

1. To computer ports, 6ft (1.8M)

2L- 100 1 A.

2. To console devices, 33ft(l0M)

2L-1010A.

66ft

(20M)

2L- 1020A.

Combo-cable part number for CE-120 :

1. To computer ports, 6ft

(1.8M)

2L-1001P.

2. To console devices, 33ft

(10M)

2L-1010P

66ft

(20M)

2L-

1020P.

-3-

INSTALLATION CE-1 l0/CE-120

INSTALLATION

Both CE-110 and CE-120 have identical installation

procedures, therefore, below procedures apply to both

models.

1) Supply power to the Console Extender by an AC 9V

adapter.

2) Computer’s monitor, mouse and keyboard ports are

connected to the ‘COMPUTER PORTS’ of a Console

Extender.

CE-110: DIN-5 male-to-male cable for keyboard,

DB-9 male-to-female cable for mouse and

HD-15 male-to-female cable for VGA

monitor.

CE-120: mini DIN-6 male-to-male cable for

PS/2

keyboard, mini DIN-6 male-to-male cable for

PS/2

mouse and HD- 15 male-to-female cable

for VGA monitor.

3) Connect a mouse, a keyboard and a VGA monitor to

the Console Extender’s ‘REMOTE DEVICES’ ports.

CE-110:

CE-120:

DIN-5 male-to-female cable for keyboard,

DB-9 male-to-female cable for mouse and

HD-15 high-quality UL-2919 cable for

monitor.

mini DIN-6 male to female cable for

keyboard, mini DIN-6 male-to-female cable

for mouse and HD- 15 high-quality UL-2919

cable for monitor.

Note: To achieve the highest video quality at long

distance (262ft.), use high-quality UL-29 19 cables.

For those keyboards consume more power than

others, it is recommended that you use

ATEN’s

combo cables for long distance operation.

-4-

Preventing Radio

TV Interference

CE-1 l0/CE-120

PREVENTING RADIO & TV INTERFERENCE

WARNING!!! This equipment generates, uses, and

can radiate radio frequency energy and if not

installed and used in accordance with the instructions

manual, may

cause

interference to

radio

communications. It has been tested and found to

comply with the limits for a Class A computing device

pursuant to Subpart J of part 15 of FCC Rules, which

are designed to provide reasonable protection

against such interference when operated in a

commercial environment. Operations of this

equipment in a residential area is likely to cause

interference in which case the user at his own

expense will be required to take whatever measures

may be required to correct the interference.

LIMITED WARRANTY

IN NO EVENT SHALL THE DIRECT VENDOR’S

LIABILITY EXCEED THE PRICE PAID FOR THE

PRODUCT FORM DIRECT, INDIRECT, SPECIAL,

INCIDENTAL, OR CONSEQUENTIAL DAMAGES

RESULTING FROM THE USE OF THE PRODUCT,

DISK, OR ITS DOCUMENTATION.

The direct vendor makes no warranty or

representation, expressed, implied, or statutory with

respect to the contents or use of this documentation,

and specially disclaims its quality, performance,

merchant, or fitness for any particular purpose.

The direct vendor also reserves the right to revise or

update device or documentation without obligation to

notify any individual or entity of such revisions, or

update. For further inquires please contact your

direct vendor.

-5-
